ZMG88W: DescriptionSingle Color LED, Green, Water Clear, T-3/4, 2mm, 3.20 X 1 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size185KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZMG88W Overview

Single Color LED, Green, Water Clear, T-3/4, 2mm, 3.20 X 1 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN

ZMG88W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.20 X 1 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	14.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
peak wavelength	565 nm
shape	ROUND
size	2 mm
surface mount	YES
T code	T-3/4
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

ZMG88W

www.SunLED.com

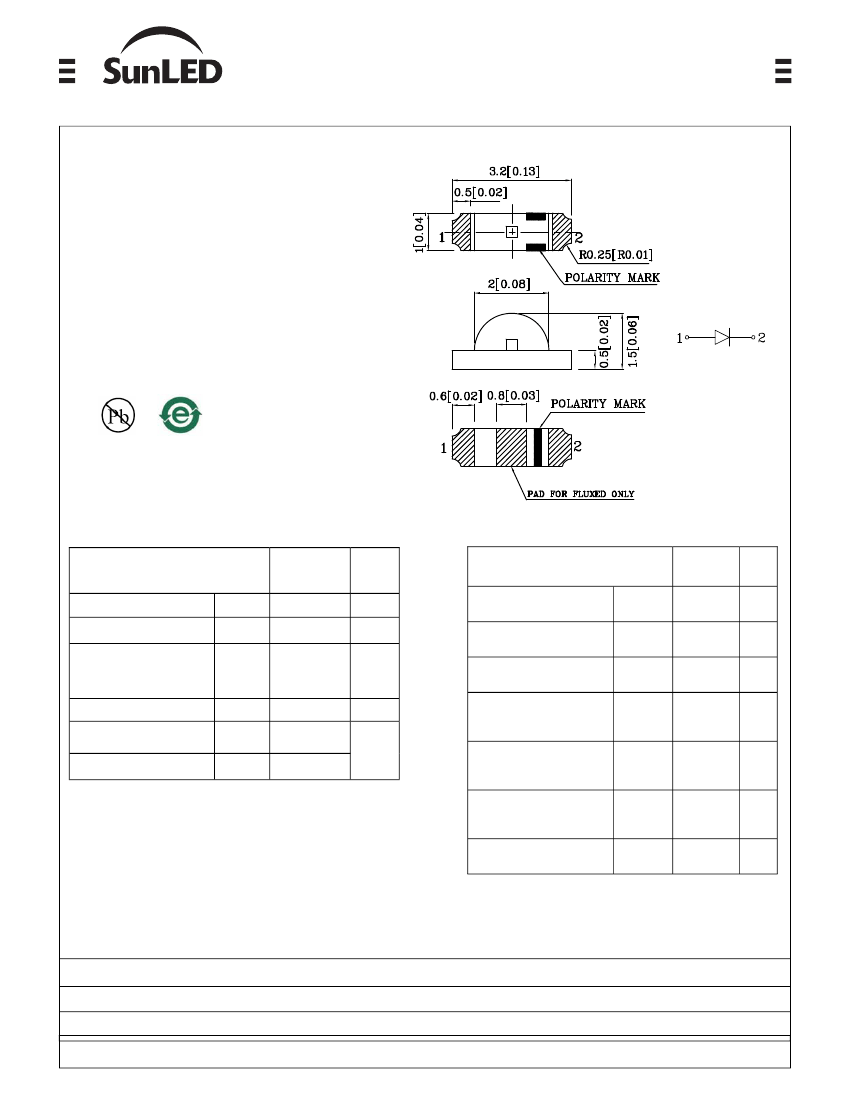

3.2x1.0mm RIGHT ANGLE SMD CHIP LED

LAMP

PRELIMINARY SPEC

Features

3.2mmx1.0mm RIGHT ANGLE SMT LED, 1.5mm

THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

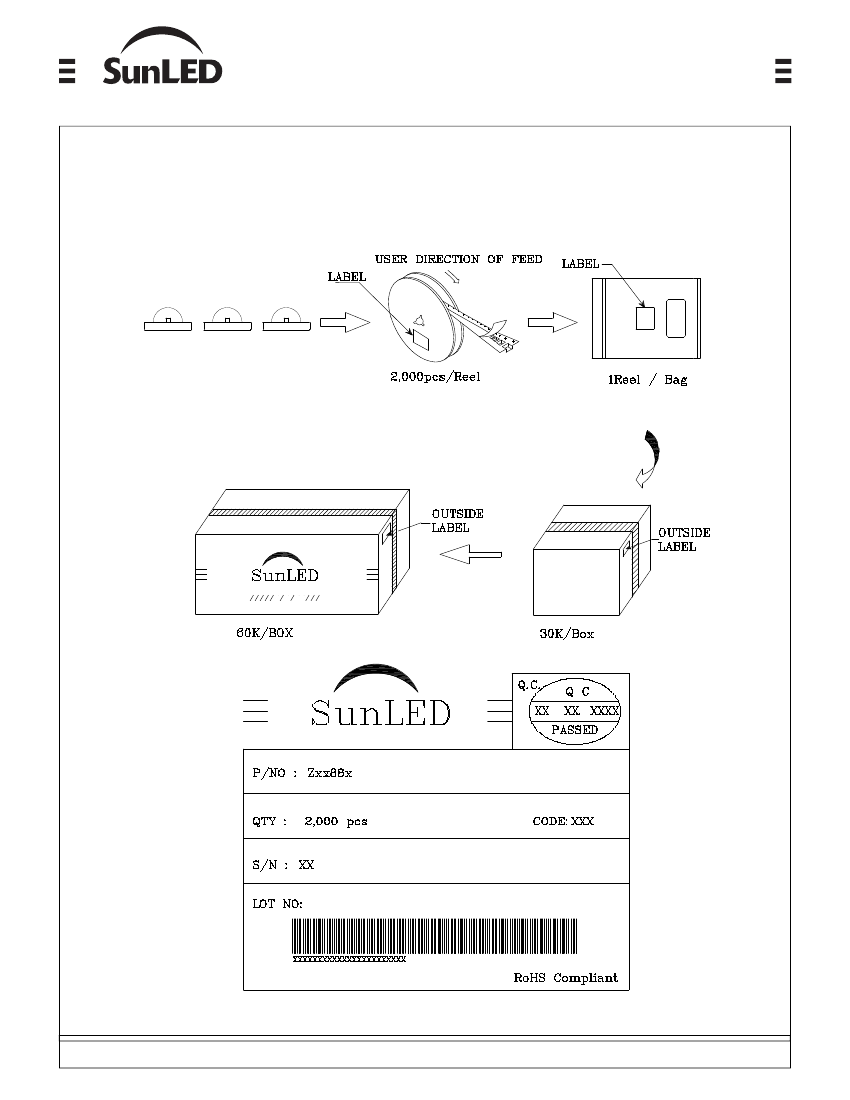

PACKAGE : 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.1(0.004") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(GaP)

140

62.5

-40 ~ +85

Unit

°C

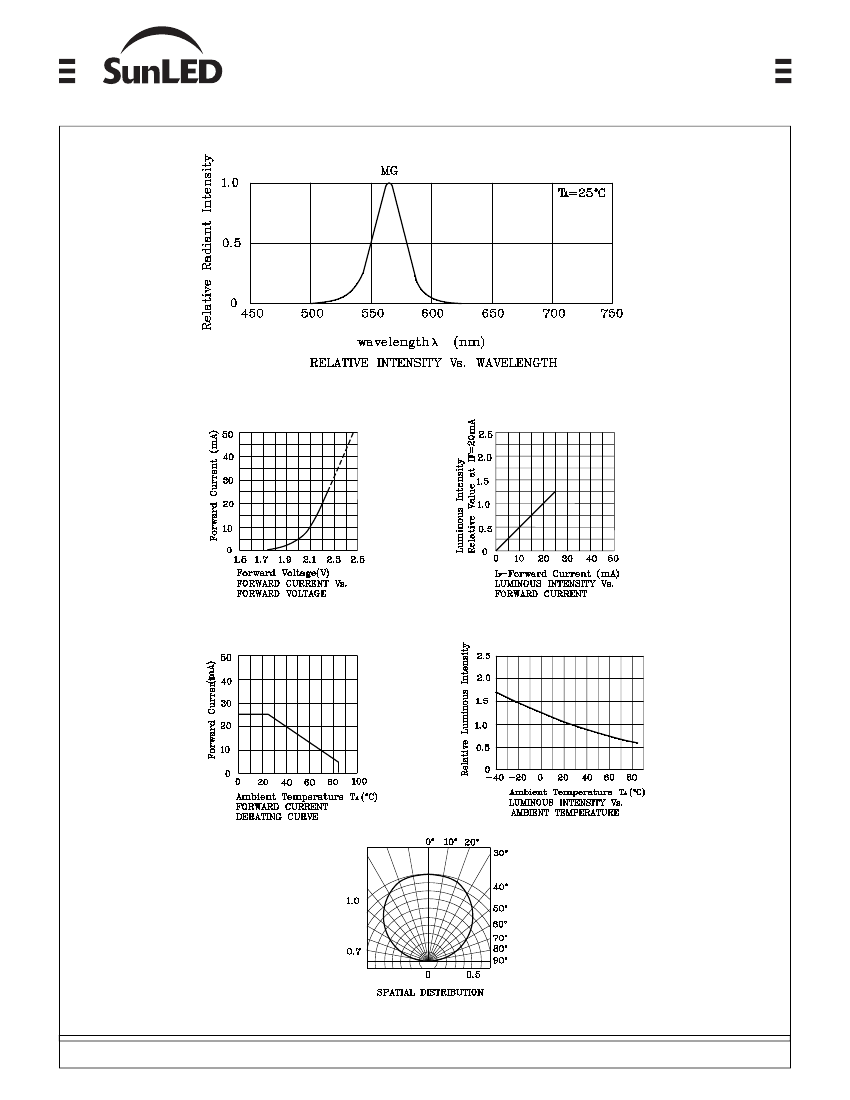

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaP)

2.2

2.5

Unit

565

568

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

Wavelength

Viewing

Angle

1/2

ZMG88W

Green

GaP

Water Clear

565

120°

Published Date : FEB 26, 2008

Drawing No : SDSA4492

Checked : B.L.LIU

P.1/4
