BAR43 / A / C / S
SCHOTTKY BARRIER DIODE
BAR43
3
BAR43A
3
BAR43C
3
BAR43S
3
1
2
1
2
1
2
1
2
BAR43 Marking Code: RD
BAR43A Marking Code: RE
BAR43C Marking Code: RF
BAR43S Marking Code: RH
SOT-23 Plastic Package
Absolute Maximum Ratings (T
a
= 25
O
C)
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non-repetitive Peak Forward Surge Current at (t = 1 s)
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating Junction Temperature
Storage Temperature Range
Symbol
V
RRM
I
F(AV)
I
FSM
P
tot
R
θJA
T
J
T
S
Value
30
200
750
290
430
150
- 55 to + 150
Unit
V
mA
mA
mW
O
C/W
O
C
C
O
Characteristics at T
a
= 25
O
C
Parameter
Reverse Breakdown Voltage
at I
R
= 100
μA
Reverse Current
at V
R
= 25 V
Forward Voltage
at I
F
= 2 mA
at I
F
= 15 mA
at I
F
= 100 mA
Reverse Recovery Time
at I
F
= I
R
= 10 mA, I
RR
= 1 mA, R
L
= 100
Ω
Symbol
V
(BR)R
I
R
Min.
30
-
0.26
-
-
-
Max.
-
500
0.33
0.45
0.8
5
Unit
V
nA
V
F
V
t
rr
ns
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 10/09/2006

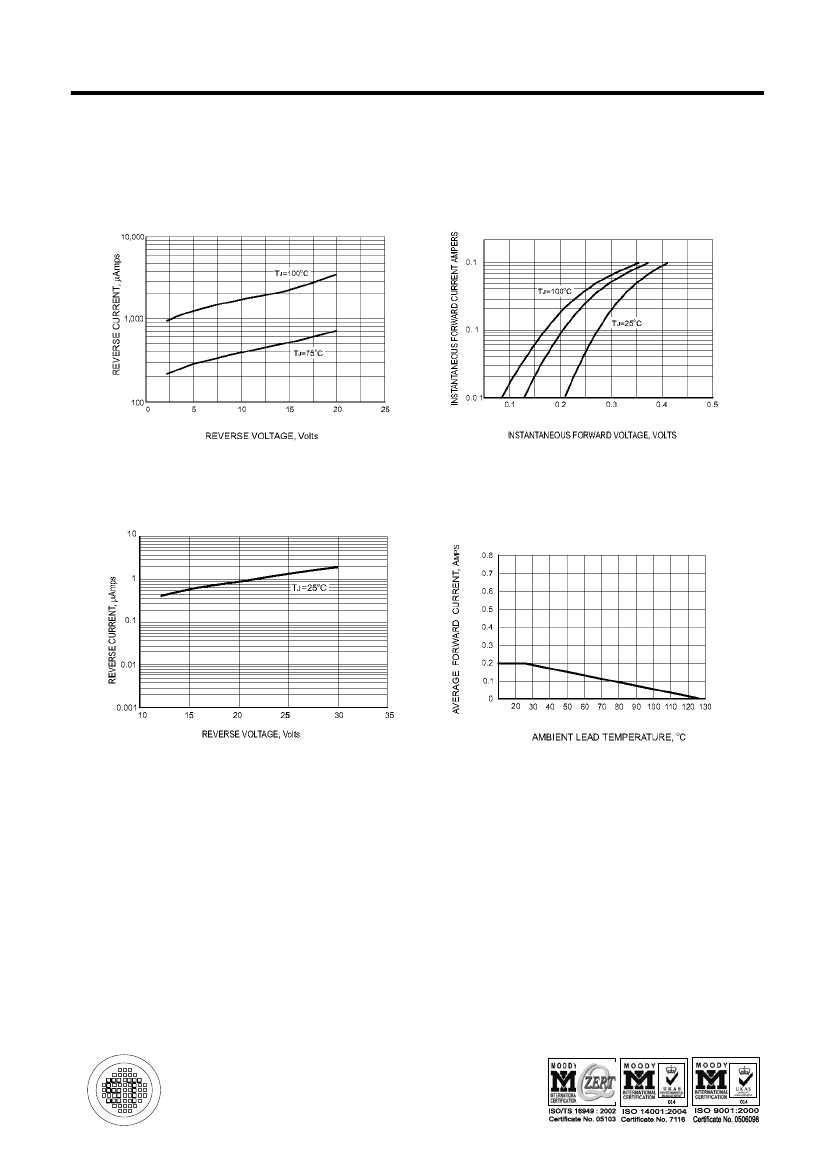

BAR43 / A / C / S
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 10/09/2006
