ZBB53W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZBB53W

Preview

ZBB53W: DescriptionSingle Color LED, Blue, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size70KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

ZBB53W Overview

Single Color LED, Blue, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN

ZBB53W Parametric

Parameter Name	Attribute value
package instruction	1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	468 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

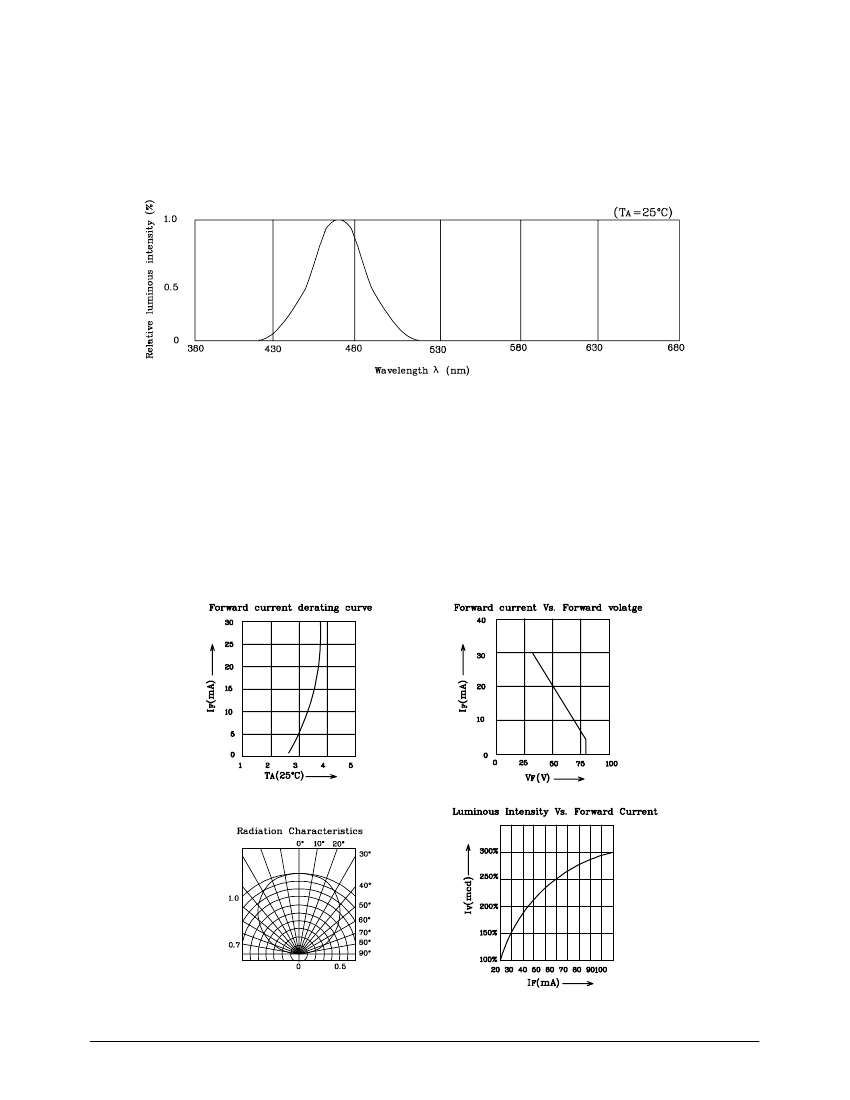

1.6x0.8mm SMD CHIP LED LAMP

ZBB53W

SUN LED

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.1(0.004")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

C)

( T

A

=25

°

C)

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operation temperature

Storage temperature

V

R

I

F

i

FS

P

T

A

Tstg

BB

( I n G a N)

5

30

100

102

-20 ~ +80

-30 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0, f=1MHz)

BB

( I n G a N)

Un i t

V

mA

mW

°+

V

F

V

F

I

R

3.5

4.0

10

V

uA

λ

peak

468

nm

∆λ

C

26

110

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

30

45

Wa v e l e n g t h

nm

Vi e w i n g

An g l e

Z B B 53W

blue

I nGaN

water clear

468

120°

1-1
