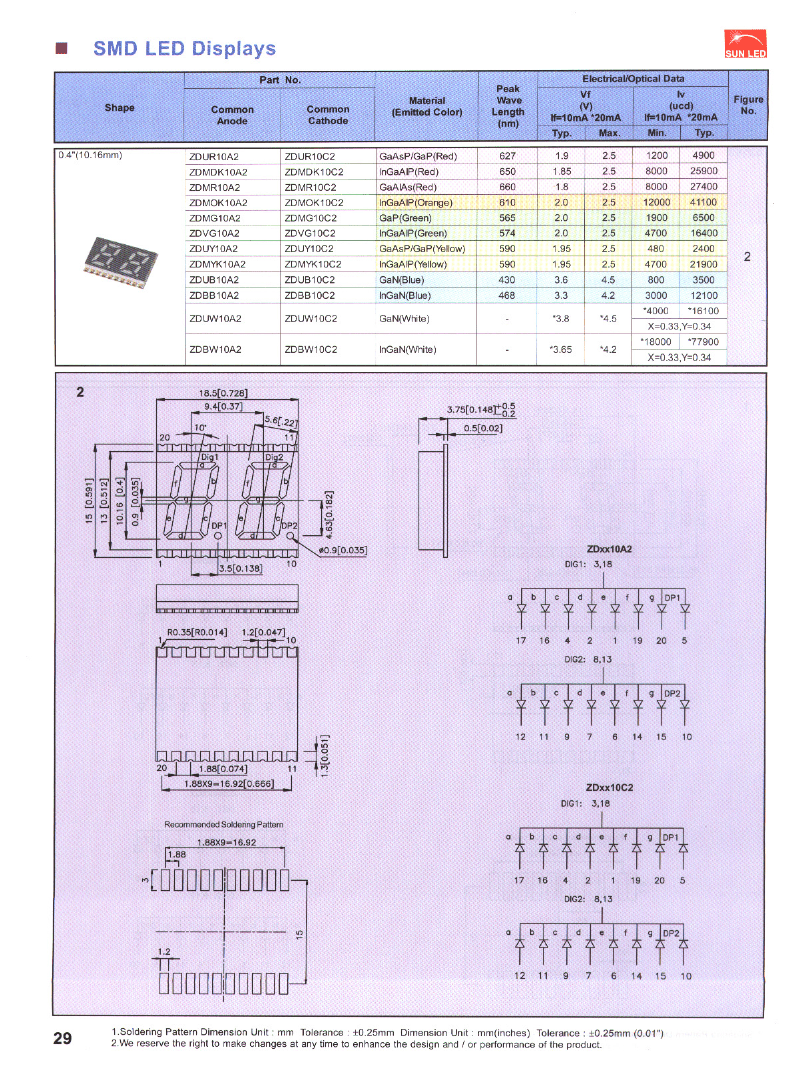

Preview

ZDBW10A2: DescriptionSmart/Normal 7 Seg Numeric LED Display, White, 10.16mm, SMD, 20 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZDBW10A2 Overview

Smart/Normal 7 Seg Numeric LED Display, White, 10.16mm, SMD, 20 PIN

ZDBW10A2 Parametric

Parameter Name	Attribute value
package instruction	SMD, 20 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	WHITE
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	10.16 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

ZDBW10A2 Related Products

	ZDBW10A2	ZDUY10A2	ZDMYK10A2	ZDUB10A2	ZDUR10A2	ZDMR10A2	ZDBB10A2	ZDMOK10A2	ZDUW10A2
Description	Smart/Normal 7 Seg Numeric LED Display, White, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Blue, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Blue, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, Orange, 10.16mm, SMD, 20 PIN	Smart/Normal 7 Seg Numeric LED Display, White, 10.16mm, SMD, 20 PIN
package instruction	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN	SMD, 20 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	WHITE	YELLOW	YELLOW	BLUE	RED	RED	BLUE	ORANGE	WHITE
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Number of functions	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1	1	1	1	1	-	-	-	-
Maker	-	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED
