ZM2CY55W-3: DescriptionSingle Color LED, Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size183KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZM2CY55W-3 Overview

Single Color LED, Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

ZM2CY55W-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.20 X 1.60 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	1790.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	1.6 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	50 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

ZM2CY55W-3

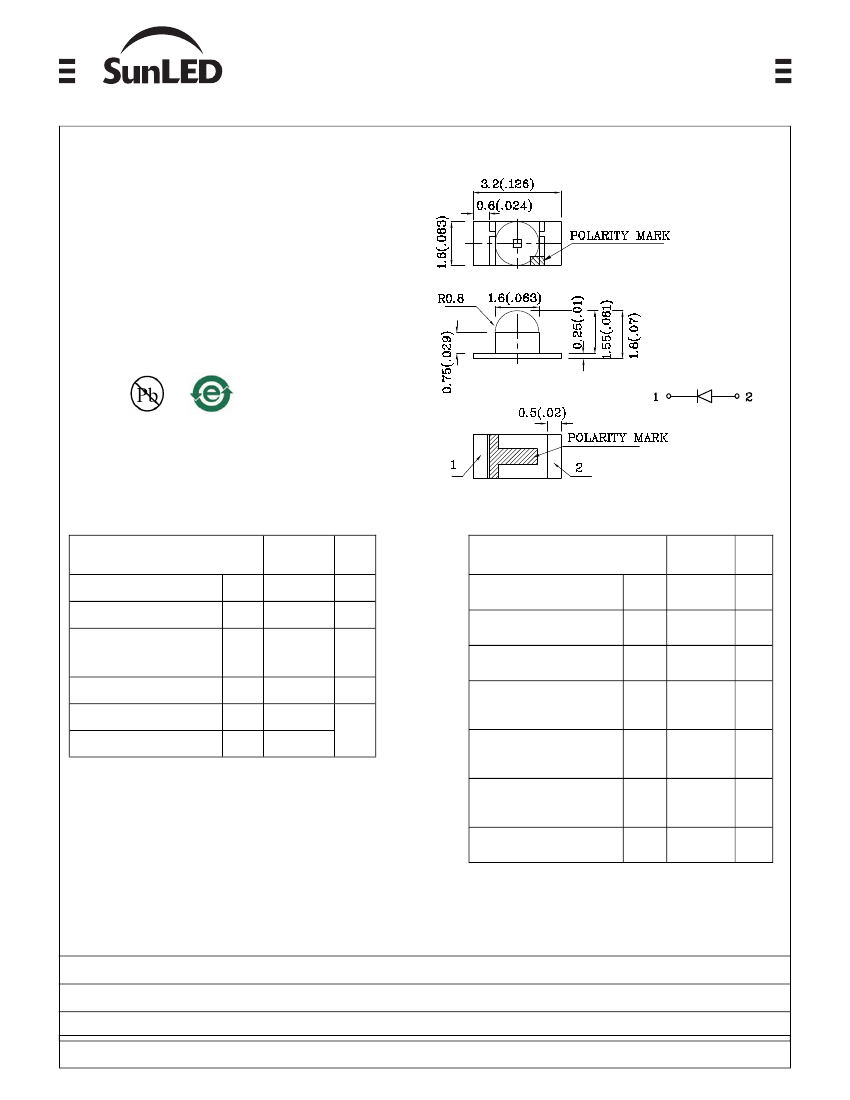

3.2x1.6mm SMD CHIP LED LAMP

PRELIMINARY SPEC

Features

3.2mmx1.6mm SMT LED,1.8mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

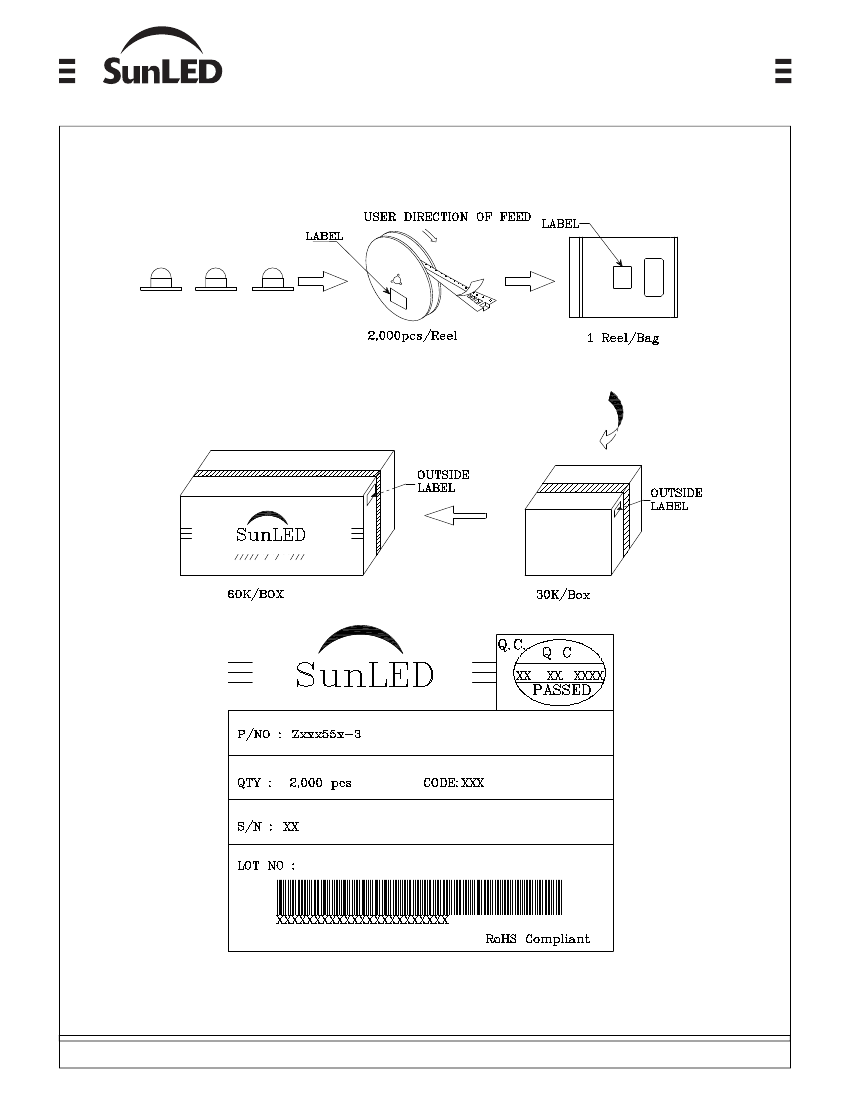

PACKAGE : 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.2(0.008") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute maximum ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

M2CY

(AlInGaP)

140

-40 ~ +85

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width At

Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

M2CY

(AlInGaP)

2.3

2.8

Unit

590

589

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

1790

Wavelength

Viewing

Angle

1/2

ZM2CY55W-3

Yellow

AlInGaP

Water Clear

900

590

Published Date : FEB 23, 2008

Drawing No : SDSA6225

Checked : B.L.LIU

P.1/4
