ZM2CR56W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZM2CR56W

ZM2CR56W: DescriptionSingle Color LED, Red, Water Clear, 2mm, 3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size178KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZM2CR56W Overview

Single Color LED, Red, Water Clear, 2mm, 3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN

ZM2CR56W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	1295.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1 mm
method of packing	TAPE AND REEL
peak wavelength	640 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

ZM2CR56W

www.SunLED.com

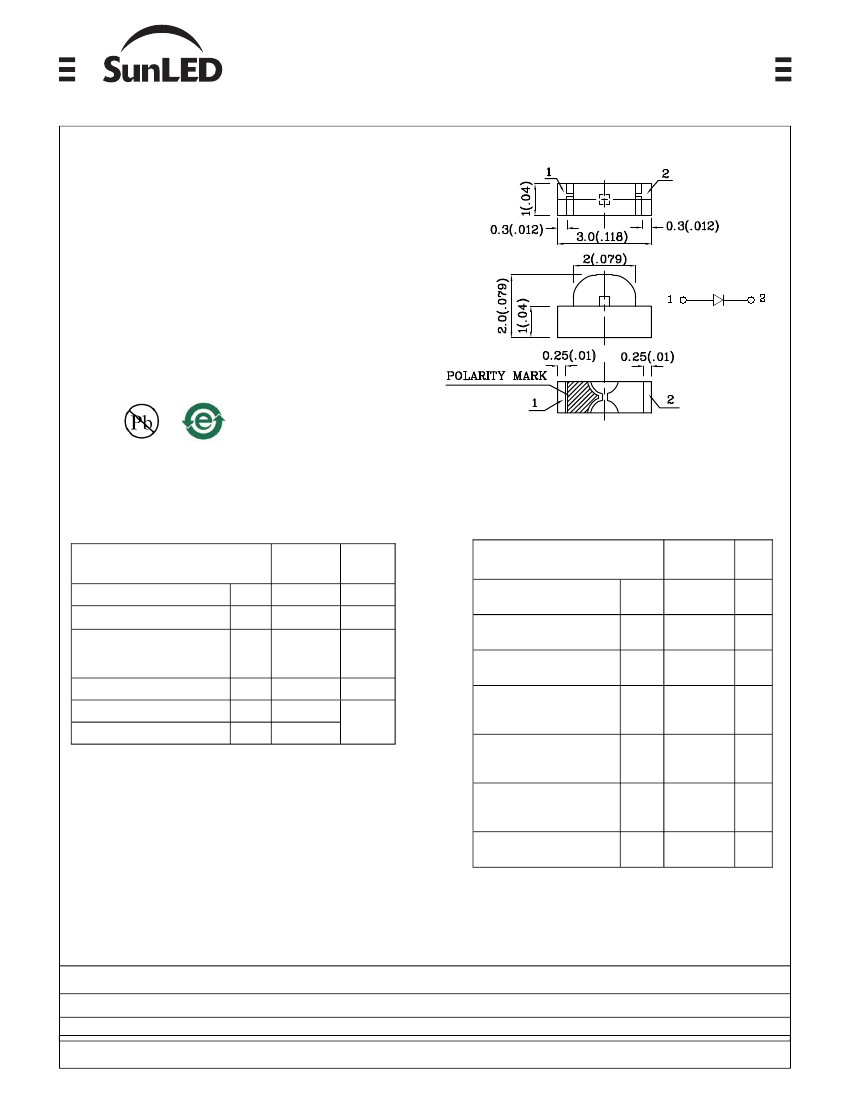

3.0mmx1.0 mm RIGHT ANGLE SMD CHIP LED

LAMP

PRELIMINARY SPEC

Features

3.0mmx1.0mm RIGHT ANGLE SMT LED, 2.0mm

THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACK LIGHT AND INDICATOR.

VARIOUS COLORS AND LENS TYPES AVAILABLE.

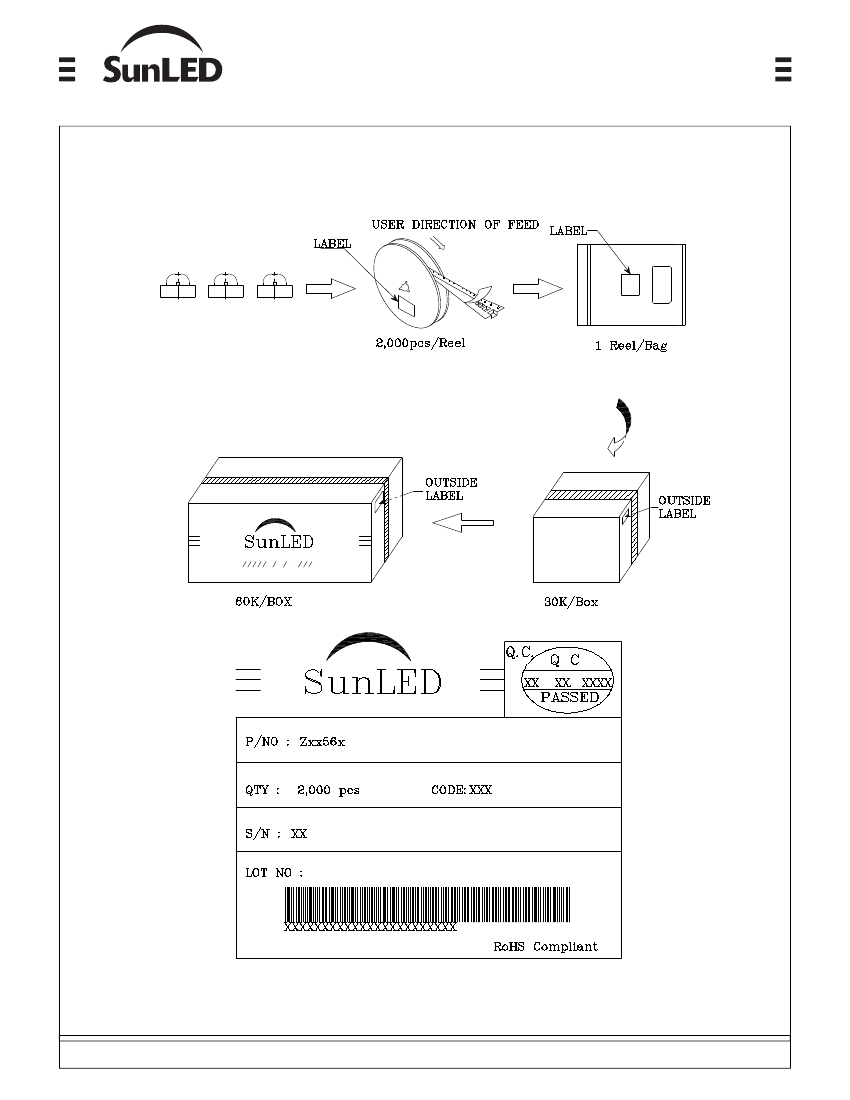

PACKAGE : 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.15(0.006") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

M2CR

(AlInGaP)

150

-40 ~ +85

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

M2CR

(AlInGaP)

2.2

2.8

Unit

640

630

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

1295

Wavelength

Viewing

Angle

1/2

ZM2CR56W

Red

AlInGaP

Water Clear

650

640

120°

Published Date : FEB 25, 2008

Drawing No : SDSA6238

Checked : B.L.LIU

P.1/4
