BU2510-E3/72

Description
DIODE 3.5 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE, ROHS COMPLIANT, PLASTIC PACKAGE-4, Bridge Rectifier Diode
CategoryDiscrete semiconductor    diode
File Size109KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BU2510-E3/72 Overview

DIODE 3.5 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE, ROHS COMPLIANT, PLASTIC PACKAGE-4, Bridge Rectifier Diode

BU2510-E3/72 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionR-PSFM-T4
Contacts4
Reach Compliance Codeunknown
Other featuresUL RECOGNIZED
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
JESD-30 codeR-PSFM-T4
JESD-609 codee3
Maximum non-repetitive peak forward current300 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current3.5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
surface mountNO
Terminal surfaceMATTE TIN
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
New Product

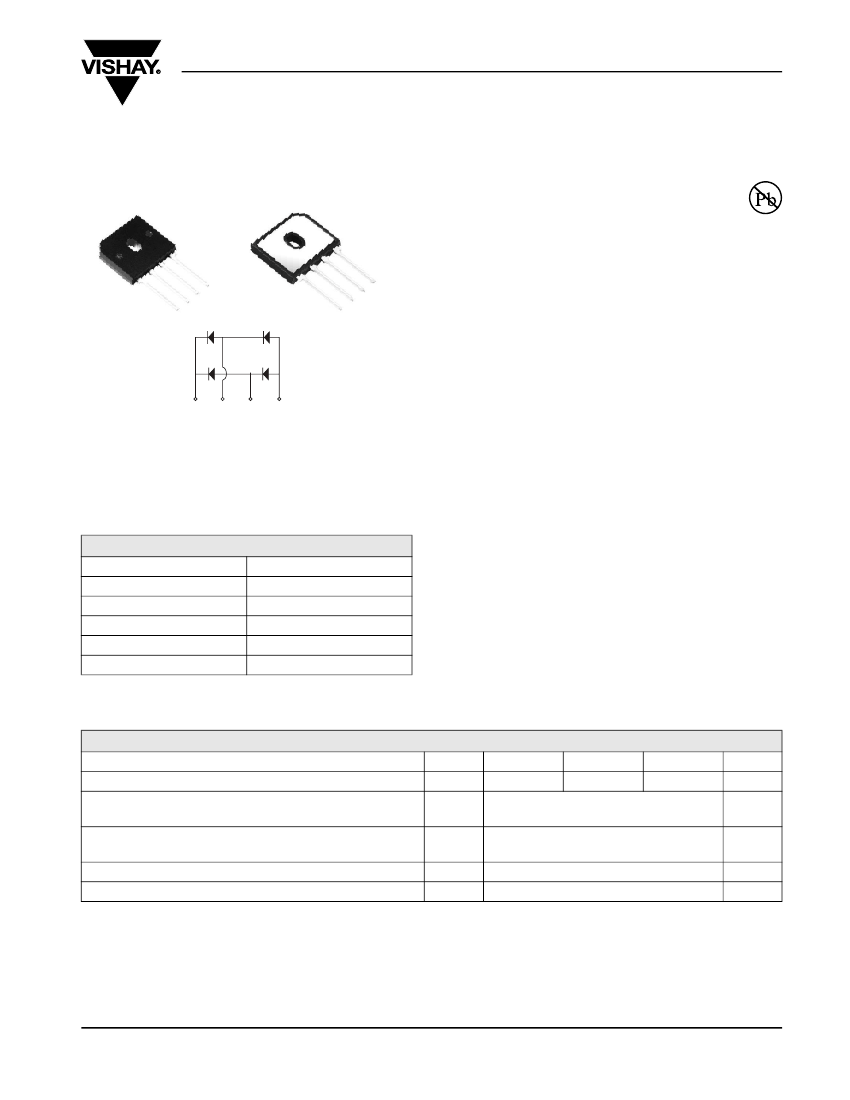

BU2506 thru BU2510
Vishay General Semiconductor
High-Current Density Single-Phase Bridge Rectifiers
Case Style BU
FEATURES
• UL recognition file number E309391
(QQQX2) UL 1557 (see *)
• Thin single in-line package
+
~
~
-
-
~
~
+
• Superior thermal conductivity
• Solder dip 260 °C, 40 seconds
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave
rectification for switching power supply, home
appliances and white-goods applications.
MECHANICAL DATA
Case:
BU
Terminals:
Matte tin plated leads, solderable per
J-STD-002B and JESD22-B102D
E3 suffix for commercial grade, meets JESD 201 class
1A whisker test
Polarity:
As marked on body
Mounting Torque:
10 cm-kg (8.8 inches-lbs) max.
Recommended Torque:
5.7 cm-kg (5 inches-lbs)
+
~
~
-
* Tested to UL standard for safety electrically isolated semiconductor
devices. UL 1557 4th edition.
Dielectric tested to maximum case, storage and junction
temperature to 150 °C to withstand 1500 V.
Epoxy meets UL 94V-0 flammability rating.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 12.5 A
T
J
max.
25 A
600 V, 800 V, 1000 V
300 A
5 µA
0.87 V
150 °C
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Average rectified forward current (Fig. 1, 2)
Non-repetitive peak forward surge current
8.3 ms single sine-wave, T
J
= 25 °C
Rating for fusing (t < 8.3 ms) T
J
= 25 °C
Operating junction and storage temperature range
Notes:
(1) With 60 W air cooled heatsink
(2) Without heatsink, free air
T
C
= 60 °C
(1)
T
A
= 25 °C
(2)
SYMBOL
V
RRM
I
O
I
FSM
I
2
t
T
J
, T
STG
BU2506
600
BU2508
800
25
3.5
300
373
- 55 to + 150
BU2510
1000
UNIT
V
A
A
A
2
s
°C
Document Number: 84805
Revision: 24-Aug-07
www.vishay.com
1

BU2510-E3/72 Related Products

BU2510-E3/72 BU2506-E3/72
Description DIODE 3.5 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE, ROHS COMPLIANT, PLASTIC PACKAGE-4, Bridge Rectifier Diode Bridge Rectifier Diode, 1 Phase, 3.5A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-4
package instruction R-PSFM-T4 R-PSFM-T4
Contacts 4 4
Reach Compliance Code unknown unknow
Other features UL RECOGNIZED UL RECOGNIZED
Configuration BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials SILICON SILICON
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
JESD-30 code R-PSFM-T4 R-PSFM-T4
JESD-609 code e3 e3
Maximum non-repetitive peak forward current 300 A 300 A
Number of components 4 4
Phase 1 1
Number of terminals 4 4
Maximum output current 3.5 A 3.5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 600 V
surface mount NO NO
Terminal surface MATTE TIN MATTE TIN
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Base Number Matches 1 1
