5-104744-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-104744-3

5-104744-3: Description10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-104744-3 Overview

10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

5-104744-3 Parametric

Parameter Name	Attribute value
Objectid	1467238694
Reach Compliance Code	unknown
YTEOL	9.15
body width	0.198 inch
subject depth	0.35 inch
body length	0.294 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

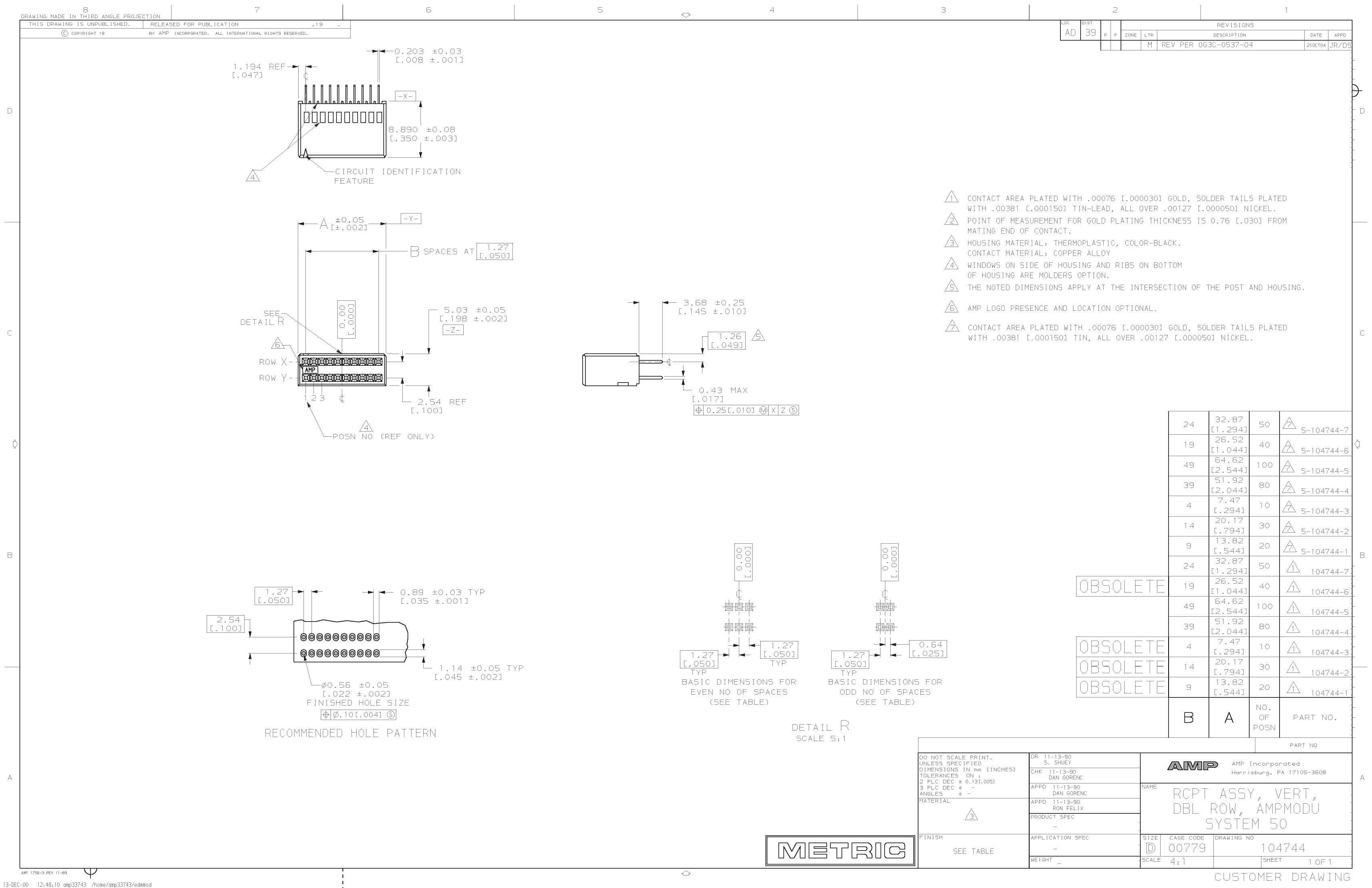

Preview

Download Datasheet

View All

5-104744-3 Related Products

	5-104744-3	5-104744-1	5-104744-2	5-104744-6	104744-7
Description	10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 50 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Objectid	1467238694	1467238692	1467238693	1467238695	1506589659
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	20	30	40	50
YTEOL	9.15	9.15	9.15	9.15	-
body width	0.198 inch	0.198 inch	0.198 inch	0.198 inch	-
subject depth	0.35 inch	0.35 inch	0.35 inch	0.35 inch	-
body length	0.294 inch	0.544 inch	0.794 inch	1.044 inch	-
Contact completed and terminated	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Insulator color	BLACK	BLACK	BLACK	BLACK	-
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
JESD-609 code	e3	e3	e3	e3	-
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	-
Number of connectors	ONE	ONE	ONE	ONE	-
PCB row number	2	2	2	2	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Plating thickness	30u inch	30u inch	30u inch	30u inch	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.145 inch	0.145 inch	0.145 inch	0.145 inch	-
