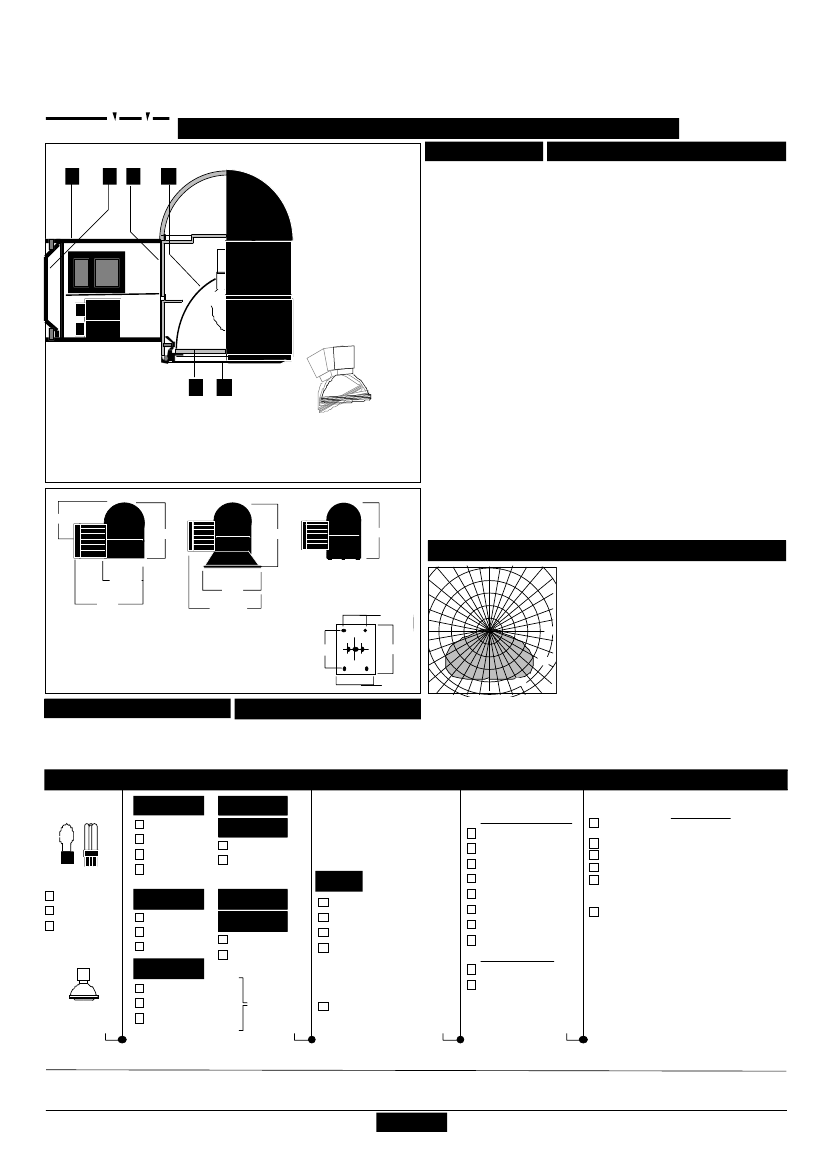

L U M I N IS
1
4
2
3
Wall mount
Specification
SYRIOS
W1220 . W1220S . W1220L
All exposed cast aluminum components are made of non corrosive
pure aluminum copper free (Aluminum is less than .1% copper
content.#356 alloy.)
Finish: All polyester powder baked coatings preceded with
a 5 baths preparation process. Meets military grade
MIL-C781706 with a 2000 hours salt spray test.
- Pulse rated porcelain socket or 75W/600V thermoplastic compact
fluorescent socket.
- One-piece molded silicone gasket with memory retention.
- High power factor CWA ballast. Or 98% P.F.electronic smart
ballast with end of life detection for compact fluorescent.
- All stainless steel hardware.
- All Moving and removable parts are sealed with a
memory retention silicone gasket.
6
5
Alternate model with internal lamp adjustability
allowing a 358º rotation X 30º tilt from vertical
position with P39/P70/P100 H.I.D. sources.
1-
2-
3-
4-
5-
6-
Cast aluminum ballast housing.
Cast aluminum modular optical light chamber.
Semi-specular aluminum reflector.
#12 Ga, Galvanized wall pressure mounting plate.
Cast aluminum sealed lens frame
Clear tempered lens
9 1/2”
141/2”
20”
18 1/2”
Photometry
9 1/2”
18”
18”
22 1/4”
W1220L
With louver blades
4 1/2”
90
W1220
W1220S
With aluminum shade
Mounting
4”
7”
Separate updated technical
specification sheets with related
models and light sources with
I.E.S formatted photometry are
available on
www.luminis.com.
60
5 1/2”
30
Certification
UL. Wet Location.
Mounting
Max. weight: 27 lbs.
Installation: Mounts over a standard 4” octagonal electrical box
with 3 1/2” c/c mounting holes. (by others). Additional separate
mounting holes are provided with wall plate..
Please refer to page
128
for additional details.
Options
Electrical
EM42S:
1 lamp (26/32/42W)
EM battery.
FS:
Fuse.
PH1:
120/277V photo cell.
PH2:
347V photo cell.
QS:
Quartz lamp socket
for external emergency
power.
QRS:
Quartz restrike
standby relay.
EM
optional battery test switch and
pilot lamp are installed remotely.
(See page103)
Model#
Light source selection
MH (ED17)
M70
M100
M150
M175
CF (Gx24q)
Single lamp
F142
F157
CF (Gx24q)
Two lamp
F226
F232
Voltage
120 V
Standard factory
prewired
(If no voltage is specified)
For other voltages, please
specify with catalog number.
H.I.D.
208 V
240 V
277 V
347 V
Compact fluorescent
smart ballast 120/277
Finish
(Refer to color chart)
Standard selection
WHT:Snow
white
BKT:
Jet black
BZT:
Bronze
GRT:
Titanium gray
DGT:
Gun metal
CHT:
Champagne
MST:
Matte silver
GNT:
Forest green
Optional colors
CS:
Custom color
RAL:
RAL# color
W1220
W1220S
W1220L
HPS (ED17)
H70
H100
H150
PAR lamps
PH39 (PAR20)
PH70 (PAR30L)
PH100 (PAR38)
Adjustable
lamps
347 V (To specify)
(Lamps by others)
Luminaries may be altered for improvements or discontinued without prior notice.
LUMINIS
[ USA ] - 3555 NW 53rd Court, Fort Lauderdale, FL.33309
LUMINIS
[ Canada ] - 87 C Brunswick D.D.O. Q.C. Canada H9B 2J5
Tel: 954 .717 .4155 Fax: 954
.
717
.
4157
Toll free: 888 .401 .6999
Web: www.luminis.com
Sept. 2006 Rev. Feb.2007
Page
117
L U M I N IS
36”
14”
14 1/2”
Mounting attachments for W1222 Series
20 1/2”
SYRIOS
23”
28 1/2”
6”
9 1/2”
-S
15º swivel ceiling mount with 5/8”
dia.X36”lg. aluminum stem. Luminaire
top adaptor allowing to cut stem to
length on site.(Mounts over a standard
4" octagonal box with 3 1/2" C/C holes)
4 1/2”
17 3/4”
15”
14”
21 1/2”
-W2
-1 1/2” Dia. shepherd
aluminum arm wall mount,
with a cast aluminum wall
cover and galvanized steel
mounting plate.
-APA2
-1 1/2” Dia.
shepherd aluminum side
pole mount.
(EPA:1.12)
-APS
-1 1/2” Dia.
shepherd aluminum post
top mount, with a cast
aluminum tenon to fit with
a 3 3/4” I.D. pole
(EPA:1.17)
29”
14 1/2”
Power supply
29 3/4”
6 1/2”
Power supply
-ACA2
-1” x 3” extruded
aluminum Davit arm pole mounting
adaptor designed to fit with 4 to 5”
dia. poles.1/2” dia.X 45º standard
natural stainless steel rod support
(EPA:1.58)
-ACW2
-1” x 3” extruded
aluminum Davit arm wall mounting
adaptor with cast aluminum covers
and galvanized steel mounting
plates. 1/2” dia.X 45º standard
natural stainless steel rod support.
-T2
-1” x 3” extruded
aluminum wall mounting
straight adaptor with cast
aluminum cover and
galvanized steel mounting
plate.
-APC2
-1” x 3” extruded
aluminum side pole
mounting straight adaptor
(EPA:1.3)
Compatible poles listing.
Post side mount with APA2 attachment accessory
Mounting
style
4”O.D.
PAA410-APA
PAA412-APA
PAA414-APA
PAA416-APA
PAA418-APA
PAA420-APA
PAA410-APC
PAA412-APC
PAA414-APC
PAA416-APC
PAA418-APC
PAA420-APC
PAA
pole
style
5”O.D.
PAA510-APA
PAA512-APA
PAA514-APA
PAA516-APA
PAA518-APA
PAA520-APA
PAA510-APC
PAA512-APC
PAA514-APC
PAA516-APC
PAA518-APC
PAA520-APC
4”O.D.
PCA12-APA
PCA14-APA
PCA16-APA
4”O.D.
PXD10-APA
PXD12-APA
PXD14-APA
PXD16-APA
PXD18-APA
PXD20-APA
PXD10-APC
PXD12-APC
PXD14-APC
PXD16-APC
PXD18-APC
PXD20-APC
Pole
height
10 ft
12 ft
14 ft
16 ft
18 ft
20 ft
10 ft
12 ft
14 ft
16 ft
18 ft
20 ft
* Note:
36” extension with ACA2 attachment
24” extension with APA2 & APC2 attachment
Post side mount with APC2 attachment accessory
OAL pole height
12-14 or 16ft.
Post top mount
PCA12-APC
PCA14-APC
PCA16-APC
*
Note
4”
PXD
pole
style
PCA
pole
style
PCA
pole
style
Post side mount with APS attachment accessory
PAA410-A
PAA412-A
PAA414-A
PAA416-A
PAA418-A
PAA420-A
PAA414-ACA
PAA416-ACA
PAA418-ACA
PAA420-ACA
PAA510-A1
PAA512-A1
PAA514-A1
PAA516-A1
PAA518-A1
PAA520-A1
PAA514-ACA
PAA516-ACA
PAA518-ACA
PAA520-ACA
PCA10-A
PCA12-A
PCA14-A
PCA16-A
PXD10-A
PXD12-A
PXD14-A
PXD16-A
PXD18-A
PXD20-A
PXD14-ACA
PXD16-ACA
PXD18-ACA
PXD20-ACA
10 ft
12 ft
14 ft
16 ft
18 ft
20 ft
14 ft
16 ft
18 ft
20 ft
60”
Post side mount with ACA2 attachment accessory
PCA14-ACA
PCA16-ACA
For poles details and specification, please refer to pages 140 to 144
LUMINIS
[ USA ] - 3555 NW 53rd Court, Fort Lauderdale, FL.33309
LUMINIS
[ Canada ] - 87 C Brunswick D.D.O. Q.C. Canada H9B 2J5
Tel: 954 .717 .4155 Fax: 954
.
717
.
4157
Toll free: 888 .401 .6999
Web: www.luminis.com
Sept. 2006 Rev. Feb.2007
Page
127
L U M IN I S
Slope ceiling adaptor
Option:
SW45
45º hang straight ball swivel
for 5/8” dia. suspension stem.
Optional accessories
Longer suspension stem
*
STA
option for:
W1250S
SYRIOS
60” lg.X5/8” O.D.
suspension stem.
80” lg. X5/8” O.D.
suspension stem.
Option
STM60
STM80
STA60:
STA80:
Option:
SB45
SW45
SB45
45º hang straight ball swivel
for 5/8” dia. suspension stem.
with adaptor plate for W1250S
Stems can be cut on site
and rethreaded externally
(Tap size 1/4 IPS / 1/4-18)
For other factory cut to size length add
suffix
-STM
with desired length to
catalog# max.120”
Suspension power cord
Note:
cable size
and type may
change at factory
discretion upon
availability, to
accommodate
required wiring
with selected
option.
Option:
SPW
(White)
SPB
(Black)
3/18 X 36”lg. power cord with
adjustable aircraft cable.
SPB
Black power cable only
with options
EM42
EM242
QS
Spiral suspension power cord
Option:
TCW
(White)
TCB
(Black)
3/18 Spiral power cord Max. 277V
Standard extended length: 3ft.
Not applicable when using options
EM42
EM242
QS
Safety suspension cable
Option:
STC
Safety aircraft suspension cable,
for applications with earthquake
regulations.
Cables extends 18” beyond
canopy.
(Secured to building structure)
Overall length change:
Option:
STM2
STM2-
Change total suspension length fro
standard length.
Specify desired length in inches.
EX: STM2-72”
Quartz lamp restrike
Option:
QRS
Quartz restrike standby lamp kit.
When power failure is restored, it
will energize temporary Quartz
lamp with progressive dimming
until full H.I.D light output is
produced.
max.100w DC bayonet type.
(Lamp is not included.)
Not Applicable with CFL lamps.
Quartz lamp restrike
Option:
QS
Quartz lamp socket for external
120V emergency power input.
Separate 120V dedicated wiring is
included.
max.100 W DC bayonet type.
(Lamp is not included.)
Not Applicable with CFL lamps.
Emergency battery back-up
EM42 / EM42S
One lamp:
26w: 450 Lmns..
32w: 575 Lmns.
42w: 750 Lmns.
Time: 90 Mnts -120/277V / T 0º C
EM Ballast wiring
diagram for 120V
factory connection.
COM
HOT
EM42
wiring
EM42S
wiring
BLK
WHT
Note:
AC ballast
WHT
EM
ballast
EM42 option is
supplied with integral
test switch and pilot
light.
EM42S is supplied
with additional wiring
for external remotely
installed test switch
and pilot light.
Note: Use of Emergency battery, requires periodic
and regular testing to ensure correct operation.
(please refer to manufacturer’s instructions.
For 57w & 70w:
(Remote installation only) Consult factory
Black/120V (Factory wired)
Orange/277V
(Cap unused lead.)
Single pole test switch (Breaking the connection)
Luminaries may be altered for improvements or discontinued without prior notice.
LUMINIS
[ USA ] - 3555 NW 53rd Court, Fort Lauderdale, FL.33309
LUMINIS
[ Canada ] - 87 C Brunswick D.D.O. Q.C. Canada H9B 2J5
Tel: 954 .717 .4155 Fax: 954
.
717
.
4157
Toll free: 888 .401 .6999
Web: www.luminis.com
Sept. 2006 JAN.2008
Page
128
