PROFESSIONAL LED INDICATORS í12.7mm Mounting

652-102-63 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, ALUMINIUM PACKAGE-2
Reach Compliance Code	compli
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	28 V
JESD-609 code	e4
Lens type	DIFFUSED
Nominal luminous intensity	450.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	9 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	ROUND
size	10 mm
surface mount	NO
T code	T-4
perspective	180 deg
Base Number Matches	1

Preview

Download Datasheet

View All

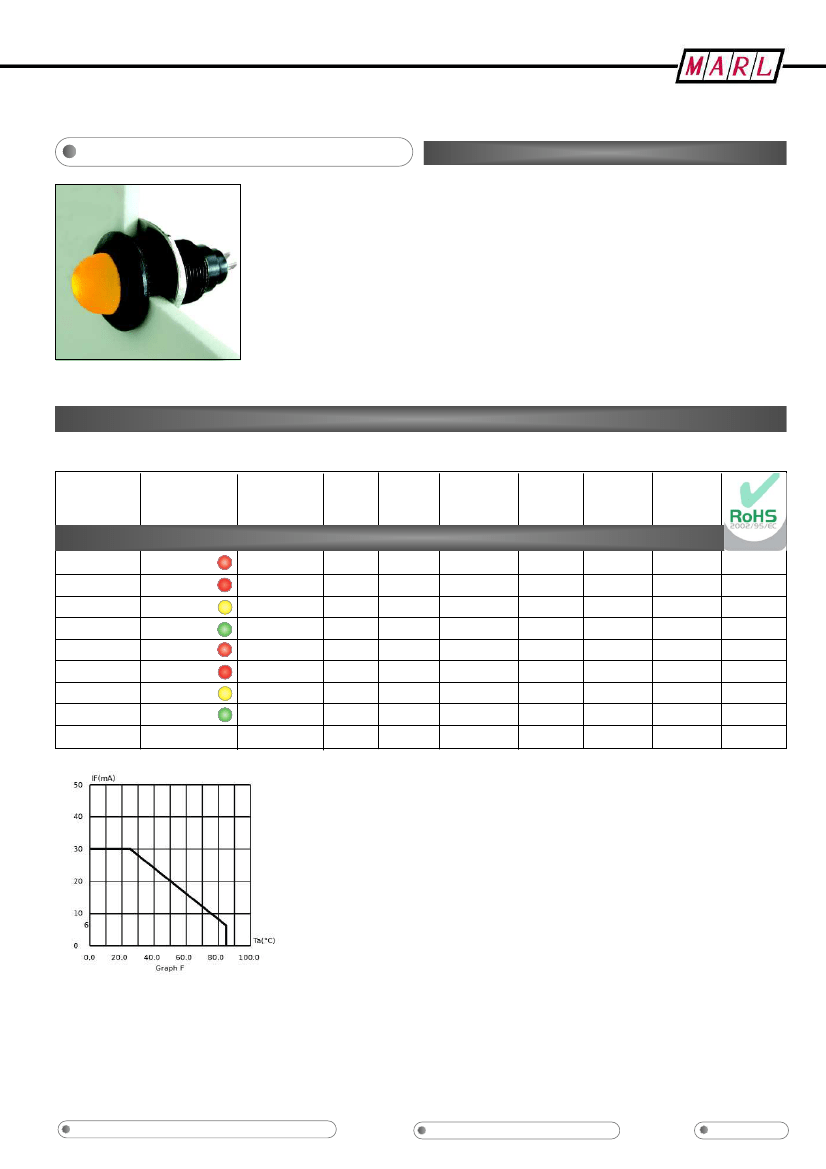

PROFESSIONAL LED INDICATORS Ø12.7mm Mounting

FEATURES

652 SERIES

PACK QUANTITY = 10 PIECES

Each product will operate over a wide voltage

input range

Black anodised aluminium housing

180° viewing angle

Full internal potting to resist shock and vibration

Sealed to IP67

True Bi-polar product

SPECIFICATIONS

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

CURRENT

LUMINOUS

WAVE

OPERATING

STORAGE

LENS

DC (Vdc)

Vopr

DC (mA)

lopr

INTENSITY

lv@20mA (mcd)

LENGTH

λp

(nm)

TEMP

T

opr

TEMP

T

stg

HIGH INTENSITY

652-105-63

652-102-63

652-111-63

652-114-63

652-105-75

652-102-75

652-111-75

652-114-75

UNITS

Red

Red (GaAlAs)

Yellow

Green

Red

Red (GaAlAs)

Yellow

Green

Colour Diffused

12-28

110Vac

Vac/Vdc

6-16

6

mA

100

450

50

60

100

450

50

60

mcd

627

660

590

565

627

660

590

565

nm

-40 ~ +85^

°C

-40 ~ +85

°C

Yes

105,102,111 & 114

^ = Products must be derated according to the derating information. Each derating

graph refers to specific LEDs.

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk •

•

T

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 2

SAMPLES AVAILABLE

Page 1 of 2

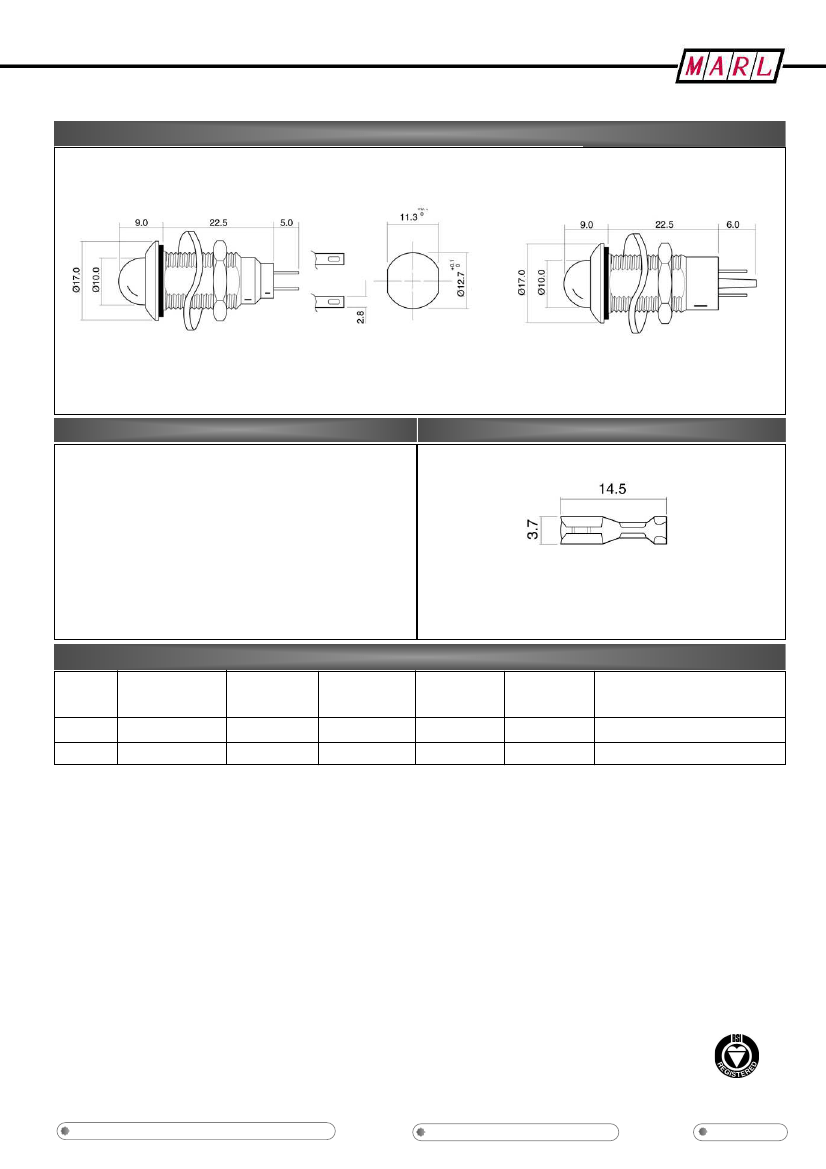

652-102-63 Related Products

	652-102-63	652-111-63	652-105-63	652-114-63
Description	PROFESSIONAL LED INDICATORS í12.7mm Mounting	PROFESSIONAL LED INDICATORS í12.7mm Mounting	PROFESSIONAL LED INDICATORS í12.7mm Mounting	PROFESSIONAL LED INDICATORS í12.7mm Mounting
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, ALUMINIUM PACKAGE-2	ROHS COMPLIANT, ALUMINIUM PACKAGE-2	ROHS COMPLIANT, ALUMINIUM PACKAGE-2	ROHS COMPLIANT, ALUMINIUM PACKAGE-2
Reach Compliance Code	compli	compli	compli	compli
color	RED	YELLOW	RED	GREEN
color@wavelength	Red	Yellow	Orange-Red	Gree
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	28 V	28 V	28 V	28 V
JESD-609 code	e4	e4	e4	e4
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	450.0 mcd	50.0 mcd	100.0 mcd	60.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	9 mm	9 mm	9 mm	9 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660 nm	590 nm	627 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND
size	10 mm	10 mm	10 mm	10 mm
surface mount	NO	NO	NO	NO
T code	T-4	T-4	T-4	T-4
perspective	180 deg	180 deg	180 deg	180 deg
Maker	-	Marl International	Marl International	Marl International
