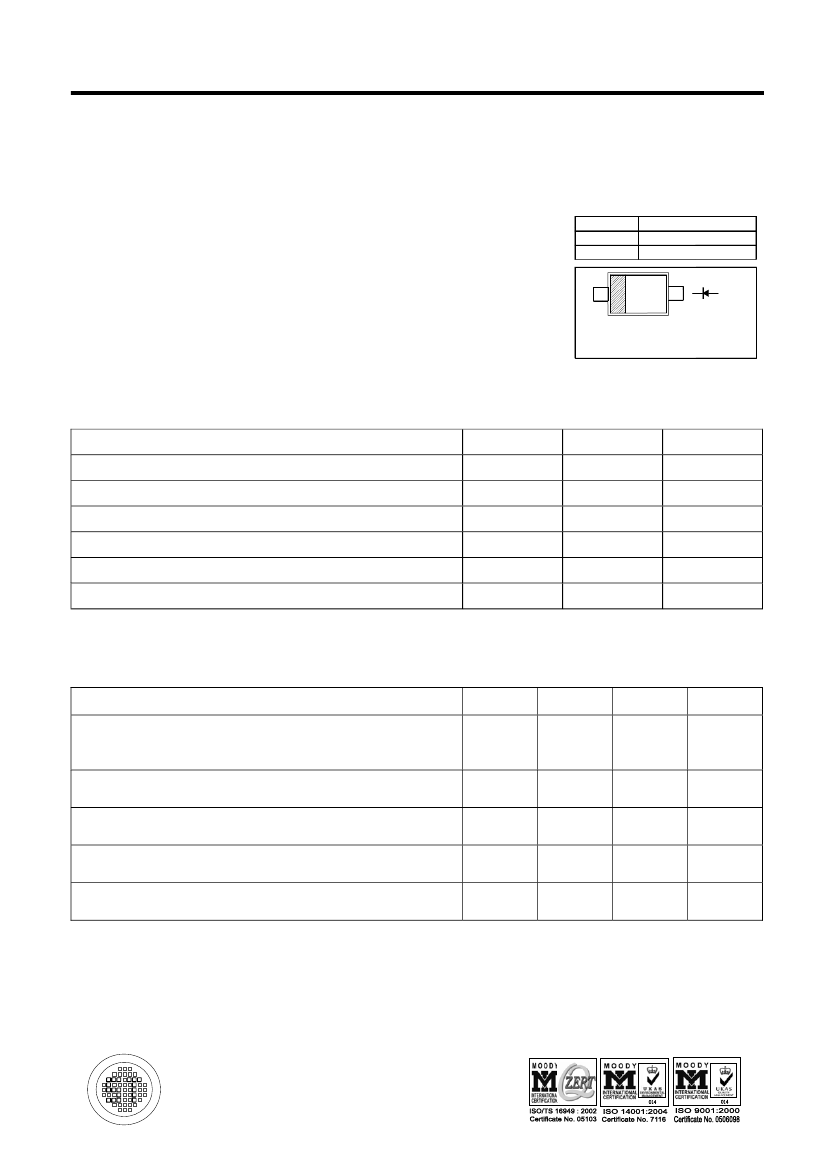

BAS40WS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
• Low forward voltage
• Fast switching
PINNING
PIN
1
2
1
DESCRIPTION
Cathode
Anode
2
43
Top View
Marking Code: "43"
Simplified outline SOD-323 and symbol
Absolute Maximum Ratings (T
a
= 25
O
C)
Parameter
Repetitive Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current
Peak Forward Surge Current (at tp = 8.3 ms)
Junction Temperature
Storage Temperature Range
Symbol
V
RRM
V
R
I
F
I
FSM
T
J
T
S
Value
40
40
200
600
150
- 55 to + 150
Unit
V
V
mA
mA
O
C
C
O
Characteristics at T
a
= 25
O
C
Parameter
Forward Voltage
at I
F
= 1 mA
at I
F
= 40 mA
Reverse Current
at V
R
= 30 V
Reverse Breakdown Voltage
at I
R
= 10 µA
Reverse Recovery Time
at I
F
= I
R
= 10 mA to I
R
= 1 mA, R
L
= 100
Ω
Capacitance
at V
R
= 0 V, f = 1 MHz
Symbol
V
F
V
F
I
R
V
(BR)R
t
rr
C
j
Min.
-
-
-
40
-
-
Max.
0.38
1
200
-
5
5
Unit
V
V
nA
V
ns
pF
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 20/09/2008

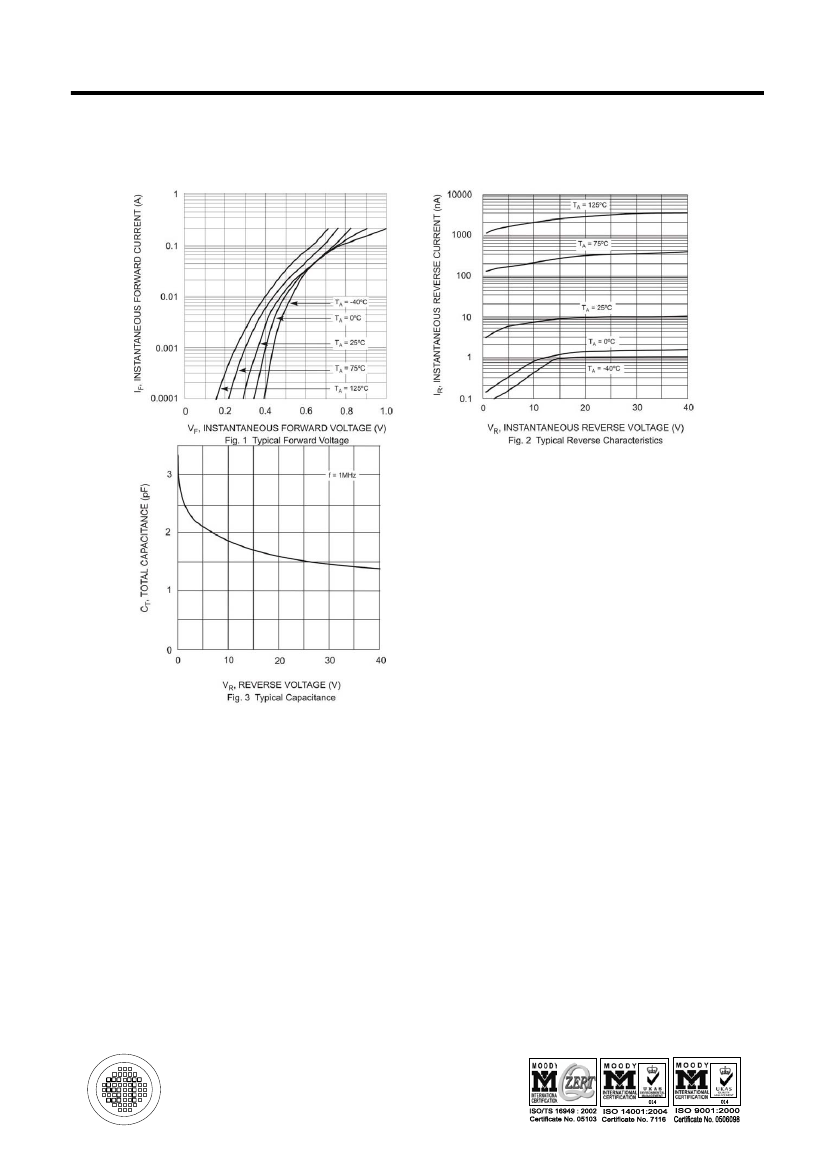

BAS40WS
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 20/09/2008
BAS40WS

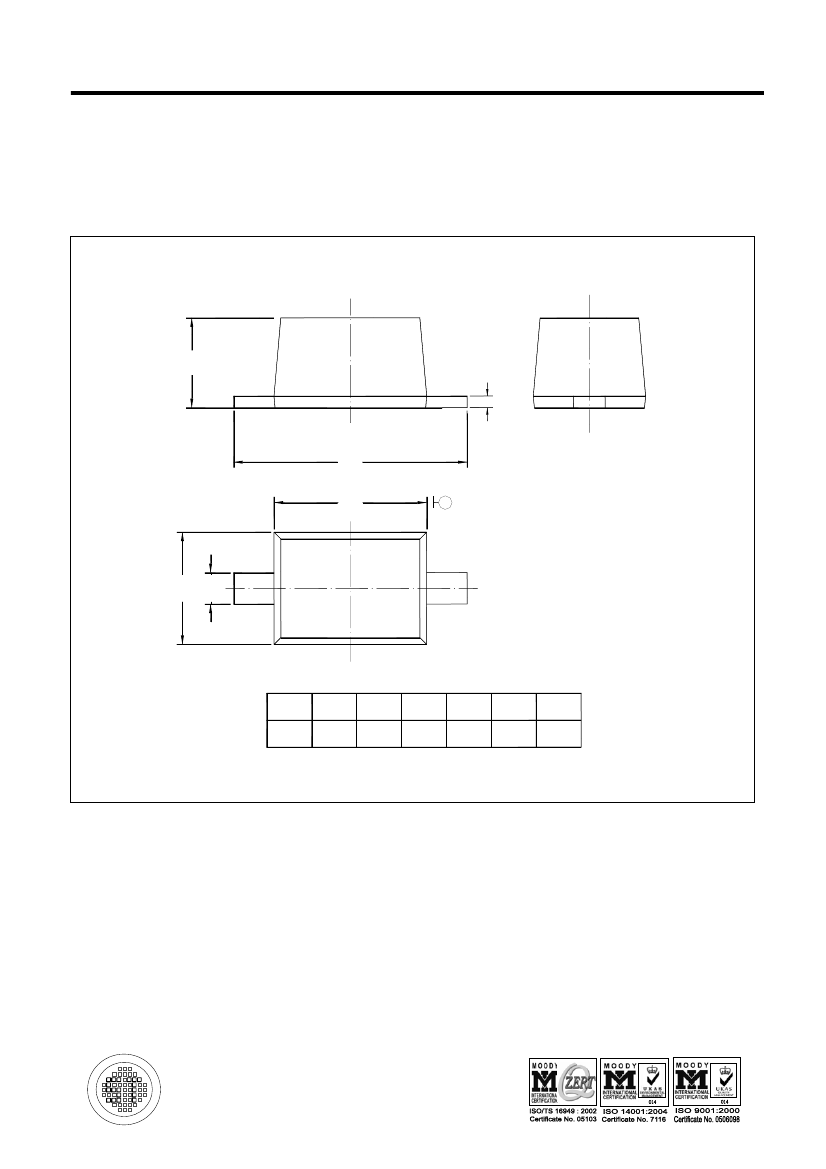

PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
SOD-323
A
c
H
E
D
A
E
b
p
UNIT
mm
A
1.10
0.80
b
p
0.40
0.25
C
0.15
0.00
D
1.80
1.60
E
1.35
1.15
H
E
2.80
2.30
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 20/09/2008
