BC184: Description200 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92; Categorysemiconductor Discrete semiconductor; File Size119KB，2 Pages; ManufacturerSEMTECH_ELEC; Websitehttp://www.semtech.net.cn

Download Datasheet Parametric Compare View All

BC184 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC184	-	-	View	Buy Now

BC184 Overview

200 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92

BC184 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	0.2000 A
Maximum Collector-Emitter Voltage	30 V
state	ACTIVE
packaging shape	ROUND
Package Size	CYLINDRICAL
Terminal form	WIRE
Terminal location	BOTTOM
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Number of components	1
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Maximum ambient power consumption	0.3000 W
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	200
Rated crossover frequency	150 MHz

Preview

Download Datasheet

View All

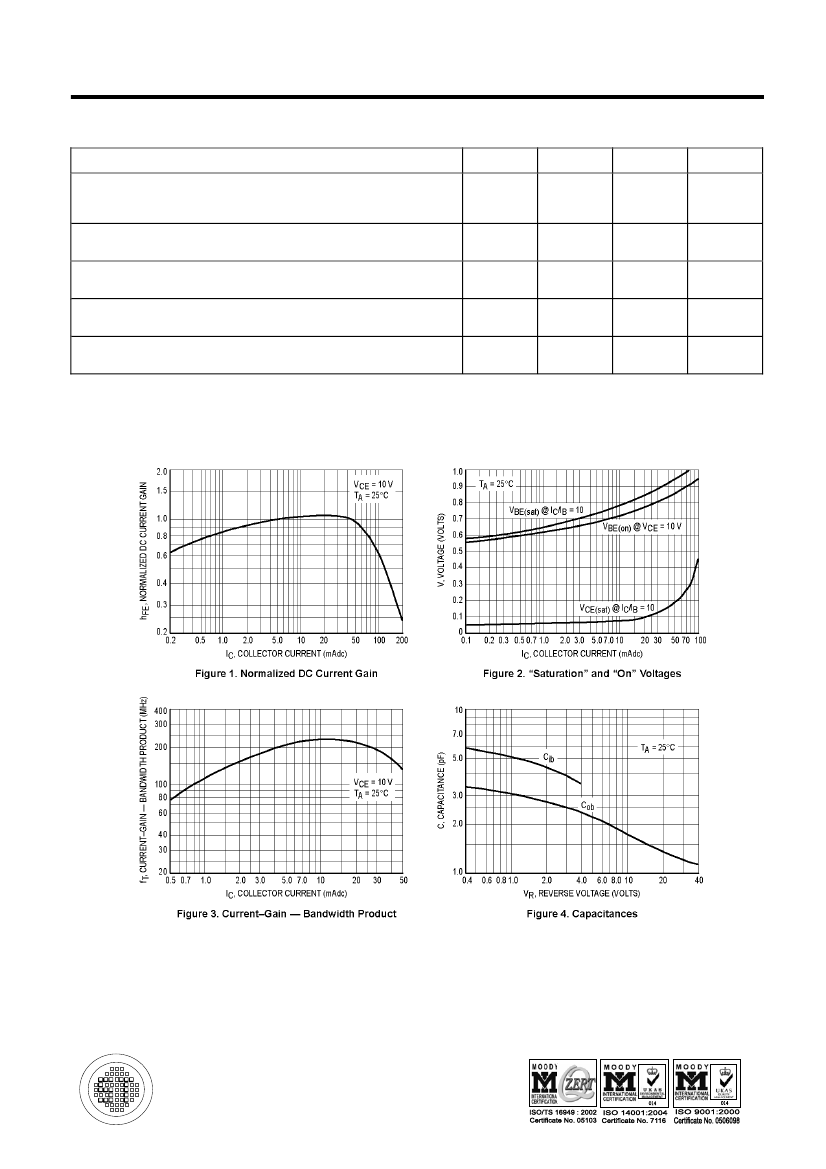

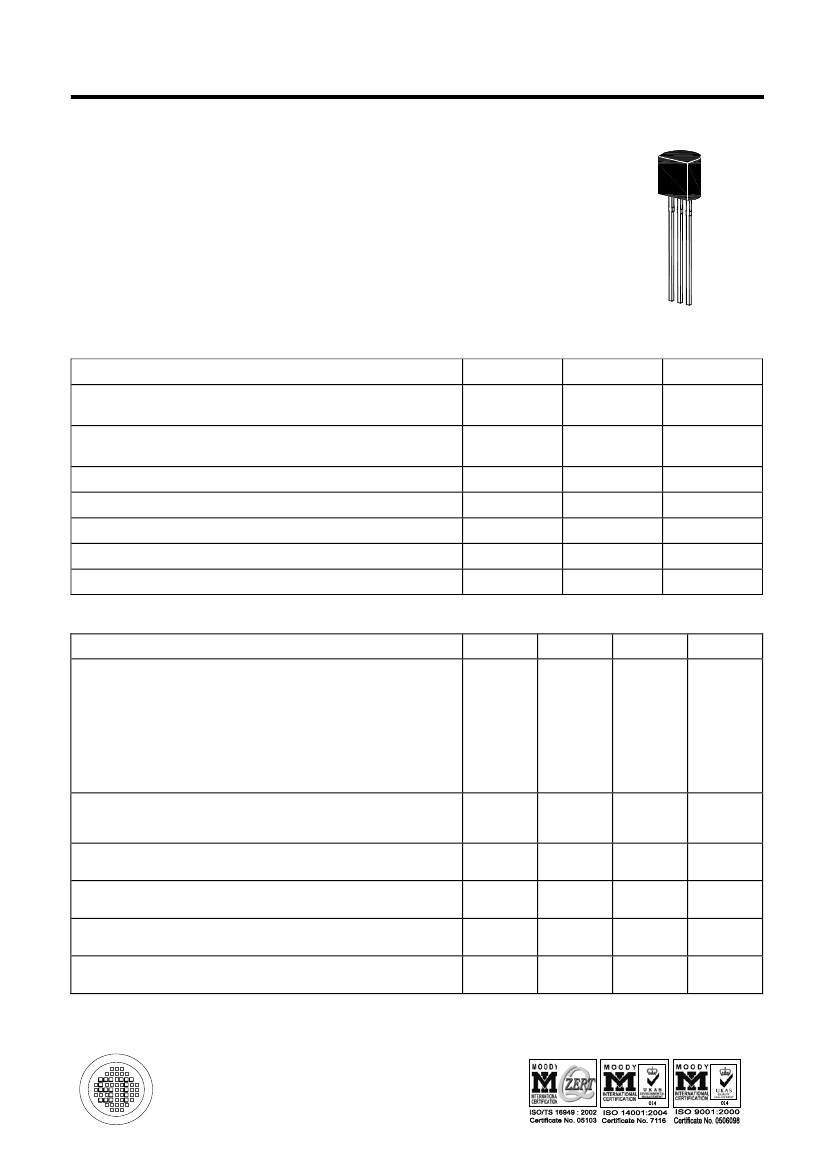

BC182…BC184

NPN Silicon Epitaxial Planar Transistor

for general purpose amplifier applications

1. Collector 2. Base 3. Emitter

TO-92 Plastic Package

Absolute Maximum Ratings (T

a

= 25

O

C)

Parameter

Collector Base Voltage

Collector Emitter Voltage

Emitter Base Voltage

Collector Current

Total Power Dissipation

Junction Temperature

Storage Temperature Range

BC182

BC183, BC184

BC182

BC183, BC184

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

tot

T

j

T

S

Value

60

45

50

30

6

100

350

150

- 55 to + 150

Unit

V

mA

mW

O

C

O

Characteristics at T

a

= 25

O

C

Parameter

DC Current Gain

at V

CE

= 5 V, I

C

= 10 µA

at V

CE

= 5 V, I

C

= 2 mA

at V

CE

= 5 V, I

C

= 100 mA

Collector Base Cutoff Current

at V

CB

= 50 V

at V

CB

= 30 V

Emitter Base Cutoff Current

at V

EB

= 4 V

Collector Base Breakdown Voltage

at I

C

= 10 µA

Collector Emitter Breakdown Voltage

at I

C

= 2 mA

Emitter Base Breakdown Voltage

at I

E

= 100 µA

BC182, BC183

BC184

BC182

BC183

BC184

BC182, BC183

BC184

BC182

BC183, BC184

Symbol

h

FE

h

FE

h

FE

h

FE

h

FE

h

FE

h

FE

I

CBO

I

EBO

BC182

BC183, BC184

BC182

BC183, BC184

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

Min.

40

100

120

250

80

130

-

60

45

50

30

6

Max.

-

500

800

-

15

-

Unit

-

nA

V

SEMTECH ELECTRONICS LTD.

(Subsidiary

of Sino-Tech International Holdings Limited, a company

listed on the Hong Kong Stock Exchange, Stock Code: 724)

®

Dated : 27/12/2007

BC184 Related Products

	BC184	BC182	BC183
Description	200 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	100 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
Number of terminals	3	3	3
Maximum collector current	0.2000 A	0.1000 A	0.1000 A
Maximum Collector-Emitter Voltage	30 V	50 V	30 V
state	ACTIVE	Active	DISCONTINUED
packaging shape	ROUND	ROUND	round
Package Size	CYLINDRICAL	CYLINDRICAL	cylindrical
Terminal form	WIRE	THROUGH-HOLE	THROUGH-hole
Terminal location	BOTTOM	BOTTOM	BOTTOM
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	Plastic/Epoxy
structure	SINGLE	SINGLE	single
Number of components	1	1	1
transistor applications	AMPLIFIER	AMPLIFIER	amplifier
Transistor component materials	SILICON	SILICON	silicon
Minimum DC amplification factor	200	80	80
Rated crossover frequency	150 MHz	150 MHz	240 MHz
Transistor polarity	NPN	-	NPN
Maximum ambient power consumption	0.3000 W	-	0.3500 W
Transistor type	GENERAL PURPOSE SMALL SIGNAL	-	Universal small signal
terminal coating	-	TIN LEAD	tin lead
