V23529-S1105-C225 datasheet, PDF

Datasheet> All Categories > The connector> The connector> V23529-S1105-C225

V23529-S1105-C225: DescriptionCONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size185KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

V23529-S1105-C225 Overview

CONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG

V23529-S1105-C225 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: DIN 41652
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE
MIL compliance	NO
Manufacturer's serial number	V23529
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

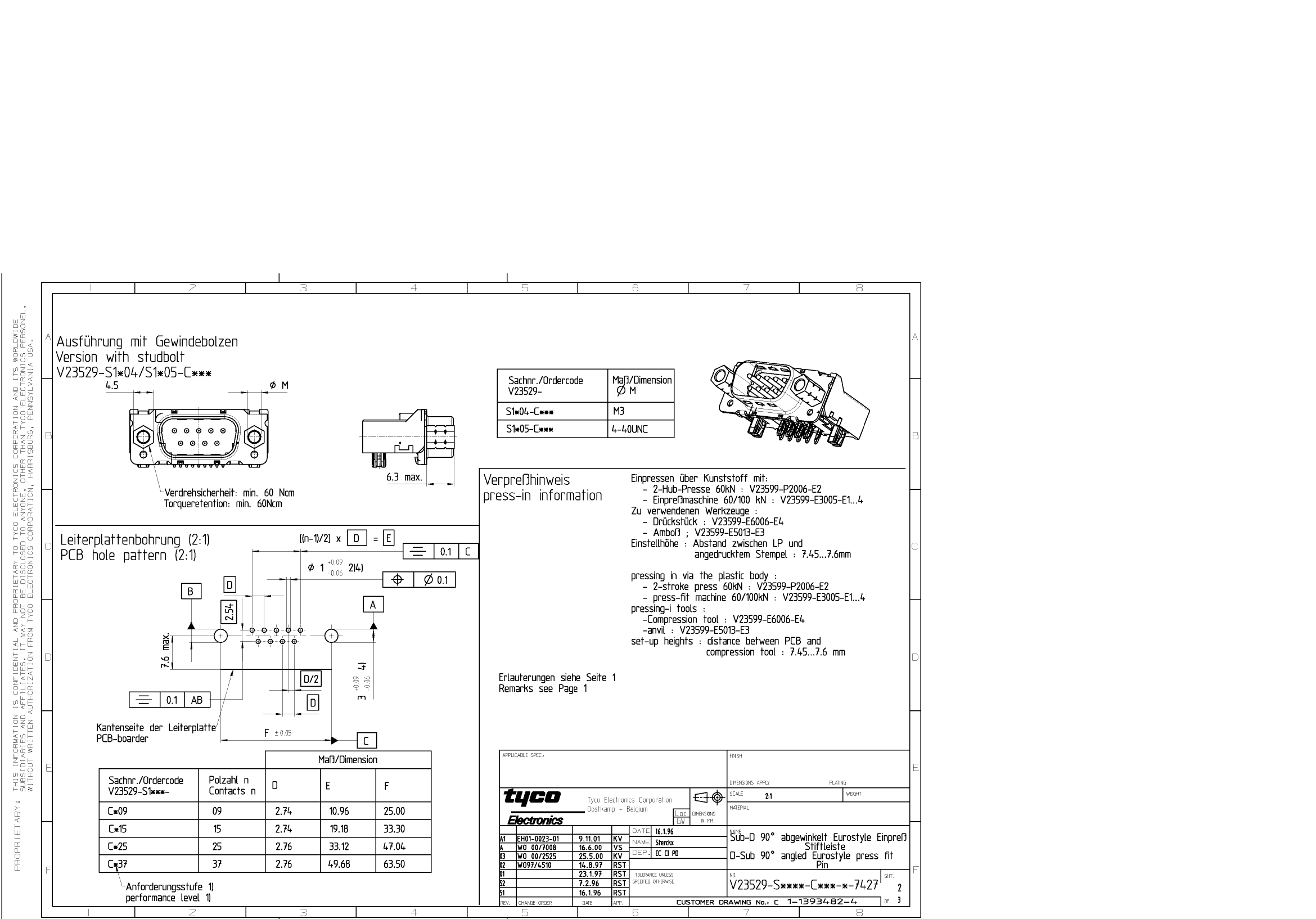

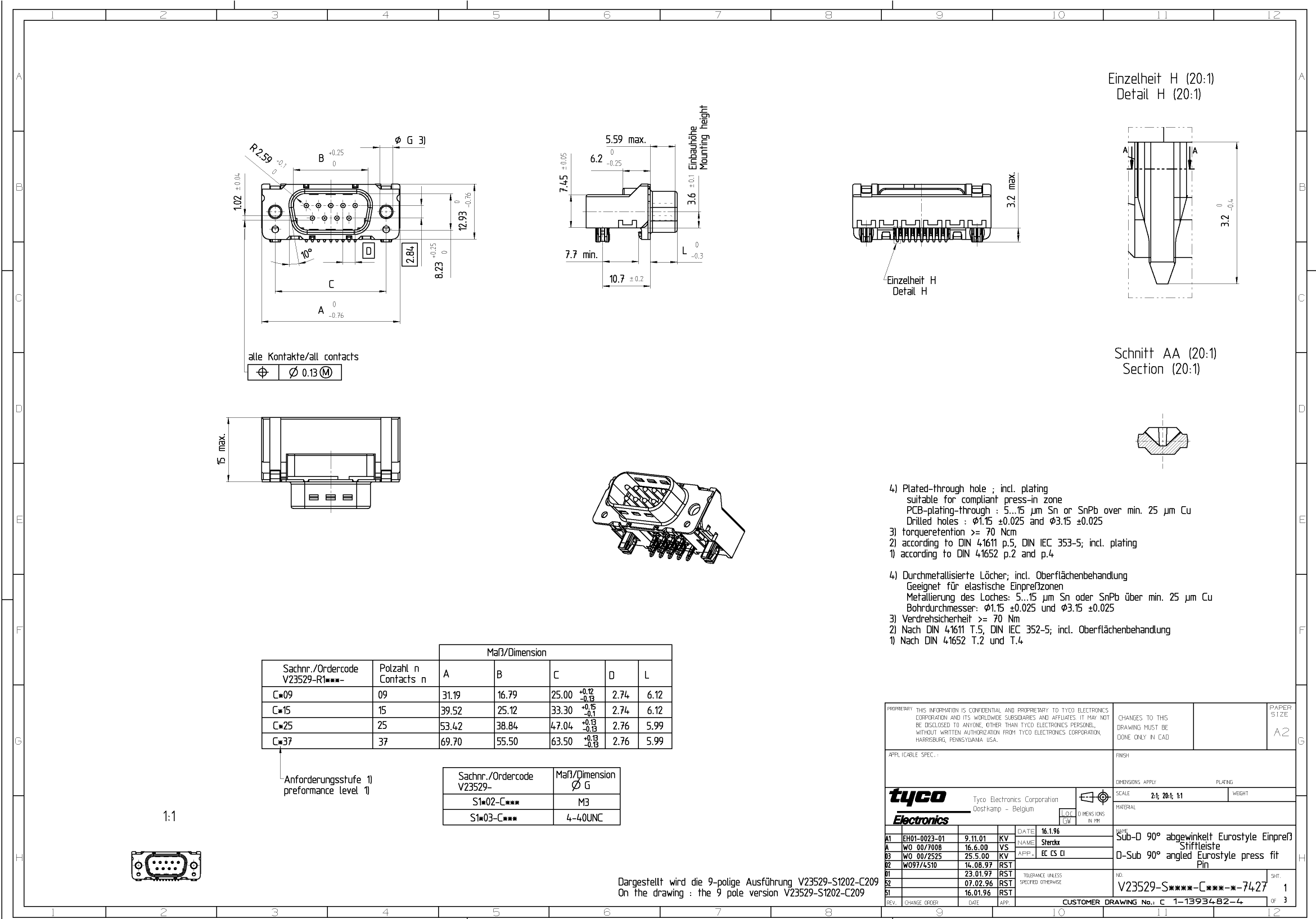

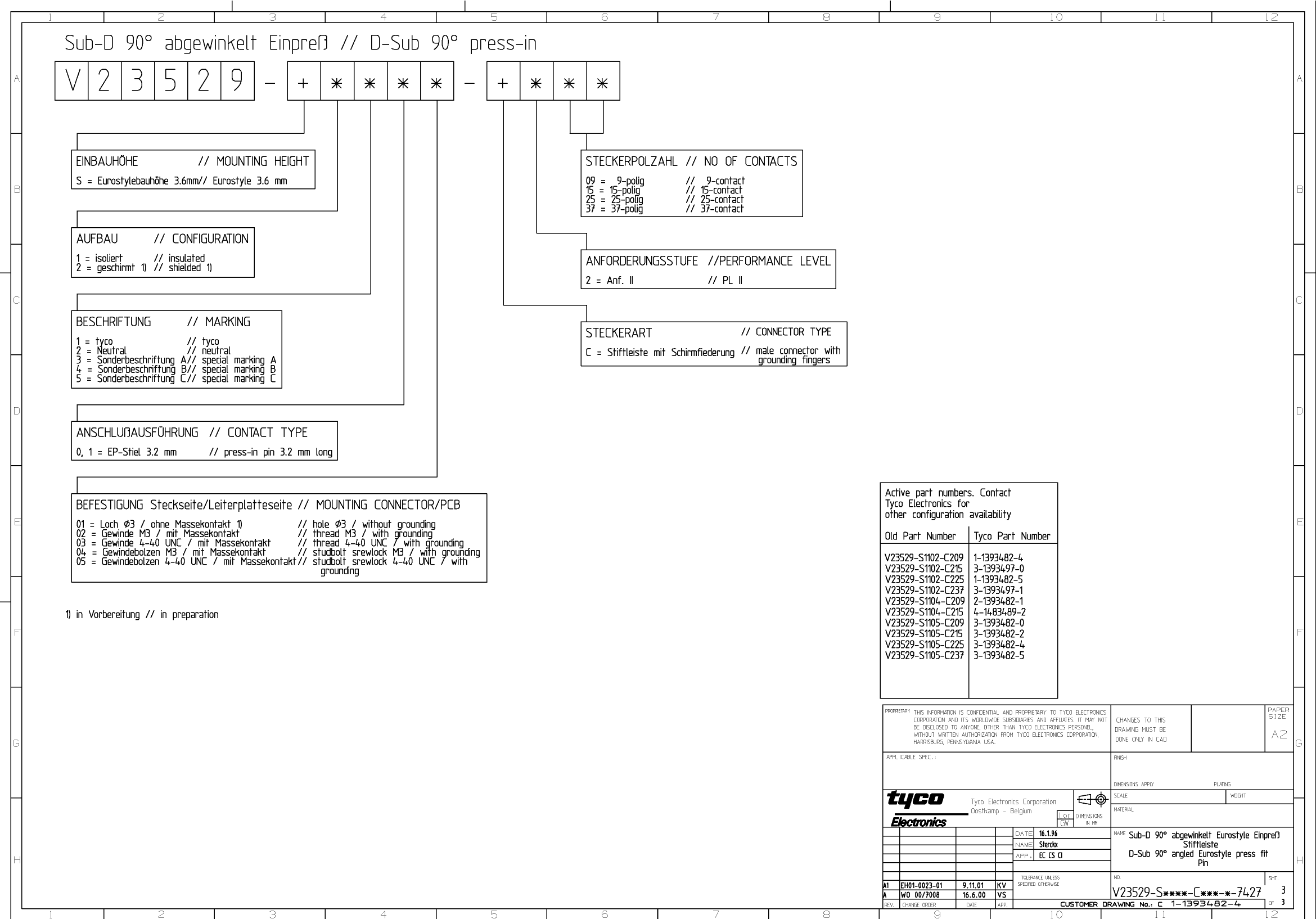

Preview

Download Datasheet

View All

V23529-S1105-C225 Related Products

	V23529-S1105-C225	V23529-S1105-C209	V23529-S1102-C225	V23529-S1102-C215	V23529-S1102-C237	V23529-S1104-C209	V23529-S1104-C215	V23529-S1105-C215	V23529-S1105-C237	V23529-S1102-C209
Description	CONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG	CONNECTOR, 9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PRESS FIT, PLUG
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE	POLYBUTYLENE TEREPHTHALATE-POLYESTER/POLYPHENYLENE SULFIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	V23529	V23529	V23529	V23529	V23529	V23529	V23529	V23529	V23529	V23529
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	3/B	2/A	4/C	1/E	2/A	2/A	4/C	1/E
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	9	25	15	37	9	15	15	37	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	-
