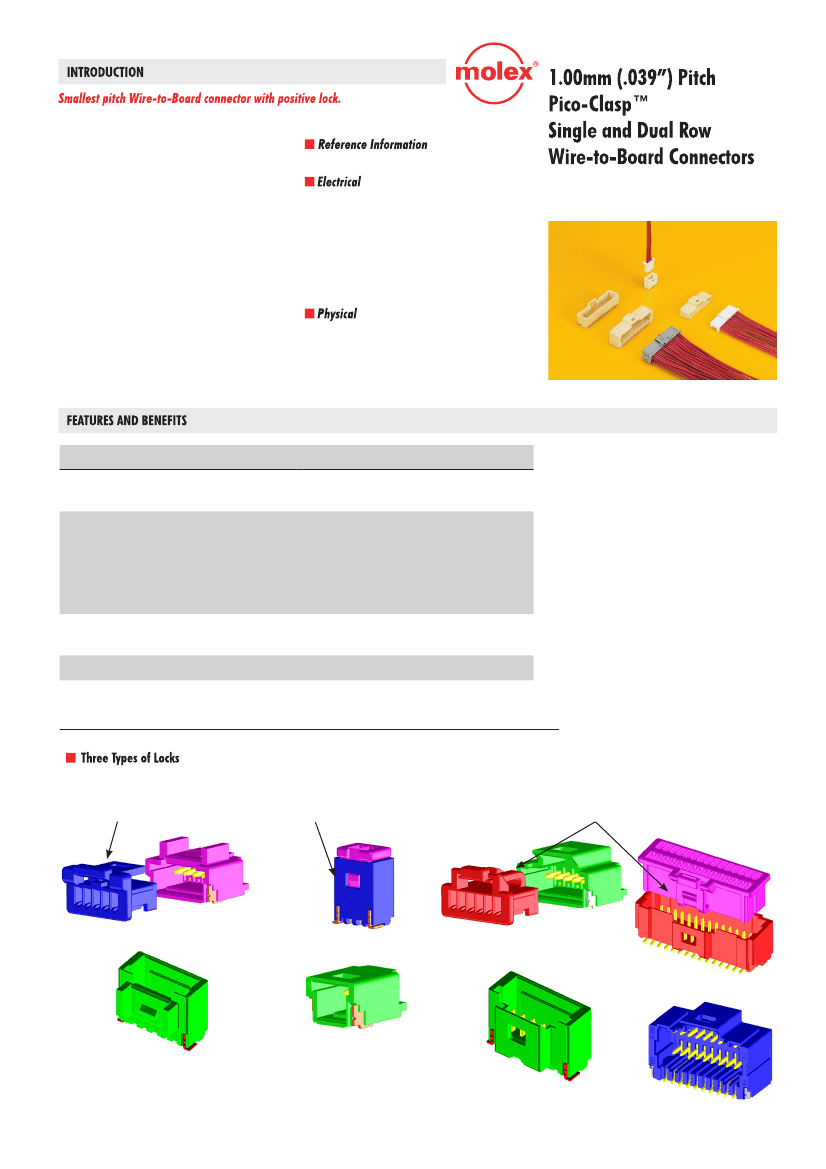

The new 1.00mm (.039") pitch wire-to-board
connector system from Molex was developed for
various connections in Flat Panel Displays (FPD).
The compact, small-circuit size features of this
system also make it ideal for other applications
such as Notebook PCs and other compact devices.
The system is offered in both single and dual row
versions. Friction and positive locks are offered
for various application needs. Other features
include mating guides, solder tabs and footprint
compatibility with some competitive versions.
Specifications:
Designed In: mm
Voltage: 50V
Current: 1.0A (28, 30 AWG), 0.8A (32 AWG)
Contact Resistance: 20 milliohms max.
Insulation Resistance: 100 Megohms min.
Dielectric Strength: 250V AC/1 minute
Terminal Retention Force: 4.9N (0.5kgf) min.
Durability: 30 cycles
Operating Temperature:
-40 to +85°C
FEATURES
n
Smallest pitch for positive lock Wire-to-Board
crimp system
n
Inner positive lock
(6-50 circuit sizes)
BENEFITS
n
Provides space saving for mounting other
components
n
Prevents wire hooking
n
Blocks direct wire weight and prevents lock
lever leaning
n
Strong mating retention and clear click feeling
n
Outer positive lock
(3-5 circuit sizes)
n
Low mating and unmating forces
n
Wide header variations
n
Strong mating retention and clear click
feeling
n
Easy connector insertion and extraction
n
Provides customers with many choices and
design flexibility
Outer Positive Lock
Inner Friction Lock
Inner Positive Lock
n
n
n
n
Plasma Display Panel (PDP) TV
Liquid Crystal Display (LCD) TV
Note PC
Other Compact Devices

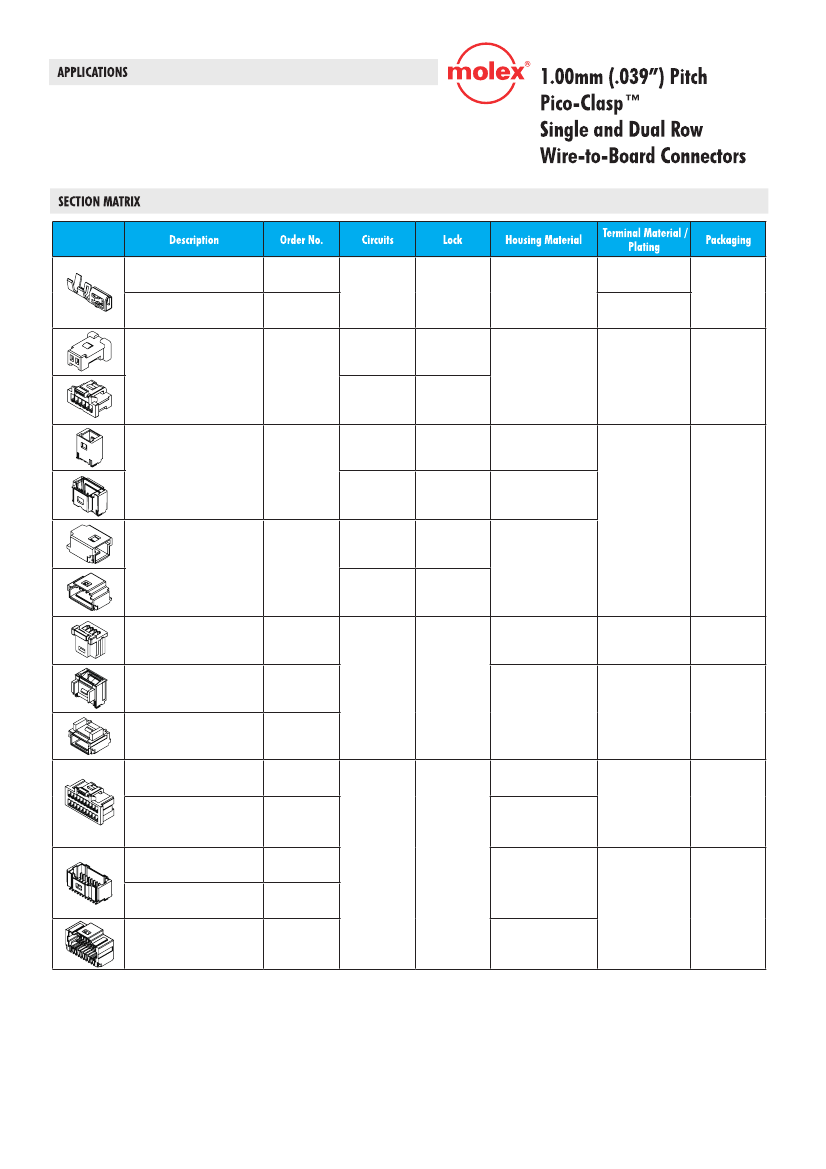

Terminal for Single Row
Terminal for Dual Row
501334-0000
--
501193-0000
2-5
Inner Friction
66 Nylon, UL 94V-0,
White
6-15
Inner Positive
46 Nylon, UL 94V-0,
Off White
6T Nylon, UL 94V-0,
Off White
--
--
Phosphor Bronze /
Pre-Tin
Phosphor Bronze /
Gold over Nickel
Reel
Single Row Inner Lock
Receptacle Housing
501330-XX00
--
Bag
2-5
Single Row Inner Lock
Straight Header
501331-XX07
6-15
Inner Friction
Inner Positive
Phosphor Bronze /
Tin over Nickel
Embossed Tape
2-5
Single Row Inner Lock
Right-Angle Header
501568-XX07
6-15
Single Row Outer Lock
Receptacle Housing
Single Row Outer Lock
Straight Header
Single Row Outer Lock
Right-Angle Header
Dual Row Inner Lock
Housing Receptacle
Dual Row Inner Lock
Housing Receptacle
(With Side Friction Lock)
Dual Row Inner Lock
Straight Header (With Tape)
Dual Row Inner Lock
Straight Header
Dual Row Inner Lock
Right-Angle Header
*XX = Circuit size
Inner Friction
Inner Positive
Heat Resistance Nylon,
UL 94V-0,
Off White
501939-XX00
66 Nylon, UL 94V-0,
White
3-5
Outer Positive
6T Nylon, UL 94V-0,
Off White
--
Bag
501940-XX07
Phosphor Bronze /
Tin over Nickel
Embossed Tape
501953-XX07
501189-XX10
501189-XX21
501190-XX17
501190-XX27
501571-XX07
20, 30, 40, 50
Inner Positive
66 Nylon, UL 94V-0,
White
66 Nylon, UL 94V-0,
Grey
6T Nylon, UL 94V-0,
White
Heat Resistance Nylon,
UL 94V-0,
Off White
--
Bag
Phosphor Bronze /
Gold over Nickel
Embossed Tape
