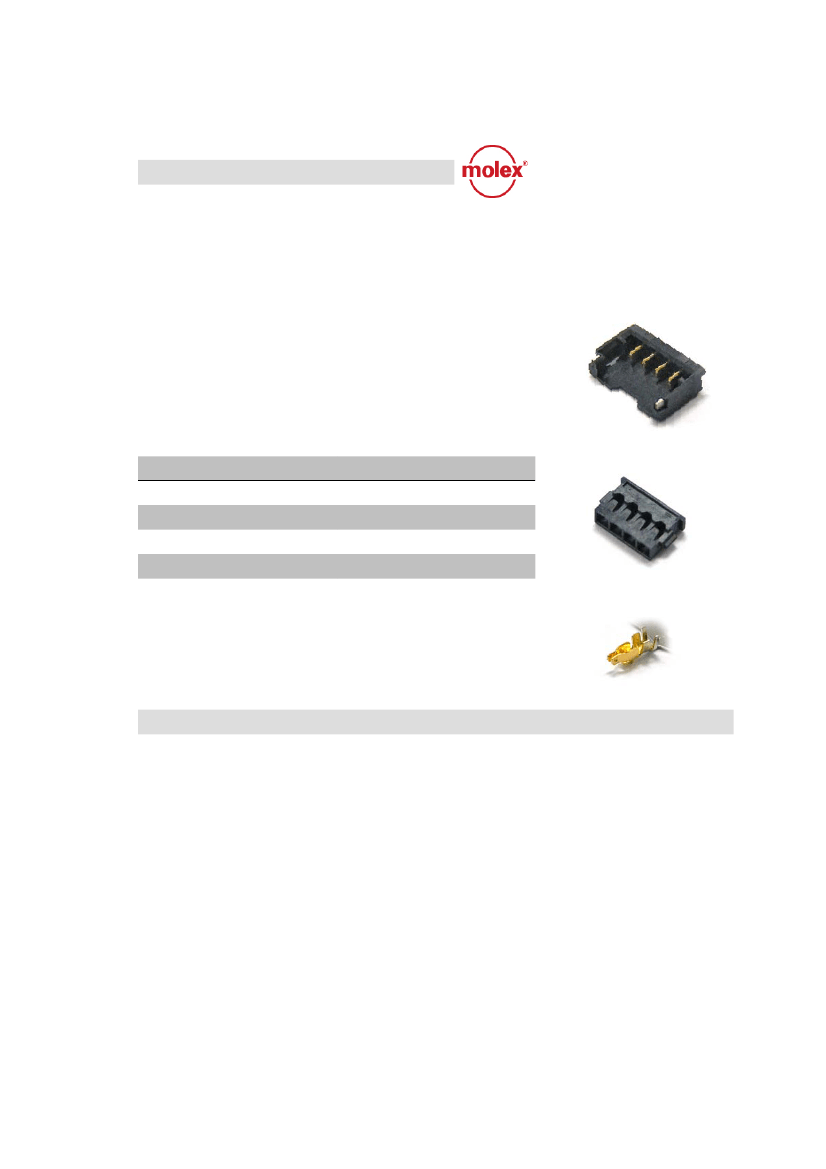

FEATURES AND SPECIFICATIONS
Molex's new 1.20mm pitch Pico-EZmate™ connectors are compact and low
profile, with a mated height of 1.40mm for wire-to-board applications.
The Pico-EZmate connector design includes secure locking features between the
receptacle housing and the PCB header, with an audible click to ensure mating
integrity. The receptacle is mated vertically with the header, which allows
excellent workability in production lines.
The header design also provides sufficient space to allow stable pick-and-place
operations in SMT lines. The headers are packed in the embossed tape packing for
automatic insertion equipment.
Both header and receptacle housings are made from a halogen-free resin with a
94 V-0 rated material. The series also complies to European RoHS directives.
1.20mm (.047”) Pitch
Pico-EZmate™ W-to-B
Connectors
Series
78171
Header
Features
•
Ultra low profile
•
Easy vertical mating
•
Multiple mating cycles
•
Assembly suction space on header
•
RoHS & halogen free compliance
Benefits
•
Space savings
•
Excellent workability in production line
•
Allows multiple testing cycles
•
Stable pick-and-place area
•
Environmentally friendly
78172
-Receptacle
housing
- Terminal
SPECIFICATIONS
Reference Information
Packaging: Embossed Tape
UL File No.: TBD
CSA File No.: TBD
Designed In: mm
Electrical
Voltage: 50V
Current: 1.5A
Applicable wire range: AWG #28 to #30
UL3302
Contact Resistance: 20 milliohms max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 100 Megohms minimum
Physical
Housing: LCP, UL94V-0, Black
Contact: Copper alloy
Plating: Gold
Operating Temperature: -25°C to +85°C
Markets and Applications
Notebook
Mobile Phone
GPS
MP3, MP4
Any compact mobile device application
1.20mm (.047”) Pitch
Pico-EZmate™ W-to-B
Connectors
Series
78171
Header
78172
- Receptacle housing
- Terminal
Ordering Information
PCB Header
Order No.
78171-1002
78171-1003
78171-1004
78171-1005
Receptacle Housing
Order No.
78172-0002
78172-0003
78172-0004
78172-0005
Receptacle Crimp Terminal
Order No.
78172-0410
Circuits
N/A
Circuits
2
3
4
5
Circuits
2
3
4
5
