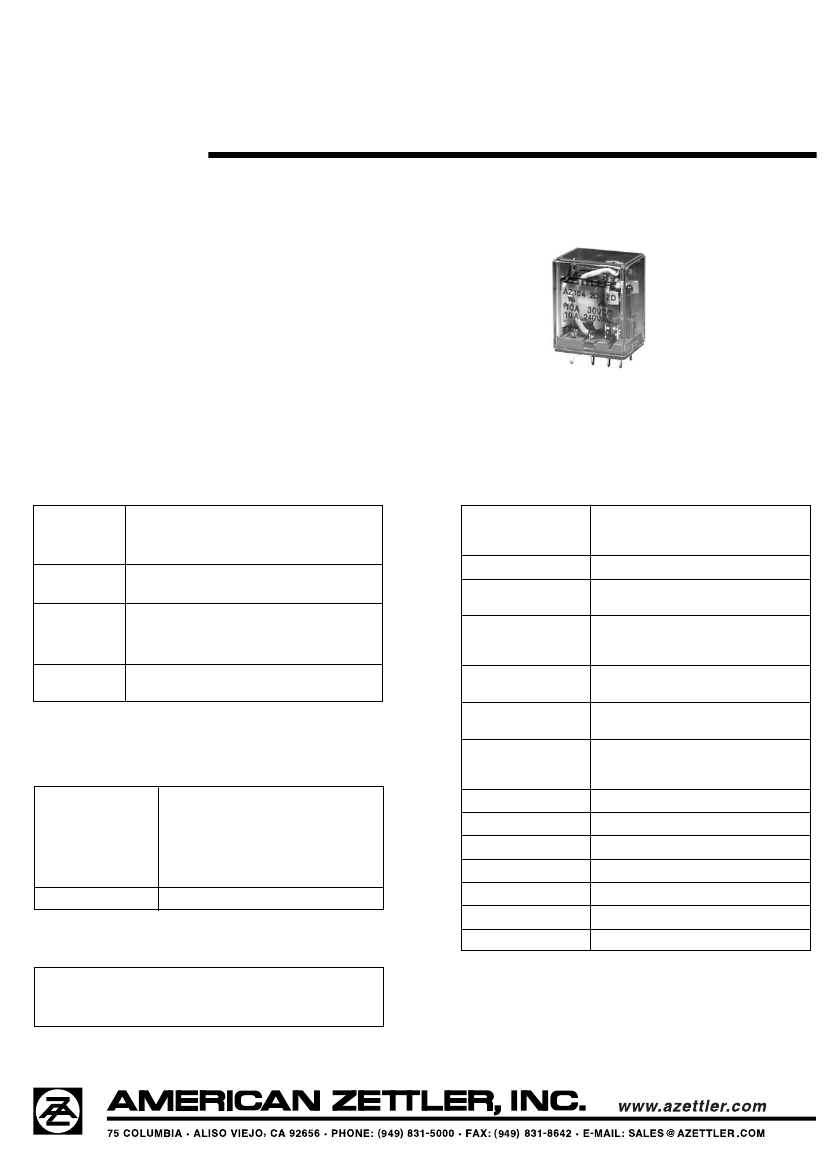

AZ164
MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
PC Terminals
SPDT through 4PDT arrangement
High switching capacity
AC and DC coils
Push To Test lever available on some models
CE marked
UL, CUR file E43203
TÜV pending
CONTACTS
Arrangement
SPDT (1 Form C)
DPDT (2 Form C)
3PDT (3 Form C)
4PDT (4 Form C)
See chart on page 2
See chart on page 2
-1CT contact
-2C and 2CT contact
-3C contact
-4C contact
Silver
Silver
Silver
Silver
cadmium oxide
cerium
cerium
cerium
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Minimum operations
2 x 10
7
operations
See UL/CUR ratings on page 2
25 msec max. at nominal coil voltage
25 msec at nominal coil voltage
(without suppression)
Ratings
UL, CUR
Material
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms contact to contact
1000 Vrms between contact sets
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
100 megohms min. at 500 VDC,
20°C, 50% RH
DC: > 10% of nominal coil voltage
AC: > 30% of nominal coil voltage
-55°C (-67°F) to 70°C (158°F)
-55°C (-67°F) to 105°C (221°F)
0.062" DA at 10–55 Hz
20 g
Polycarbonate
PC
250°C (482°F)
5 seconds
37 grams
Resistance
< 50 milliohms initially
(24 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature
DC: 576 mW, 6 to 48 VDC
704 mW, 110 VDC
AC: .768 VA
DC: 1.2 W (110 V : 1.5 W) at 20°C (68°F)
AC: 1.7 VA at 20°C (68°F)
105°C (221°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
8/11/03W
AZ164
CONTACT RATINGS
Maximum
Ratings
SPDT Heavy duty, resistive load:
Max. Switched Power: 450 W, 3750 VA
Max. Switched Current: 15 A
Max. Switched Voltage: 30 VDC, 250 VAC
DPDT Heavy duty, resistive load:
Max. Switched Power: 300 W, 2500 VA
Max. Switched Current: 10 A
Max. Switched Voltage: 30 VDC, 250 VAC
DPDT Standard duty, resistive load:
Max. Switched Power: 210 W, 1750 VA
Max. Switched Current: 7 A
Max. Switched Voltage: 30 VDC, 250 VAC
3PDT, 4PDT, Standard duty, resistive load:
Max. Switched Power: 150 W, 1250 VA
Max. Switched Current: 5 A
Max. Switched Voltage: 30 VDC, 250 VAC
UL/CUR
Ratings
SPDT Heavy duty:
15 A, 250 VAC 100k, Resistive
15 A, 30 VDC, 100k N.O., 30k N.C., Resistive
DPDT Heavy duty:
10 A, 250 VAC, 100k, General use
10 A, 30 VDC, 100k, Resistive
1
/
3
HP, 120/240 VAC, 100k Motor load
DPDT, Standard duty:
7A, 250 VAC, 100k Resistive
7A, 30 VDC, 100k, Resistive
3A, 240 VAC/30 VDC, 100k, General use
3PDT, 4PDT, Standard duty:
5A, 250 VAC, 100k, Resistive
5A, 30 VDC, 100k, Resistive
3A, 240 VAC/30 VDC, 100k, General use

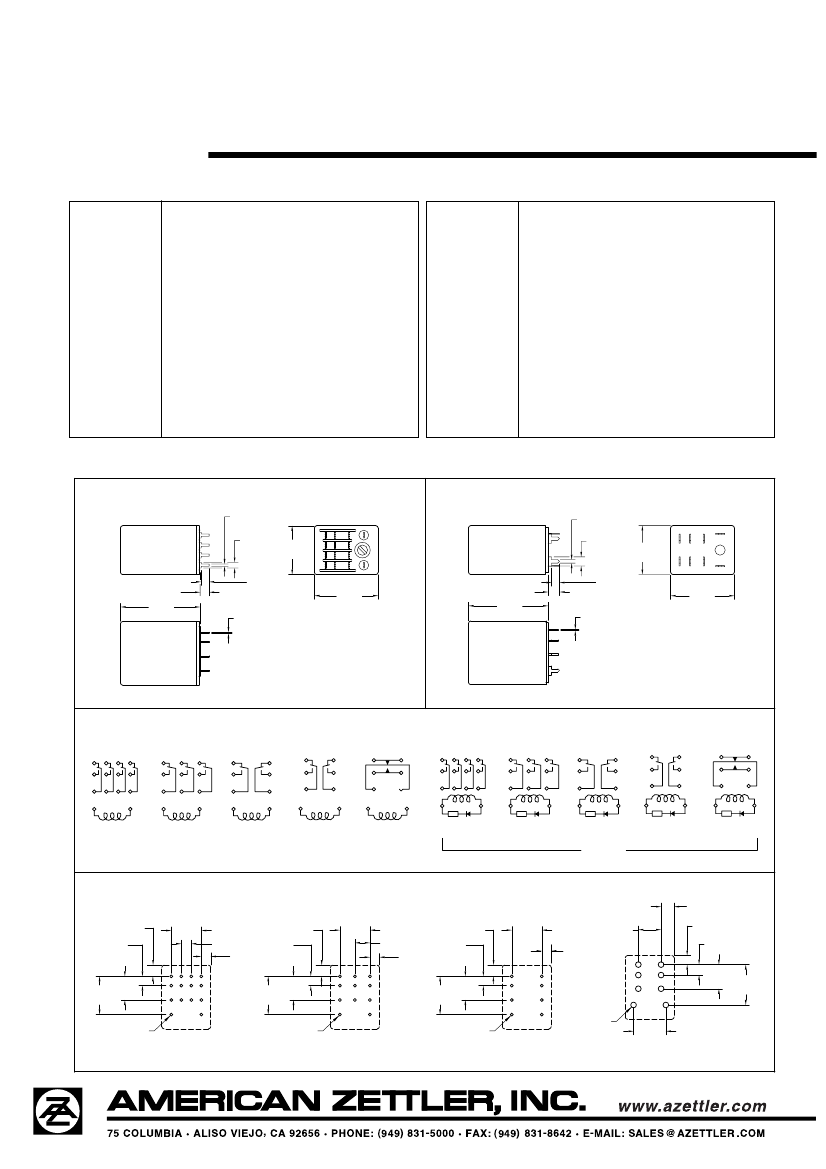

MECHANICAL DATA
AZ164-_C
.039
[1.0]
.098
[2.5]
AZ164-_CT
.059
[1.5]
.846
[21.5]
.157
[4.0]
.846
[21.5]
1.378
[35.0]
.157
[4.0]
.020
[0.5]
.138
[3.5]
1.102
[28.0]
1.378
[35.0]
.197
[5.0]
.020
[0.5]
.138
[3.5]
1.102
[28.0]
WIRING DIAGRAM
1
5
9
2
6
10
3
7
11
4
8
12
1
4
7
13
2
5
8
3
6
9
14
1
5
9
13
4
8
12
14
7
1
3
5
2
4
6
Viewed Towards Terminal
1
4
7
2
5
8
3
6
9
1
5
9
4
8
12
1
3
5
2
4
6
1
3
5
2
4
6
1
3
5
2
4
6
1
5
9
2
6
10
3
7
11
4
8
12
13
14
8
7
8
13
14
13
14
13
14
7
8
7
8
-
4C
4C
3C
2C
2CT
1CT
+
-
3C
+
-
2C
+
-
2CT
+
-
1CT
+
WITH LED
PC BOARD LAYOUTS
.169
[4.3]
.161
[4.1]
Viewed Towards Terminal
.226
[5.7]
.520
[13.2]
.173
[4.4]
.169
[4.3]
.163
[4.1]
.520
[13.2]
.161
[4.1]
.260
[6.6]
.163
[4.1]
.169
[4.3]
.161
[4.1]
.520
[13.2]
.163
[4.1]
.394
[10.0]
.156
[4.0]
.181
[4.6]
.661
[16.8]
.409
[10.4]
.661
[16.8]
.409
[10.4]
.661
[16.8]
.409
[10.4]
.417
[10.6]
.699
[17.75]
ø.051 TYP
[ø1.3 TYP]
ø.051 TYP
[ø1.3 TYP]
ø.051 TYP
[ø1.3 TYP]
ø.098 TYP
[ø2.5 TYP]
.559
[14.2]
4C
3C
2C
1CT & 2CT
8/11/03W
