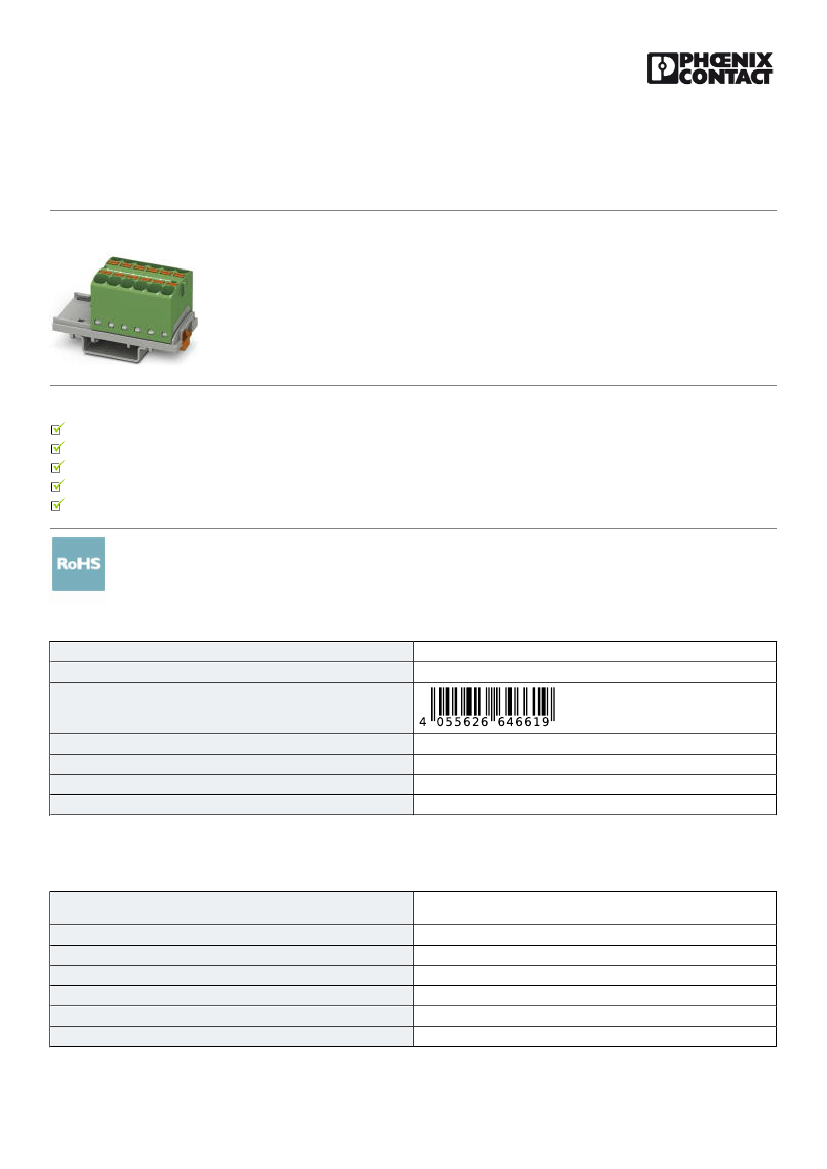

Distribution block - PTFIX 12X4-NS35A GN - 3273688
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Distribution block, Block with horizontal alignment, nom. voltage: 800 V, nominal current: 32 A, connection
method: Push-in connection, number of connections: 12, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10,
width: 36.9 mm, color: green, mounting type: NS 35/7,5, NS 35/15
Your advantages
Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Clear wiring, thanks to eleven different color variants
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Space savings of up to 50% on the DIN rail, thanks to transverse mounting
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626646619
22.220 g
85369010
Poland
8 pc
8 pc
Technical data
General
Note
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Notes on operation The blocks can be bridged with one another via the
conductor shaft. For corresponding plug-in bridges, see accessories
1
12
1
4 mm²
green
PA
01/23/2019 Page 1 / 13
https://www.phoenixcontact.com/in/products/3273688
Distribution block - PTFIX 12X4-NS35A GN - 3273688
Technical data
General
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Ambient temperature (operation)
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
V0
6 kV
3
III
I
1.02 W (the value is based on one connection block and is multiplied
according to the pin assignment)
-60 °C ... 130 °C
63 A
32 A
800 V
No
Dimensions
Width
Length
Height NS 35/7,5
36.9 mm
45.7 mm
30.9 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 60947-7-1
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
24
12
0.2 mm²
0.2 mm²
4 mm²
0.5 mm²
1 mm²
10 mm ... 12 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
01/23/2019 Page 2 / 13
https://www.phoenixcontact.com/in/products/3273688
Distribution block - PTFIX 12X4-NS35A GN - 3273688
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
27141100
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000897
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / EAC / cULus Recognized
01/23/2019 Page 3 / 13
https://www.phoenixcontact.com/in/products/3273688
Distribution block - PTFIX 12X4-NS35A GN - 3273688
Approvals
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
32 A
24-10
http://www.csagroup.org/services-industries/product-listing/
C
600 V
32 A
24-10
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
32 A
24-10
FILE E 60425
600 V
32 A
24-10
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
32 A
24-10
FILE E 60425
600 V
32 A
24-10
EAC
RU C-
DE.AI30.B.01102
cULus Recognized
Accessories
Accessories
DIN rail
01/23/2019 Page 4 / 13
https://www.phoenixcontact.com/in/products/3273688
Distribution block - PTFIX 12X4-NS35A GN - 3273688
Accessories

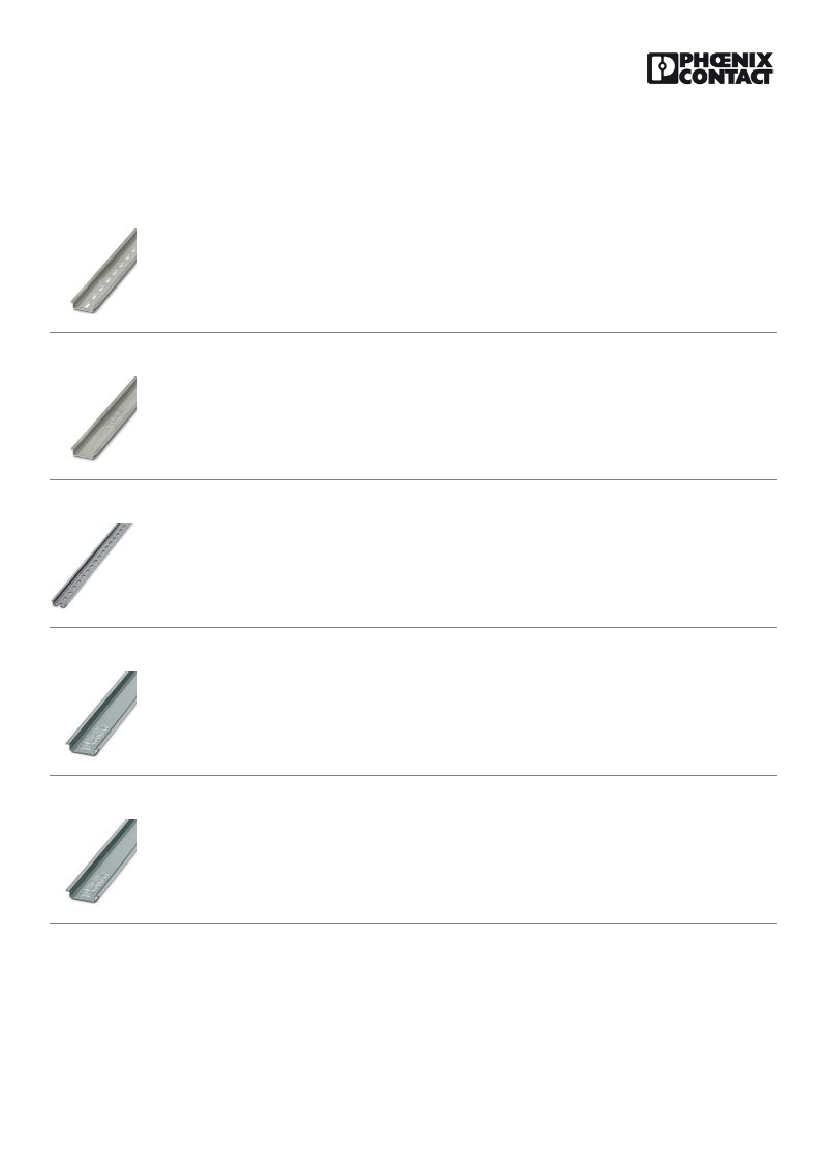

DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail perforated, Standard profile, width: 35 mm, height: 7.5 mm, acc. to EN 60715, material: Steel, galvanized,
passivated with a thick layer, length: 2000 mm, color: silver
DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, unperforated, Standard profile, width: 35 mm, height: 7.5 mm, acc. to EN 60715, material: Steel, galvanized,
passivated with a thick layer, length: 2000 mm, color: silver
DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail perforated, Standard profile, width: 35 mm, height: 7.5 mm, acc. to EN 60715, material: Steel, Galvanized,
white passivated, length: 2000 mm, color: silver
DIN rail, unperforated - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail, unperforated, Standard profile, width: 35 mm, height: 7.5 mm, acc. to EN 60715, material: Steel, Galvanized,
white passivated, length: 2000 mm, color: silver
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Standard profile, width: 35 mm, height: 7.5 mm, acc. to EN 60715, material: Aluminum,
uncoated, length: 2000 mm, color: silver
01/23/2019 Page 5 / 13
