BHD-B-100-ST-GD15 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BHD-B-100-ST-GD15

Preview

BHD-B-100-ST-GD15: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

BHD-B-100-ST-GD15 Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-B-100-ST-GD15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.201 inch
subject depth	0.213 inch
body length	2.748 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

Pos.

C

D

E

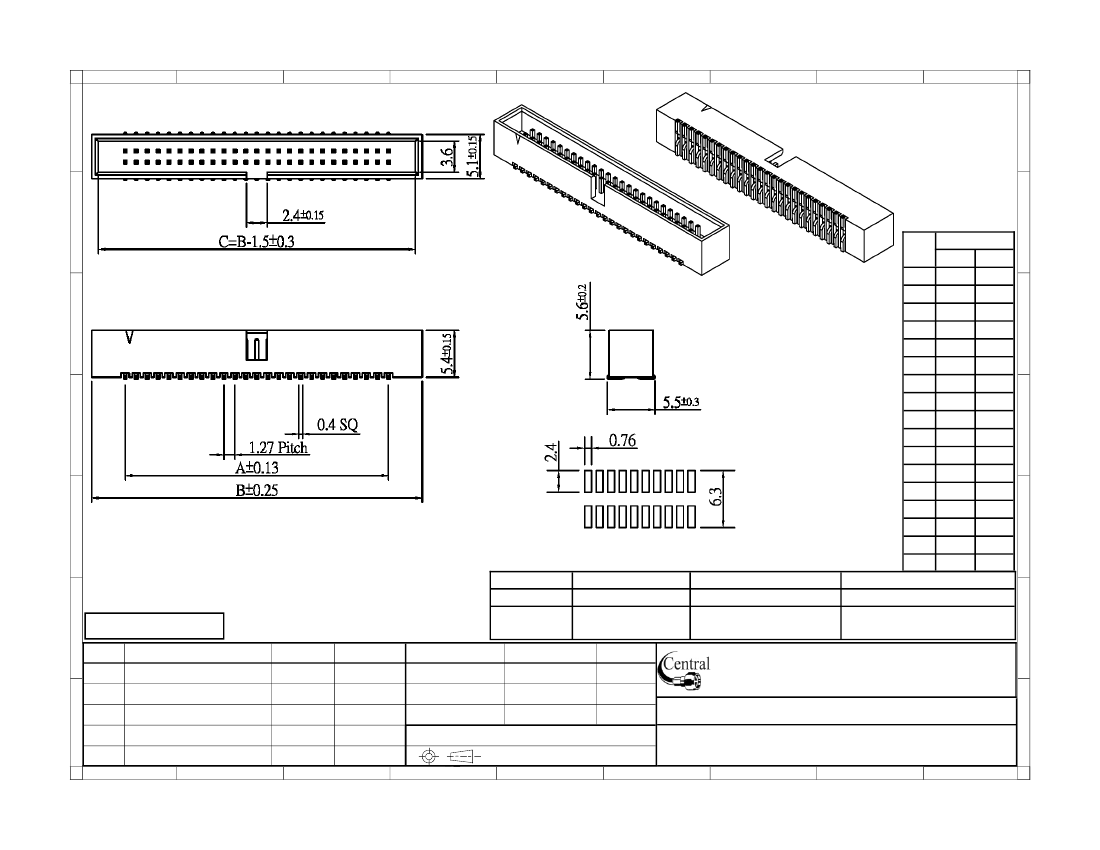

SPECIFICATIONS

Contact material: Brass

Contact plating:

Gold over nickel

Insulator material: LCP

PC Board Layout

Series

Positions

BHD-B

XX

Box header, See table

0.50” by 0.50”

Approved

Greg

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

F

RoHS compliant

Rev.

A PT

Description

Date

4/11/08

Mounting

ST

ST=Straight PCB mount

GDXX=Gold

RA=Right angle PCB mount XX=Flash if blank; 15, 30µ” gold

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Dimension

A

B

6

2.54 10.11

10

5.08 12.65

12

6.35 13.92

14

7.62 15.19

16

8.89 16.46

20 11.43 19.00

26 15.24 22.81

30 17.78 25.35

34 20.32 27.89

40 24.13 31.70

44 26.67 34.24

50 30.48 38.05

60 36.83 44.40

64 39.37 46.94

68 41.91 49.48

80 49.53 57.10

100 62.23 69.80

Plating

XX

C

D

E

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

BHD-B-XX-SM-GD

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Box header,1.27x1.27mm pitch, SMT type

1

2

3

4

BHD-B-100-ST-GD15 Related Products

	BHD-B-100-ST-GD15	BHD-B-100-ST-GD30	BHD-B-100-ST-GD
Description	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.201 inch	0.201 inch	0.201 inch
subject depth	0.213 inch	0.213 inch	0.213 inch
body length	2.748 inch	2.748 inch	2.748 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm
Plating thickness	15u inch	30u inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.091 inch	0.091 inch	0.091 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	100	100	100
Base Number Matches	1	1	1
