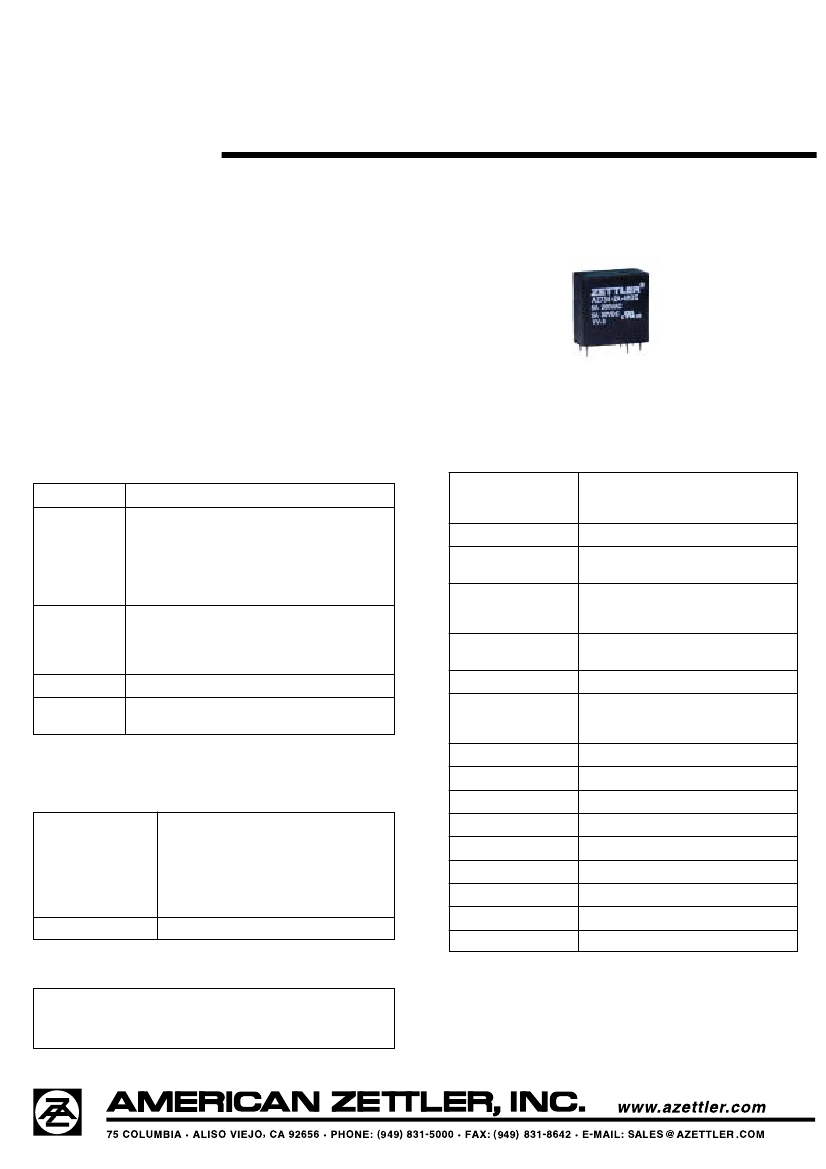

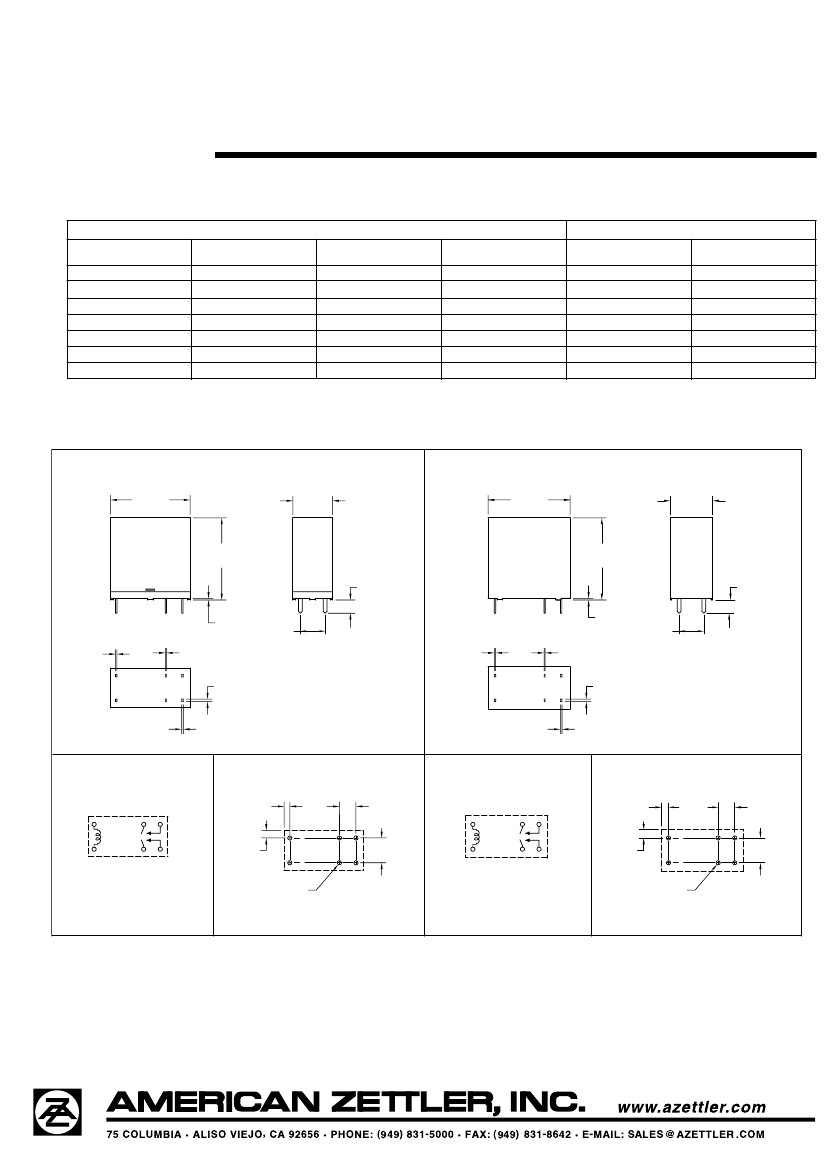

AZ734
DPST MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
Dielectric strength 4000 Vrms
Low cost
Epoxy sealed version available
5 Amp switching — double pole contacts
UL Class B insulation system
UL, CUR file E43203
CONTACTS
Arrangement
Ratings
DPST (2 Form A)
Resistive load:
Max. switched power: 150 W or 1200 VA
Max. switched current: 5 A
Max. switched voltage: 150* VDC or 380 VAC
*Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 5 A 240 VAC Res.
15 ms at nominal coil voltage
10 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL, CUR
5 A at 250 VAC general use, 100k cycles
5 A at 30 VDC resistive, 100k cycles
TV-3 at 125 VAC
Silver cadmium oxide, silver tin oxide
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Dielectric Strength
4000 Vrms contact to coil
(at sea level for 1 min.)
1000 Vrms between open contacts
1000 Vrms between contact sets
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–55 Hz
20 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
13 grams
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
300 mW
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
1.5 W at 20°C (68°F) ambient
45°C (81°F) at nominal coil voltage
Max. Immersion Time
Max. 130°C (266°F)
Weight
Max. Solvent Temp.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
7/12/01W
