AZ742-2C-6D Overview

8 A DPDT MINIATURE POWER RELAY

AZ742-2C-6D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Coil operating voltage (DC)	4.2 V
Coil resistance	90 Ω
Maximum coil voltage (DC)	15.3 V
Nominal coil voltage	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2000VA@400VAC
Contact (AC) maximum rated R load	10A@400VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	240W@300VDC
Contact (DC) maximum rated R load	10A@300VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	400 V
Maximum contact voltage (DC)	300 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
Input switching control type	Random
Insulation resistance	100000000000 Ω
JESD-609 code	e3
Number of terminals	8
operating hours	7 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	29mm x 12.7mm x 15.7mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
Terminal surface	Ti
Terminal length	0.0039 inch
Termination type	SOLDER
weight	14 g
Base Number Matches	1

Preview

Download Datasheet

View All

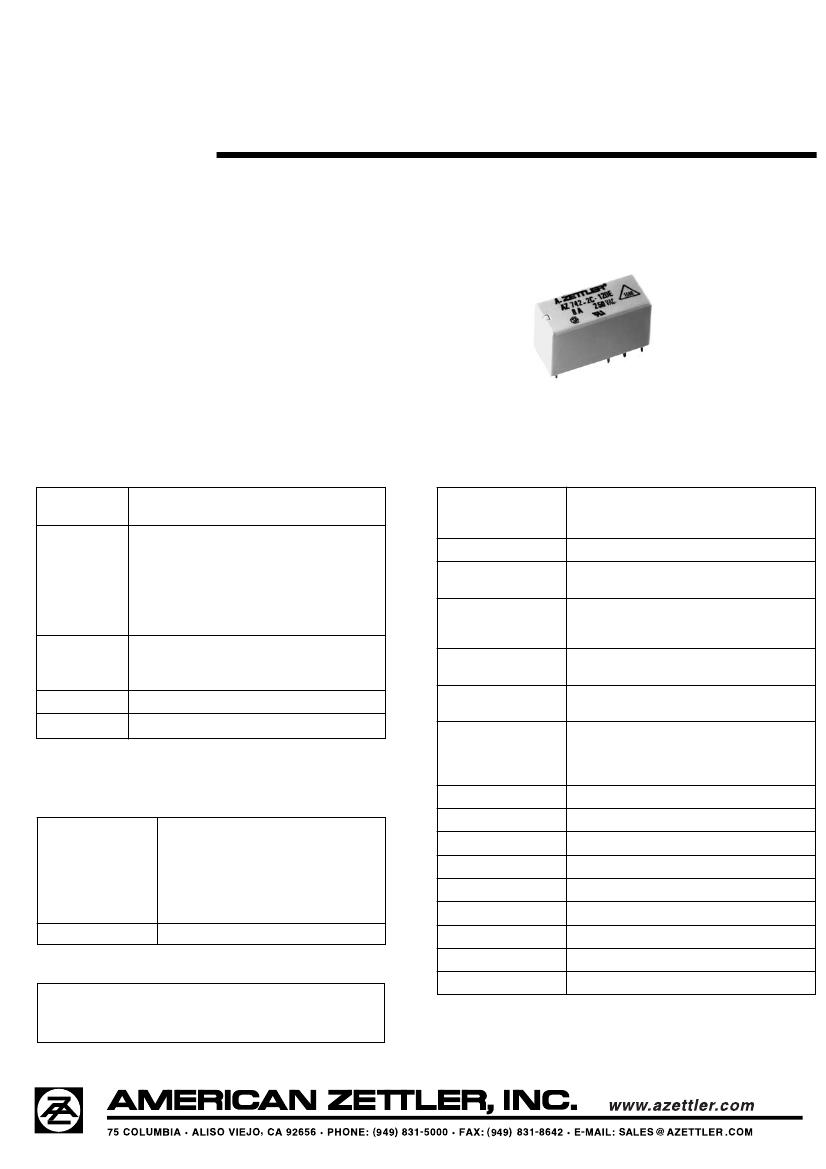

AZ742

8 A DPDT MINIATURE

POWER RELAY

FEATURES

•

Dielectric strength 5000 Vrms

Low height: 15.7 mm

Epoxy sealed version available

8 Amp switching — double pole contacts

AC and DC coils

Isolation spacing greater than 10 mm

Proof tracking index (PTI/CTI) 250

Surpasses requirements of VDE 0631/0700

UL, CUR file E43203; VDE 119918

CONTACTS

Arrangement

Ratings

DPDT (2 Form C)

DPST (2 Form A)

Resistive load:

Max. switched power: 240 W or 2000 VA

Max. switched current: 8 A

Max. switched voltage: 150* VDC or 400 VAC

*Note: If switching voltage is greater than 30 VDC,

special precautions must be taken. Please contact the

factory.

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

3 x 10

1 x 10

at 8 A 240 VAC res.

7 ms at nominal coil voltage

3 ms at nominal coil voltage

(with no coil suppression)

Rated Load

UL, CUR

VDE

Material

Resistance

8 A at 250 VAC resistive

8 A at 250 VAC

Silver nickel or silver nickel gold plated

< 100 milliohms initially

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

2500 Vrms between contact sets

1000 Vrms between open contacts

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

1000 megohms min. at 500 VDC,

20°C, 50% RH

Greater than 10% of nominal coil voltage - DC

Greater than 15% of nominal coil voltage - AC

At nominal coil voltage

-40°C (-40°F) to 90°C (194°F) - DC coils

-40°C (-40°F) to 75°C (167°F) - AC coils

-40°C (-40°F) to 115°C (239°F)

0.062" DA at 10–55 Hz

20 g

P.B.T. polyester, UL-94 : V0

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

14 grams

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

200 mW (DC coil)

.422

VA (AC coil)

1.7 W at 20°C (68°F) ambient

26°C (47°F) at nominal coil voltage

115°C (239°F)

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

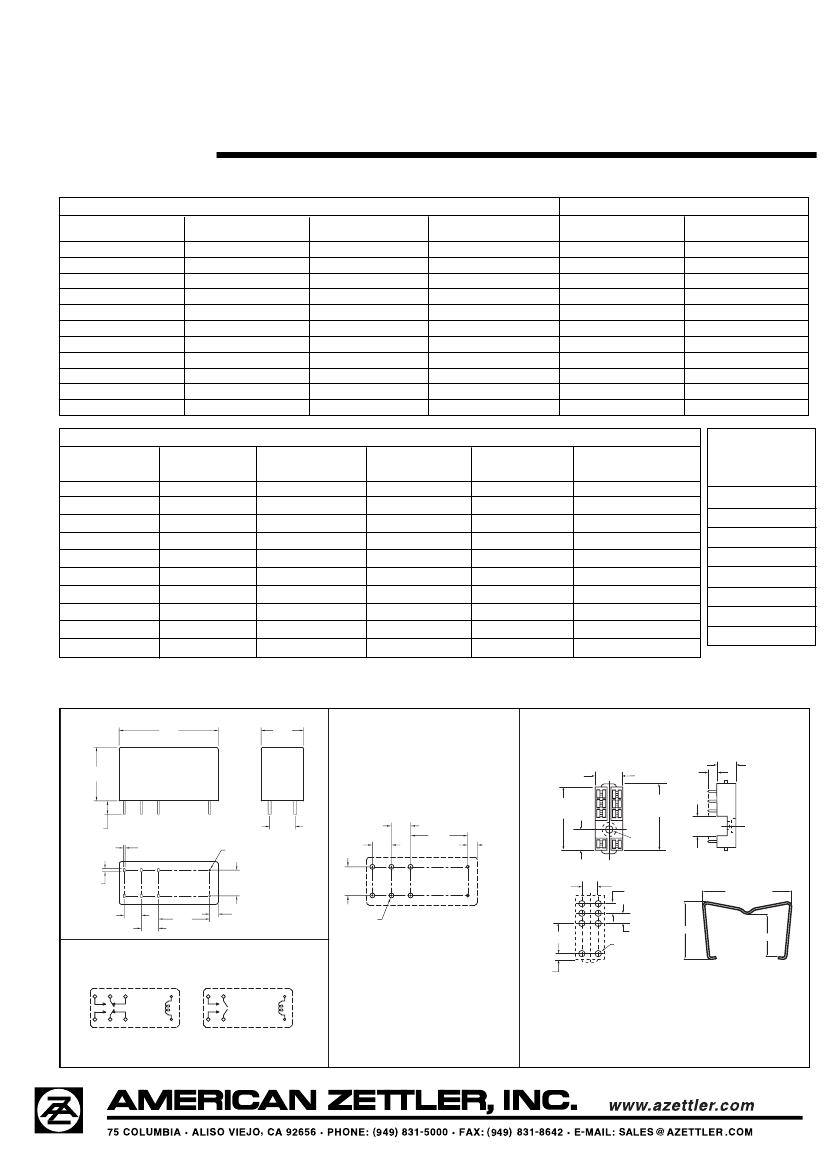

3/3/04W
