AZ756-1A-24DK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ756-1A-24DK

AZ756-1A-24DK: Description20 AMP MINIATURE POWER RELAY; CategoryMechanical and electronic products relay; File Size110KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ756-1A-24DK Overview

20 AMP MINIATURE POWER RELAY

AZ756-1A-24DK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Objectid	1537724755
Reach Compliance Code	compli
ECCN code	EAR99
compound_id	165873289
body width	13 mm
body height	24.6 mm
Body length or diameter	29.4 mm
Coil operating voltage (DC)	19.2 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	40.6 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4000VA@277VAC
Contact (AC) maximum rated R load	20A@277VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated power R load	480W@150VDC
Contact (DC) maximum rated R load	20A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Number of terminals	4
operating hours	20 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	4
physical size	29.4mm x 13mm x 24.6mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
Terminal surface	Ti
Terminal length	0.004 inch
Termination type	SOLDER
weight	13 g

Preview

Download Datasheet

View All

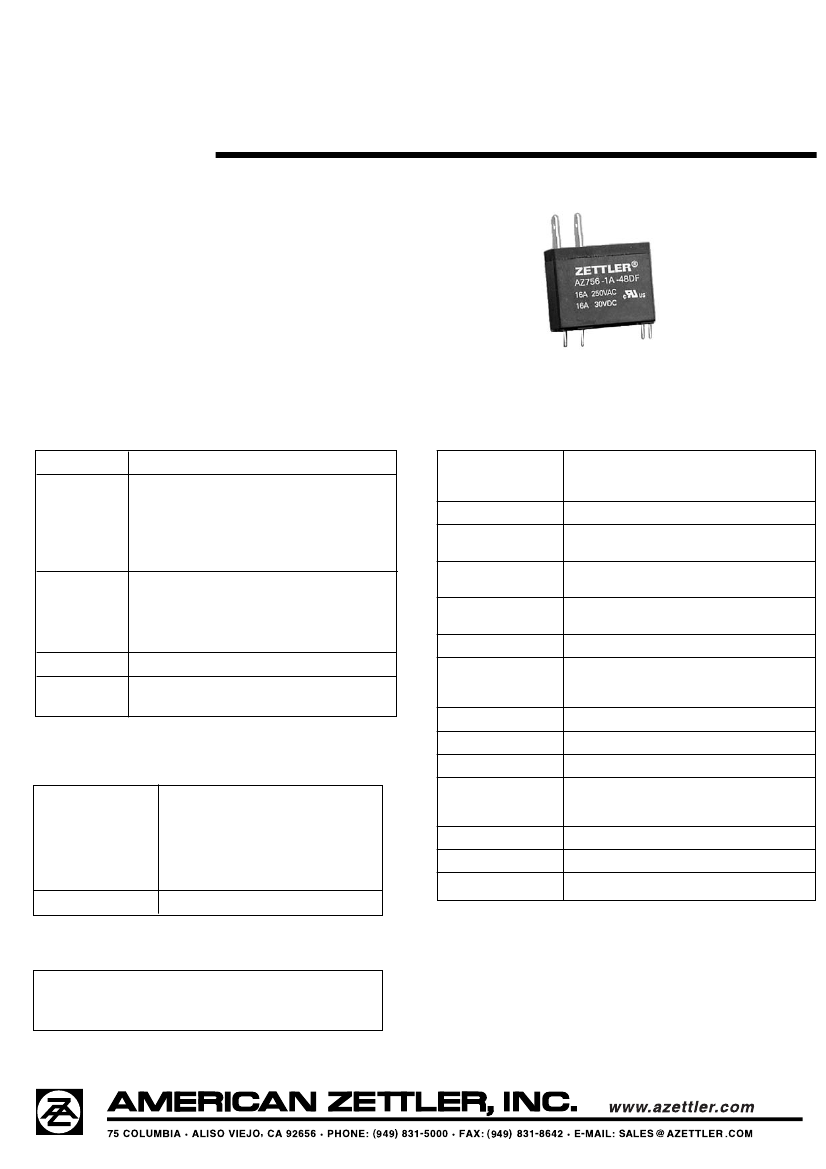

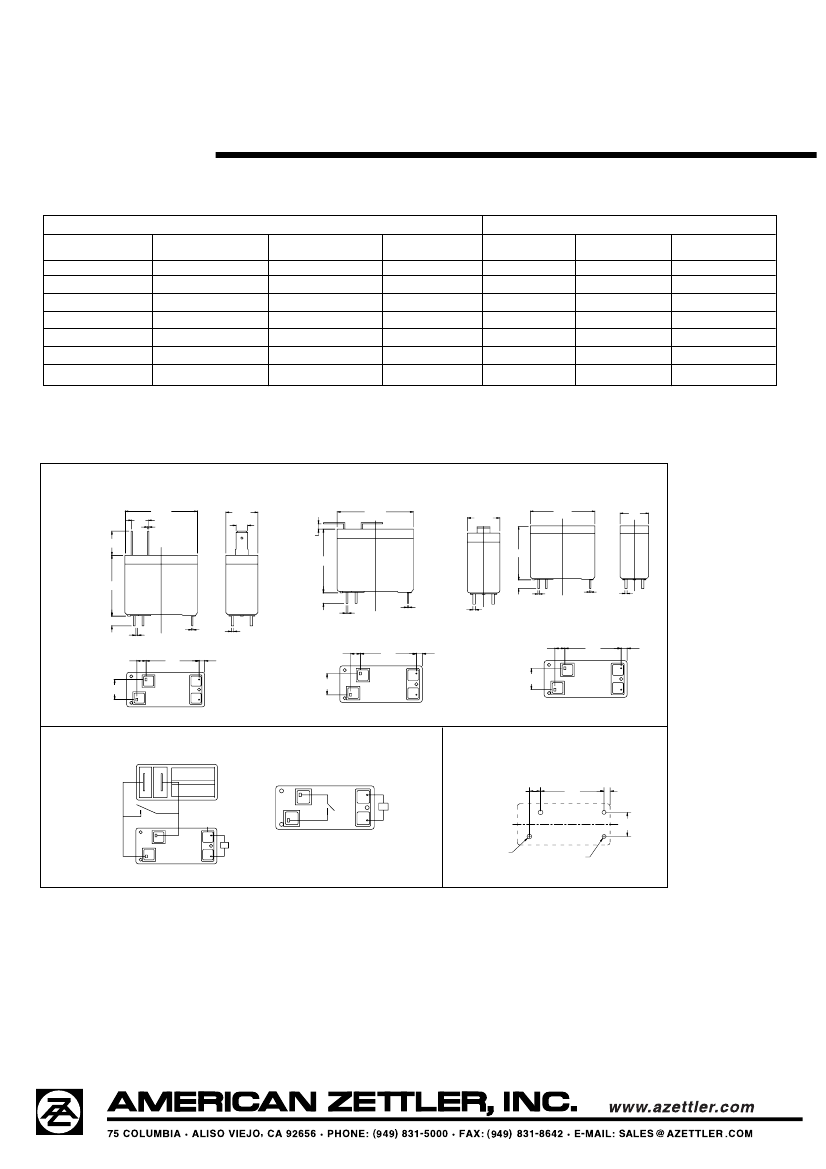

AZ756

20 AMP MINIATURE

POWER RELAY

FEATURES

•

Dielectric strength 5000 Vrms

Low cost

20 Amp switching — single pole contacts

Isolation spacing greater than 8mm

UL Class B insulation system standard

Class F available

•

UL, CUR file E43203, TÜV R50099406

CONTACTS

Arrangement

Ratings

SPST - N.O.

Resistive load:

Max. switched power: 480 W or 4000 VA

Max. switched current: 20 A

Max. switched voltage: 150* VDC or 277 VAC

Note: If switching voltage is greater than 30 VDC, special

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 16 A 240 VAC Res.

20 ms at nominal coil voltage

10 ms at nominal coil voltage

(with no coil suppression)

precautions must be taken. Please contact the factory.

Rated Load

UL, CUR

TÜV

Material

Resistance

20 A at 125 VAC Resistive, 100k cycles

16 A at 250 VAC Resistive, 100k cycles

16 A at 30 VDC Resistive, 100k cycles

16 A at 250 VAC Resistive, 100k cycles

16 A at 30 VDC Resistive, 50k cycles

Silver tin oxide

< 50 milliohms initially

(24 V, 1 A voltage drop method)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

1000 megohms min. at 20°C

500 VDC 50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P. C. and Quick Connects

Note: Allow suitable slack on leads when wiring, and do

not subject the terminals to excessive force.

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

340 mW

1.5 W at 20°C (68°F) ambient

1.1 W at 40°C (104°F) ambient

41°C (74°F) at nominal coil voltage

Max. 130°C (266°F)

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Weight

270°C (518°F)

5 seconds

13 grams

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

1/17/07W
