AZ852-4.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ852-4.5

AZ852-4.5: DescriptionMICROMINIATURE POLARIZED RELAY; CategoryMechanical and electronic products relay; File Size222KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ852-4.5 Overview

MICROMINIATURE POLARIZED RELAY

AZ852-4.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
body width	7.2 mm
body height	5.2 mm
Body length or diameter	10.6 mm
Coil operating voltage (DC)	3.38 V
Coil resistance	145 Ω
Maximum coil voltage (DC)	6.75 V
Nominal coil voltage	4.5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	60W@220VDC
Contact (DC) maximum rated R load	2A@220VDC
Contact resistance	75 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	2500 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Electrical life	200000 Cycle(s)
End contact material	Silver Alloy
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Number of terminals	8
operating hours	3 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	10.6mm x 7.2mm x 5.2mm
Guideline	CSA; UL
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
Terminal surface	Ti
Terminal length	0.0035 inch
Termination type	SOLDER
weight	0.8 g

Preview

Download Datasheet

View All

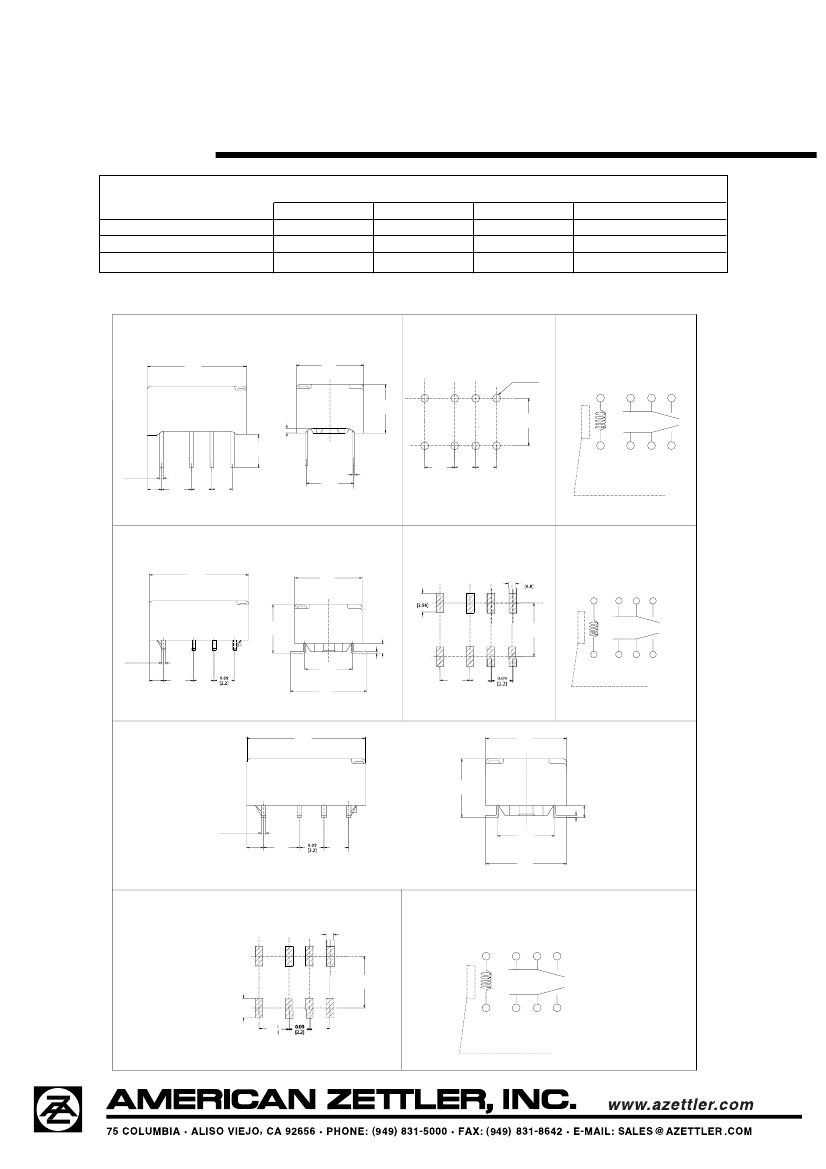

AZ852

MICROMINIATURE

POLARIZED RELAY

FEATURES

•

Conforms to IEC60950/UL1950/EN60950 spacing and high

breakdown voltage

Clearance: 1.0 mm (between coil and contacts)

Creepage: 1.6 mm (between coil and contacts)

Basic Insulation: 150 V Working Voltage, Pollution Degree 2

•

Monostable and bistable (latching) coil versions available

•

High dielectric and surge voltage:

2.5 KV surge (per Bellcore TA–NWT–001089)

1.5 KV surge (per FCC Part 68)

1,000 Vrms, open contacts

•

Low power consumption: 64 mW pickup

•

Stable contact resistance for low level signal switching

•

Epoxy sealed for automatic wave soldering and cleaning

•

UL file E43203; CSA file 212940

•

All plastics meet UL94 V–0, 30 min. oxygen index

CONTACTS

Arrangement

Ratings

DPDT (2 Form C)

Bifurcated crossbar contacts

Resistive load:

Max. switched power: 60 W or 62.5 VA

Max. switched current: 2.0 A

Max. switched voltage: 220 VDC or 250 VAC

Rated Load

UL/CSA

0.5 A at 125 VAC

2.0 A at 30 VDC

0.3 A at 110 VDC

Silver alloy; gold clad

< 75 milliohms initially at 6 V, 1 A

Ambient Temperature

Operating

Storage

64 mW - Sensitive coils

79 mW (3–12 VDC) - Standard coils

130 mW (24 VDC) - Standard coils

1.0 W at 20°C (68°F)

0.78 W at 40°C (104°F)

At nominal coil voltage

18°C (32°F) (3–12 VDC)

25°C (45°F) (24 VDC)

Max. 115°C (239°F)

Vibration

Shock

Max. Solder Temp.

Temp./Time

Max. Solvent Temp.

Max. Immersion Time

Weight

Enclosure

Terminals

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

(typical)

Release Time (typical)

Bounce (typical)

Capacitance

Dielectric Strength

(at sea level)

Dropout

Insulation Resistance

Minimum operations

1 x 10

at 3Hz

1 x 10

at 0.5 A, 125 VAC, Res.

2 x 10

at 1.0 A, 30 VDC, Res.

3 ms at nominal coil voltage

(with no coil suppression)

At 10 mA contact current

1 ms at operate or release

< 1 pF at 10 KHz—open contacts

< 1 pF at 10 KHz—adjacent contact sets

See table

Greater than 10% of nominal coil voltage

ohms min. at 25°C, 500 VDC,

50% RH

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 115°C (239°F)

Operational, 20 g, 10–55 Hz

Non-destructive, 30 g, 10–55 Hz

Operational, 50 g min., 11 ms

Non-destructive, 100 g min., 11 ms

350°C (662°F) for 3 seconds

260°C (500°F) for 10 seconds

80°C (176°F)

30 seconds

0.8 grams

P.B.T. polyester

Tinned copper alloy, P.C.

Material

Resistance

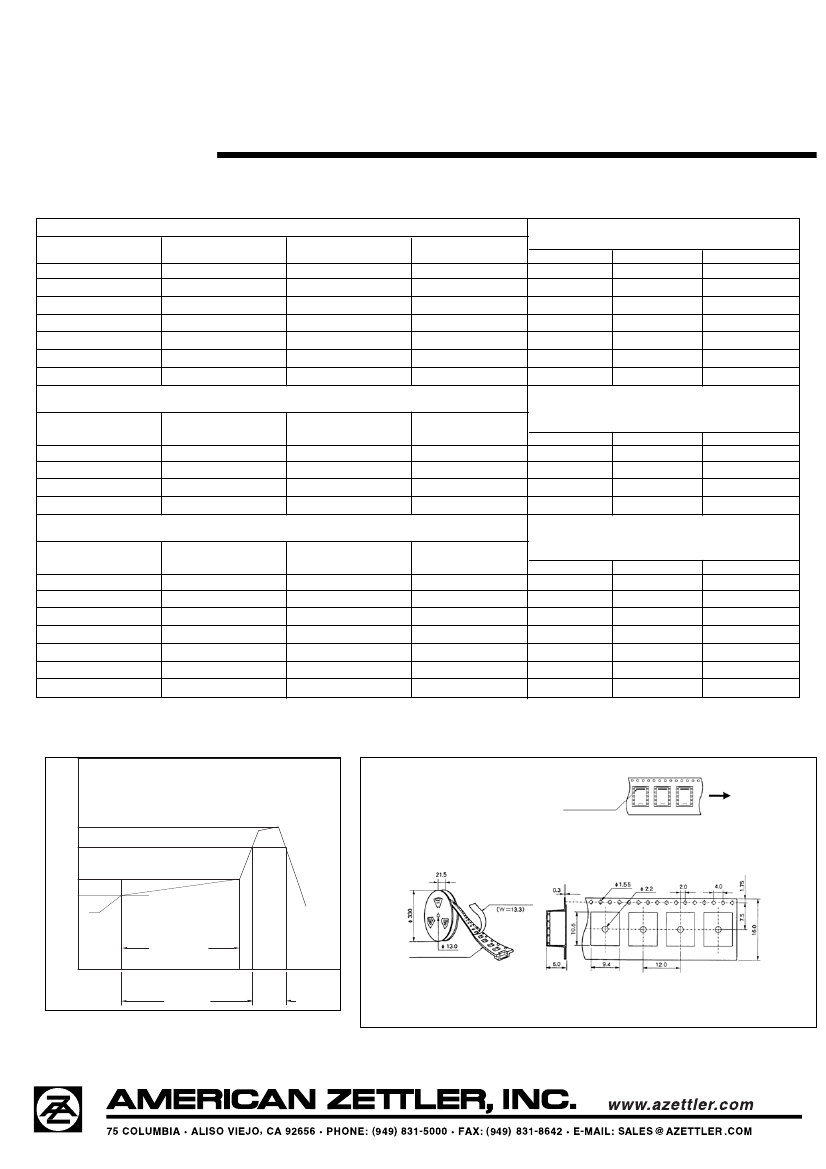

COIL (Polarized)

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Relay has fixed coil polarity.

4. Specifications subject to change without notice.

6/23/04W
