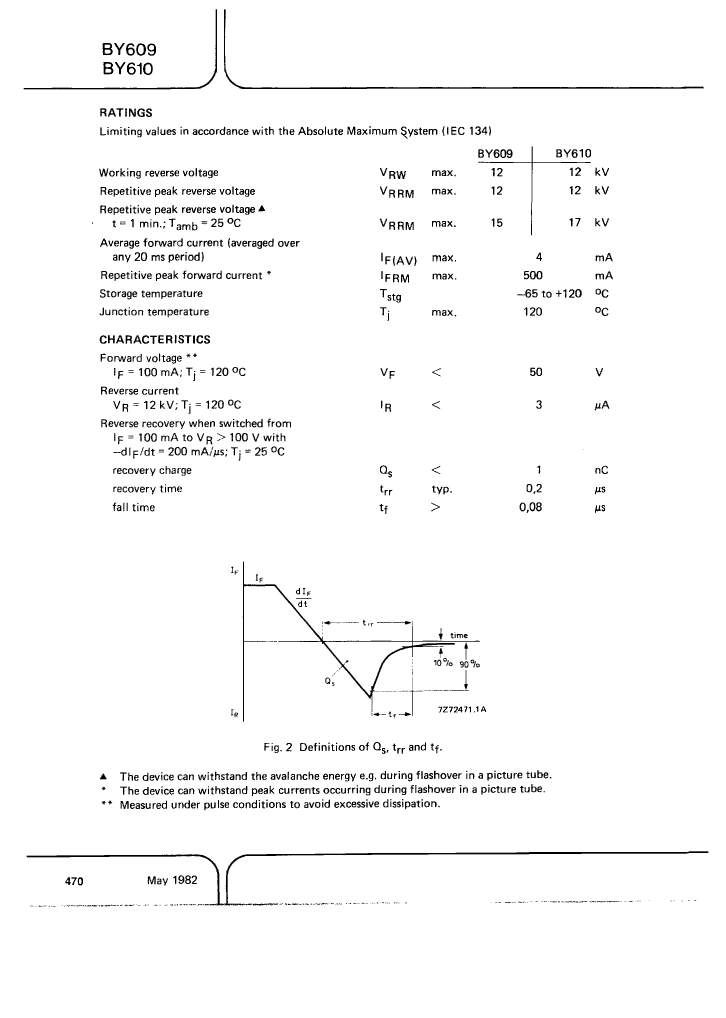

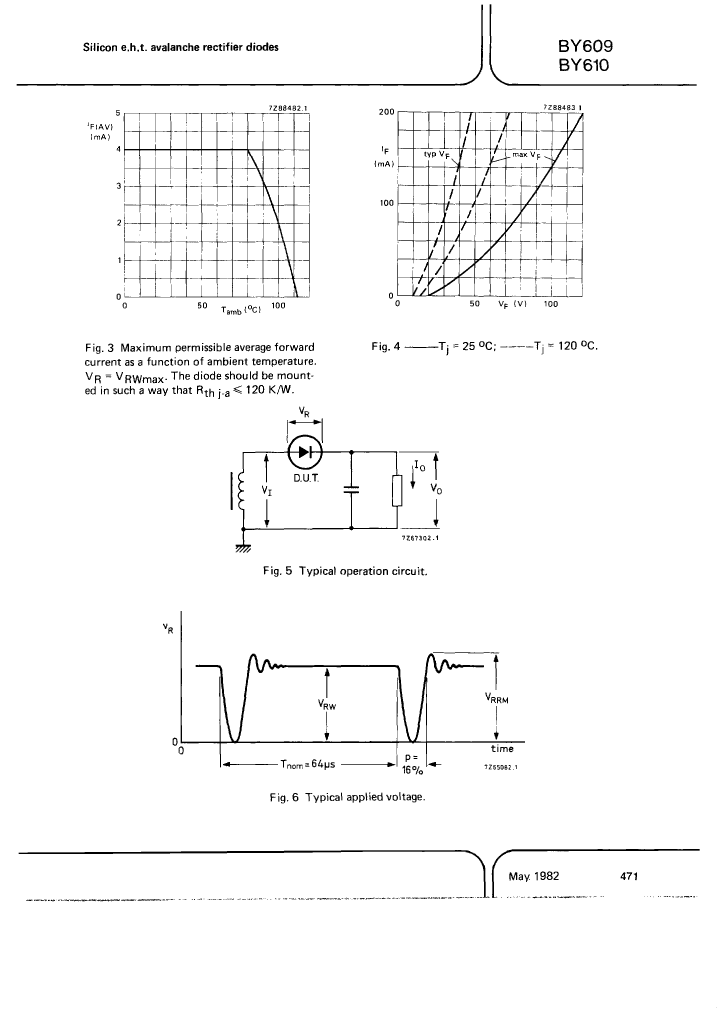

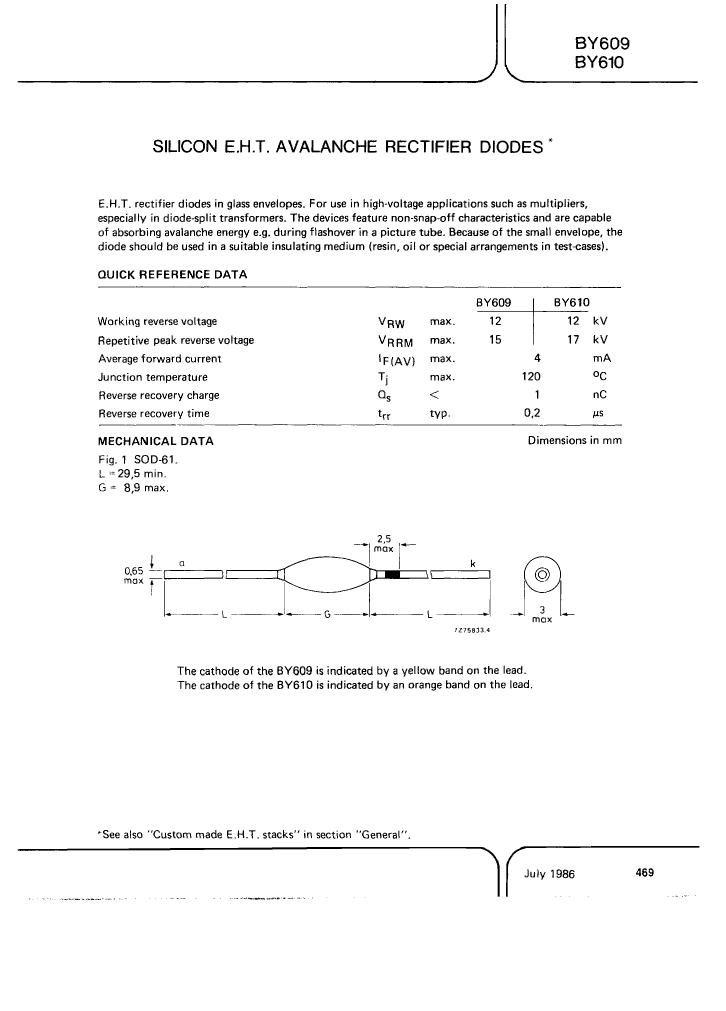

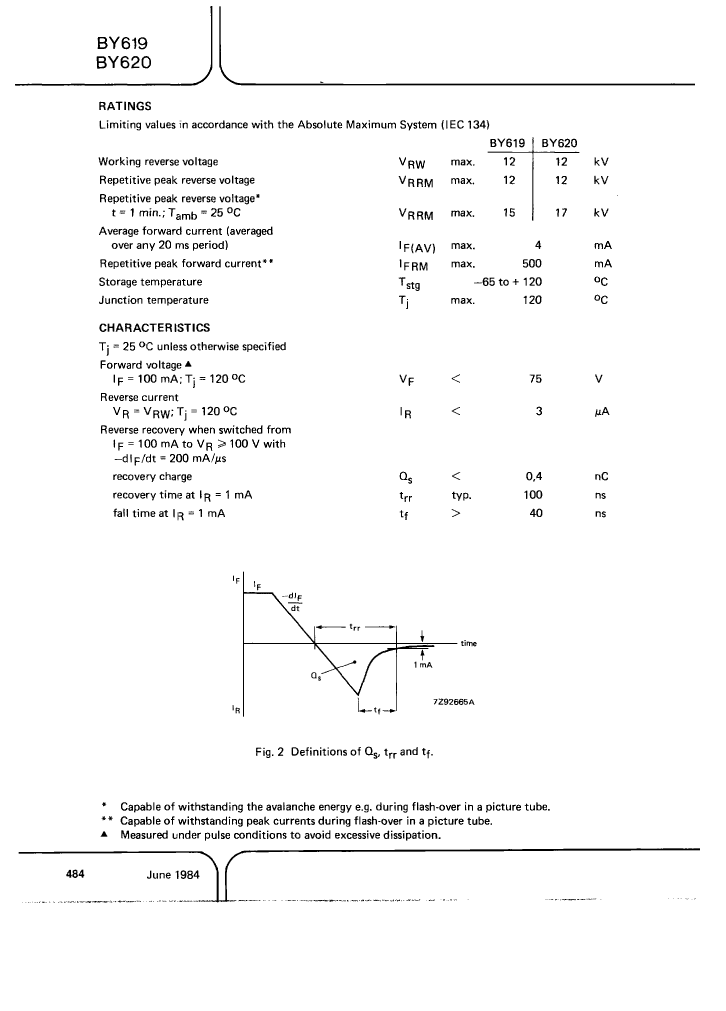

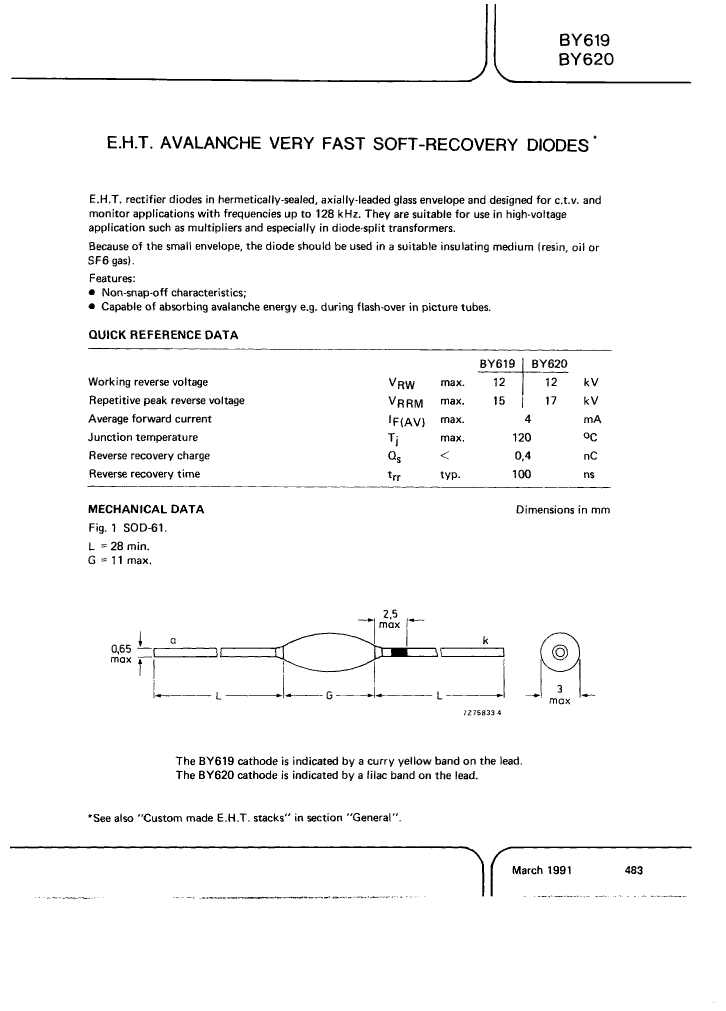

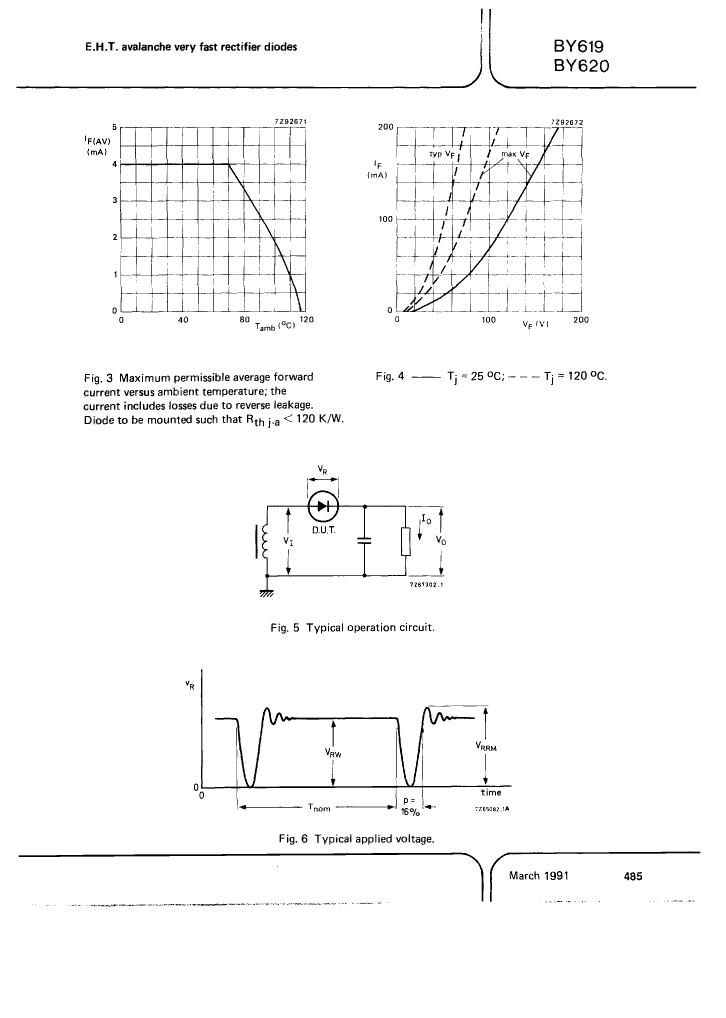

BY609 datasheet, PDF - EEWORLD Datasheet

BY609: DescriptionDIODE 0.004 A, 15000 V, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size59KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BY609 Overview

DIODE 0.004 A, 15000 V, SILICON, SIGNAL DIODE, Signal Diode

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	50 V
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	120 °C
Maximum output current	0.004 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15000 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	BY609	BY610
Description	DIODE 0.004 A, 15000 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.004 A, 17000 V, SILICON, SIGNAL DIODE, Signal Diode
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	120 °C	120 °C
Maximum output current	0.004 A	0.004 A
Package body material	GLASS	GLASS
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	15000 V	17000 V
Maximum reverse recovery time	0.2 µs	0.2 µs
surface mount	NO	NO
technology	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
