XOSM-55AFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> XOSM-55AFREQ

XOSM-55AFREQ: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 66.667MHz Max; CategoryPassive components oscillator; File Size73KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

XOSM-55AFREQ Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 66.667MHz Max

XOSM-55AFREQ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e2
Manufacturer's serial number	XOSM-55
Installation features	SURFACE MOUNT
Maximum operating frequency	66.667 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 LS TTL, 30 pF
physical size	14mm x 8.65mm x 4.7mm
longest rise time	8 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	TIN COPPER
Base Number Matches	1

Preview

Download Datasheet

View All

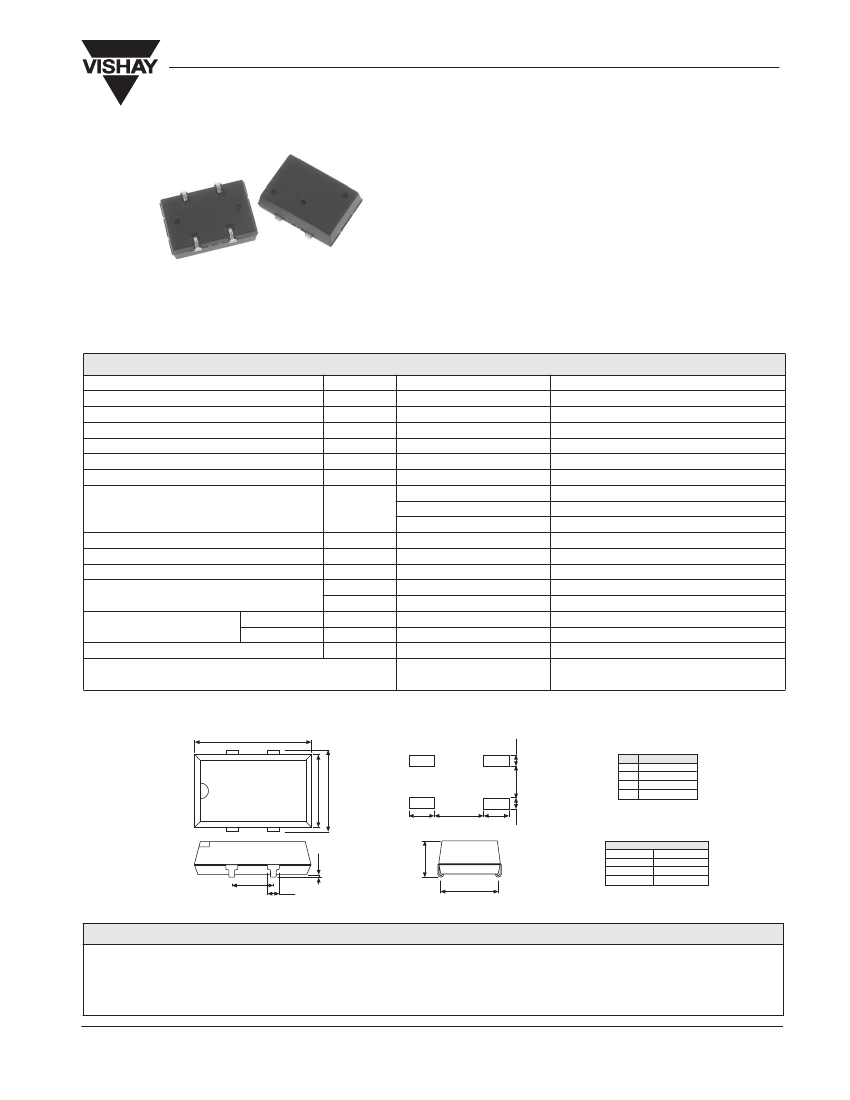

XOSM-55

Vishay Dale

J - Lead Plastic Clock Oscillators

FEATURES

•

J-Lead plastic surface mount

•

SG-615 compatible

•

Wide frequency range

The XOSM-55 series oscillator is a J-Lead plastic tri-state

enable/disable controled clock oscillator with a 5.0V power

supply voltage. The J-Lead configuration and high resistance

soldering temperature make it ideal for surface mount

production.

•

Low cost

•

Tri-state enable/disable

•

5.0V power supply

STANDARD ELECTRICAL SPECIFICATIONS

PARAMETER

Frequency Range

Frequency Stability*

Operating Temperature

Storage Temperature Range

Power Supply Voltage

Aging (First Year)

Supply Current

Output Symmetry

Rise Time

Fall Time

Output Voltage

Output Load

Start-up Time

Pin 1, tri-state function

TTL Load

HCMOS Load

SYMBOL

OPR

STG

25ºC ± 3ºC

1.000MHz to 23.999MHz

24.000MHz to 49.999MHz

50.000MHz to 66.667MHz

At 0.5V

10%V

~ 90%V

90%V

~ 10%V

CONDITION

XOSM-55

1MHz ~ 66.667MHz

± 50ppm, ± 100ppm

0ºC ~ 70ºC (- 40ºC ~ + 85ºC option)

- 55ºC ~ + 125ºC

5.0V ± 10%

± 5ppm

20mA Max

30mA Max

40mA Max

40/60%(45/55% Option)

8 nS Max

7 nS Max

90% V

Min

10% V

Max

1 ~ 10LSTTL

30pF Max

10mS Max

Pin 1 = H or open.... output active at pin 3

Pin 1 = L..... high impedance at pin 3

Sym

*Include: 25ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.

DIMENSIONS

in inches [millimeters]

0.551 [14.0]

0.05

[1.27]

CONNECTION

TRI-STATE/NC

GND

OUTPUT

0.341 [8.65]

0.386 [9.80]

MARKING

AREA

0.150

[3.81]

0.228 [5.80]

0.118

[3.0]

0.016

[0.25] Min

0.185

[4.7] Max

0.200 [5.08]

0.060 [1.52]

0.300 [7.62]

***note: A 0.01uF bypass capacitor should be placed between V

(Pin4) and GND(Pin2) to minimize power supply line noise

0.118

[3.0]

0.05

[1.27]

ENABLE/DISABLE FUNCTION

INPUT(PIN1) OUTPUT(PIN3)

OPEN

ENABLE

≥

2.2V

ENABLE

≤

0.8V

DISABLE

ORDERING INFORMATION

XOSM-55

MODEL

FREQUENCY STABILITY

A = 0.005% (50PPM)

B = 0.01% (100PPM) Standard

OTR

Blank = Standard

R = - 40°C to + 85°C

ENABLE/DISABLE

E = Disable to Tristate

50M

FREQUENCY/MHz

Document Number: 35027

Revision: 03-Jun-03

For technical questions contact: frequency@vishay.com

www.vishay.com

XOSM-55AFREQ Related Products

	XOSM-55AFREQ	XOSM-55ARFREQ	XOSM-55AEFREQ
Description	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 66.667MHz Max	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 66.667MHz Max	HCMOS/TTL Output Clock Oscillator, 1MHz Min, 66.667MHz Max
Reach Compliance Code	unknown	unknown	unknown
maximum descent time	7 ns	7 ns	7 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	50%	50%	50%
JESD-609 code	e2	e2	e2
Manufacturer's serial number	XOSM-55	XOSM-55	XOSM-55
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	66.667 MHz	66.667 MHz	66.667 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz
Maximum operating temperature	70 °C	85 °C	70 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	10 LS TTL, 30 pF	10 LS TTL, 30 pF	10 LS TTL, 30 pF
physical size	14mm x 8.65mm x 4.7mm	14mm x 8.65mm x 4.7mm	14mm x 8.65mm x 4.7mm
longest rise time	8 ns	8 ns	8 ns
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
maximum symmetry	40/60 %	40/60 %	40/60 %
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER
Maker	-	Vishay	Vishay
