FEATURES AND SPECIFICATIONS
2.50mm (.098”) Pitch
SPOX™ BMI
Connector System
45578, 45579, 45608,
45609, 45626, 45627
Wire-to-Wire, Wire-to-Board
SPOX BMI connectors offer self-aligning features in one of
the smallest blind-mate packages available
The unique low-profile design of the SPOX Blind-mate
Interface (BMI) allows for a mated stack distance of only
11.00mm (.430”). Utilizing proven SPOX-style contacts
for high reliability, the products are suitable for
situations requiring highly reliable Tin interfaces. The
unique dual-row panel-mounting design provides rugged
support for blind-mating applications and permits up to
3.00mm (.120”) of misalignment between connectors
prior to engagement. Multiple pin counts permit design
flexibility and provide for both power and signal
circuitry.
These dual-row 2.50mm (.098”) products are not
intermateable with the conventional single-row 2.50mm
(.098”) products.
Features and Benefits
I
Headers are molded in LCP high-temperature plastic
meeting Lead-free processing requirements
I
Panel mounting feature permits up to 3.00mm
(.120”) misalignment in horizontal and vertical
directions and blind-mating of products as
connectors can self-align
I
First-mate/last-break circuits provide sequential
engagement of contacts for design flexibility
I
Robust alignment features virtually eliminate
contact damage
SPECIFICATIONS
Reference Information
Packaging: Bulk — 45578, 45579, 45626, 45609
Tray — 45608
Reel — 45627
UL File No.: Pending
CSA File No.: Pending
Mates With: 45578 mates to 45579
45627 mates to 45579
45626 uses 45627
45608 mates to 45609
Designed In: millimeters
Electrical
Voltage: 250V AC (RMS)
Current: 22 AWG – 3.0A
24 AWG – 2.5A
26 AWG – 2.0A
28 AWG – 1.5A
Contact Resistance: 20 milliohms max.
Dielectric Withstanding Voltage: 1,500V
Insulation Resistance: 1,000 Megohms min.
Mechanical
Contact Insertion Force: 14.7N (3.3 lbf)
Contact Retention to Housing: 14.7N (3.3 lbf)
Mating Force: Varies by circuit size
Unmating Force: Varies by circuit size
Durability: 25 cycles-Tin
Physical
Housing: Crimp housings — Polyester
Headers — LCP
Crimp Contact: Phosphor Bronze
Plating: Contact Area — Tin
Solder Tail Area — Tin
Underplating — Nickel
PCB Thickness: 1.57mm (.062”)
Operating Temperature: -40 to + 105°C

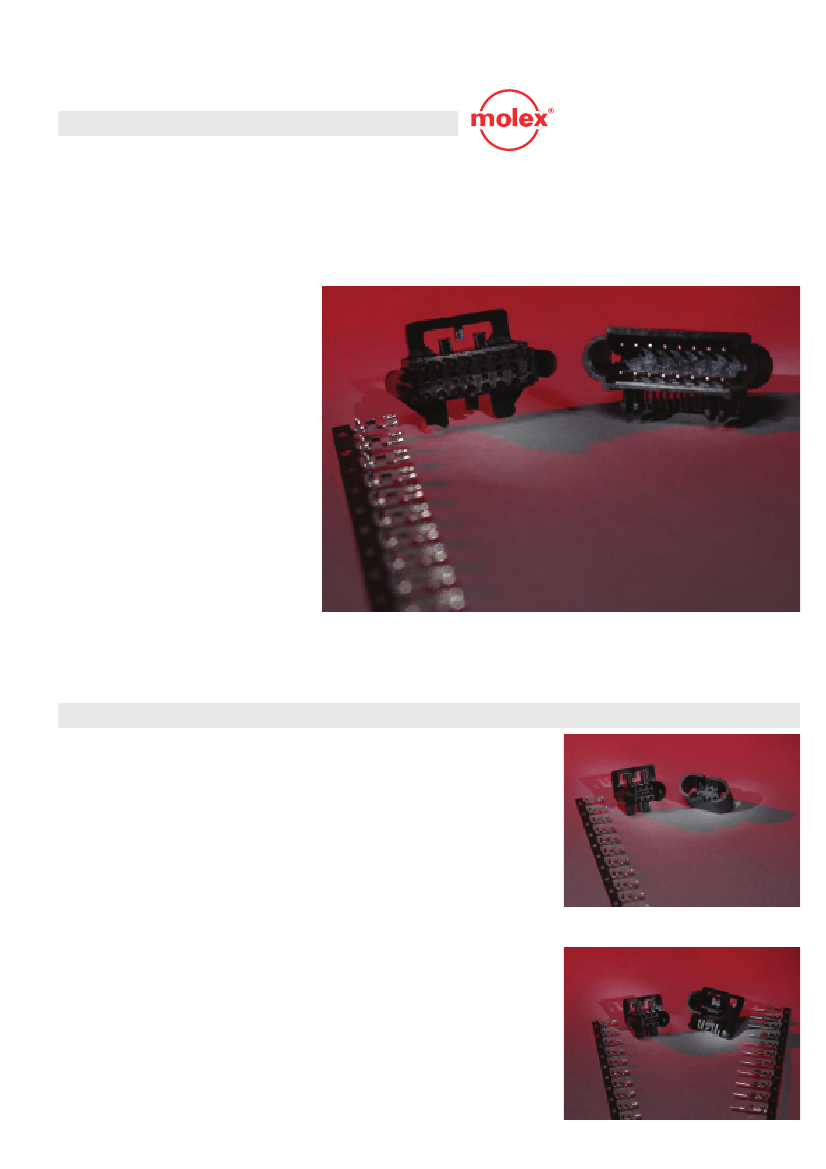

6-pin wire-to-board, vertical connector
6-pin wire-to-wire, panel-mount connector
APPLICATIONS
I
Telecommunication Equipment
- Hubs
- Servers
- Routers
I
Other Markets
- Fan-tray assemblies
- Low-current blind-mating applications
- Lower-current power supply applications
2.50mm (.098”) Pitch
SPOX™ BMI
Connector System
45578, 45579, 45608,
45609, 45626, 45627
Wire-to-Wire, Wire-to-Board
ORDERING INFORMATION
Order No.
45578-0001
45578-0002
45579-0001
45626-0001
45627-0001
45608-0001
45609-0001
Product Type
Header Assembly
Header Assembly
Receptacle
Plug
Crimp Terminal
Header Assembly
Receptacle
Orientation
Vertical
Vertical
Panel Mount
Panel Mount
-
Right Angle
Panel Mount
Pin Count
6
6
6
6
-
16
16
Housing Material
Liquid Crystal Polymer
Liquid Crystal Polymer
Polyester
Polyester
Phosphor Bronze
Liquid Crystal Polymer
Polyester
Application
Wire-to-Board
Wire-to-Board
Wire-to-Wire and Wire-to-Board
Wire-to-Wire
Wire-to-Wire and Wire-to-Board
Wire-to-Board
Wire-to-Board
