H HiTRON
2008/03/31

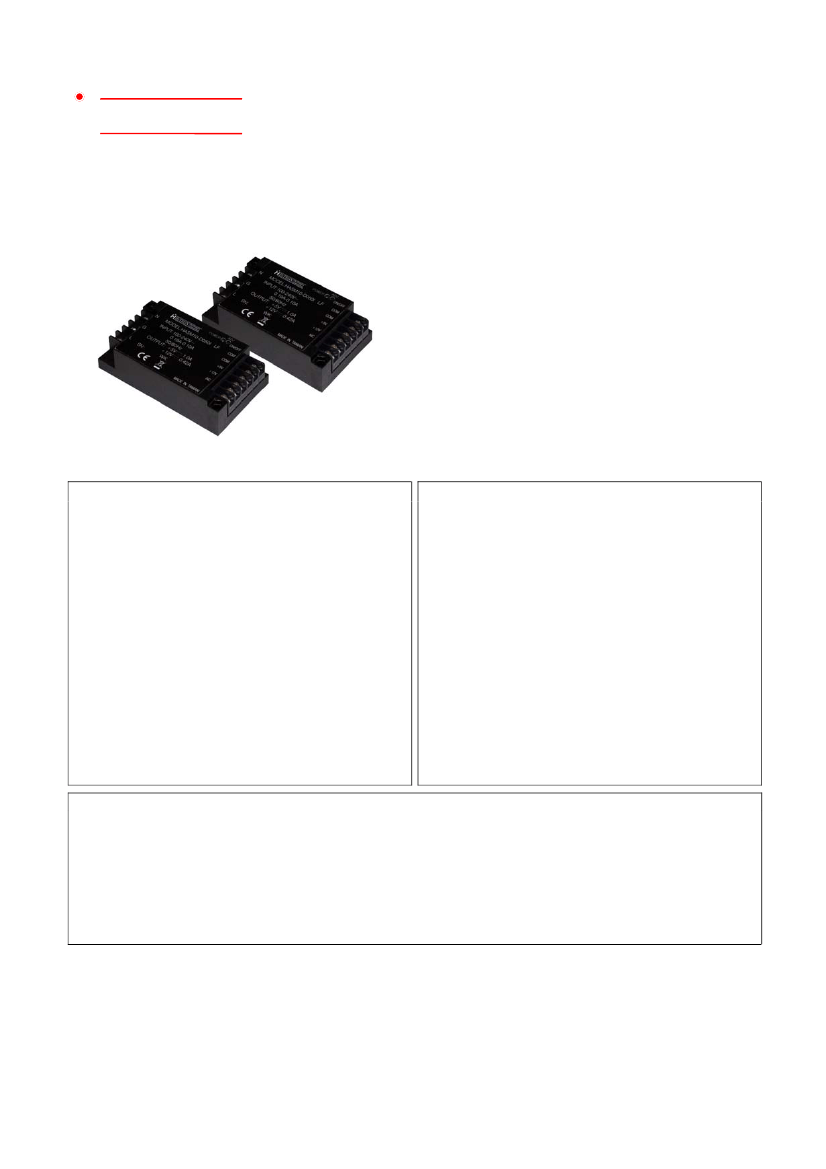

CHASSIS-MOUNT UNIVERSAL INPUT AC-DC GREEN POWER
ENCAPSULATED MODULAR POWER SUPPLIES 10 WATTS
MULTIPLE OUTPUT HAS10G-S &HAS10-D/T SERIES
FEATURES:
CHASSIS-MOUNT AC/DC MODULAR
POWER SUPPLIES
UNIVERSAL AC INPUT RANGE
GREEN POWER DESIGN
MEET UNIVERSAL SAFETY STANDARDS
EMI MEETS CISPR PUB.22/FCC CLASS B
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac typical.
Input Frequency:
47-63 Hz. (Nominal 50/60Hz.).
Input Current:
0.16A @115Vac./0.1A @230Vac typical.
Inrush Current:
4.2Arms@230Vac typical.
Input Fuse:
Use external fuse.
Dielectric Withstand:
Meet IEC60950-1.
3,000Vac-Output/Input.
1,500Vac-Input/GND.
500Vac-Output/GND.
EMI:
Meet CISPR PUB. 22/FCC Class B.
Hold-up time:
Typ. 22.4 mS @115Vac, 130mS @230Vac.
Green Power:
0.25W@132Vac, 0.51W@230Vac for single.
Earth Leakage:
Less than 0.16mA @230Vac.
Remote ON/OFF:
ON(Enable)=Open.
OFF(Disable)=Short.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
10 Watts typical.
Line Regulation:
Various with output voltage. Typ.±0.1% .
Load Regulation:
Various with output voltage.
Main VO1 ± 0.1-2.0% typical.
Aux.VO2 ± 0.7-1.2% typical.
Aux.VO3 ± 0.1% typical.
Total Regulation:
0.1-1.9% typical.
Noise & ripple:
1.0% typical peak to peak.
Typ. 100mV for 3.3V/5v.
OVP:
Built-in on main output VO1.
Adjustability:
Available at main output VO1.
Overload Protection (OLP):
Fully protected against output overload and short circuit.
Typical 125-150% of rating output load.
Con2sult the factory for special OLP setting.
Operating Temperature:
0°C to +50°C range. @ full load
without derating.
From+50°C derating linearly to half load @+70°C
(Refer to the Derating Chart).
GENERAL SPECIFICATION
Efficiency:
70-80% typical various with output voltage.
Switching Frequency:
80K Hz.
Circuit Topology:
Fixed Frequency Flyback circuit.
Transient Response:
Peak deviation on 70mV,
Recovery time <0.2mSec.@ 25%step load change.
Case:
Impact resistant thermo-plastic enclosure.
Safety Standard:
EN60950-1/ UL60950-1 Class I.
Power Density:
1.22 Watts. / Cubic inch.
Storage Temperature:
-20°C to +85°C.
Temperature Coefficient:
±0.03% /°C.
Cooling:
Convection cooling for +50°C @ full load.
Commercial Grade only.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load Regulation measured from Full-Load (F-L) to Half-Load (H-L) at nominal input and others loaded at half load.
(3) Due to requests in market and advances in technology, specifications subject to change without notice.
