H HiTRON
2008/04/14

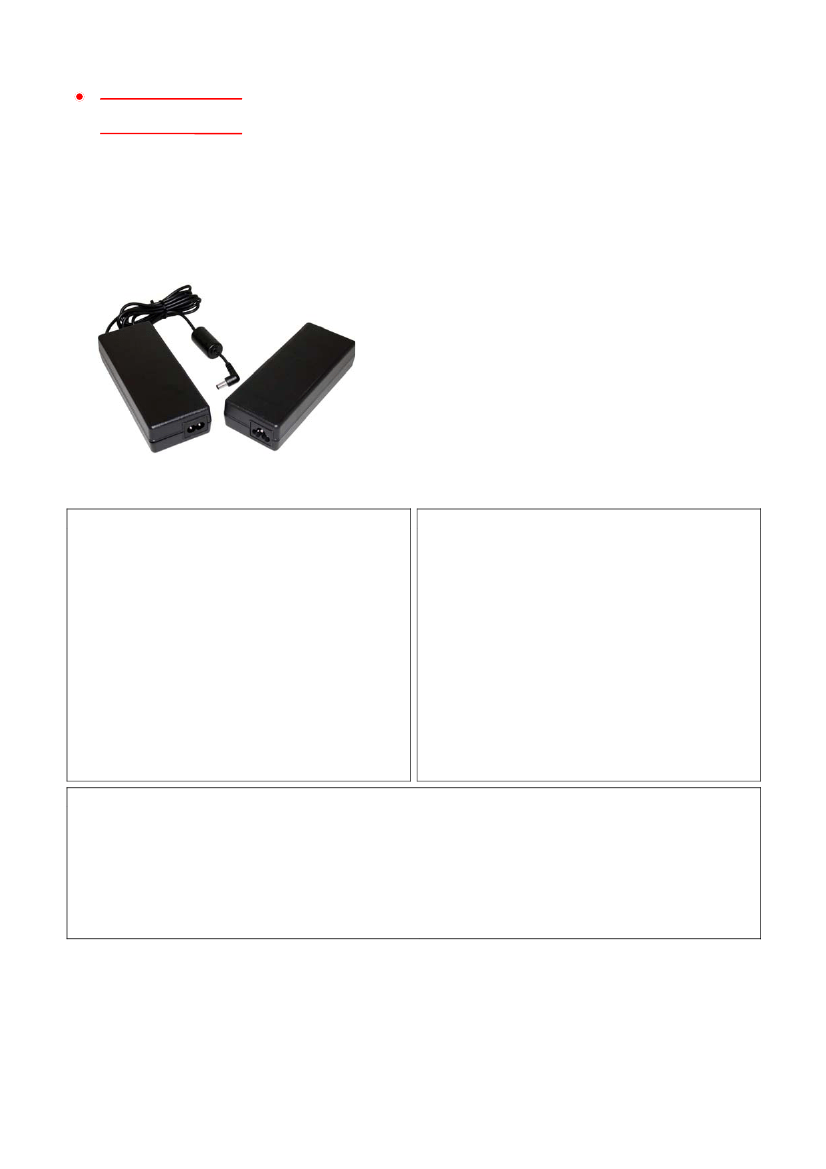

HARMONIC CORRECTION (PFC) AC/DC MEDICAL APPLICATION
EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT
SINGLE OUTPUT 100 WATTS GREEN POWER
SWITCHING POWER SUPPLIES HEMP100G SERIES
FEATURES:
ACCOMMODATE UNIVERSAL AC INPUT
DESKTOP IEC320-3PL/2P AC RECEPTACLE
GREEN POWER DESIGN/MEET ENERGY
STAR(CEC) LVEVL IV.
MEET MEDICAL STANDARDS
EN60601-1/UL60601-1
EMI MEET EN55011/FCC CLASS B
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac typical.
Power Factor Correction (PFC) installed.
Input Connector:
IEC320-3PL/2P AC receptacle.
Input Frequency:
50/60Hz.
Inrush Current:
7.2Arms @230Vac 50Hz.
Input Current:
0.976A@115Vac/0.496A@230Vac
Dielectric Withstand:
Meet IEC60601-1.
EMI:
Meet EN55011/FCC Class B.
Hold-up Time:
22mS @115Vac/ 43mS@230Vac typical.
Green Power:
0.37W @ 132Vac/ 0.50W @264Vac.
Earth Leakage:
Less than 0.126mA.
OUTPUT SPECIFICATION
Output Voltage:

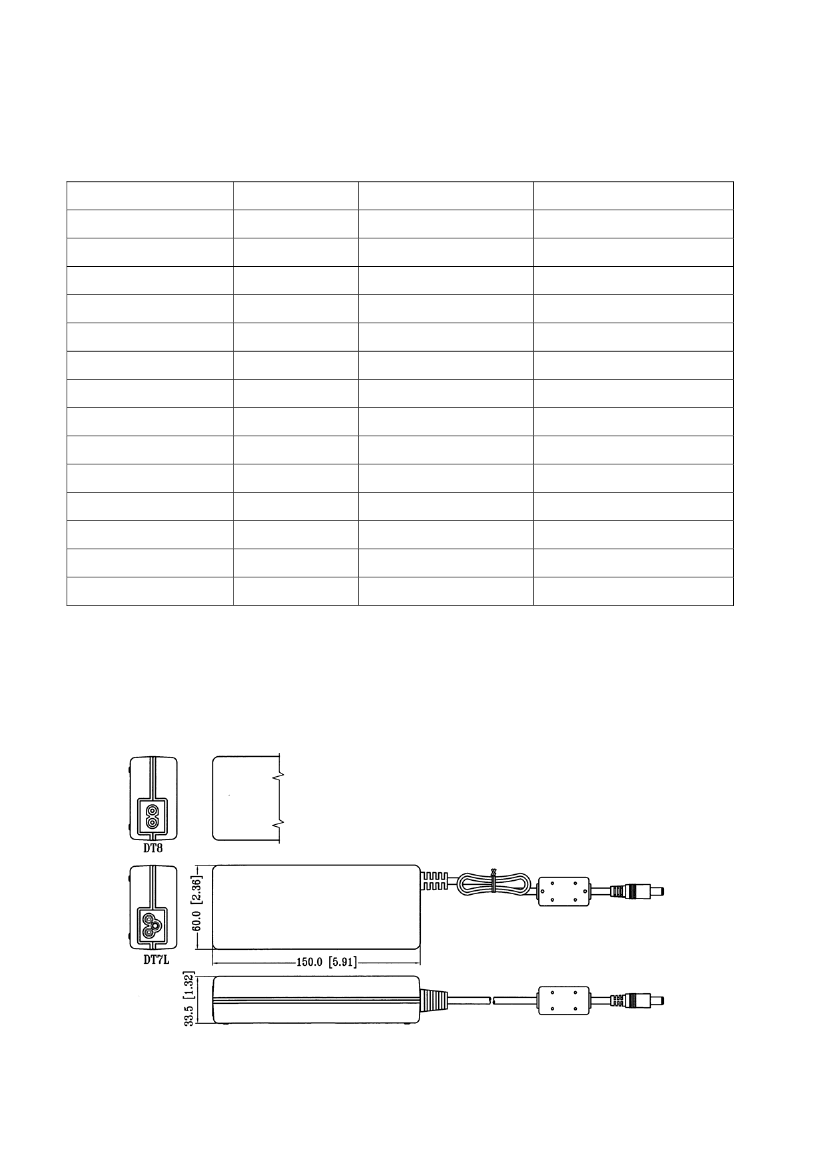

See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
100 Watts.
Output Connector:
Optional.
Line Regulation:
0.3 % typical.
Load Regulation:
± 2 % typical.
Tolerance:
±4%.
Noise & Ripple:
1% typical peak to peak.
OVP:
Built-in. (Latch)
Adjustability:
Not available.
Over Temp. Protection (OTP):
Installed.
Overload Protection (OLP):
Fully protected against output overload and short circuit.
OLP set at about 110-135% rating output wattage.
Consult the factory for OLP setting.
GENERAL SPECIFICATION
Efficiency:
88-90% typical.
Switching Frequency:
40-65 KHz.
Circuit Topology:
Fixed Flyback Circuit.
Transient Response:
Output voltage returns in less than
1mS following a 25% load change.
Safety Standard:
Meet Medical standards UL60601-1 /
EN60601-1Class I or II. Harmonic Current Emission,
EN61000-3-2 compliance.
Operating Temperature:
0 to +25/35/40°C
without derating. (various with output voltage)
Storage Temperature: -20
to +85°C.
Temperature Coefficient:
0.04%/°C typical.
Cooling:
Free air convection.
Construction:
Impact resistant plastic enclosure case.
Power Density:
4.56-5.5 Watts/Cubic inch.
Desktop Format.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load regulation is measured at 115Vac or 230Vac in percentage to indicate the change in output voltage as the load varied from half load to full load (±%).
(3) The exact obtainable load regulation depends upon the output cord selected and load current. Upper data are for 6 ft. (2 m)cord AWG#18 wires.
(4)
Due to requests in market and advances in technology, specifications subject to change without notice.
