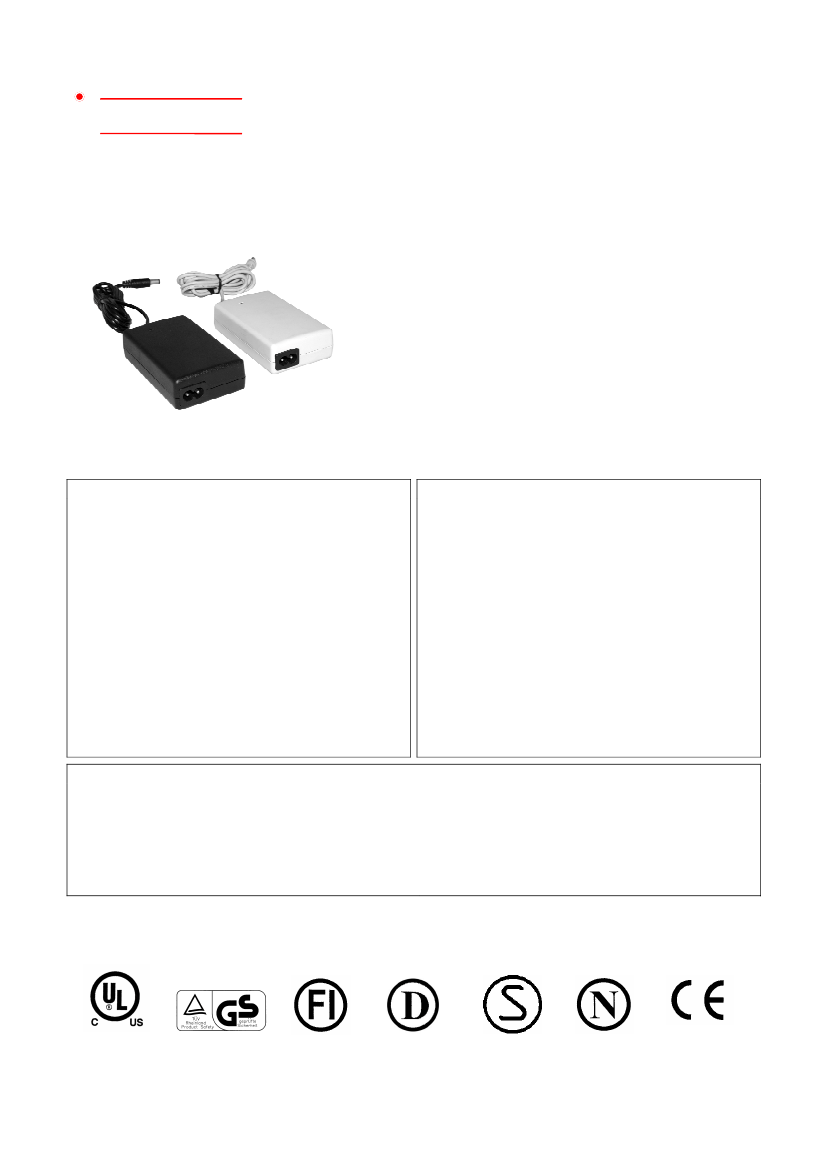

H HiTRON
2007/9/20
AC/DC EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT
SINGLE OUTPUT 45-51 WATTS SWITCHING POWER SUPPLIES
HES51 SERIES
FEATURES:
ACCOMMODATE UNIVERSAL AC SOURCE
LOW PROFILE & HIGH POWER DENSITY
DESKTOP IEC320-2P AC RECEPTACLE
MEET UNIVERSAL SAFETY STANDARDS
EMI EN55022 / FCC CLASS B
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac typical.
Input Connector:
IEC320-2P DT8 AC inlet receptacle.
Input Frequency:
47-63Hz.
Inrush Current:
30A @240Vac typical.
Input Current:
1.0A @115Vac & 0.5A @230Vac typical.
Dielectric Withstand:
Meet IEC60950-1.
EMI:
Meet EN55022 / FCC Class B.
Hold-up Time:
8mS @115Vac typical.
50mS @230Vac typical.
Over Temp. Protection:
By NTC.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
45-51Watt typical.
Output Connector & Cord:
Optional.
Output LED Indicator:
Installed.
Line Regulation:
0.1% typical.
Load Regulation:
±1.5-3.0% typical.
Noise & Ripple:
1.0% typical peak to peak.
OVP:
Built-in Zener diode clamping.
Over Current Protection (OCP):
Installed.
Current limiting can be set precisely as per request.
Overload Protection (OLP):
Fully protected against output overload or short circuit.
Typical set at 130% max. load.
Consult the factory for special OLP setting.
GENERAL SPECIFICATION
Efficiency:
85% typical.
Switching Frequency:
Approximate 90K Hz.
Circuit Topology:
Fixed Frequency Flyback circuit.
Transient Response:
Output voltage returns in less than
3mS following a 25% load change.
Safety Standard:
Meet UL60950-1/ EN60950-1 Class II.
Power Density:
4.67Watts / Cubic Inch.
Operating Temperature:
0 to +25/35/40°C
without derating. (various with output voltage)
Storage Temperature: -20
to +85°C.
Temperature Coefficient:
0.04% /°C.
Cooling:
Free air convection.
Construction:
Impact resistant thermo- plastic case.
Desktop Format.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load regulation is measured at 115Vac or 230Vac in percentage to indicate the change in output voltage as the load is varied from half load to full load (±%).
(3) The exact obtainable load regulation depends upon the output load current & cord selected. Upper data are for 6 ft.(2 m)cord AWG#18 wires.
(4) Due to requests in market and advances in technology, specifications subject to change without notice.
For the details of safety approval, please consult the factory.
-31-
MODEL NO. DESCRIPTION:
HES51 - X X X Y Y
OUTPUT CURRENT
OUTPUT VOLTAGE
SERIES NAME (HiTRON External Switcher): About 51W.
2007/9/20
OUTPUT VOLTAGE/CURRENT RATINGS CHART
DEFINED OUTPUT VOLTAGE(Vdc)
9.0Vdc
≤
Any Voltage
≤
15.0Vdc
OUTPUT VOLTAGE(Vdc) / CURRENT (A)
9.0-9.5V/5.0-4.7A, 9.6-10.0V/4.6-4.5A, 10.1-10.4V/4.4-4.3A,
10.5-11.0V/4.2A, 11.1-11.9V/4.1A, 12.0-12.5V/4.0A,
12.6-13.4V/3.9-3.7A, 13.5-14.1V/3.7-3.6A, 14.2-15.0V/3.5-3.4A.
15.1-15.9V/3.3-3.2A, 16.0-17.0V/3.1A-3.0A, 17.1-18.2V/2.9-2.8A,
18.3-19.6V/2.7-2.6A, 19.7-21.2V/2.5-2.4A, 21.3-23.1V/2.3-2.2A,
23.2-24.2V/2.2-2.1A, 24.3-25.5V/2.0A, 25.6-26.8V/1.9A,
26.9-28.3V/1.8A, 28.4-30.0V/1.7A, 19.6V/3.0A.
15.0Vdc <Any Voltage
≤
30.0Vdc
Note: Refer to the upper Chart or specify the V/A ratings and consult factory for the exact Model No.
SINGLE OUTPUT
(Model No. for example)
MODEL NO.
HES51-05080
HES51-09050
HES51-12040
HES51-15034
HES51-16031
HES51-18028
HES51-19630
HES51-24021
HES51-30017
HES51-48010
HES51-58007
O/P VOLTAGE
5.0Vdc
9.0Vdc
12.0Vdc
15.0Vdc
16.0Vdc
18.0Vdc
19.6Vdc
24.0Vdc
30.0Vdc
48.0Vdc
58.0Vdc
O/P CURRENT
6.0A
5.0A
4.0A
3.4A
3.1A
2.8A
3.0A
2.1A
1.7A
1.0A
0.7A
MECHANICAL DIMENSIONS:
MM [INCHES]
WEIGHT:
185.0g (6.53 Oz.)
-32-
