MECLH-5 datasheet, PDF - EEWORLD Datasheet

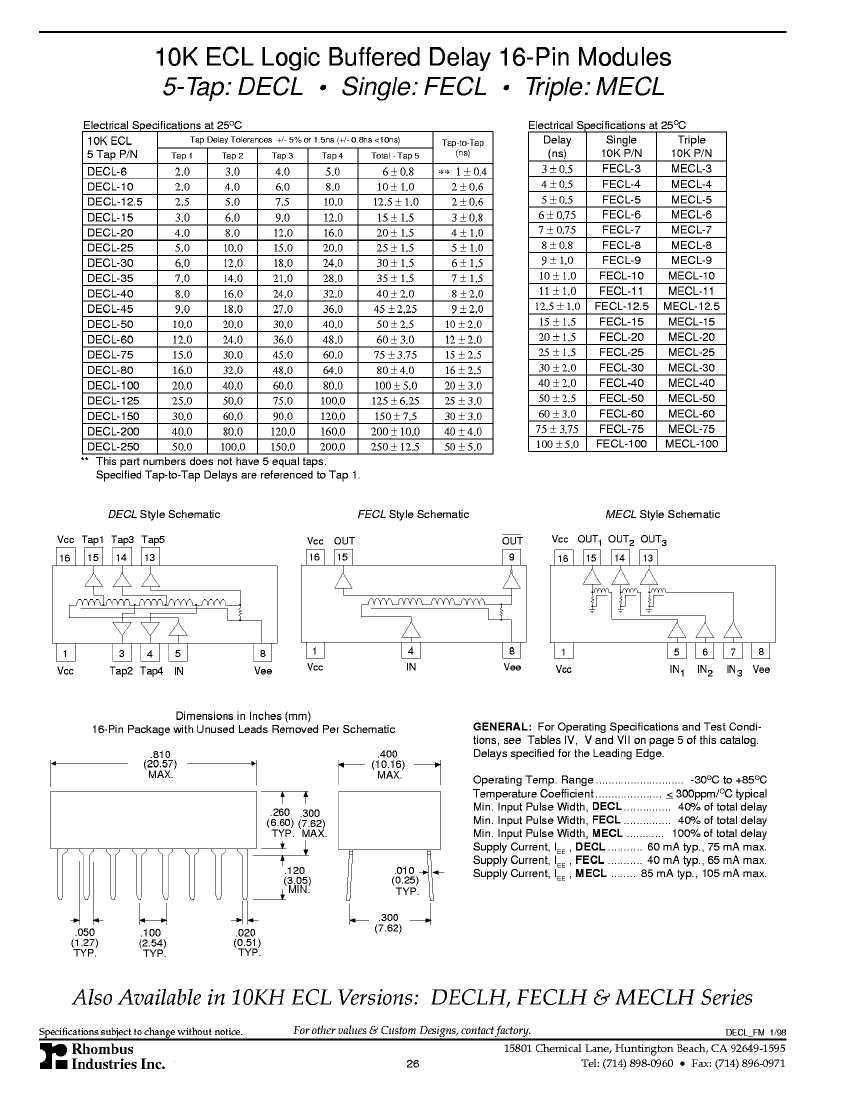

MECLH-5: DescriptionActive Delay Line, 3-Func, 1-Tap, True Output, ECL, PDIP9,; Categorylogic logic; File Size38KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

MECLH-5 Overview

Active Delay Line, 3-Func, 1-Tap, True Output, ECL, PDIP9,

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	INPUT RISE TIME 1NS
series	10H
JESD-30 code	R-PDIP-T9
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	3
Number of taps/steps	1
Number of terminals	9
Maximum operating temperature	75 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.62 mm
surface mount	NO
technology	ECL
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	5 ns
width	7.62 mm
Base Number Matches	1
