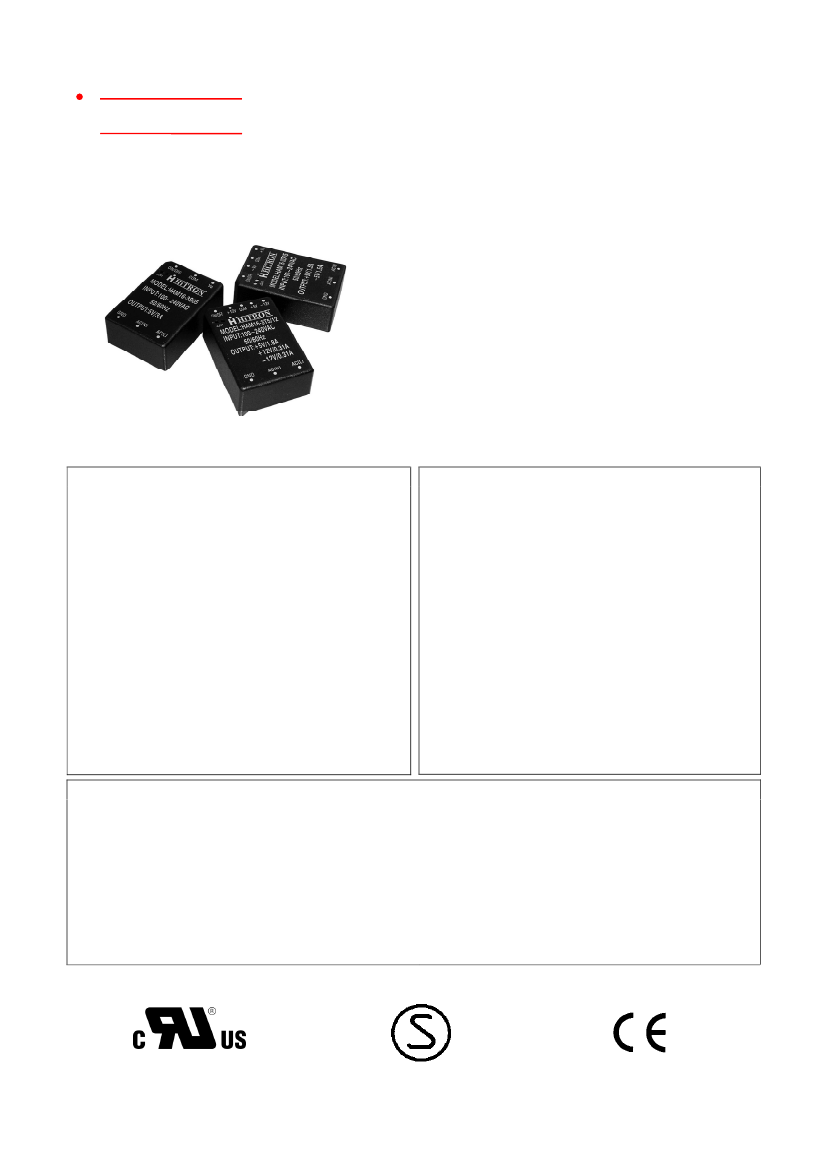

H HiTRON
ON-BOARD UNIVERSAL INPUT AC-DC ENCAPSULATED MODULAR
POWER SUPPLIES 16 WATTS TRIPLE OUTPUT HAM16-T SERIES
FEATURES:
ON-BOARD AC/DC MODULAR
POWER SUPPLIES
UNIVERSAL INPUT RANGE
COMPACT IN SIZE
MEET UNIVERSAL SAFETY STANDARDS
EMI MEET CISPR PUB.22 / FCC CLASS B
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac.
Input Frequency:
47-63 Hz. (50/60 Hz. Nom.).
Input Current:
0.33A @115Vac./0.16A @230Vac typical.
Inrush Current:
32.5A peak @230Vac typical.
Input Fuse:
Use external fuse. 1.0A/250Vac for the
primary fuse is suggested.
Dielectric Withstand:
Meet IEC950.
3,000Vac-Output/Input.
1,500Vac-Input/GND.
500Vac-Output/GND.
EMI:
Meet CISPR PUB.22 / FCC Class B.
Hold-up time:
20mS @115Vac, 100mS @230Vac typical.
Earth Leakage:
Less than 3.5mA @230Vac.
Remote On/Off:
TTL/CMOS-Compatible Output Control.
Positive Logic
version for Standard set up:
ON(Enable)=Open(or
2.5-5.0Vdc above Com)
OFF(Disable)=Short(or
0-0.8Vdc above Com)
Negative Logic
version option available by adding a
“N”suffix
to the end of Model #.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
15-16.5 Watts typical.
Output Indicator:
LED.
Line Regulation:
Various with output voltage ±0.5% typical.
Load Regulation:
Various with output voltage.
VO1 ±5.0 typical, VO2 ±4.0% typical, VO3 ±2.0% typical.
Noise & ripple:
1.0% typical peak to peak.
OVP:
Built-in on main output.
Adjustability:
From -10% of main output till OVP.
Overload Protection (OLP):
Fully protected against output overload and short circuit.
OLP set at about 125-150% rating output wattage.
Consult the factory for OLP setting.
Operating Temperature:
-10 to +70°C range.
-10°C to +50°C full load without derating.
From +50°C, derating linearly to half load @+70°C.

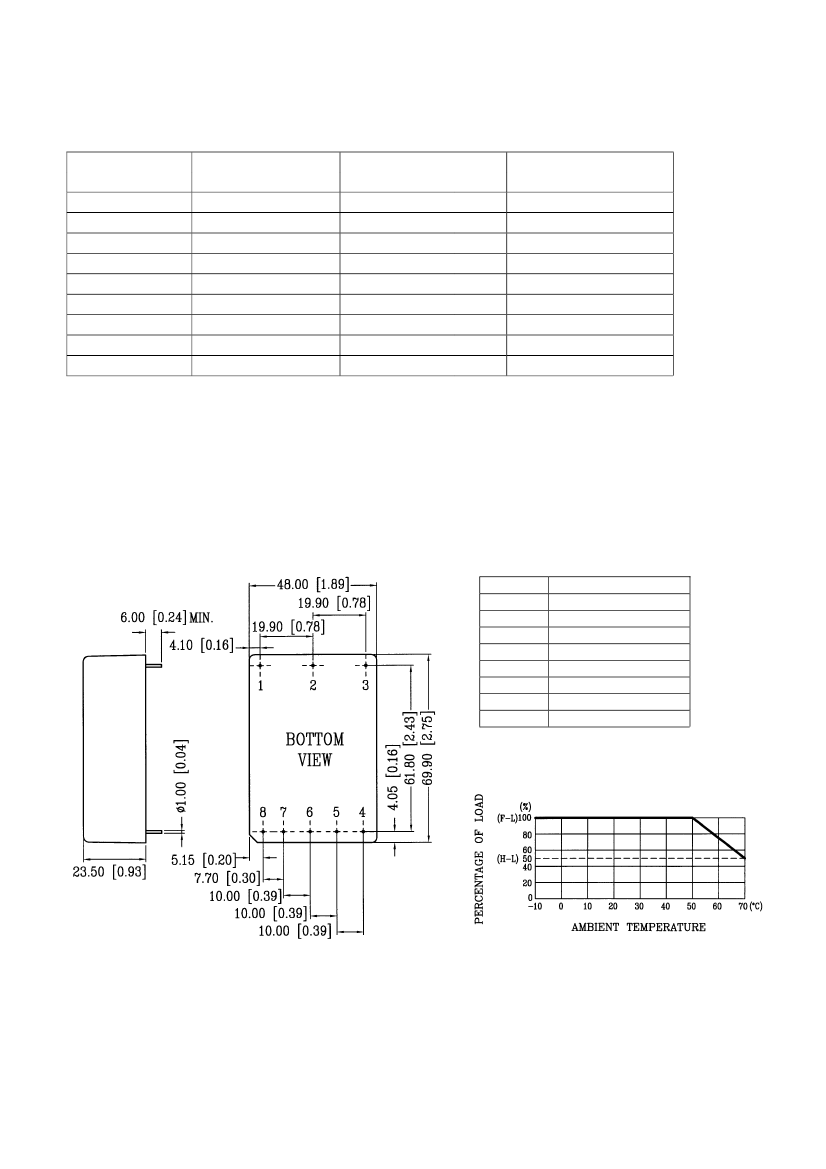

(Refer to Derating Chart.)
GENERAL SPECIFICATION
Efficiency:
70-76% typical. (Various with output voltage).
Switching Frequency:
83KHz.
Circuit Topology:
Fixed Frequency Flyback circuit.
Transient Response:
Typical peak deviation 250mV,
Recovery time < 3mS for a 25% load change.
Case:
Impact resistant thermo-plastic enclosure.
Power Density:
3.12 Watts. / Cubic inch.
Safety Standard:
EN60950/ UL1950 Class I.
MTBF:
110,000 hours. Mil Std 217, 25°C.
Storage Temperature:
-20°C to +85°C.
Temperature Coefficient:
± 0.032% /°C.
Humidity:
Up to 95%RH, Non-condensing.
Cooling:
Convection cooling for +50°C @ full load.
At least 100LFM moving air is recommended
for full load >+50°C in a confined area.
Commercial Grade only.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load Regulation measured from Full-Load (F-L) to Half-Load (H-L) at nominal input and others loaded at half load.
Due to requests in market and advances in technology, specifications subject to change without notice.
