Spec. No.
PS-ND-08090123
A
Rev.
PRODUCT SPECIFICATION
Model No
CST-534M9/535M9
Descriptions:
0.56 Inch Triad Digit Display
CST-534: Common Anode
CST-535: Common Cathode
Emitting Color Super Bright Green
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
CHINA SEMICONDUCTOR CORPORATION
Address:2FL. NO.909,Chung-Cheng Road,
Chung-Ho City Taipei Hsien,Taiwan.
Tel:886-2-2223-9696
Fax:886-2-2223-9377
OPTO PLUS TECHNOLOGIES CO.,LTD
Address:696 Shun jiang Rd.,Ji Shan St.Shaoxing,
ZheJiang,China
Tel:86-0575-88623888
Fax:86-0575-88623112
http://www.csctw.com.tw
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CST-534/535M9
Spec. No.
PS-ND-08090123
A
Rev.
Features -
1. 0.56 inch (14.2mm) digit height.
2. Case mold type.
3. RoHS compliant.
4. Low power consumption.
5. Easy mounting on P.C. board or socket.
Device Selection Guide -
Chip
Material
AlGaInP
Emitted Color
Super Bright
Yellow Green
Part No.
CST-534M9
CST-535M9
Description
Common Anode
Common Cathode

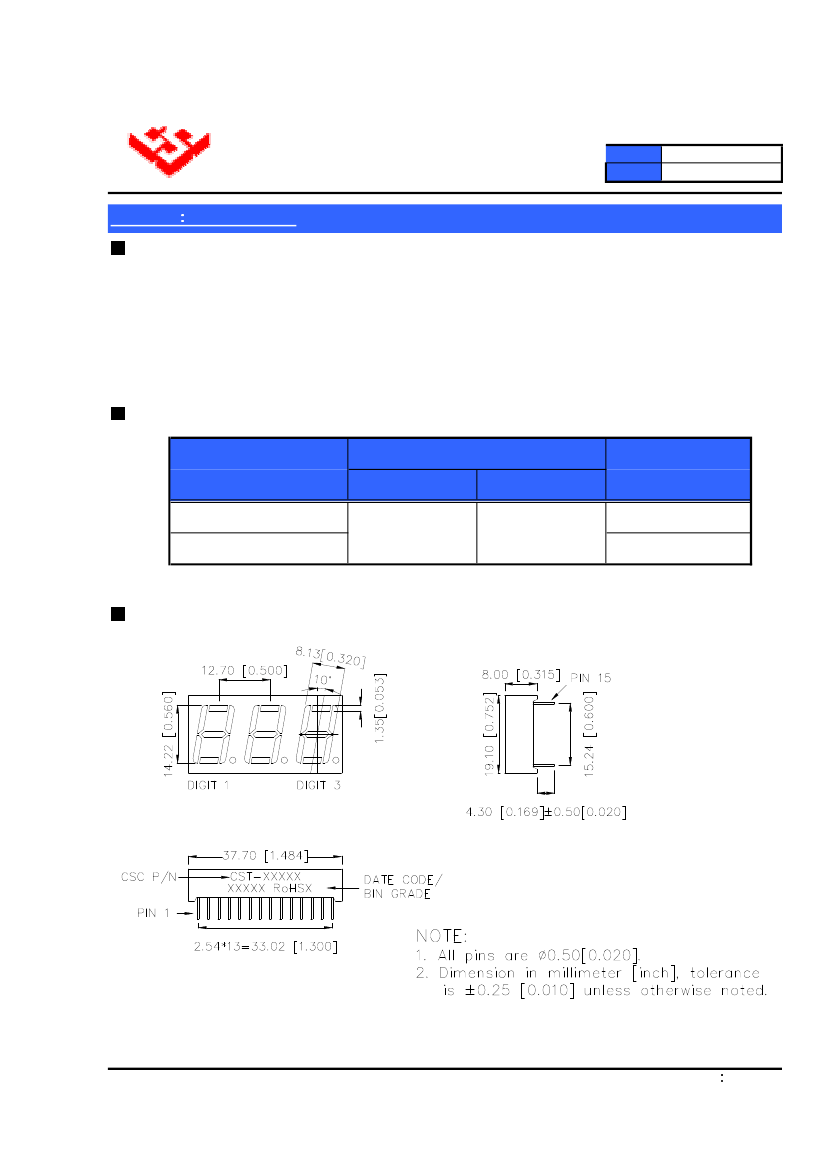

Package Dimensions -
http://www.csctw.com.tw
Page
1/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CST-534/535M9
Spec. No.
PS-ND-08090123
Rev.
A
Internal Circuit Diagrams -
Absolute Maximum Rating -
(Ta=25 )
Parameter
Power Dissipation Per Dice
Continuous Forward Current Per Dice
Peak Current Per Dice(duty cycle 1/10, 1kHz)
Derating Linear From 25
Reverse Voltage Per Dice
Operating Temp.
Storage Temp.
Per Dice
Symbol
P
AD
I
AF
I
PF
-
V
R
Topr
Tstg
Rating
70
25
90
0.33
5
-35 ~ +85
-35 ~ +85
Unit
mW
mA
mA
mA/
V
Solder temperature 1/16 inch below seating plane for 3 seconds at 260
http://www.csctw.com.tw
Page
2/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CST-534/535M9
Spec. No.
PS-ND-08090123
A
Rev.
Electro-optical Characteristics -
(Ta=25 )
Parameter
Forward Voltage Per Segment
Luminous Intensity Per Segment
Peak Emission Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Reverse Current
Luminous Intensity Matching Ratio
Symbol
V
F
Iv
Min.
-
-
-
-
-
-
-
Typ.
2.1
10
572
570
20
-
-
Max.
2.8
-
-
-
-
100
2:1
Unit
V
mcd
nm
nm
nm
A
.
Condition
I
F
=20mA
I
F
=10mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=10mA
Od
JS
q
IV-m
http://www.csctw.com.tw
Page
3/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CST-534/535M9
Spec. No.
PS-ND-08090123
Rev.
A

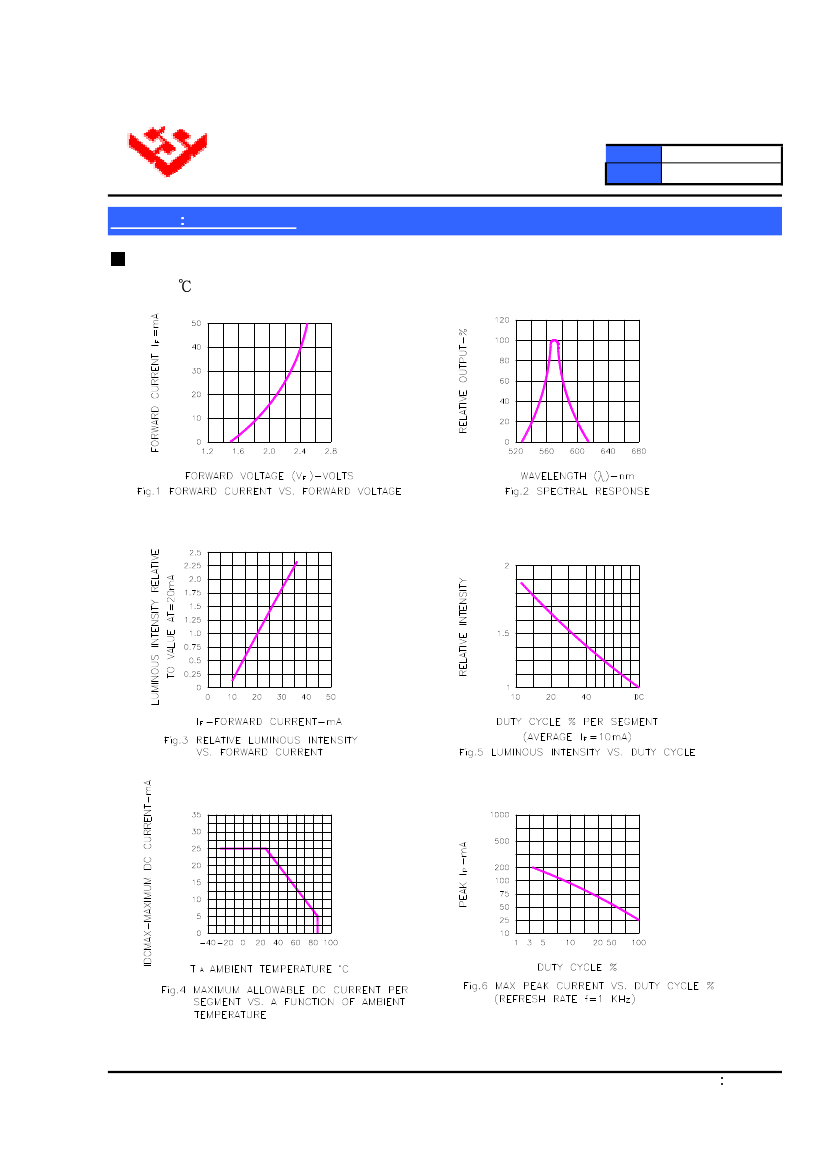

Typical Electrical / Optical Charateristics Curves -
(Ta = 25
Unless Otherwise Noted)
http://www.csctw.com.tw
Page
4/5
