TLP2066
TOSHIBA PHOTOCOUPLER
GaAℓAs IRED & PHOTO-IC
TLP2066
FA (Factory Automation)
High Speed Interface
3.3V Supply Voltage
The Toshiba TLP2066 consists of a GaAℓAs light-emitting diode and an
integrated high-gain, high-speed photodetector. TLP2066 operates with 3.3 V
supply voltage. Toshiba offers TLP116 for supply voltage 5V type.
Inverter logic (totem pole output)
Package type : MFSOP6
Guaranteed performance over temperature : -40 to 100°C
Power supply voltage : 3.0 to 3.6V
Input threshold current: IFHL=5mA (Max.)
Propagation delay time (tpHL/tpLH): 60ns (Max.)
Switching speed : 20MBd (Typ.) (NRZ)
Common mode transient immunity : 15 kV/μs
Isolation voltage : 3750 Vrms
UL Recognized : UL1577, File No. E67349
cUL Recognized : CSA Component Acceptance Service No.5A
Option (V4)
: EN60747-5-2
VDE approved
Maximum operating insulation voltage : 565 V
pk
Highest permissible over voltage
: 6000 V
pk
( Note ) When a EN60747-5-2 approved type is needed,
please designate the “Option(V4)”
Construction Mechanical Rating
JEDEC
JEITA
TOSHIBA
Weight: 0.09 g(Typ.)
Unit in mm
11-4C2

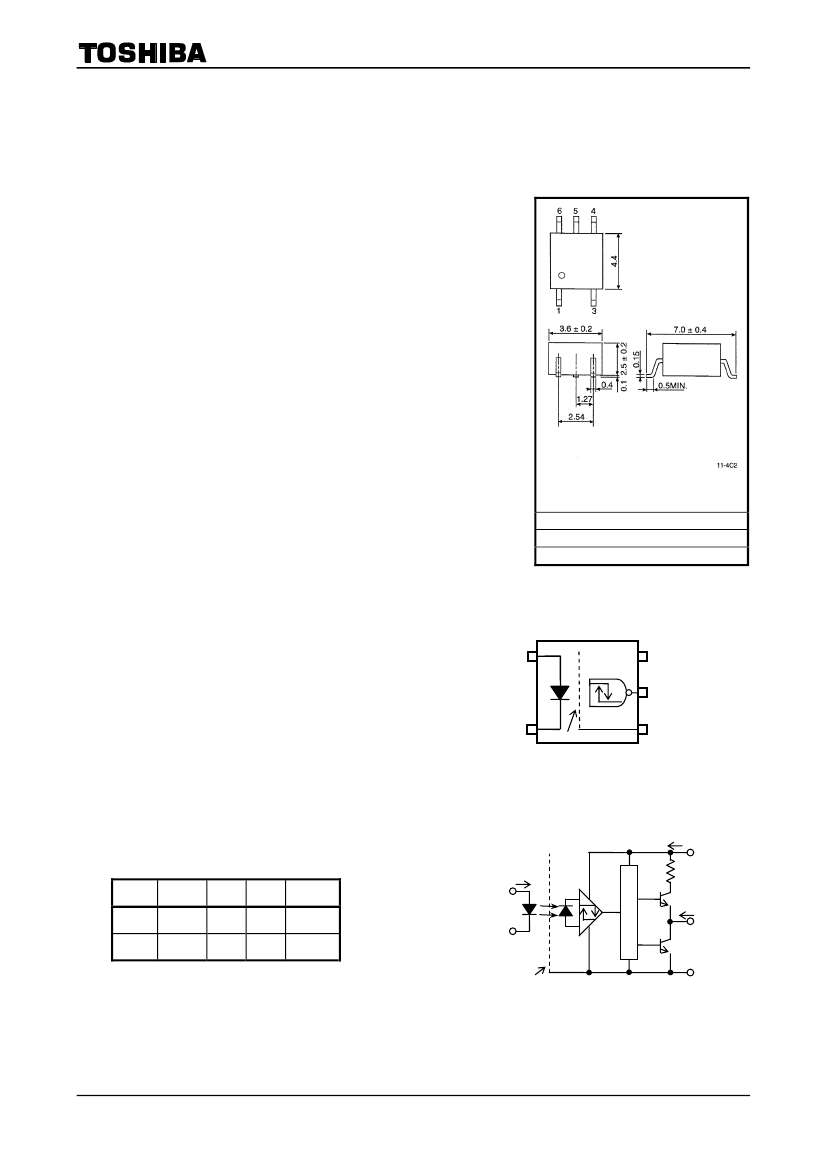

Pin Configuration (top view)
1
VCC
6
5
1: ANODE
3: CATHODE
4: GND
5: VO
6: VCC
3
GND
SHIELD
4
Schematic
ICC
6
Tr1
IO
Tr2
5
VO
VCC
Truth Table
Input
H
L
LED
ON
OFF
Tr1
OFF
ON
Tr2
ON
OFF
Output
L
H
1+
VF
3-
IF
SHIELD
4
GND
A 0.1μF bypass capacitor must be
connected between pins 6 and 4.
1
2010-06-17
TLP2066
Absolute Maximum Ratings (Ta=25°C)
Characteristic
Forward current
LED
Forward current derating
(Ta≥85°C)
(Note 1)
Symbol
IF
ΔI
F/ΔTa
IFPT
VR
(Note 2)
IO
VO
VCC
PO
Topr
Tstg
Tsol
(Note 3)
BVs
Rating
25
-0.63
1
5
10
6
6
40
-40 to 100
-55 to 125
260
3750
Unit
mA
mA/°C
A
V
mA
V
V
mW
°C
°C
°C
Vrms
Peak transient forward current
Reverse voltage
DETECTOR
Output current
Output voltage
Supply voltage
Output power dissipation
Operating temperature range
Storage temperature range
Lead solder temperature (10s)
Isolation voltage (AC,1min.,R.H.≤60%,Ta=25°C)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in reliability significantly even if the
operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: Pulse width PW≤1us, 300pps.
Note 2: Derate 0.25 mA/˚C above 85˚C.
Note 3: This device is regarded as a two-terminal device: pins 1 and 3 are shorted together, as are pins 4, 5 and 6.
Recommended Operating Conditions
Characteristic
Input current , ON
Input voltage , OFF
Supply voltage(*)
(Note 4)
Symbol
IF(ON)
VF(OFF)
VCC
Min
8
0
3.0
Typ.
Max
18
0.8
3.6
Unit
mA
V
V
—
—
3.3
(*) This item denotes operating ranges, and does not imply recommended operating conditions.
Note: Recommended operating conditions are given as a design guideline to obtain the expected
performance of the device. In addition, each item is an independent guideline.
In developing designs using this product, please confirm the specified characteristics shown in this
document.
Note 4: The detector of this product requires a power supply voltage (VCC) of 3.0 V or higher for stable operation.
If VCC is lower than this value, ICCH may increase, or the output may become unstable.
Be sure to check the supply current, and the on/off operation of the power supply before using the product.
Note 5: A ceramic capacitor(0.1
μF)
should be connected from pin 6 to pin 4 to stabilize the operation of the
high gain linear amplifier. Failure to do so may impair the switching property.
The total lead length between the capacitor and the photocoupler should not exceed 1 cm.
2
2010-06-17
TLP2066
Electrical Characteristics
(Unless otherwise specified, Ta=-40 to 100°C, VCC=3.0 to 3.6 V)
Characteristic
Input forward voltage
Temperature coefficient
of forward voltage
Input reverse current
Input capacitance
Logic low output voltage
Logic high output voltage
Logic low supply current
Logic high supply current
Supply voltage
Input current logic low
output
Input voltage logic high
output
Symbol
VF
ΔV
F/ΔTa
IR
CT
VOL
VOH
ICCL
ICCH
VCC
IFHL
VFLH
Test
Circuit
Conditions
IF = 10 mA ,Ta = 25°C
IF = 10 mA
VR = 6 V, Ta = 25
°C
V = 0, f = 1 MHz, Ta = 25°C
IOL = 1.6 mA, IF = 12 mA
IOH=-0.02mA, VF=1.05V (Note 6)
IF = 12 mA, VCC = 3.3 V
VF = 0 V, VCC = 3.3 V (Note 4)
Min.
1.45
Typ.
1.6
-1.2
Max.
1.85
Unit
V
mV/°C
μA
pF
V
V
mA
mA
V
mA
V
—
—
—
—
1
2
3
4
—
—
—
—
2.0
—
10
—
60
—
0.6
—
—
—
—
—
—
—
—
5.0
5.0
3.6
5
—
—
3.0
—
—
—
—
IO = 1.6 mA, VO < 0.6V
IO = -0.02 mA, VO > 2.0V
—
0.8
—
*
All typical values are at Ta=25°C, VCC=3.3V, IF (ON) =12mA unless otherwise specified.
Note 6: VOH=VCC –VO [V]
Isolation Characteristics (Ta = 25°C)
Characteristic
Capacitance input to output
Isolation resistance
Symbol
CS
RS
Test Conditions
Vs = 0, f = 1MHz
R.H.
≤
60%,VS = 500V
AC,1 minute
Isolation voltage
BVS
AC,1 second,in oil
DC,1 minute,in oil
(Note 3)
Min.
―
12
Typ.
0.8
10
14
Max.
―
―
―
―
―
Unit
pF
Ω
Vrms
Vdc
(Note 3) 1×10
3750
―
―
―
10000
10000
3
2010-06-17
TLP2066
Switching Characteristics
(Unless otherwise specified, Ta=-40 to 100°C, V
CC
=3.3V)
Characteristic
Propagation delay time
to logic high output
Propagation delay time
to logic low output
Propagation delay time
to logic high output
Propagation delay time
to logic low output
Switching time dispersion
between ON and OFF
Output fall time (90-10%)
Output rise time (10-90%)
Common mode transient
immunity at high Level
output
Common mode transient
immunity at low level
output
*All typical values are at Ta=25°C
Note 7: CL is approximately 15pF which includes probe and jig/stray wiring capacitance.
CML
CMH
7
VCM = 1000 Vp-p, IF = 12 mA,
VO(Max) = 0.8V, Ta=25°C
-15000
Symbol
tpHL
5
tpLH
tpHL
6
tpLH
|tpHL-
tpLH|
tf
tr
5
IF = 12→0mA
VIN = 0→3.3V
(IF = 0→8mA)
VIN = 3.3→0V
(IF = 8→0mA)
Test
Circuit
Conditions
IF = 0→12mA
RIN=100Ω
CL=15pF
(Note 7)
RIN=220Ω
CIN
=
47pF
CL=15pF
(Note 7)
Min.
Typ.
Max.
60
60
60
60
30
Unit
ns
ns
ns
ns
ns
ns
ns
—
—
—
—
—
—
—
—
—
—
—
—
4
5
IF = 12 mA, RIN=100Ω,
CL = 15 pF (Note 7)
IF = 0→12 mA
IF = 12→0 mA
RIN = 100Ω
CL = 15pF
(Note 7)
—
—
—
VCM = 1000Vp-p, IF=0mA,
VO(Min) = 2V, Ta = 25°C
15000
—
V/μs
—
—
V/μs
TEST CIRCUIT 1: VOL
IF
→
TEST CIRCUIT 2: VOH
6
VCC
5
0.1uF
VCC
1
1
6
VCC
5
V
VO
↑
↑
IOH
VCC
3
SHIELD
GND 4
VOL
IOL
V
↑
3
SHIELD
GND
4
VOH=VCC –VO [V]
0.1uF
TEST CIRCUIT 3: ICCL
IF
1
→
TEST CIRCUIT 4: ICCH
6
VCC
5
ICCL
A
0.1uF
VCC
1
VCC
6
5
ICCH
A
0.1uF
VCC
↑
3
SHIELD
GND
4
3
SHIELD
GND
4
4
2010-06-17
TLP2066

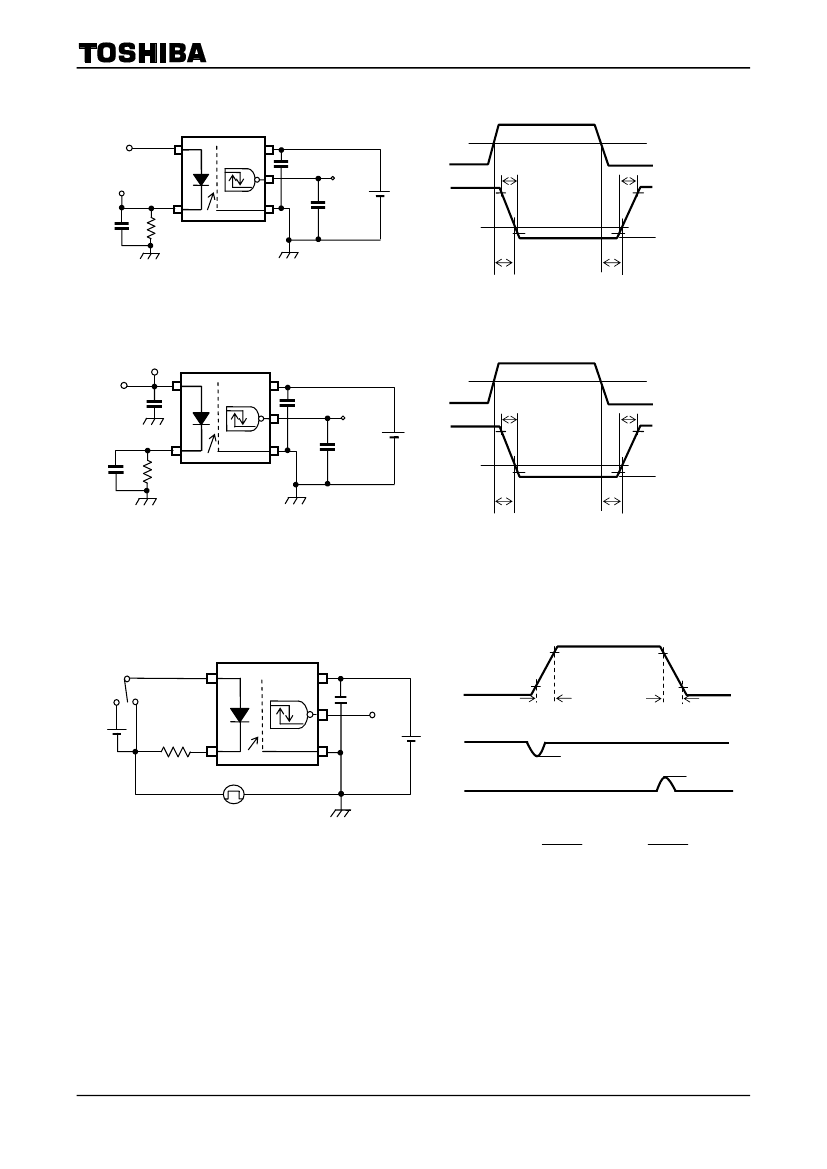

TEST CIRCUIT 5: tpHL , tpLH
IF=12mA (P.G)
(f=5MHz, duty=50%
tr =tf =5ns)
INPUT
MONITORING
NODE
VCC
0.1uF
Vo
MONITORING
NODE
VCC
CL=15pF
IF
VO
tf
tr
50%
SHIELD
CL=15pF
RIN=100Ω
GND
90%
VOH
1.5V
tpHL
tpLH
10%
VO
CL is capacitance of the probe and jig.
(P.G): Pulse Generator
TEST CIRCUIT 6: tpHL, tpLH
VIN=3.3V (P.G)
(f=5MHz, duty=50%
tr = tf =5ns)
INPUT MONITORING NODE
VCC
0.1uF
CL=15pF
Vo
MONITORING
NODE
VCC
CL=15pF
VIN
VO
t
f
t
r
50%
GND
SHIELD
CIN=47pF
RIN=220Ω
90%
VOH
1.5V
tpHL
tpLH
10%
VO
CL is capacitance of the probe and jig.
(P.G): Pulse Generator
TEST CIRCUIT 7: Common-Mode Transient Immunity Test Circuit
90%
SW
A
B
3
SHIELD
VCM
1000V
IF
→
1
6
VCC
5
GND
4
0.1uF
VO
VCC
10%
tr
tf
CMH
・SW
B: IF=0mA
2V
0.8V
・SW
A: IF=12mA
CML
CM
H
=
800(V)
t r (
μ
s)
800(V)
CM
=
L t f (
μ
s)
5
