3000 series
Premium Hall effect joysticks
The 3000 Series is the very latest generation in high precision contactless joysticks. With a class leading
installed depth of <20mm, it is available in 1, 2 or 3 axes formats. Long trouble-free life is assured with
the latest hall effect technology, providing a range of analog signals or custom PWM output options.
The 3000 Series also delivers a radically improved mechanism construction that is specifically designed
for increased robustness, strength and performance.
KEY FEATURES
Class leading installed depth <20 mm
EMC shielded
Hall effect sensing
1, 2 or 3 axes
5V or 3.3V operation
Analog or PWM outputs
Next generation metal mechanisms
Dual outputs available
www.apem.com
3000 series
Premium Hall effect joysticks
OPTION SELECTION
A
SERIES
3
3000
10
25
30
40
50
GAIN
+/-10%xV
+/-25%xV
+/-30%xV
+/-40%xV
+/-50%xV
C
E
Q
AK
AL
HANDLE
Round
Conical
Skirted
Push Button
Third Axis
00
20
MODIFIER
None
Guided Feel
* for more handles
see next pages
CONFIGURATION
1
2
3
4
5
Standard
3.3V Operation
Dual Outputs
Inverse Dual Outputs
PWM
A
C
D
R
S
X
LEVER
Single Axis
Cross
Diamond
Round
Square
X Type
0
4
6
7
BEZEL
None
Circular (below panel)
Square (drop-in)
Circular (drop-in)
• CONFIGURATION
1
provides one proportional output per axis, a center tap reference and a separate center detect output.
• CONFIGURATION
2
is offered as standard with +/-50% gain, yielding a voltage span from 0V (South) to 3.3V (North).
second set of outputs are accurate to the first within +/-5% of the power supply. The power supply and center tap for the
secondary outputs are also completely independent.
• CONFIGURATION
3
joystick operates on 5V and provides two outputs per axis of the same polarity for example Y, Y & X, X. The
• CONFIGURATION
4
The secondary outputs are of inverse polarity to the primary wipers for example X, -X & Y, -Y. The first and
second outputs can be summed and compared to Center Tap to verify that the joystick is operating correctly.
• CONFIGURATION
5
Operating on a 5V supply the 3000 Series may be selected with a variety of PWM output options. For
more details on the type of outputs available please refer to Apem.
Note: The 3.3V supply is created by additional DC/DC conversion within the joystick and therefore the power consumption is
greater than a 5V supplied product.
STANDARD OPTION AVAILABILITY
The following table shows which permutations of options are possible.
CONFIGURATION
CT
CD
AXES
SUPPLY
GAIN
LIMITERS
ALL
HANDLES
ALL
BEZELS
X
Y
Z
3.3
5V
10
25
30
40
50
A
C
D
R
S
X
1
2
3
4
5
HANDLE AND BEZEL OPTIONS
For drop in mounting, please specify bezel option 6 or 7. For sub-panel mounting, no bezel is necessary, unless the boot is
required to seal to the face of the panel in which case bezel option 4 should be specified. Further mounting information
including panel cutouts are shown on the following pages.
Note: The company reserves the right to change specifications without notice.
www.apem.com
3000 series
Premium Hall effect joysticks
SPECIFICATIONS
MECHANICAL
Materials Employed
Weight
Breakout Force
Mechanical Angle of Movement
Max Load to Mechanism
–
–
–
–
–
Shaft - Stainless Steel
Boot - Neoprene
Others - Brass, Nylon, ABS
100g (0.20lb) nominal
1.3N (2.86lbf)
36˚ for X and Y axes (subject to limiter)
50˚ for Z axis (subject to handle)
400N (881.85lbf)
ENVIRONMENTAL
Storage
Operating Temperature
Seal Above Panel
EMC Emission
Life Cycles
ESD
EMC Immunity
Vibration
–
–
–
–
–
–
–
–
-40C to +70C
-25C to +70C
IP65 - Neoprene boot fitted as standard
Complies with EN 61000-6-3:200, CISPR 22:2005
Class B 30MHz-11GHz
10,000,000 cycles (5,000,000 for 3 axes joysticks)
Complies with EN61000-4-2 (extended)
+/-8KV (20 contacts) & +/-15KV (20 air discharges)
100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation,
EN 61000-4-3 (extended)
100Hz - 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in
each of the three mutually perpendicular axes)
ELECTRICAL
Gain (Output Voltage Span)
Output at Center
Power Supply
Center Tap Impedance
Center Detect Output
Sensor Type
Current Consumption
Loads
–
–
–
–
–
–
–
–
+/-10% x V to +/-50% x V
V/2 +/-(5% x Gain)
5V +/-0.5V Transient free
(Configs 1, 2, 3, 4 & 5) or 3.3V +/-0.1V (Config 2)
1K1
Pulled high within joystick via 2K2 to +V,
and smoothed to 0V with 100nF
Hall effect
5V
- <13mA (Two axes) - <20mA (Three axes)
3.3V - <24mA (Two axes) - <40mA (Three axes)
Minimum 10K, preferred 100K+
NOTES:
-
-
-
-
All values are nominal
All specifications shown are based on a standard configuration and are provided for guidance only.
Please refer to Apem for assistance on how to achieve the best performance from your chosen configuration.
Current consumption may be greater for dual output configurations.
Note: The company reserves the right to change specifications without notice.
www.apem.com
3000 series
Premium Hall effect joysticks

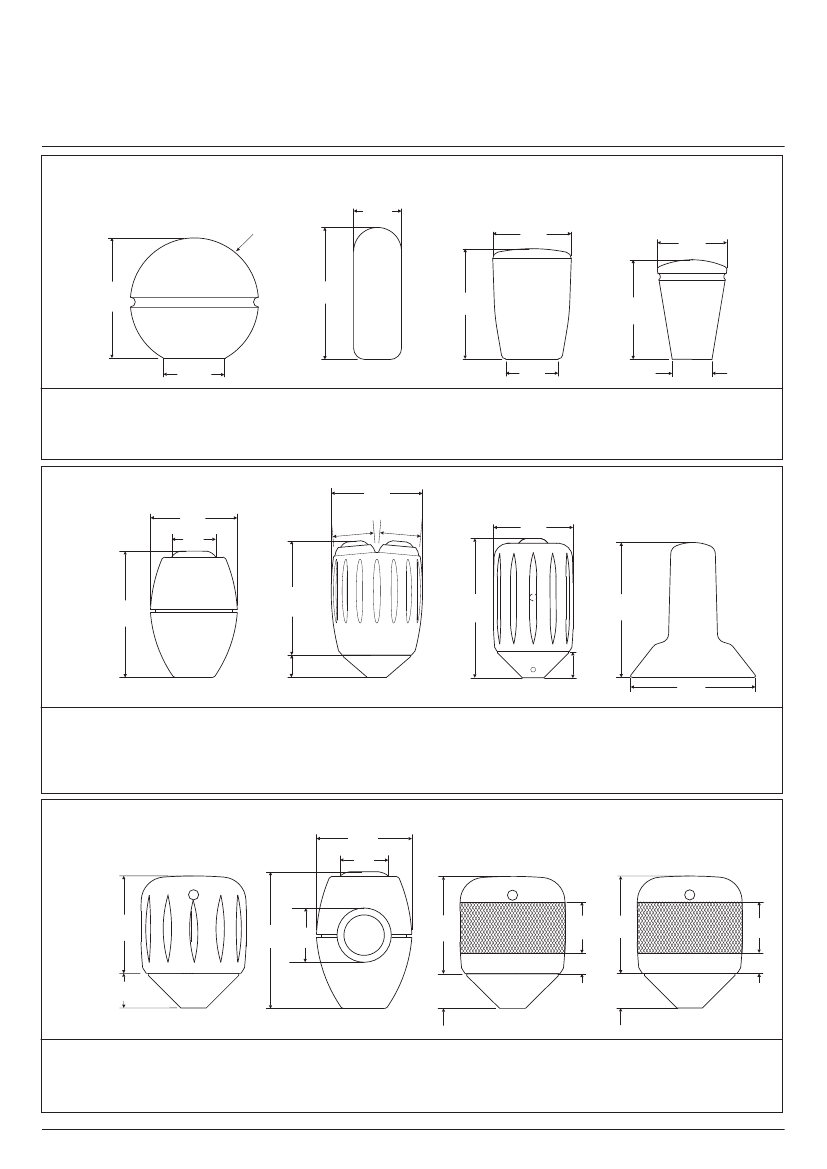

DIMENSIONAL DRAWINGS - HANDLES
12.70
(0.50)
Ø32.00
(1.26)
18.00
(0.71)
22.00
(0.87)
30.00
(1.18)
35.00
(1.38)
25.00
(0.98)
30.00
(1.18)
C
15.50
(0.61)
D
E
12.00
(0.47)
G
12.00
(0.47)
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
Phenolic
Gloss
Black
Not Available
Aluminum
Anodised
Black
Not Available
Nylon
Sparked Matt
Black
Upon Request
Phenolic
Gloss
Black
Not Available
32.00
(1.26)
16.25
(0.64)
39.30
(1.55)
13.60
(0.54)
13.60
(0.54)
32.60
(1.28)
46.50
(1.83)
49.25
(1.94)
57.20
(2.25)
45.70
(1.80)
K
9.30
(0.37)
L
P
Q
10.70
(0.42)
42.26
(1.66)
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
ABS
Sparked Matt
Black
Upon Request
Uses APEM IS Switch
Aluminum
Anodised
Black
Not Available
Uses APEM IS Switch
Z axis functionality
Aluminum
Anodised
Black
Not Available
Uses APEM IS Switch
Z axis functionality
Nylon
Sparked Matt
Black
Upon Request
32.00
(1.26)
16.25
(0.64)
28.50
(1.12)
46.50 16.25
(1.83) (0.64)
28.50
(1.12)
15.00
(0.59)
28.50
(1.12)
15.00
(0.59)
9.30
(0.37)
U
X
9.30
(0.37)
Y
6.00
(0.24)
9.30
(0.37)
AA
6.00
(0.24)
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
Aluminium
Anodised
Black
Not available
ABS
Sparked Matt
Black
Upon Request
Uses APEM IS Switches
Aluminum
Anodised with Diamond Knurl
Black
Not Available
Z axis functionality
Aluminium
Anodised with Diamond Knurl
Black
Not Available
Note: The company reserves the right to change specifications without notice.
www.apem.com
3000 series
Premium Hall effect joysticks
27.50
(1.08)
13.60
(0.54)

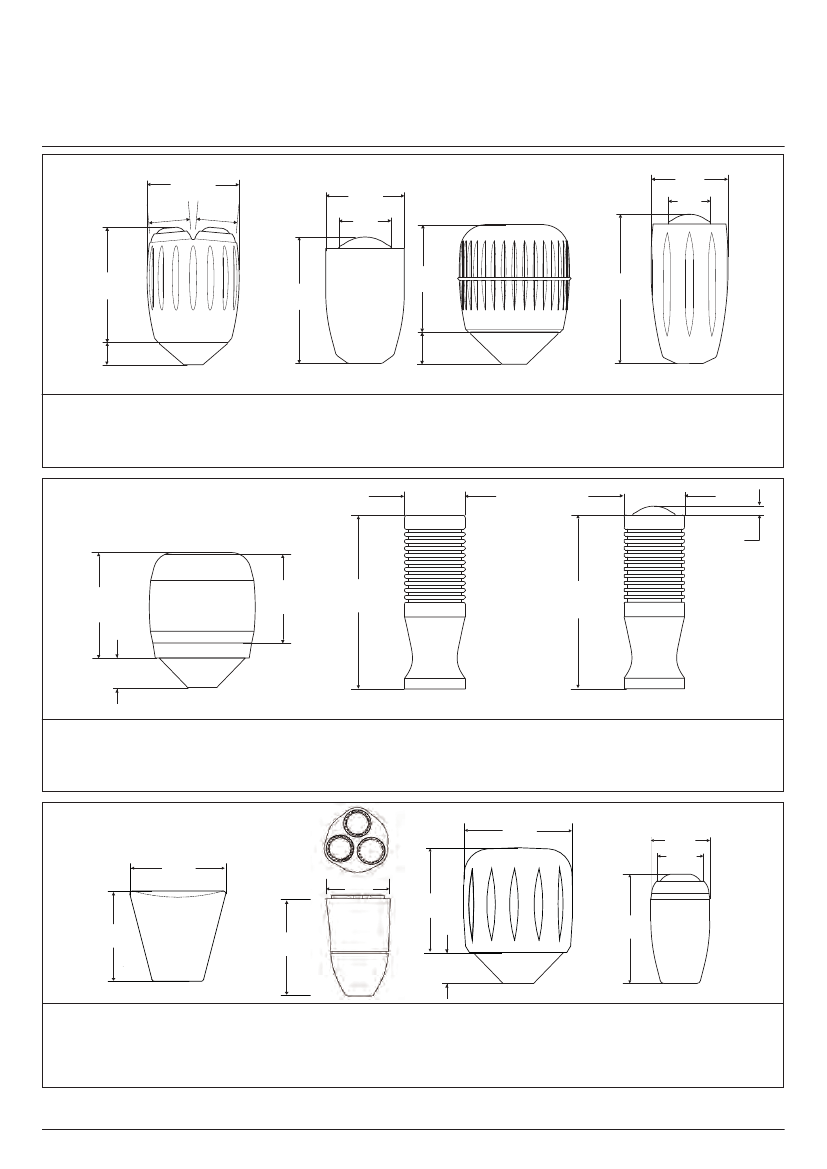

DIMENSIONAL DRAWINGS - HANDLES - continued
39.30
(1.55)
13.60
(0.51)
13.60
(0.51)
22.00
(0.87)
13.60
(0.54)
49.25
(1.94)
35.00
(1.38)
31.70
(1.25)
53.50
(2.11)
AC
9.30
(0.37)
AK
9.30
(0.37)
AL
AM
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
Aluminum
Anodised
Black
Not Available
Uses APEM IS Switches
Aluminium
Anodised
Black
Not Available
Uses APEM IA Switch
26.00
(1.02)
Nylon
Sparked Matt
Black
Upon Request
Z axis functionality
Aluminum
Anodised
Black
Not Available
Uses APEM IA Switch
26.00
(1.02
2.60
(0.10)
32.20
(1.27)
26.90
(1.06)
74.65
(2.94)
74.65
(2.94)
A
AP
AQ
AR
8.65
(0.34)
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
Santoprene over Nylon
Soft Touch
Black
Upon Request
Z axis functionality
Aluminium
Anodised
Black
Not Available
Aluminium
Anodised
Black
Not Available
Uses APEM IA Switch
30.90
(1.21)
19.00
(0.74)
17.50
(0.69)
13.60
(0.54)
35.45
(1.40)
28.50
(1.12)
31.00
(1.22)
17.30
(0.68)
56.40
(2.22)
AT
BB
Nylon
Sparked Matt
Black
Not Available
Uses APEM IL switch
8.65
(0.34)
R
T
MATERIAL
FINISH
STANDARD COLOR
OTHER COLORS
NOTES:
Nylon
Sparked Matt
Black
Upon Request
Aluminium
Anodised
Black
Not Available
Z axis functionality
Stainless Steel
Natural
Stainless Steel
Not Available
Uses APEM IS switch
1. Dimensions are in mm/(inch)
Note: The company reserves the right to change specifications without notice.
www.apem.com
