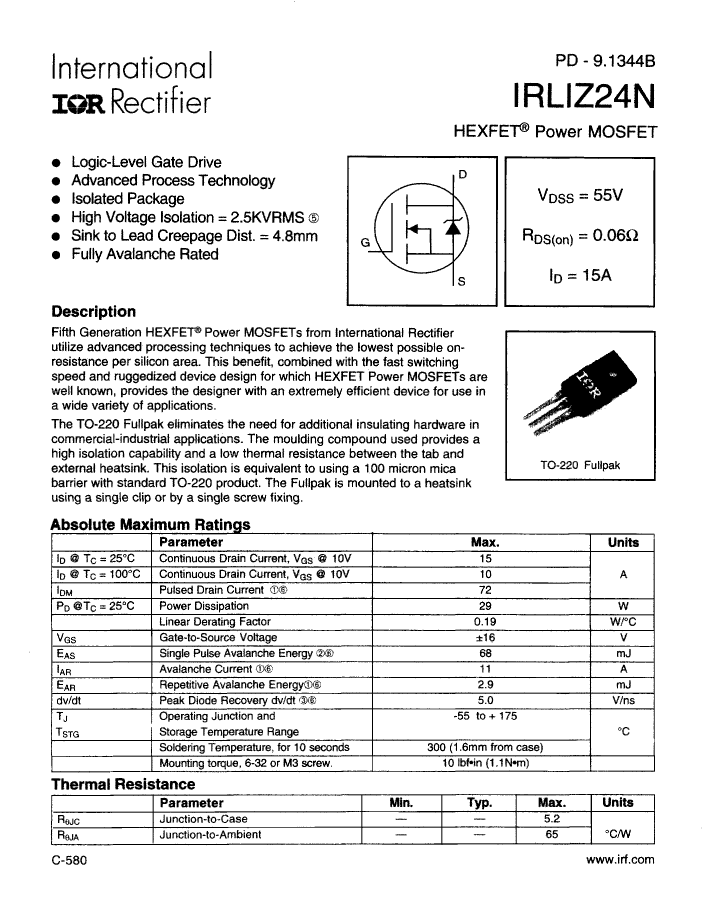

IRLIZ24N-104

Description
Power Field-Effect Transistor, 15A I(D), 55V, 0.075ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
CategoryDiscrete semiconductor    The transistor
File Size288KB,5 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

IRLIZ24N-104 Overview

Power Field-Effect Transistor, 15A I(D), 55V, 0.075ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET

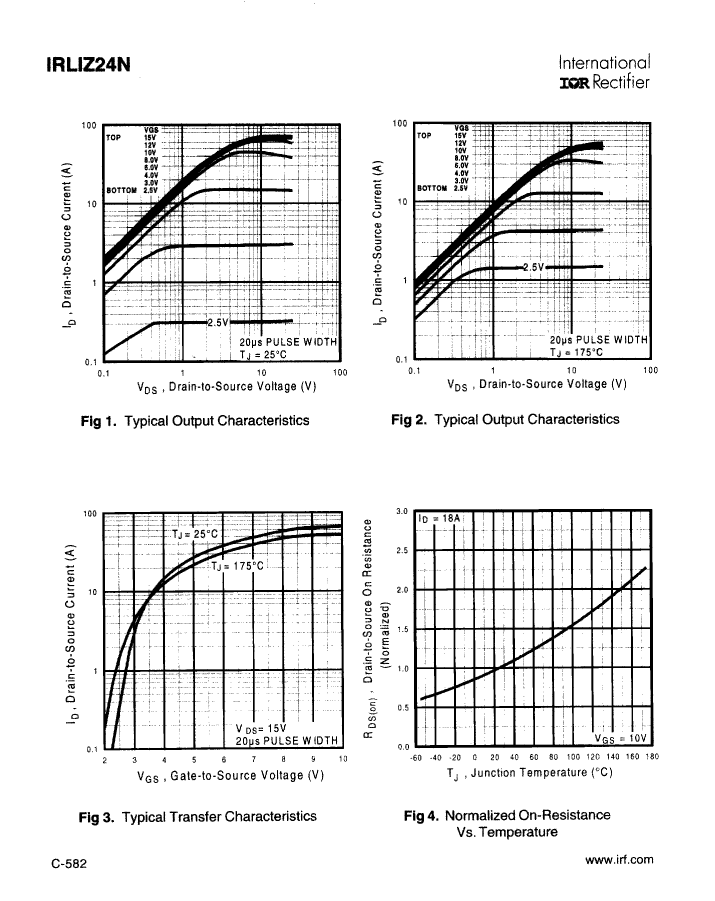

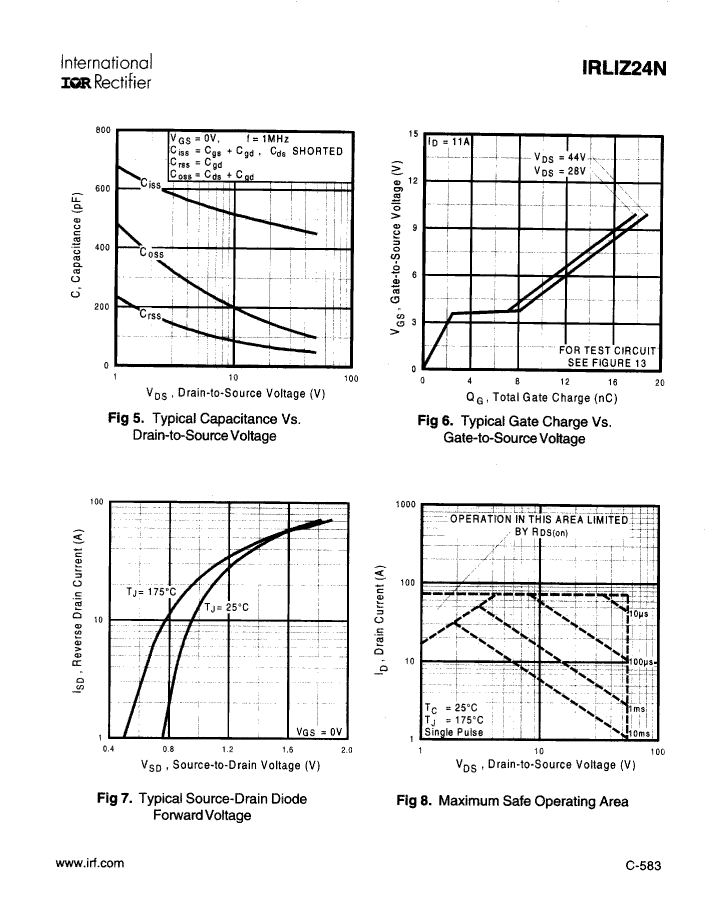

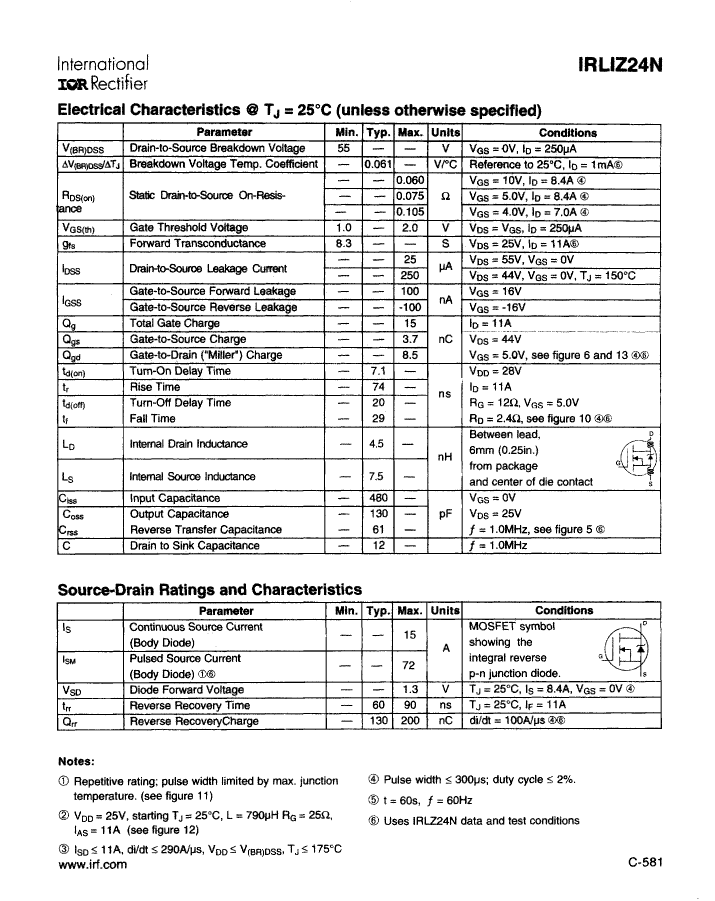

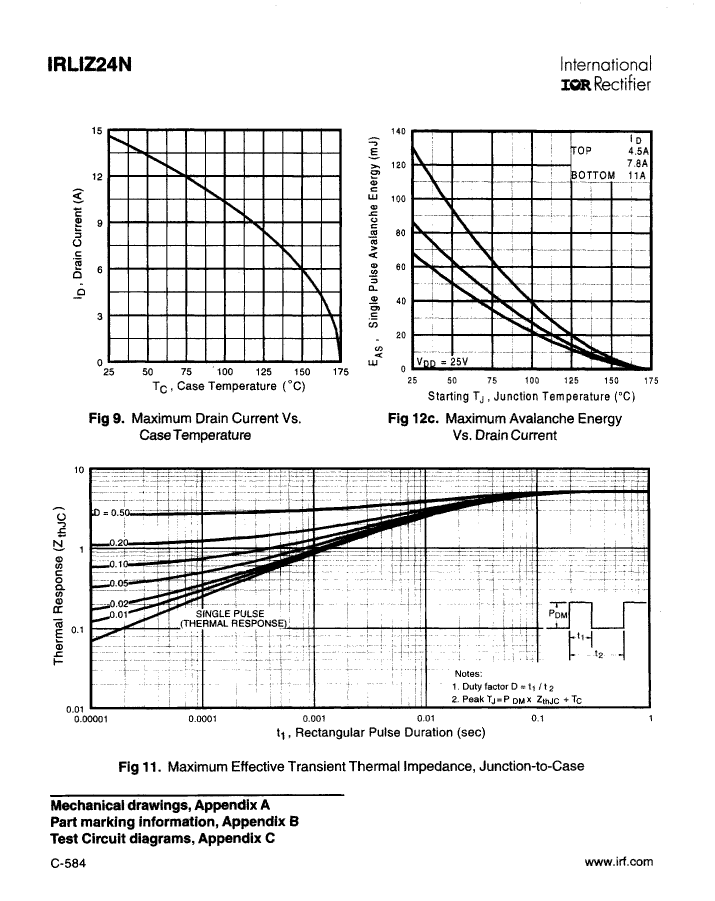

IRLIZ24N-104 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionFLANGE MOUNT, R-PSFM-T3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)68 mJ
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage55 V
Maximum drain current (ID)15 A
Maximum drain-source on-resistance0.075 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)72 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1
