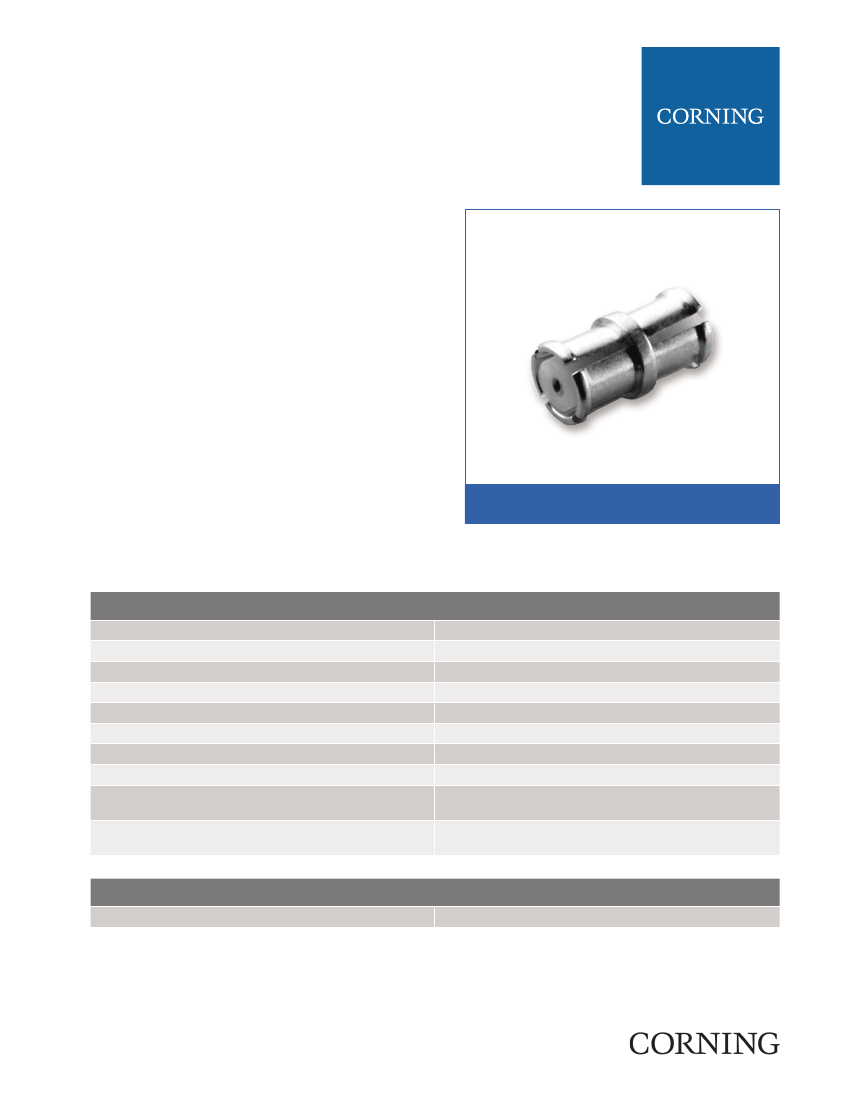

GPO Female Blindmate Interconnect
0.395 Length
Part Number: A1A1-0001-03
Specifications
General Specifications
Category
Impedance
Frequency Range
Materials, Bodies
Materials, Outer Contacts
Materials, Center Contacts
Materials, Insulators
Materials, Springs
Finish, Bodies
Finish, Contacts
Interconnect
50 Ω
DC to 40 GHz typ.
Beryllium Copper per ASTM B196 and or/ASTM B197
Beryllium Copper per ASTM B196 and or/ASTM B197
Beryllium Copper per ASTM B196 and or/ASTM B197
PTFE Fluorocarbon per ASTM D1710
17-7 Stainless Steel per ASTM A313-95A
Gold plated per MIL-G-45204, Type I, Grade C, Class 1, Over
Nickel Plate per SAE AMS-QQ-N-290
Gold plated per MIL-G-45204, Type I, Grade C, Class 1, Over
Nickel Plate per SAE AMS-QQ-N-290
Temperature Range
Installation
-65 °C to 165 °C
Product Specification A1A1-0001-03_NAFTA_AEN
Page 1 | Revision date 2016-03-03
GPO Female Blindmate Interconnect
0.395 Length
Design - Hardware
Length
Width
Diameter A
Diameter B
0.395 in
0.131 in
0.131 in
0.131 in
Mechanical Characteristics
Mate / Demate Cycles FD
Mate / Demate Cycles LD
Mate / Demate Cycles SB
Force to Engage / Disengage FD
Force to Engage / Disengage LD
Force to Engage / Disengage SB
Tolerated Misalignment Axial
Tolerated Misalignment Radial
100 min
500 min
1,000 min
7.0 lbs. typ. / 9.0 lbs. typical
5.0 lbs. typ. / 7.0 lbs. typ.
3.0 lbs. typ. / 0.5 lbs. typ.
0.010 (flush to 0.010 from reference plane)
+ / - 0.010
Electrical characteristics (at 20°C)
Insertion Loss
DWV at Sea Level
Insulation Resistance
Contact Resistance - Outer Conductor
Contact Resistance - Inner Conductor
VSWR
0.04 vf GHz
500 Vrms voltage
≥ 5000 MΩ (DC)
< 2 mΩ
< 6 mΩ
1.10:1 to 8 GHz, 1.35:1 to 26.5 GHz, 1.5:1 to 40 GHz
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Environmental Influences
Thermal Shock
Salt Spray
Vibration
Shock
Moisture Resistance
Product Specification A1A1-0001-03_NAFTA_AEN
Page 2 | Revision date 2016-03-03
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 101
MIL-STD-202, Method 204
MIL-STD-202, Method 213, Condition I
MIL-STD-202, Method 106, except Step 7B
GPO Female Blindmate Interconnect
0.395 Length
Ordering Information
Part Number
Product Description
EAN Code
A1A1-0001-03
GPO Female Blindmate Interconnect, 0.395 Length
4056418761039
Corning Optical Communications LLC • PO Box 489 • Hickory, NC 28603-0489 USA
800-743-2675 • FAX: 828-325-5060 • International: +1-828-901-5000 • www.corning.com/opcomm
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks.
All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified.
© 2016 Corning Optical Communications. All rights reserved.
Corning Optical Communications RF LLC (Corning Gilbert) • 5310 W. Camelback Rd. • Glendale, AZ 85301 USA
Product Specification A1A1-0001-03_NAFTA_AEN
800-528-5567 • FAX: 800-344-6358 • International: +1-623-245-1050 • www.corning.com/opcomm
Page 3 | Revision date 2016-03-03
A complete listing of the trademarks of Corning Optical Communications RF is available at www.corning.com/opcomm/trade-
marks. All other trademarks are the properties of their respective owners. Corning Optical Communications RF is ISO 9001
