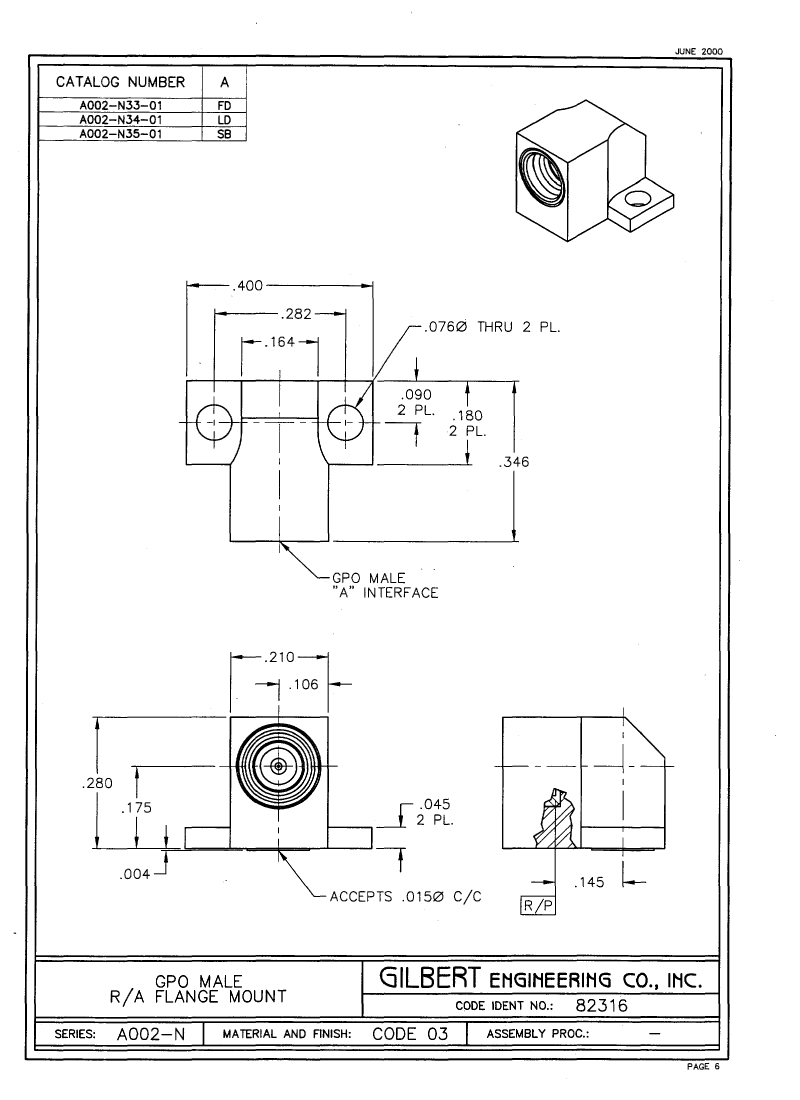

A002-N34-01 Overview

Blindmate Connector, Male, Panel Mount,

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	GPO, VSWR AT 26.5 GHZ :1.15
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	A002-N
Installation method	RIGHT ANGLE
Maximum operating frequency	40 GHz
Panel mounting	YES
voltage standing wave ratio	1.5
Base Number Matches	1

	A002-N34-01	A002-N33-01	A002-N35-01
Description	Blindmate Connector, Male, Panel Mount,	Blindmate Connector, Male, Panel Mount,	Blindmate Connector, Male, Panel Mount,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	GPO, VSWR AT 26.5 GHZ :1.15	GPO, VSWR AT 26.5 GHZ :1.15	GPO, VSWR AT 26.5 GHZ :1.15
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR
Contact point gender	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	A002-N	A002-N	A002-N
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Maximum operating frequency	40 GHz	40 GHz	40 GHz
Panel mounting	YES	YES	YES
voltage standing wave ratio	1.5	1.5	1.5
Base Number Matches	1	1	1
