EC11-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> EC11-150

EC11-150: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid,; CategoryPower/power management The power supply circuit; File Size157KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric View All

EC11-150 Overview

AC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid,

EC11-150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	125 V
Minimum input voltage	105 V
JESD-30 code	R-XSMA-X5
Maximum load regulation	0.015%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	20 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

765432121098765432109876543210987654321

ENVIRONMENTAL

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

GENERAL

OUTPUT

INPUT

Operating Temperature

Storage Temperature

Cooling

Voltage Tolerance

Regulation: Line/Load

Ripple and Noise (PARD)

Short Circuit Protection

Temperature Coefficient

I/O Isolation

Suffix I

Voltage and Frequency

Standard

105 to 125 Vac - 50 to 440 Hz

Suffix I

200 to 252 Vac - 50 to 60 Hz

Suffix N

90 to 110 Vac - 50 to 60 Hz

Suffix K

200 to 252 Vac - 50 to 60 Hz

Suffix K2

105 to 125/210 to 250 Vac

EA, ES, EC Series

-25°C to +71°C No Derating

-25°C to +85°C

Free-air Convection

1500 Vac

2500 Vac

7mV RMS

Power foldback

0.02% / °C

± 1%

.015% / .015%

High performance design

Chassis or PC mount

Continuous short circuit

protection

Isolation to 2500 Vac

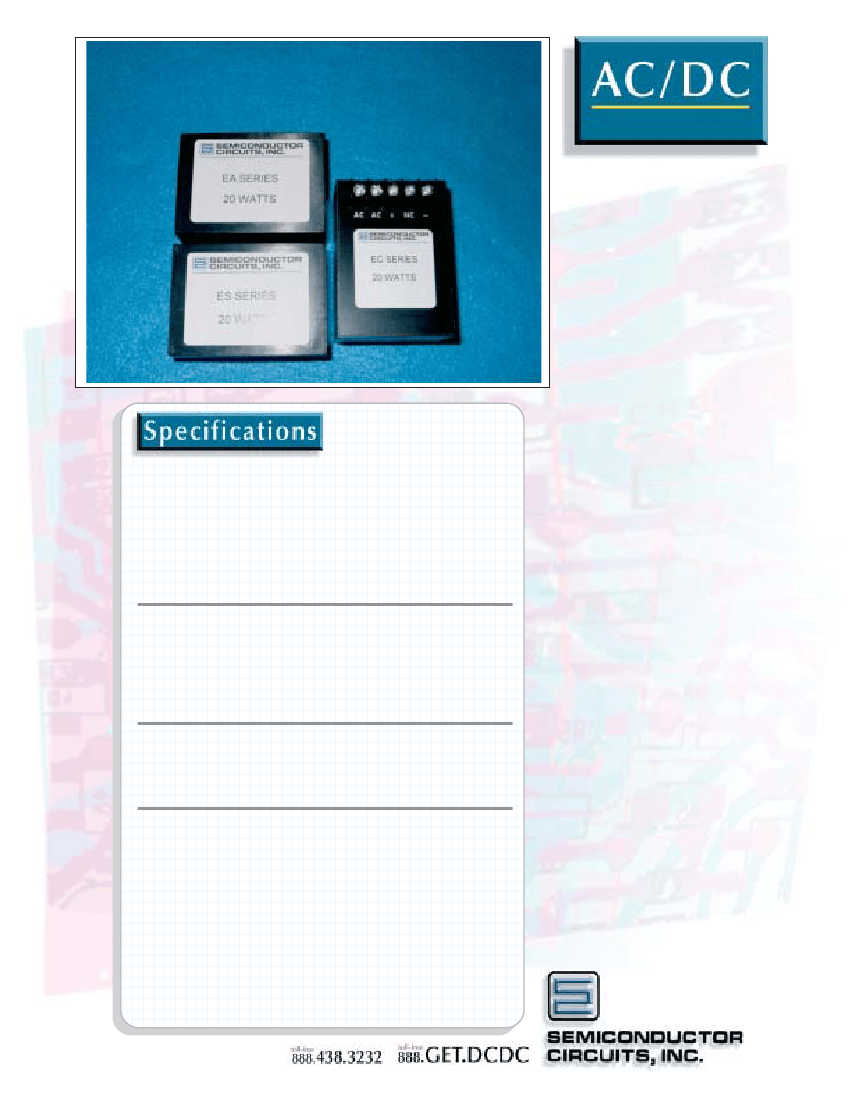

The EA and ES Series are plug-in

modules offering a choice of two

industry-standard pin-outs. The EC

Series is a chassis-mount with a top-

mounted, five-terminal barrier strip for

power entry/exit.

he EA, ES and EC Series of line

operated power supplies features

near constant efficiency over the

entire rated input voltage range. These

electrically identical families employ a

highly efficient, closed loop ripple

regulation circuit, which contains a low

pass filter. Each stage, transformer,

filter and regulator is engineered for

maximum efficiency. This combination

provides cooler operation; higher

overall system reliability and greater

line transient immunity to 60 dB, all to

a degree unmatched by conventional

power supply designs. Excellent

thermal management permits full

power output over the full operation

range to +71° with no derating.

Single/Dual Outputs

20 Watts
