M83513/31-A01C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M83513/31-A01C

M83513/31-A01C: DescriptionD Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size539KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/31-A01C Overview

D Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

M83513/31-A01C Parametric

Parameter Name	Attribute value
Reach Compliance Code	not_compliant
Other features	STANDARD: MIL-DTL-83513
Board mount options	HOLE.096
body width	0.31 inch
subject depth	0.355 inch
body length	0.785 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S9P0
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.91 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell surface	CADMIUM
Shell material	METAL
Housing size	A
Terminal length	0.109 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	0.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

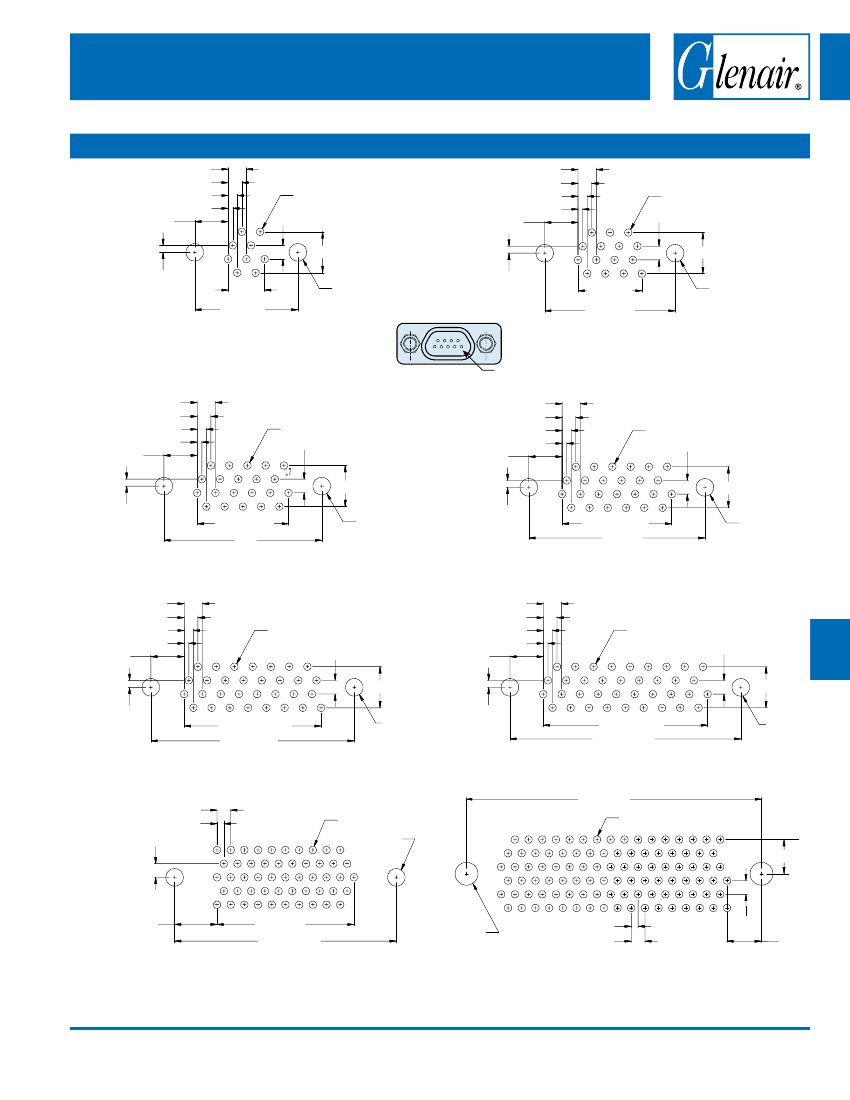

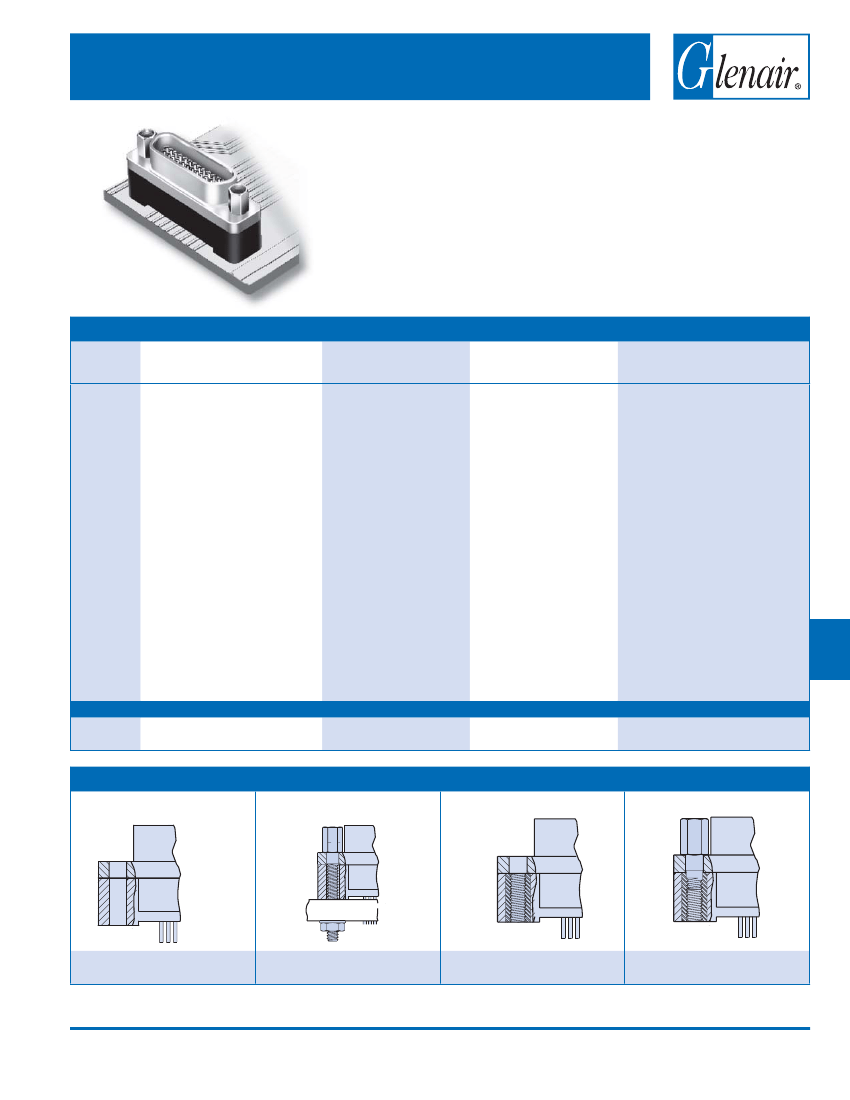

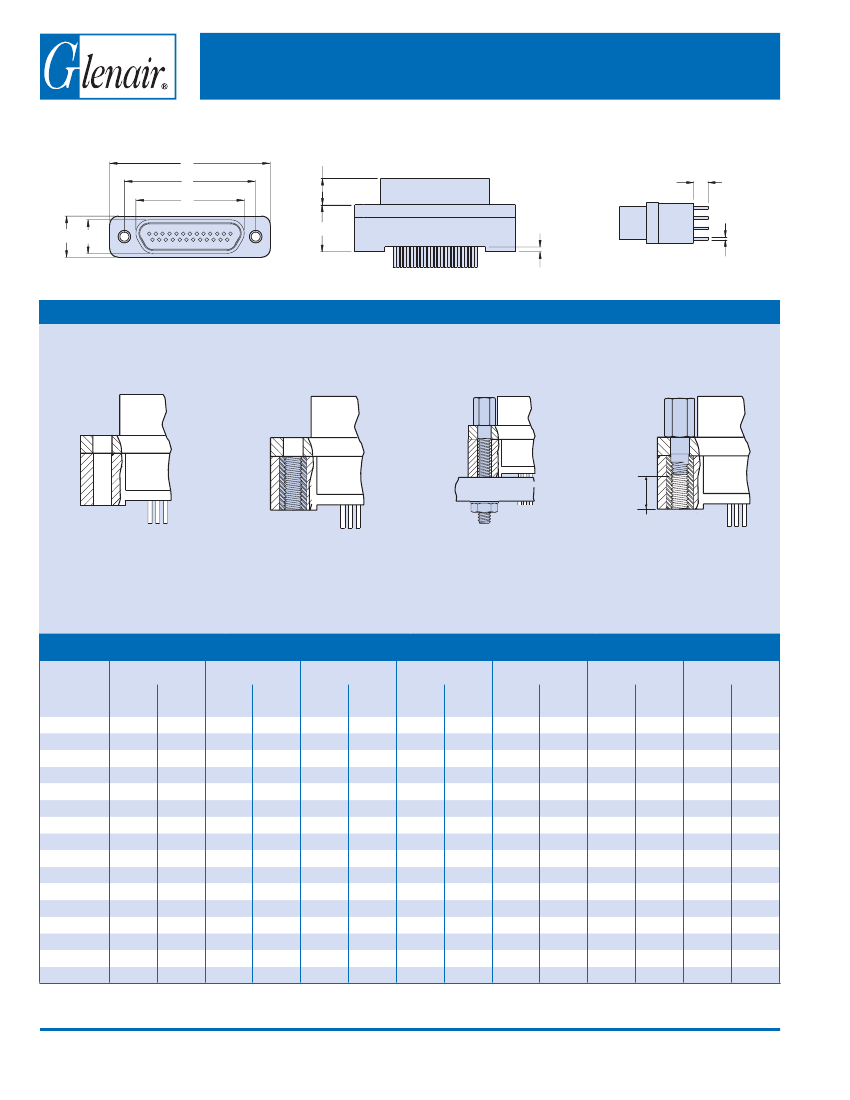

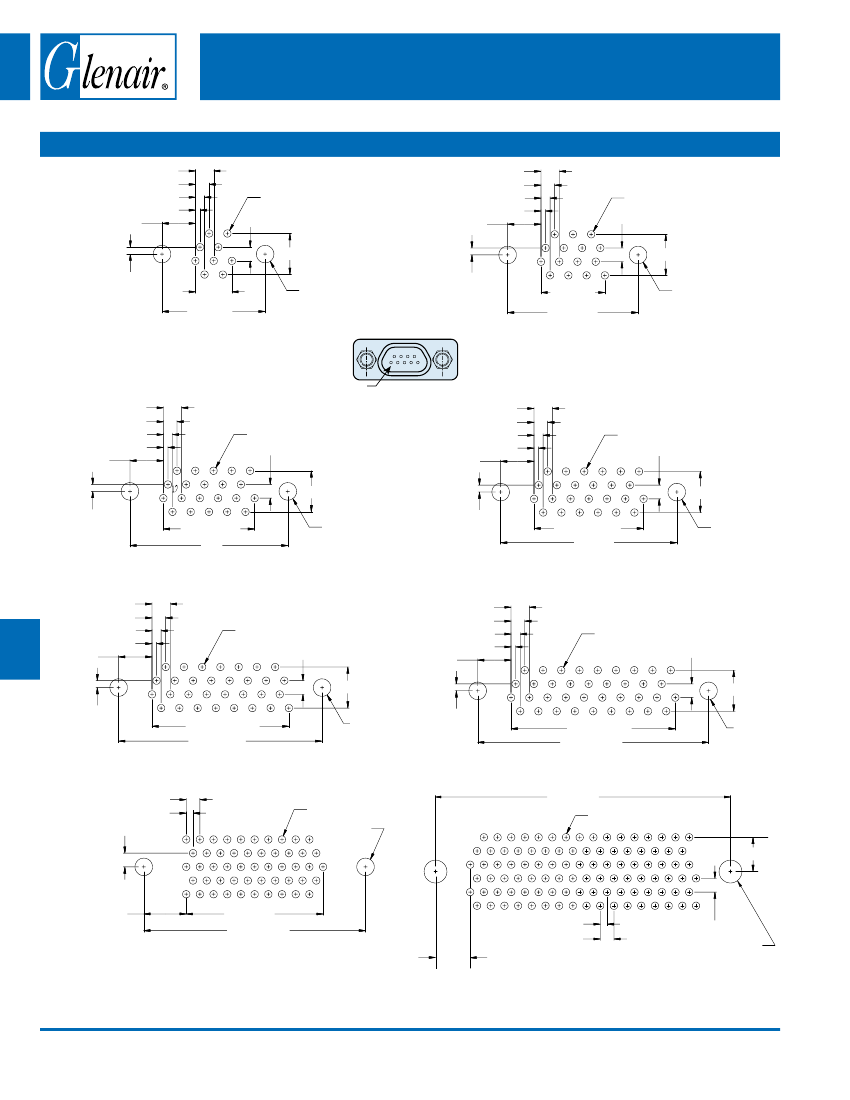

MIL-DTL-83513/28 Thru /33 Micro-D Connectors

Straight PCB Connectors (CBS)

Space-Saving

— These connectors take up less room on the PC board. PC

tail spacing is .075 inch (1.9mm), compared to .100 inch (2.54mm.).

Threaded Inserts

— Stainless steel inserts are insert molded into plastic trays.

These inserts provide a ground path from the PC board to the mating cable.

Solder-Dipped

— Terminals are coated with SN63/Pb37 tin-lead solder for best

solderability.

HOW TO ORDER M83513/22 THRU /27 STRAIGHT PCB CONNECGTORS

Spec

Number

M83513

Slash Number- Shell Size

28–A

28–B

28–C

28–D

28–E

28–F

29–G

- 51 Contacts

30–H

- 100 Contacts

31–A

31–B

31–C

31–D

31–E

31–F

32–G

33–H

9 Contacts

15 Contacts

21 Contacts

25 Contacts

Plug (Pin Contacts)

- 9 Contacts

- 15 Contacts

- 21 Contacts

- 25 Contacts

- 31 Contacts

- 37 Contacts

PC Tail Length

– .109 Inch (2.77 mm)

– .140 Inch (3.56 mm)

– .172 Inch (4.37 mm)

PC Tail Length

.015 (0.38)

Shell Finish

– Cadmium

– Electroless Nickel

– Passivated SST

Hardware Option

– No Jackpost

– Jackposts Installed

– Threaded Insert in Board Mount

Hole (No Jackposts)

–Threaded Insert in Board Mount

Hole and jackposts Installed

(See "Hardware Options" below for

Illustrations)

Shell sizes A (9) through G (51) are

#2-56 UNC-2 threads.

Shell size H (100) is #4-40 UNC-2

threads.

Receptacle (Socket Contacts)

- 31 Contacts

- 37 Contacts

- 51 Contacts

- 100 Contacts

Sample Part Number

M83513/

33-H

HARDWARE OPTIONS

PC BOARD

No Jackpost

Jackpost

Threaded Insert

Jackpost, Threaded Insert

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC.

www.glenair.com

• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

J-23

E-Mail: sales@glenair.com
