Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LSM676-PS

Preview

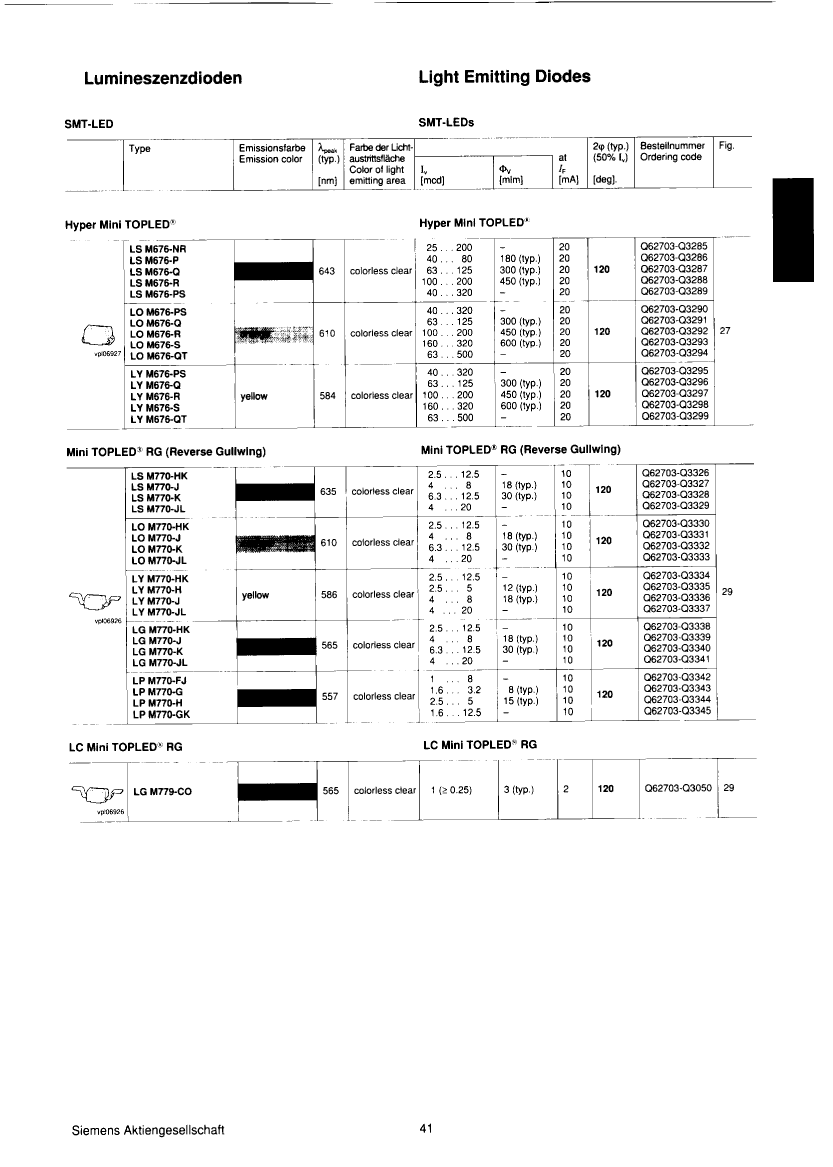

LSM676-PS: DescriptionSingle Color LED, Super Red, Colorless Clear, 1.4mm; CategoryLED optoelectronic/LED photoelectric; File Size44KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LSM676-PS Overview

Single Color LED, Super Red, Colorless Clear, 1.4mm

LSM676-PS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	SUPER RED
Configuration	SINGLE
Lens type	COLORLESS CLEAR
Nominal luminous intensity	180 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	1.05 mm
method of packing	TAPE AND REEL
peak wavelength	643 nm
shape	RECTANGULAR
size	1.4 mm
surface mount	YES
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

LSM676-PS Related Products

	LSM676-PS	LOM770-JL	LYM770-JL	LYM676-QT	LSM770-JL	LOM676-QT	LGM770-JL	LOM676-S	LSM676-R
Description	Single Color LED, Super Red, Colorless Clear, 1.4mm	Single Color LED, Orange, Colorless Clear, 1.4mm	Single Color LED, Yellow, Colorless Clear, 1.4mm	Single Color LED, Yellow, Colorless Clear, 1.4mm	Single Color LED, Super Red, Colorless Clear, 1.4mm	Single Color LED, Orange, Colorless Clear, 1.4mm	Single Color LED, Green, Colorless Clear, 1.4mm	Single Color LED, Orange, Colorless Clear, 1.4mm	Single Color LED, Super Red, Colorless Clear, 1.4mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	SUPER RED	ORANGE	YELLOW	YELLOW	SUPER RED	ORANGE	GREEN	ORANGE	SUPER RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR
Nominal luminous intensity	180 mcd	12 mcd	12 mcd	281.5 mcd	12 mcd	281.5 mcd	12 mcd	240 mcd	150 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	643 nm	610 nm	586 nm	584 nm	635 nm	610 nm	565 nm	610 nm	643 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
total height	1.05 mm	-	-	1.05 mm	-	1.05 mm	-	1.05 mm	1.05 mm
Maker	-	SIEMENS	-	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
