VISHAY
ZTK Series
Vishay Semiconductors
Voltage Stabilizers
Features
• Temperature-Compensated Stabilizing Circuits
• Monolithic linear integrated circuits with extremely
short thermal run-in time producing a constant
temperature-compensated voltage. They are par-
ticularly suitable for stabilizing the tuning voltage in
radio and TV tuners employing voltagevariable
capacitance diodes.
94 9367
Mechanical Data
Case:
DO-35 Glass Case
Weight:
approx. 0.13 g
Packaging codes/options:
TR/ 10K per 13 " reel (52 mm tape), 30 K/box
TAP/ 10K per Ammo tape, (52 mm tape), 30 K/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Operating Current (see Table
"Characteristics")
Junction temperature
Storage temperature range
T
J
T
S
150
- 20 to + 150
°C
°C
Test condition
Symbol
Value
Unit
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Temperature Coefficient of the
operating voltage
Thermal Run-in-Time
Thermal resistance junction to
ambient air
1)
2)
Test condition
I
Z
= 5 mA ± 0.5 in the range of
T
amb
= 20 to 60 °C
Symbol
α
vz
t
th
T
θJA
Min
- 10
Typ.
-2
- 20
2)
Value
+ 5
1)
Unit
10
-5
/°C
s
400
°C/W
Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case
At the end of this time
∆
V
Z
has reached 90 % of its final value
∆
V
Z
max.
∆V
Z
max = V
Z
(a) - V
Z
(0), where V
Z
(0) = V
Z
in the instant of
turn-on and V
Z
(a) = V
Z
at thermal equilibrium
Document Number 85812
Rev. 1.3, 27-Nov-03
www.vishay.com
1
ZTK Series
Vishay Semiconductors
Electrical Characteristics
Partnumber
Operating Voltage
V
Z
@ I
Z
= 5 mA
3)
V
ZTK6.8
ZTK9
ZTK11
ZTK18
ZTK22
ZTK27
ZTK33A
ZTK33B
ZTK33C
3)
4)
VISHAY
Dynamic resistance
r
zj
@ I
Z
= 5 mA
W
10(<25)
10(<25)
10(<25)
11(<25)
11(<25)
12(<25)
12(<25)
12(<25)
12(<25)
Permissable operating
I
Z
max @ T
amb
= 25 °C
4
Ω
36
27
1
13
1
8
7
7
7
6.4 to 7.1
8 to 10
10 to 12
16 to 20
20 to 24
24 to 30
30 to 32
32 to 34
34 to 36
Tested with pulses t
p
= 5 ms
Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case.

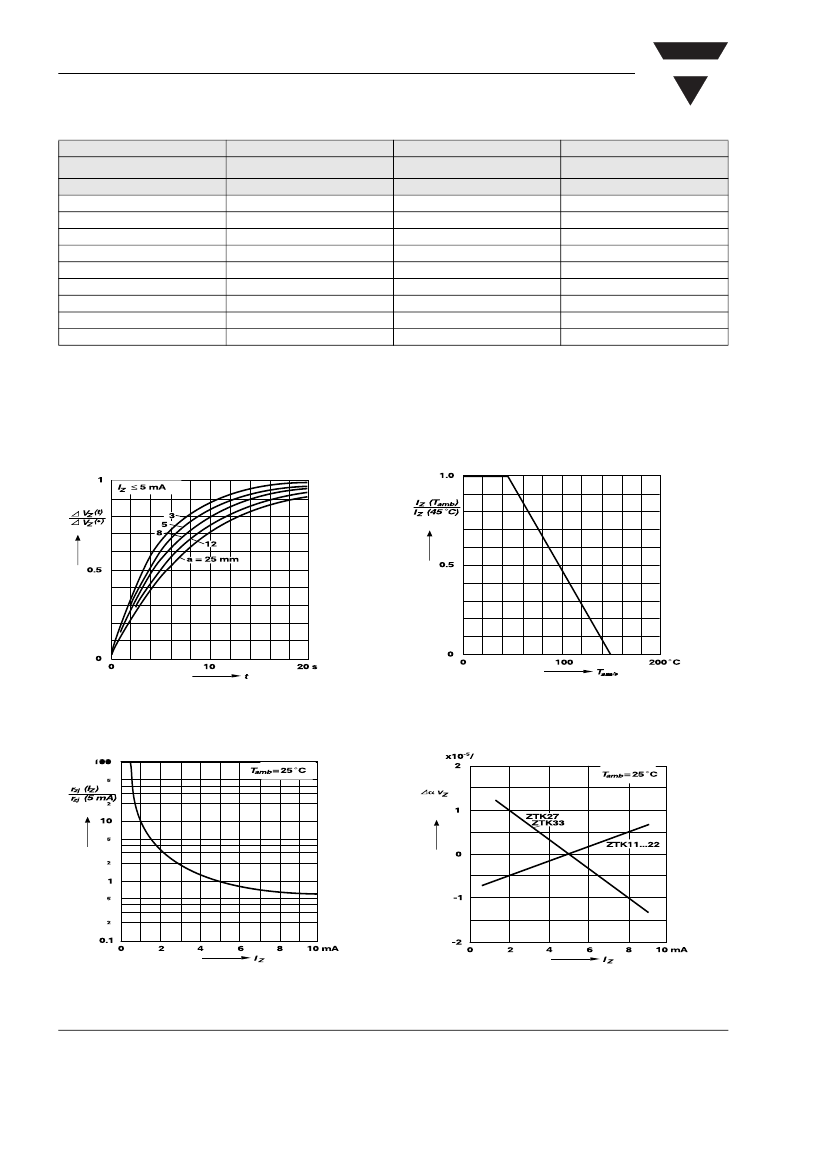

Typical Characteristics
(T
amb
= 25
°C
unless otherwise specified)
18385
18387
Figure 1. Time dependence
Figure 3. Permissible operating current versus ambient
temperature
°
C
18386
18388
Figure 2. Dynamic resistance versus operating current
Figure 4. Change of temperature coefficient versus operating
current
www.vishay.com
2
Document Number 85812
Rev. 1.3, 27-Nov-03
ZTK Series
Vishay Semiconductors
