Analog Fiber Optic Transmission System
Duplex Analog Fiber Optic Transmission
System
FMV-100K
Video
The Opticomm FMV-100K System is a
duplex analog fiber optic transmission
system. The system is capable of
transmitting an Analog FSK signal at a
system bandwidth between 300Hz and
100KHz.
The FMV-100K/TR-T50R10-FC-IC transmits
at 1550nm and receives at 1510nm
wavelengths. The FMV-100K/TR-T10R50-
FC-IC transmits at 1510nm and receives
at 1550nm wavelengths.
The system offers a link budget of at least
30dB over one single-mode fiber using a
Coarse Wave Division Multiplexer
operating over 1510nm and 1550nm
wavelengths for bi-directional capability.
System Design
Features
Audio
Data
• Singlemode Operation Over One Fiber
• 0-30dB Link Budget
• Ruggedized Industrial Enclosure
• No EMI or RFI and no ground loops
• Rack-Mountable
• High MTBF
• Wide Temperature Range

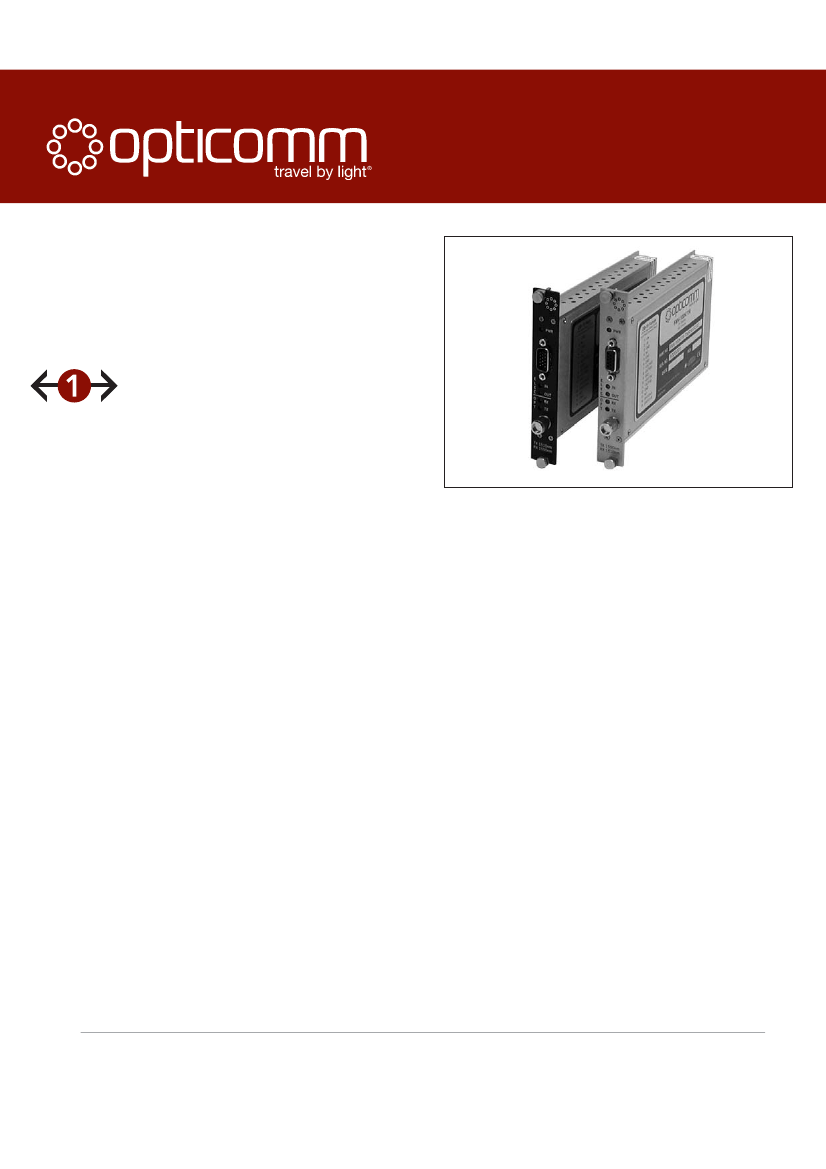

The Models FMV-100K/TR-T50R10-FC-IC
and FMV-100K/TR-T10R50-FC-IC are insert
card transceivers. These units are plug-in
card assemblies compatible with
Opticomm's CC-16B 19” rack-mountable
chassis.
An insert card combined with a CC-16B
chassis would be installed within a 19”
distribution frame, typically found in a
control room or hub.
All insert cards are swappable. Up to
16 FMV-100K insert cards can be housed
in one CC-16B chassis with up to two
PS-1205 power supplies for redundancy.
1510
1550
Type
Laser
(DFB)
Mode
SM
Fiber
Type
09/125µ
Output
Power
0 dBm
Receiver
Sensitivity
-30 dBm
Optical
Loss
Budget
30 dB
Conn
Type
FC
•
•
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
Audio/FSK/Intercom
Specifications
System Bandwidth
Input Impedance
Output Impedance
Analog Input Level
Signal to Noise Ratio
Delay in Output Signal
Connector Type
Indicators
300Hz to 100kHz
150 Ohm and 600 Ohm, balanced
150 Ohm and 600 Ohm, balanced
100mVrms - 1 Vrms
>60 dB
15 us max.
DB15 HD Female for FMV-100K/TR-T50R10-FC-IC
DB15 HD Male for FMV-100K/TR-T10R50-FC-IC
1. Electrical input signal detect
2. Electrical output signal detect
3. Optical signal detect
4. Optical output enabled
5. Card power status
Optiva
™
Configurable
Communication Platform
Network Management
SDI & HD-SDI
Composite Video,
Audio & Data
RGB/VGA/DVI
Audio/FSK/Intercom
Data (Ethernet/Serial/USB)
CATV/RF & L-Band
Optical Specifications
Cable Compatibility
FiberOptic Connector
Operating Wavelength
Optical Budget Loss
Laser Class
9/125 micron single-mode
FC/PC (singlemode)
Bi-directional CWDM transmission using 1550nm and 1510nm
wavelengths.
0-30 dB (SM @1550nm/1510nm)
Class 1
Optical Switching, Routing
& Redundancy
Passive Multiplexing
Solutions
Enclosures, Racks
& Frames
General
Dimensions & Weight
System Design
Connectors
Environmental
Operating Temperature
Operating Relative Humidity
Storage Temperature
Storage Relative Humidity
Cooling
Shock & Vibration
MTBF
Regulatory
Insert Card: 7.1” L x 0.8” W x 5.05” H
~ 0.6 lb.
Insert card to be installed inside the CC-16B 19” subrack frame,
3U high
Electrical and fiber connectors are accessible from the front
Power Supplies
& Accessories
-20°C to +70°C
95% @ 55° C, non-condensing
-40°C to +70°C
94% @ 65°C, non-condensing
Convection cooling
Sinusaidal, 5 to 200Hz at 1.5g peak
>400,000 Hours @ 30°C, Ground Benign, per MIL-HDBK-217F
CE Compliance
CSA Certification (FMV-100K System)
MADE IN THE USA
Opticomm reserves the right to change specifications without prior notice.

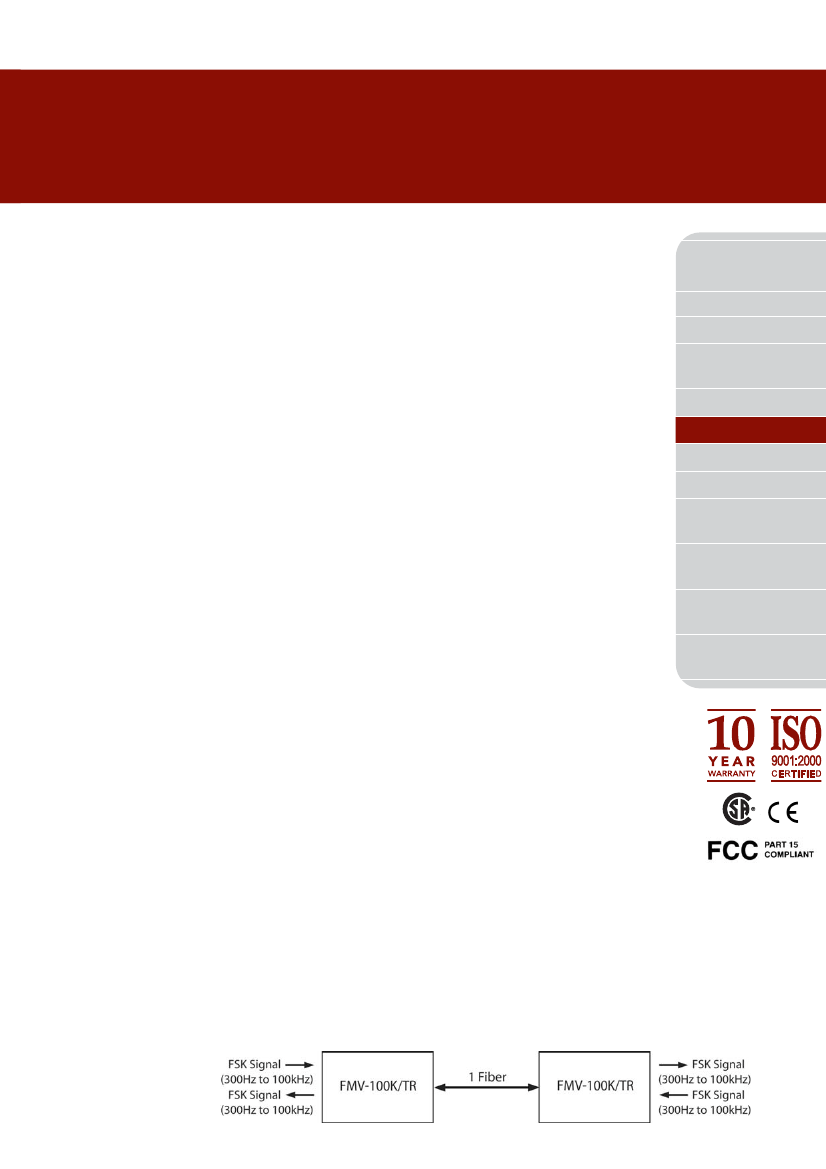

Sample Configuration
