Part Number

Search

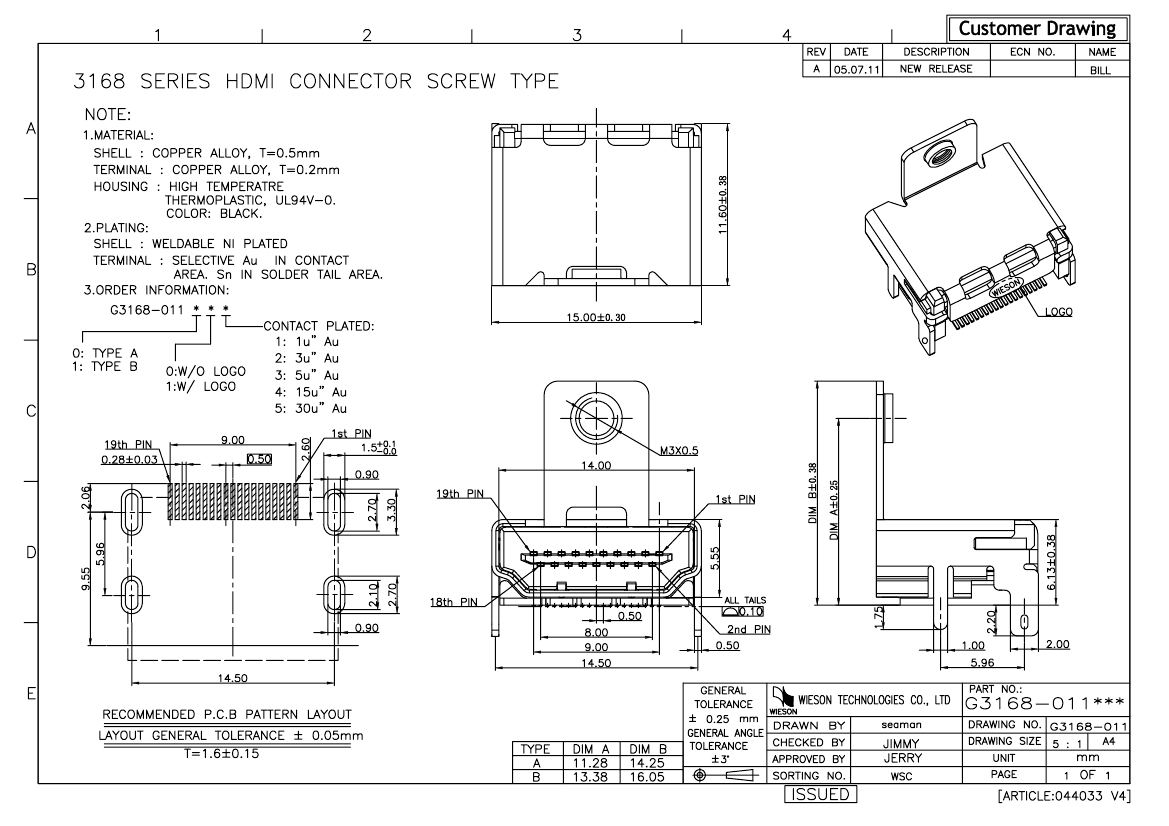

G3168-011004

Description
USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, M3x0.5, Receptacle
CategoryThe connector    The connector
File Size73KB,1 Pages
ManufacturerWieson Technologies Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

G3168-011004 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, M3x0.5, Receptacle

G3168-011004 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Other featuresROHS COMPLIANT
body width0.561 inch
subject depth0.457 inch
body length0.591 inch
Body/casing typeRECEPTACLE
Connector typeUSB CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact styleUSB, SER A FLAT
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number3168
Installation option 1M3X0.5
Installation option 2MOUNTING FLANGE
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
PCB contact patternRECTANGULAR
Plating thickness15u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts19
Base Number Matches1
