FH27-10S-0.4SH(51)

Description
Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size248KB,8 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

FH27-10S-0.4SH(51) Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

FH27-10S-0.4SH(51) Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresHIGH DENSITY, LOW PROFILE, POLARIZED
Connector typeFFC/FPC CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts10
UL Flammability Code94V-0
Base Number Matches1

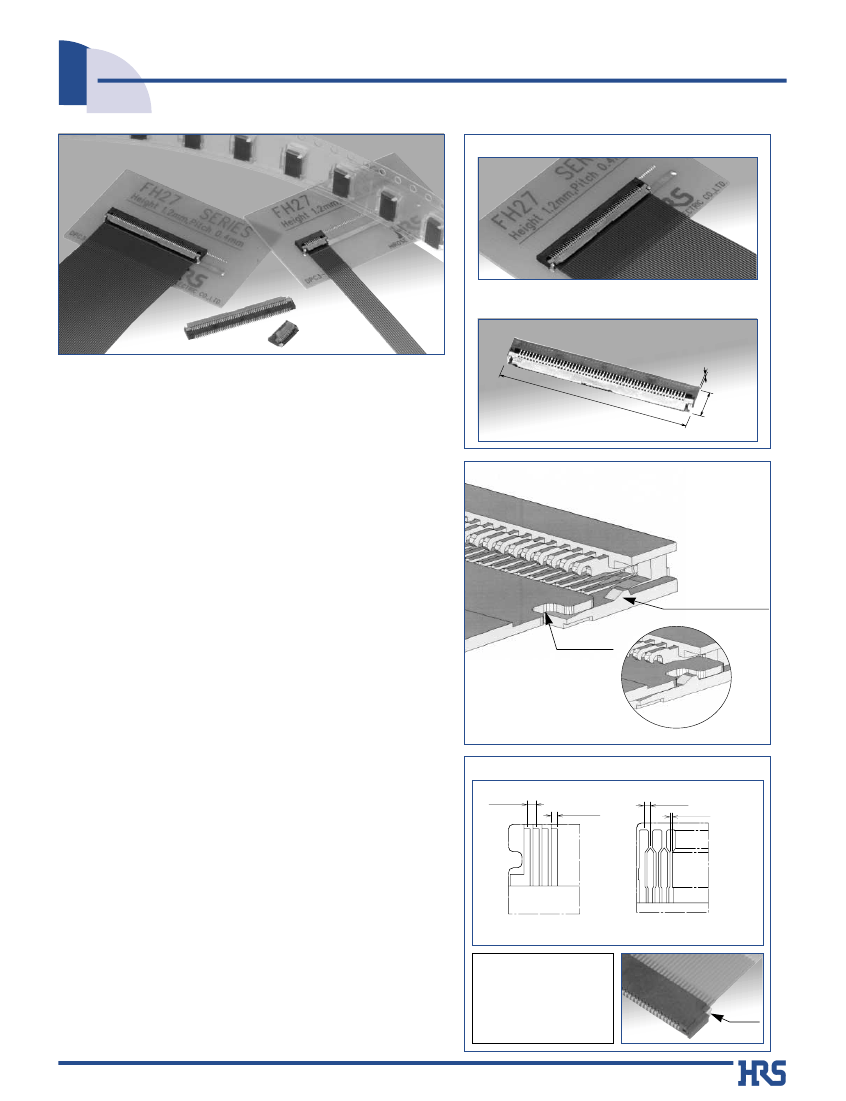

0.4 mm Contact Pitch, 1.2 mm above the board, Flexible Printed Circuit ZIF Connectors
FH 27 Series
q
FPC thickness: 0.2±0.03 mm
q1.2
mm Height, actuator fully closed.
(54 pos. shown)
s
Overview
Continuous miniaturization of personal mobile devices
created a need for a low profile, high density interconnection
system.In the same time, the demand for higher currents and
higher reliability Flexible Printed Circuits has also increased.
Hirose meets all these challenges with introduction of this connector.
24.2mm
1.2mm
4.0mm
s
Features
1. Low profile, small PCB mounting area, weight reduction
Protruding only 1.2 mm above the board the connector
occupies 50% less area than comparable type having
contacts spaced on 0.5 mm centers.
Creative design, coupled with high manufacturing capabilities
resulted in extremely low weight of the connector.
q
FPC temporary retention
2. Higher current carrying capacity
Contact spacing of 0.4 mm allows production of wider
and simpler pattern of conductive traces on FPC.
FPC notch
FPC temporary
hold protrusion
3. FPC temporary hold and verification of correct insertion
The connector has built-in FPC hold protrusions allowing
the tactile feel of the correct FPC insertion and holding it
in position before closing of the actuator.
Temporary hold-FPC
fully inserted
4. Uses standard 0.2 mm thick FPC

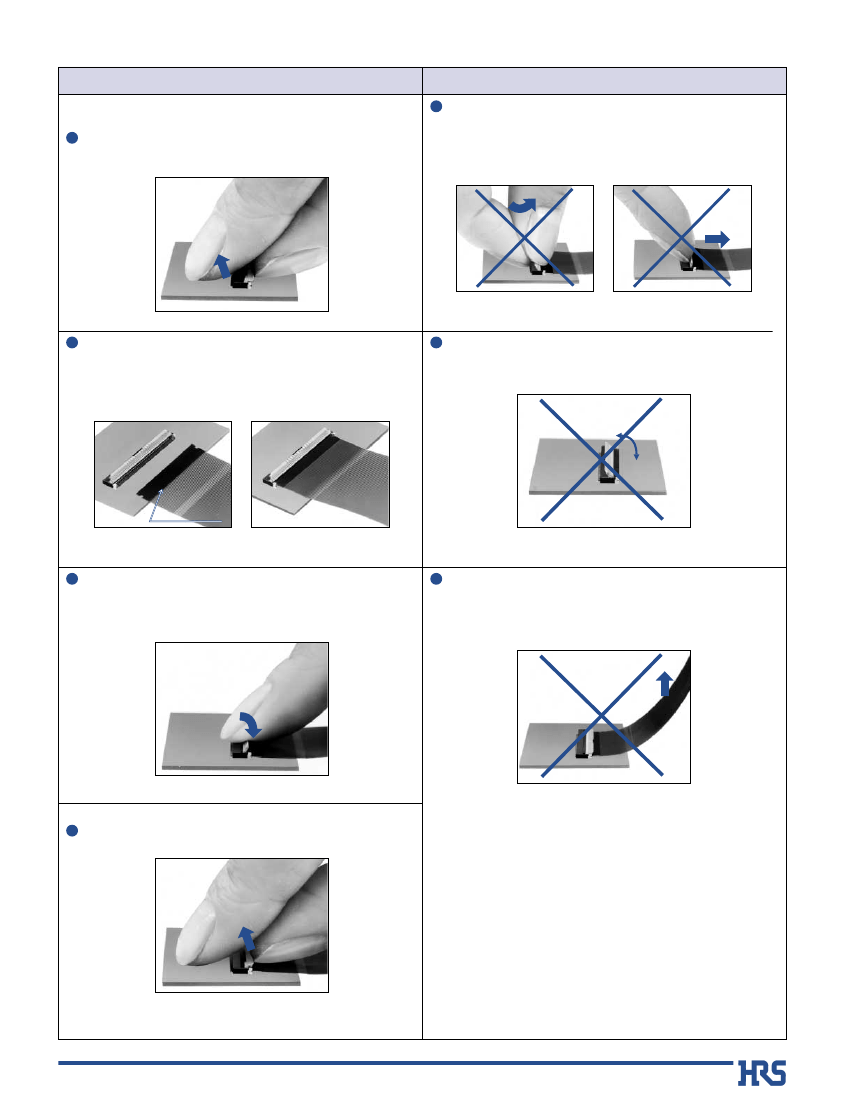

5. One-finger operation of the actuator
Proven (in several other Hirose's connectors!) Flip-Lock
rotating actuator assures reliable mechanical and electrical
connection with FPC, confirming it with a definite tactile feel.
qWider
FPC conductive traces
0.4mm
0.27mm
6. Board placement with automatic equipment
Flat top surface and packaging on the tape-and reel
allows the use of vacuum nozzles.
Standard reel contains 2,500 connectors.
0.3mm
0.1mm
7. Environmental considerations
The center cores of the embossed tape reels are made of Styrofoam.
8. Variety of contact positions
Available with 10, 40, 50, 54, 57 and 60 pos.
0.4 mm pitch FPC
Metal fittings on each
side do not protrude
out allowing side-by-
side mounting of the
connectors or closer
component placement.
0.3 mm pitch FPC
s
Applications
Mobile phones, PDA’s, digital cameras, digital video
cameras, LCD connections, plasma displays (PDP), camera
modules and other compact devices requiring Flexible
Printed Circuit connections using high reliability ultra-small
profile connectors
Metal
fitting
81

FH27-10S-0.4SH(51) Related Products

FH27-10S-0.4SH(51) FH27-57S-0.4SH(51) FH27-54S-0.4SH(51)
Description Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal Card Edge Connector, 57 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal Card Edge Connector, 54 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
Reach Compliance Code unknown unknown unknown
Other features HIGH DENSITY, LOW PROFILE, POLARIZED HIGH DENSITY, LOW PROFILE, POLARIZED HIGH DENSITY, LOW PROFILE, POLARIZED
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Mixed contacts NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of rows loaded 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 0.4 mm 0.4 mm 0.4 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 10 57 54
UL Flammability Code 94V-0 94V-0 94V-0
Base Number Matches 1 1 -
Is it Rohs certified? - incompatible incompatible
Maker - Hirose Hirose
ECCN code - EAR99 EAR99
