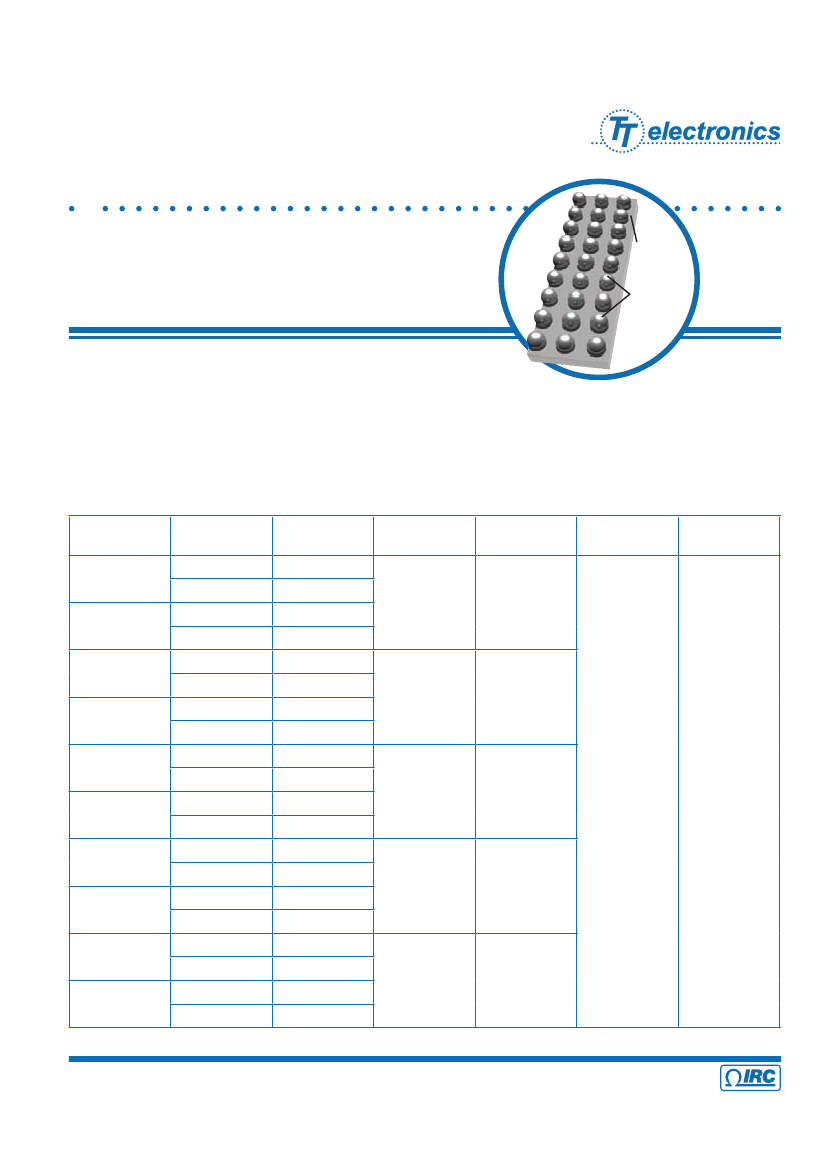

Ceramic Ball Grid
Termination Arrays
CHC Series
•
Superior TaNFilm
®
resistors on ceramic substrate
•
High density networks on a reduced footprint
•
Excellent high frequency performance
•
Standard tolerances to ±1%
•
RoHS compliant terminations available
High
purity alumina
substrate
Ball grid
terminations
IRC’s Chipscale on ceramic CHC offers high performance terminal
solutions in a small surface mount package. Sn/Pb solder balls
placed on a ceramic substrate permit very low parasitic inductance and
capacitance. This improves speeds, lowers propagation delays, and reduces ground bounce. IRC’s proven
tantalum nitride thin film technology can handle the most demanding applications.
For all of your high density, small footprint termination needs, use IRC’s CHC Termination arrays.
Electrical Data
Package
CB0565A
Resistance
Range (Ω)
10R to 4.7K
10R to 10.0K
10R to 2.2K
10R to 4.7K
10R to 4.7K
10R to 10.0K
10R to 2.2K
10R to 4.7K
10R to 4.7K
10R to 10.0K
10R to 2.2K
10R to 4.7K
10R to 4.7K
10R to 10.0K
10R to 2.2K
10R to 4.7K
10R to 4.7K
10R to 10.0K
10R to 2.2K
10R to 4.7K
Absolute
Tolerances
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±1%, ±2%
±5%
±100ppm/°C
1.2W
±100ppm/°C
1.2W
±100ppm/°C
1.6W
0.1W
-40°C to +85°C
±100ppm/°C
1.2W
±100ppm/°C
0.6W
Absolute TCR
Package Power Element Power
Rating 70°C*
Rating 70°C*
Operating
Temperature
CB0565B
CD0865A
CD0865B
CD1065A
CD1065B
CC0910A
CC0910B
CD0910A
CD0910B
*Rated power is from 0°C to 70°C derated linearly to 0W at 85°C.
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
CHC Series Issue April 2009 Sheet 1 of 4
Ceramic Ball Grid
Termination Arrays

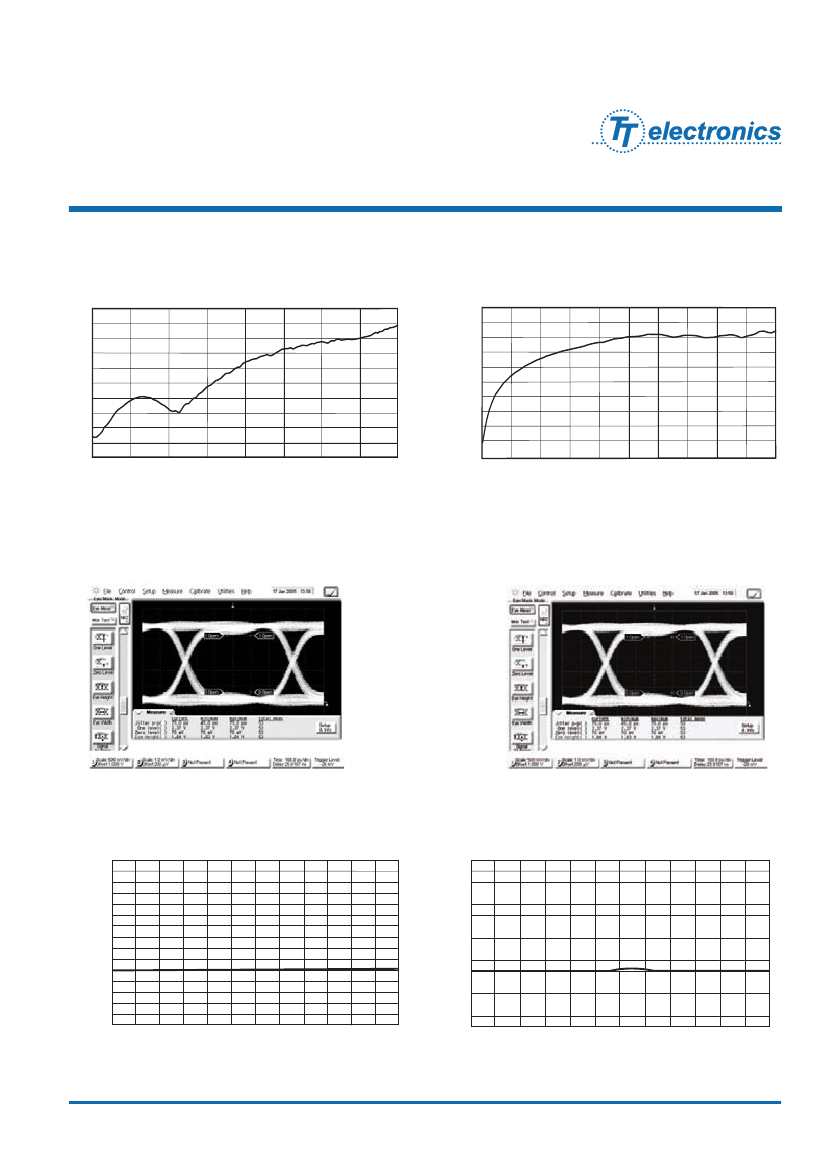

Return Loss Data (50Ω Nominal)
Average return loss for 1mm pitched bussed schematic respect to reference pin.
Where reference pins are B1 to B9 referring to CC0910B schematic.
0
5
10
15
Magnitude (-dB)
Magnitude (-dB)
Average return loss for 0.65mm pitched bussed schematic for elements away from reference pins.
For example: CB0565B, reference pins are A3 or B3
0
5
10
15
20
25
30
35
40
45
50
20
25
30
35
40
45
5
0
0
5
10
15
20
25
30
35
40
0
2
4
6
8
Frequency (GHz)
Frequency (GHz)
10
12
14
16
18
20
Typical Return Loss For CC0910B-01-50R0-F
Typical Return Loss For CD1065B-01-50R0-F
Eye Diagram Data
Ideal Terminator
IRC CHC-CC0910B-01-50R0-F Terminator
Impedance Response Data
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
Time, nsec
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
zs1
zs1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Time, nsec
0.8
0.9
1.0
1.1
1.2
Ideal 50Ω Terminator
Impedance response to 100psec rising edge
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
IRC CHC-CC0910B-01-50R0-F Terminator
Impedance response to 100psec rising edge
CHC Series Issue April 2009 Sheet 2 of 4
Ceramic Ball Grid
Termination Arrays
Environmental Data
Environmental Test
Thermal shock
Low temperature operation
Short time overload
High temperature exposure
Effects of solder
Moisture resistance
Life
Specification
MIL-PRF-83401
MIL-PRF-83401
MIL-PRF-83401
MIL-PRF-83401
MIL-PRF-83401
MIL-STD-202, Method 206
65°C, 45% RH, with bias
MIL-PRF-83401
Typical
±0.01%
±0.01%
±0.01%
±0.03%
±0.01%
±0.02%
±0.01%
Maximum
±0.02%
±0.05%
±0.05%
±0.05%
±0.05%
±0.01%
±0.02%

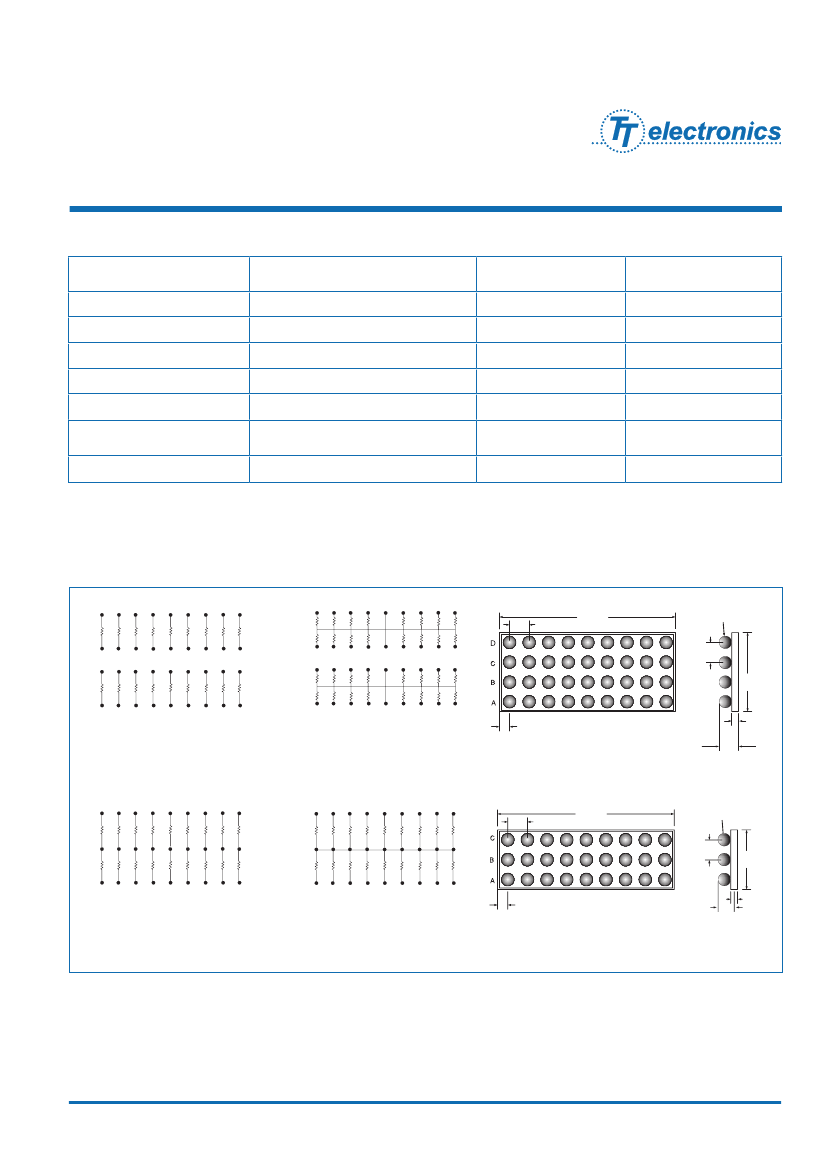

Physical Data and Schematic Diagrams for 1.0mm Pitch Series
A
A
1.00mm
±0.25mm
9.00mm
±0.15mm
0.64mm ±0.05 diameter
solder bumps
B
C
B
C
1.00mm
±0.25mm
4.0mm
±0.15mm
D
D
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
CD0910A isolated schematic
(view from top)
CD0910B bussed schematic
(view from top)
2
3
0.50mm
±0.25mm
4
5
6
7
8
9
0.63mm
±0.1mm
1.27mm
±0.16mm
A
A
1.00mm
±0.25mm
9.00mm
±0.15mm
0.64mm ±0.05 diameter
solder bumps
B
B
1.00mm
±0.25mm
3.0mm
±0.15mm
C
C
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
0.50mm
±0.25mm
3
4
5
6
7
8
9
1.27mm
±0.16mm
CC0910A isolated schematic
(view from top)
CC0910B bussed schematic
(view from top)
0.63mm
±0.1mm
Note: Contact A1 indicator marked with dot on top of part. Coplanarity between solder bumps 0.06mm.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
CHC Series Issue April 2009 Sheet 3 of 4
Ceramic Ball Grid
Termination Arrays

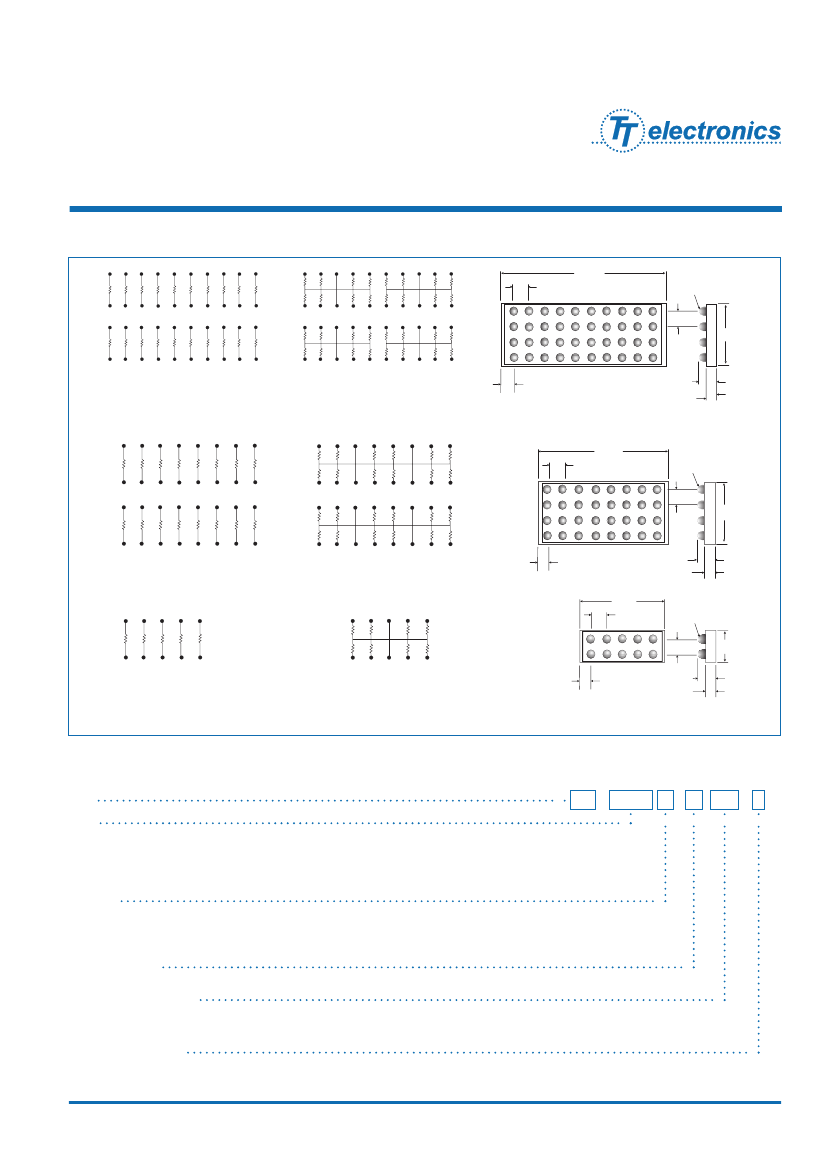

Physical Data and Schematic Diagrams for 0.65mm Pitch Series
A
A
0.65mm
B
C
B
C
6.4mm
±0.1mm
0.35mm diameter
solder bumps
Average return loss for 0.65mm pitched bussed schematic for elements away from reference pins.
0.65mm
C
For example: CB0565B, reference pins are A3 or B3
C
0
5
D
D
B
A
1
2
3
4
B
A
2.5mm
±0.1mm
D
1
2
3
4
5
6
7
8
9
10
D
1
2
3
4
5
6
7
8
9
10
Magnitude (-dB)
10
15
20
25
30
35
40
45
5
6
7
8
9
10
0.64mm
±0.1mm
0.38mm
±0.1mm
CD1065A isolated schematic
(view from top)
CD1065B bussed schematic
(view from top)
0.275mm
±
0.1mm
A
A
5.1mm
±0.1mm
0.65mm
0.35mm diameter
solder bumps
B
C
B
C
50
0
2
D
C
B
4
6
8
Frequency (GHz)
10
12
14
0.65mm
16
18
2.5mm
±0.1mm
20
A
D
D
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
CD0865A isolated schematic
(view from top)
CD0865B bussed schematic
(view from top)
0.275mm
±0.1mm
0.643mm
±0.1mm
0.381mm
±0.1mm
3.2mm
±0.1mm
A
A
B
0.65mm
0.35mm diameter
solder bumps
1.2mm
±0.1mm
B
B
1
2
3
4
5
A
1
2
3
4
5
0.275mm
±0.1mm
0.65mm
CB0565A isolated schematic
(view from top)
CB0565B bussed schematic
(view from top)
0.64mm
±0.1mm
0.38mm
±0.1mm
Note: Contact A1 indicator marked with dot on top of part. Coplanarity between solder bumps 0.06mm.
Ordering Data
Prefix
CB0565 = 2 × 5, 0.65mm pitch array
CD0865 = 4 × 8, 0.65mm pitch array
CD1065 = 4 × 10, 0.65mm pitch array
CC0910 = 3 × 9, 1.0mm pitch array
CD0910 = 4 × 9, 1.0mm pitch array
CHC - CD0865
A - 01 - 51R1 - J
Model
Schematic
A = Isolated schematic with 60/40 Sn/Pb (0.65mm pitch) or 90/10 Sn/Pb (1.0mm pitch) terminations
ALF = Isolated schematic with RoHS compliant terminations
B = Bussed schematic with 60/40 Sn/Pb (0.65mm pitch) or 90/10 Sn/Pb (1.0mm pitch) terminations
BLF = Bussed schematic with RoHS compliant terminations
Absolute TCR Code
01 = ±100ppm/°C
Four Digit Resistance Code
Standard resistance values
10R0 = 10Ω; 15R0 = 15Ω; 22R0 = 22Ω; 33R0 = 33Ω; 47R0 = 47Ω; 50R0 = 50Ω; 51R1 = 51.1Ω;
75R0 = 75Ω; 1000 = 100Ω; 1001 = 1.00KΩ; 1002 = 10.0KΩ; 2201 = 2.20KΩ; 4701 = 4.70KΩ
Absolute Tolerance Code
J = ±5%; G = ±2%; F = ±1%
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
CHC Series Issue April 2009 Sheet 4 of 4
