IMI145152QB datasheet, PDF - EEWORLD Datasheet

IMI145152QB: DescriptionPLL Frequency Synthesizer, CMOS, PQCC28; CategoryAnalog mixed-signal IC The signal circuit; File Size380KB，10 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

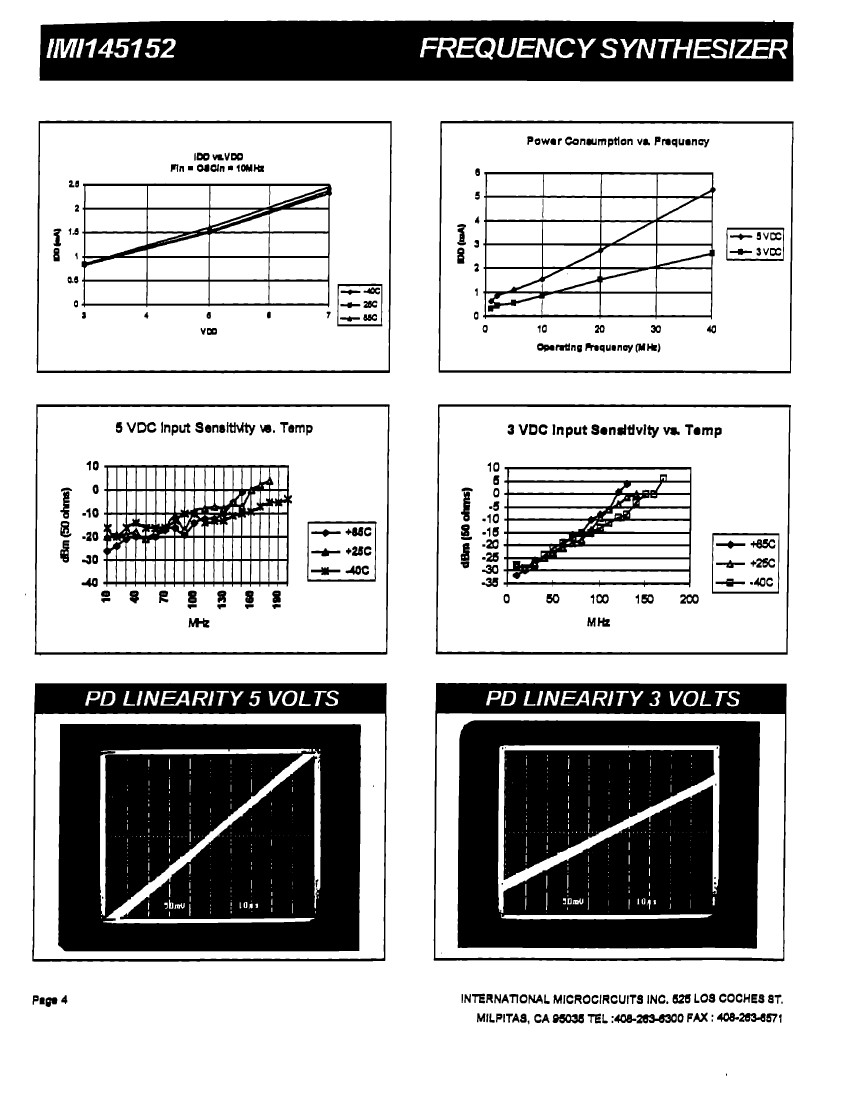

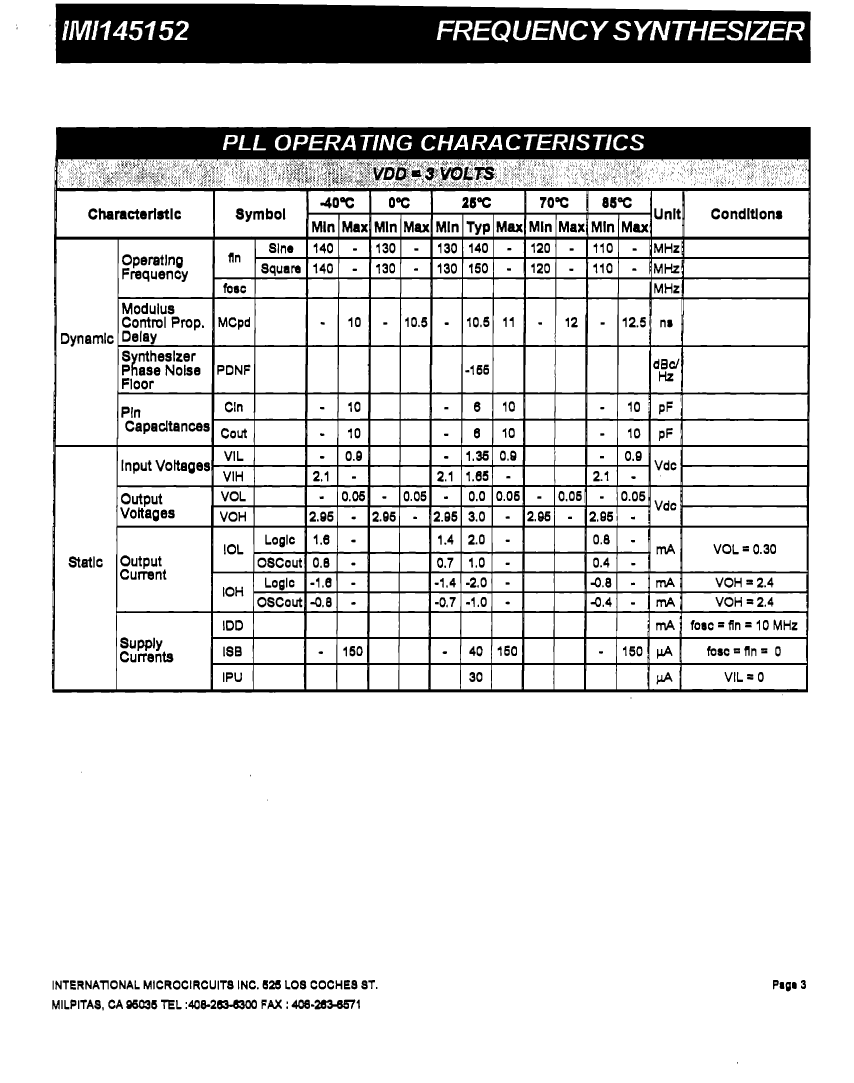

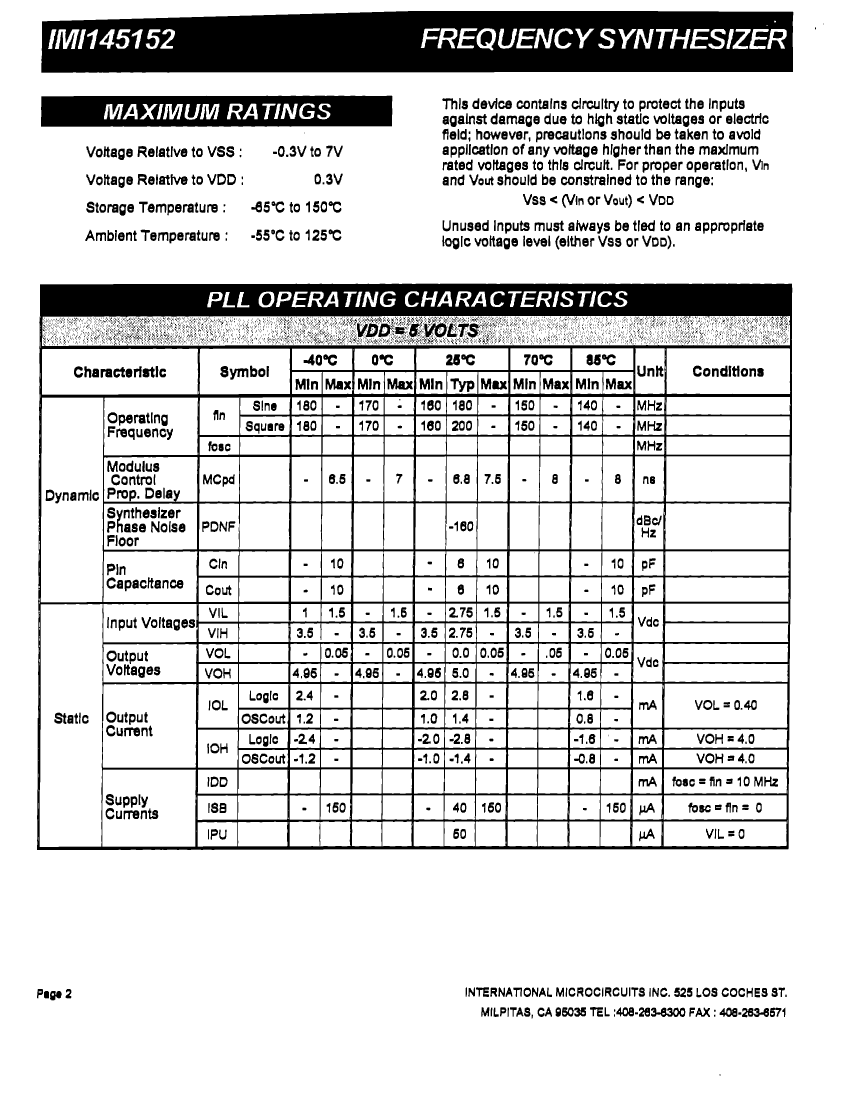

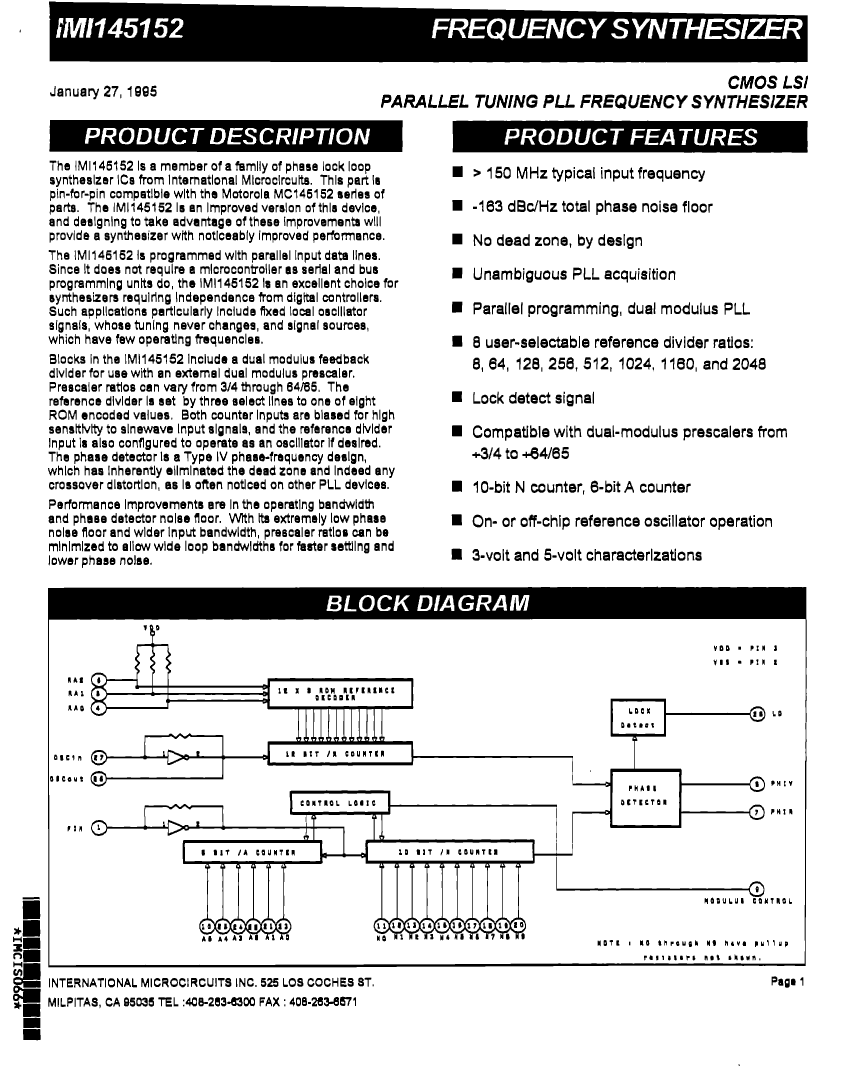

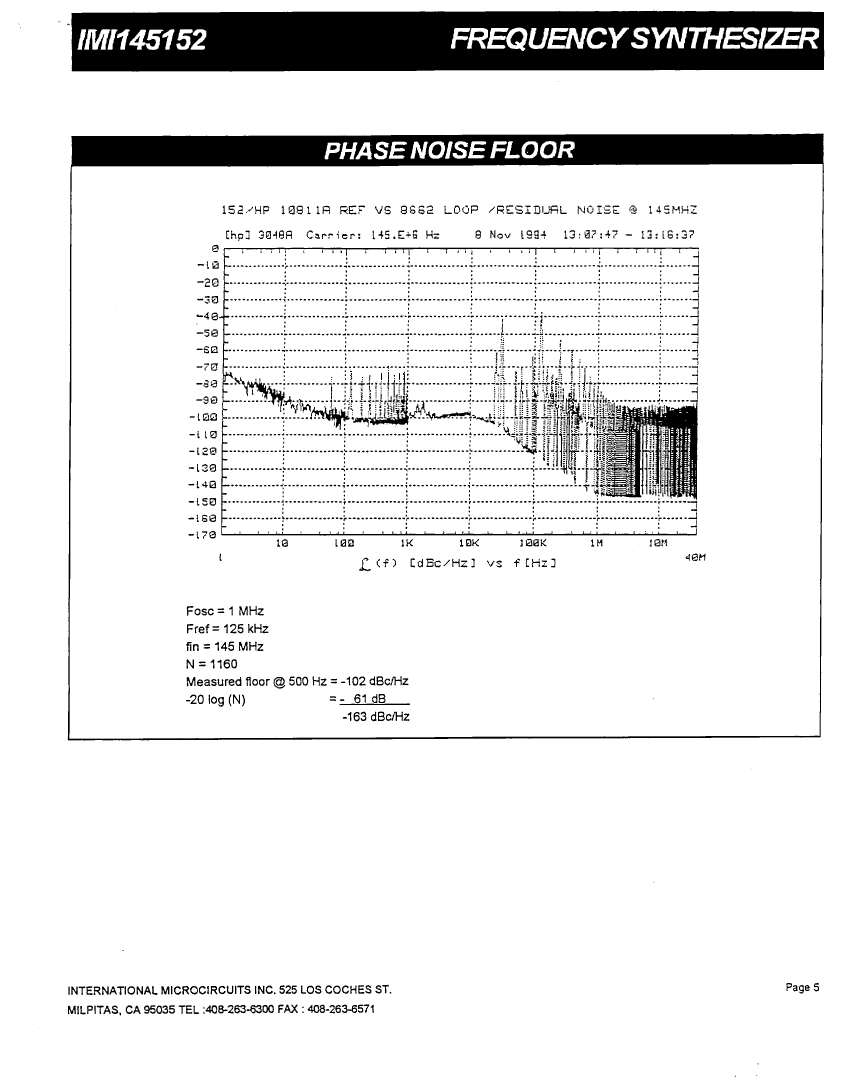

IMI145152QB Overview

PLL Frequency Synthesizer, CMOS, PQCC28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC28,.5SQ
Reach Compliance Code	compliant
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	3/5 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	IMI145152QB	IMI145152PB	IMI145152XB
Description	PLL Frequency Synthesizer, CMOS, PQCC28	PLL Frequency Synthesizer, CMOS, PDIP28	PLL Frequency Synthesizer, CMOS, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant
JESD-30 code	S-PQCC-J28	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	e0
Number of terminals	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	SOP
Encapsulate equivalent code	LDCC28,.5SQ	DIP28,.3	SOP28,.4
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	SMALL OUTLINE
power supply	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
package instruction	QCCJ, LDCC28,.5SQ	-	SOP, SOP28,.4
