MC1,5/4-G-3,5GY datasheet, PDF

Datasheet> All Categories > The connector> terminals> MC1,5/4-G-3,5GY

MC1,5/4-G-3,5GY: DescriptionBarrier Strip Terminal Block,; CategoryThe connector terminals; File Size93KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

MC1,5/4-G-3,5GY Overview

Barrier Strip Terminal Block,

MC1,5/4-G-3,5GY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/1747575

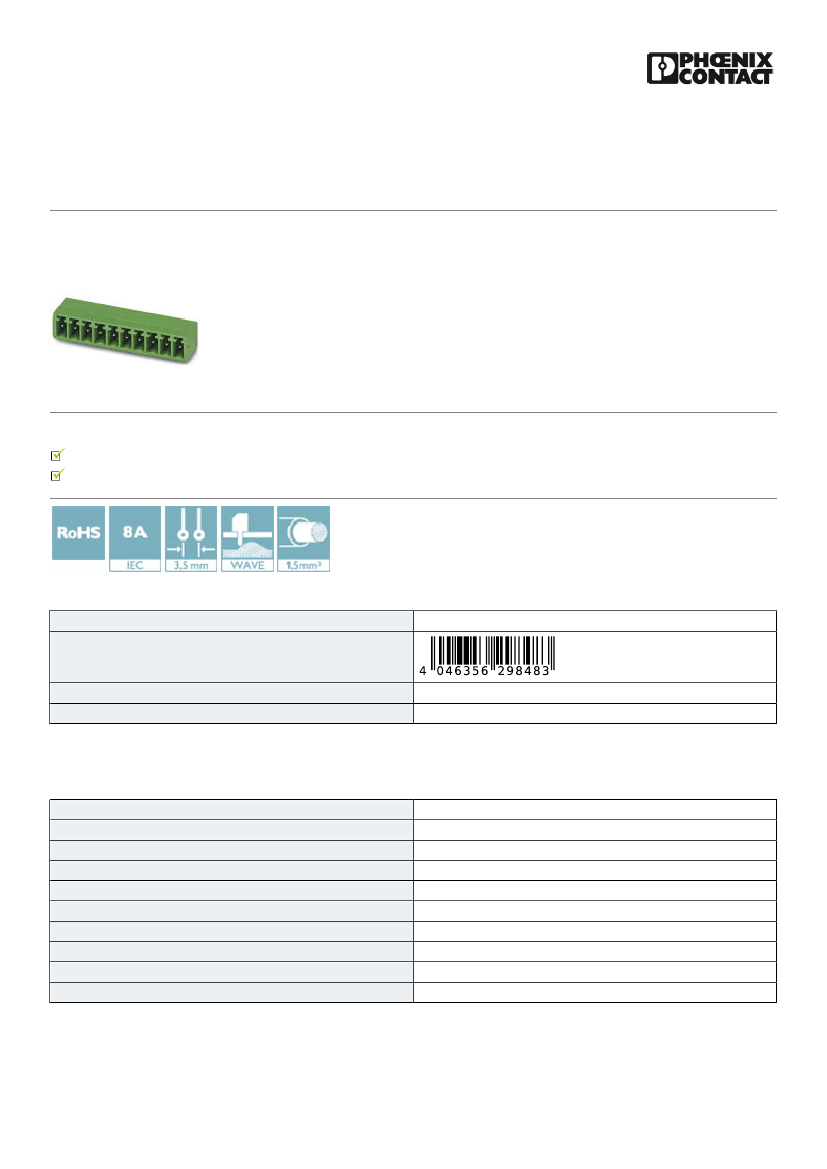

Printed-circuit board connector - MC 1,5/ 4-G-3,5 GY - 1747575

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB headers, nominal current: 8 A, number of positions: 4, pitch: 3.5 mm, color: gray, contact surface: Tin,

mounting: Wave soldering

The figure shows a 10-position

version of the product

Your advantages

Well-known mounting principle allows worldwide use

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356298483

85366930

Technical data

Dimensions

Length [ l ]

Width

Pitch

Dimension a

Width [ w ]

Height [ h ]

Height

Length of the solder pin

Pin dimensions

Length

9.2 mm

15.4 mm

3.5 mm

10.5 mm

15.4 mm

10.65 mm

7.25 mm

3.4 mm

0.8 x 0.8 mm

9.2 mm

General

01/16/2019 Page 1 / 4
