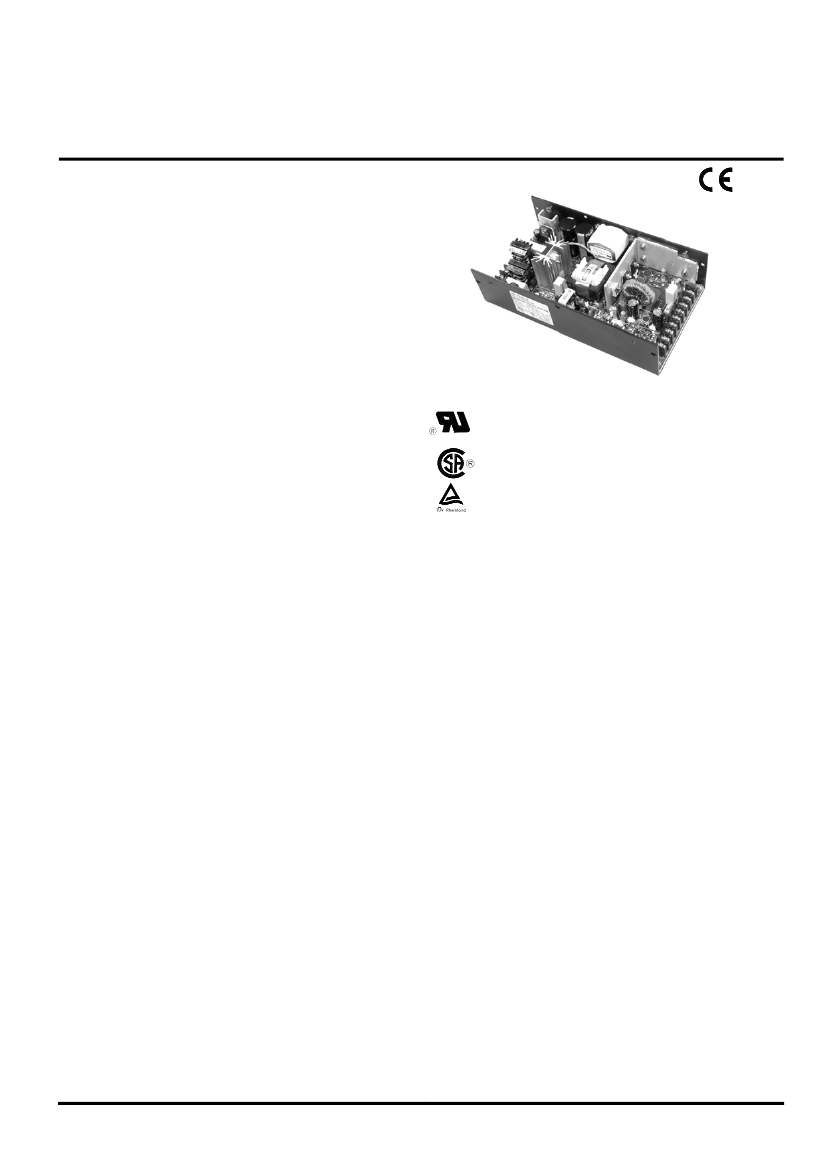

200 WATT MEDICAL POWER SUPPLIES

Preview

Download Datasheet

View All

TRUMPower

D E SCR IPTION

Comprising single and multiple output models

with 200 watts of continuous output power, the

TM200 series is specially designed for medical

applications. Auto-ranging input allows them to

operate from any line voltage throughout the

world without a selector strap. All auxiliary

outputs are with magnetic amplifier or linear

regulator to keep regulation. The units are

constructed on a printed circuit board with a

U-bracket for mechanical support and heat

sinking. A cover-and-fan assembly can be

added during manufacturing.

200 WATT MEDICAL POWER SUPPLIES

TM200 SERIES

(MDD)

Saf et y Sta n da rd A ppr o va ls:

F EATU R E S

‧

Low safety ground leakage current

M e e t E N 5 5 0 11 a n d F C C c l a s s B

Auto-ranging input

Short-circuit protection with auto-recovery

Pow er Fail Detect

（

PFD

）

signal

100% burn-in at full rated load

Optional cover-and-fan assembly

UL 2601-1

CSA C22.2 No. 601.1

TÜV EN60601-1

IN PUT S PE C IF ICAT ION S

I n p u t v o l ta g e :

Input frequency:

Input current:

Leakage current:

9 0 t o 1 3 0 VA C , o r 1 8 0 t o

2 6 4 VA C

（

a u t o - r a n g i n g

）

47 to 63 Hz

4 . 5 A

（

r m s

）

f o r 11 5 VA C

2 . 6 A

（

r m s

）

f o r 2 3 0 VA C

9 0 µ A m a x . @ 11 5 VA C , 6 0 H z

1 5 µ A m a x . @ 2 3 0 VA C , 5 0 H z

E N V IR O N M ENTA L SP E C IF ICATI O N S

Operating temperature:

Storage temperature:

Relative humidity:

Derating:

Cooling:

0ºC to +70ºC

-40ºC to +85ºC

5% to 95% non-condensing

Derate from 100% at +50ºC

linearly to 50% at +70ºC

2 5 C F M f o r c e d a i r, p r o v i d e d

on covered version, to be

provided f o r U - b r a c k e t

version by user

OUTPUT SPECIFICATIONS

Output voltage/current：

See rating chart

Total output power：

Ripple and noise：

200 watts maximum

2% peak to peak maximum

GENERAL SPECIFICATIONS

64KHz ±5KHz

70% minimum on all models

12 msec minimum at 110VAC

±0.5% maximum at full load

20 amps @ 115VAC, or 40 amps @

230VAC, at 25ºC cold start

Withstand voltage：

4000VAC from input to output

1500VAC from input to ground

500VAC from output to ground

MTBF：

450,000 hours at full load at 25ºC

ambient, calculated per

MIL-HDBK-217F

EMC Performance

(EN60601-1-2: 2 0 0 1 )

E N 5 5 0 11 :

Class B conducted, Class B radiated

FCC:

Class B conducted, Class B radiated

VCCI:

Class B conducted, Class B radiated

EN61000-3-2:

Harmonic distortion, Class A

EN61000-3-3:

Line flicker

EN61000-4-2:

ESD, ±8KV air and ±4KV contact

EN61000-4-3:

Radiated immunity, 3V/m

EN61000-4-4:

Fast transient/burst, ±1KV

EN61000-4-5:

Surge, ±1KV diff, ±2KV com.

EN61000-4-6:

Conducted immunity, 3Vrms

EN61000-4-8:

Magnetic field immunity, 1A/m

E N 6 1 0 0 0 - 4 - 11 :

Voltage dips, 30% reduction for 500ms

and >95% reduction for 10ms

Interruptions, >95% for 5000ms

Switching frequency：

Efficiency：

Hold-up time：

Line regulation：

Inrush current：

Overvoltage protection：

Provided on output #1 only; set at

112 – 132% of its nominal output

voltage

Overcurrent protection：

All outputs protected to short

circuit conditions

Temperature coefficient：All

outputs ±0.04%/ºC maximum

Transient response：

Maximum excursion of 4% or

better on all models, recovering to

1% of final value within 500µs

after a 25% step load change

TTL logic high for normal

operation and TTL logic low upon

loss of input power. This signal

appears at least 1 ms prior to +5V

output dropping 5% below its

nominal value. This signal also

provides a minimum delay of 100

ms after +5V is within regulation.

PFD signal：

Tumbler Technologies + TRUMPower

3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA

Phone: 408-988-6616

●

Fax: 408-988-6622

●

email: sales@trumpower.com

●

Website: www.TRUMPower.com
