Z84C4306AEG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C4306AEG

Z84C4306AEG: DescriptionSerial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQFP44, LEAD FREE, LQFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，25 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

Z84C4306AEG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C4306AEG	-	-	View	Buy Now

Z84C4306AEG Overview

Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQFP44, LEAD FREE, LQFP-44

Z84C4306AEG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	QFP
package instruction	QFP, QFP44,.47SQ,32
Contacts	44
Reach Compliance Code	compliant
Address bus width
bit size	8
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	6 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	S-PQFP-G44
JESD-609 code	e3
length	10 mm
low power mode	YES
Number of serial I/Os	2
Number of terminals	44
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
speed	6 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

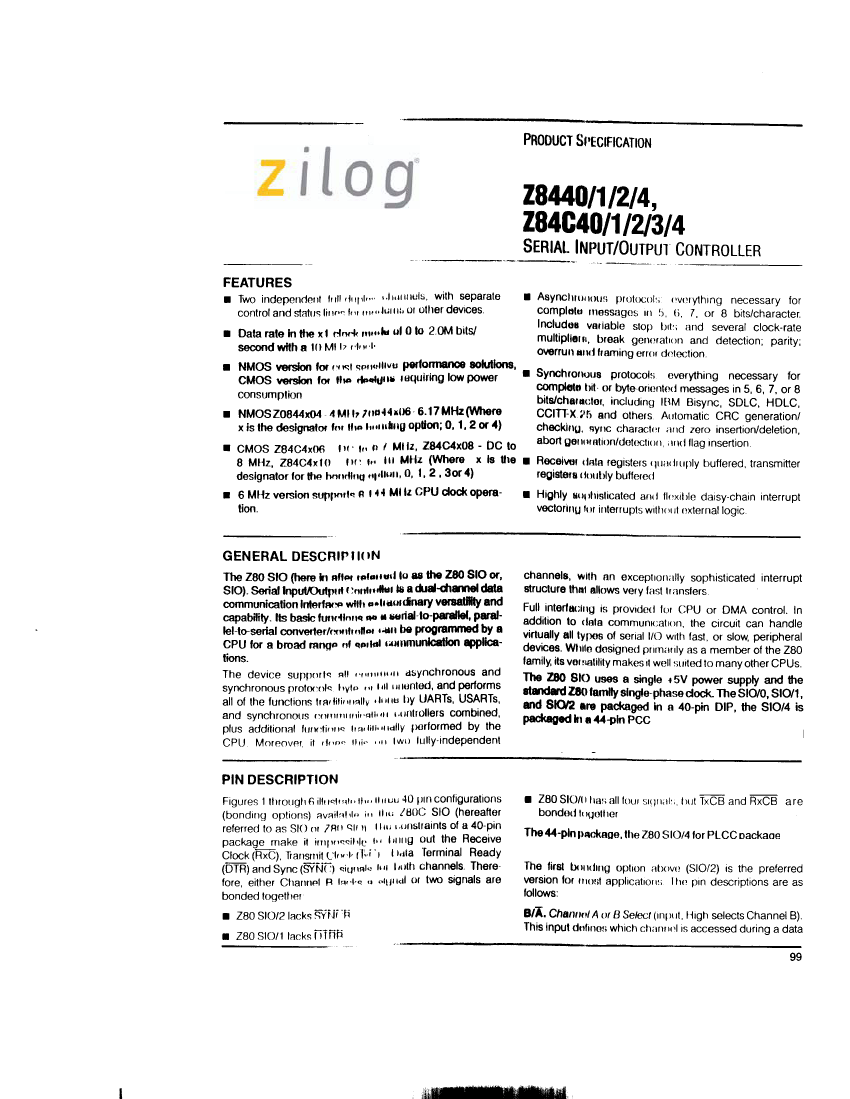

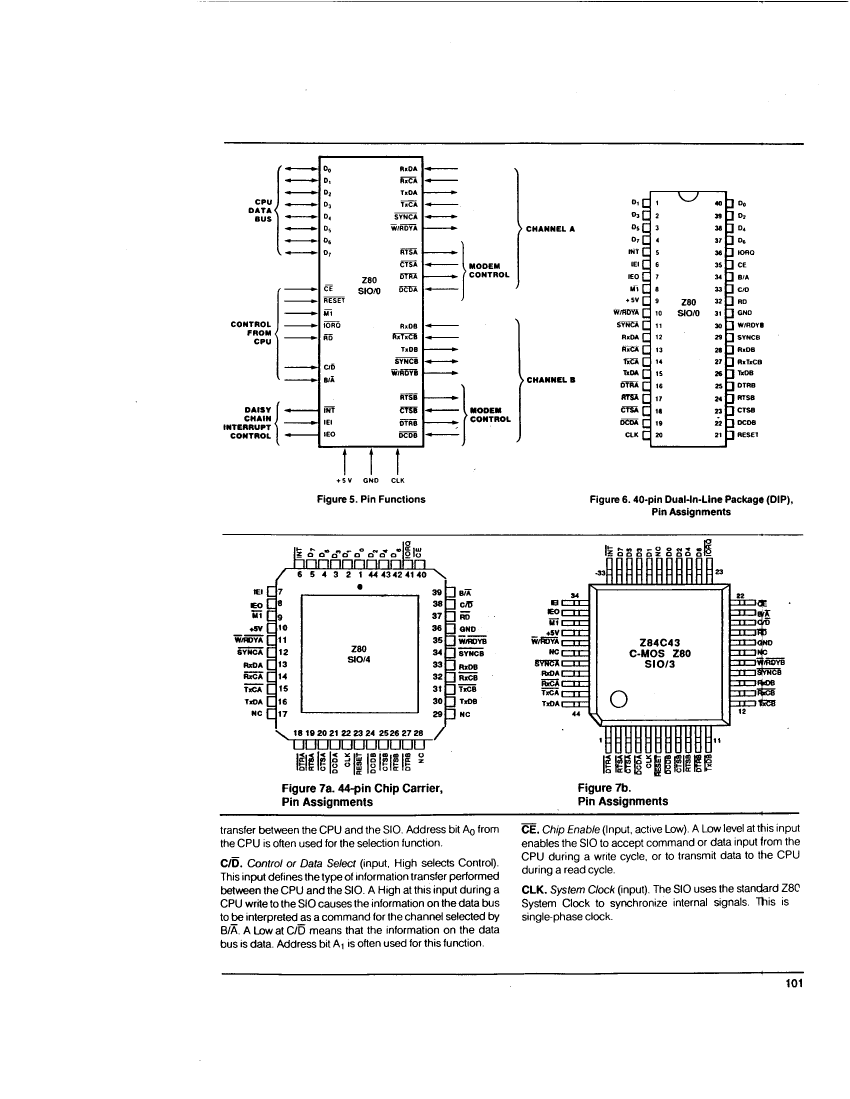

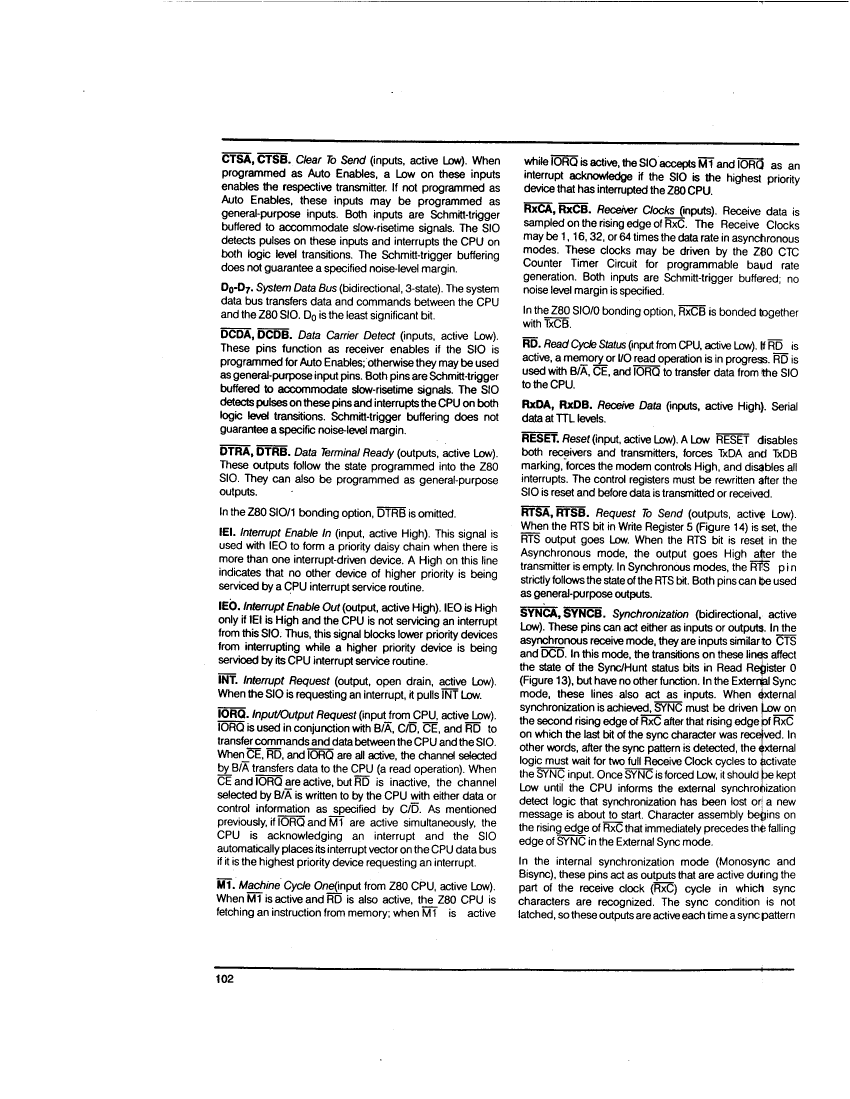

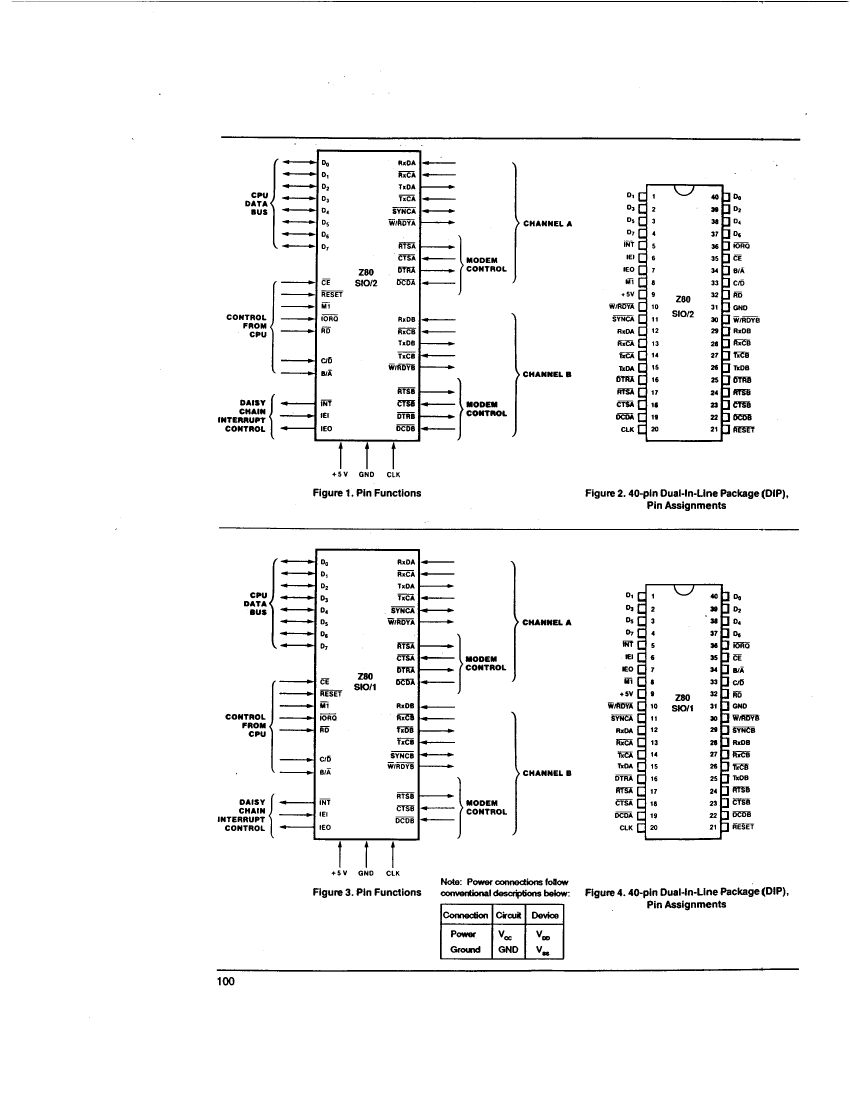

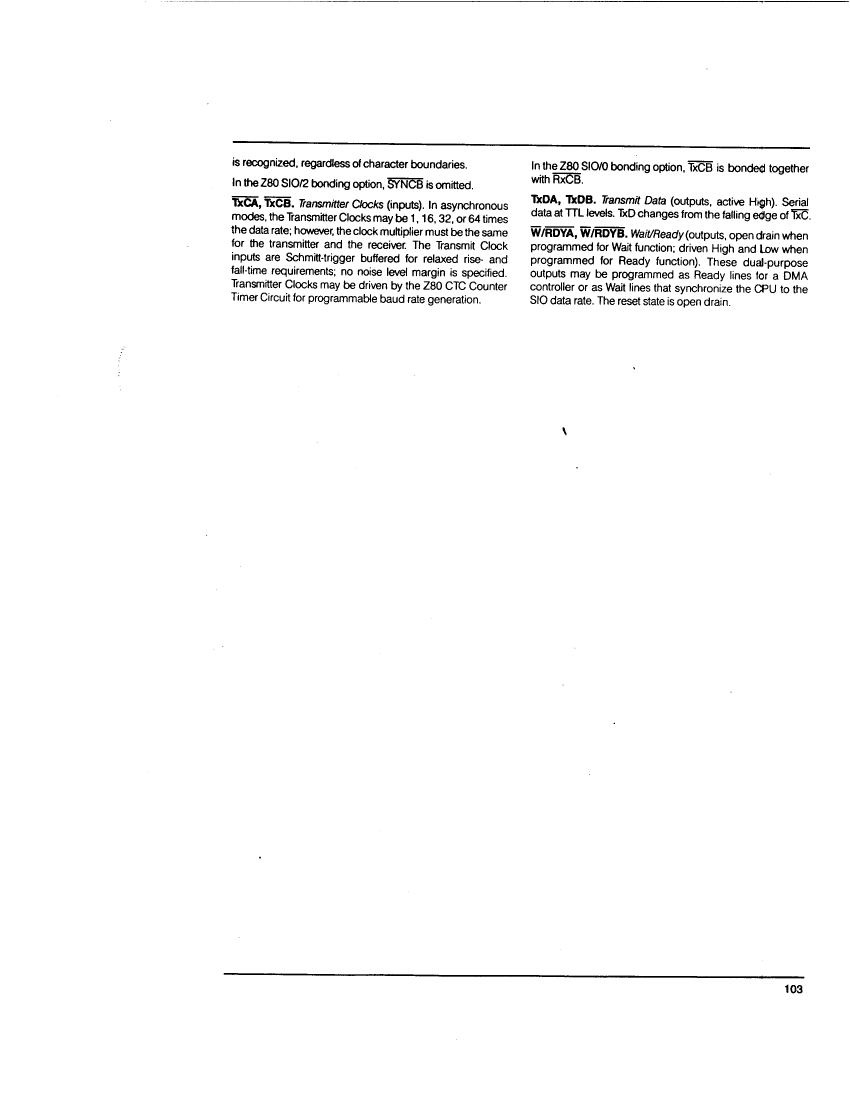

Z80 SIO/3 for LQFP, has all options (Figure 7a and 7b).

PS018301-0602

Z84C4306AEG Related Products

	Z84C4306AEG	Z84C4310AEG
Description	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQFP44, LEAD FREE, LQFP-44	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQFP44, LEAD FREE, LQFP-44
Is it Rohs certified?	conform to	conform to
Parts packaging code	QFP	QFP
package instruction	QFP, QFP44,.47SQ,32	QFP, QFP44,.47SQ,32
Contacts	44	44
Reach Compliance Code	compliant	compliant
bit size	8	8
boundary scan	NO	NO
Bus compatibility	Z80	Z80
maximum clock frequency	6 MHz	6 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ	NRZ
Maximum data transfer rate	0.25 MBps	0.25 MBps
External data bus width	8	8
JESD-30 code	S-PQFP-G44	S-PQFP-G44
low power mode	YES	YES
Number of serial I/Os	2	2
Number of terminals	44	44
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP44,.47SQ,32	QFP44,.47SQ,32
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
speed	6 MHz	10 MHz
Maximum slew rate	10 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1
