ZX10-2-252+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX10-2-252+

ZX10-2-252+: DescriptionCombiner, 500MHz Min, 2500MHz Max, 1.7dB Insertion Loss-Max, ROHS COMPLIANT, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size214KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX10-2-252+ Overview

Combiner, 500MHz Min, 2500MHz Max, 1.7dB Insertion Loss-Max, ROHS COMPLIANT, CASE FL905

ZX10-2-252+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ISOLATION-MIN (DB):10
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	31.76 dBm
Maximum insertion loss	1.7 dB
Maximum operating frequency	2500 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.57
Base Number Matches	1

Preview

Download Datasheet

View All

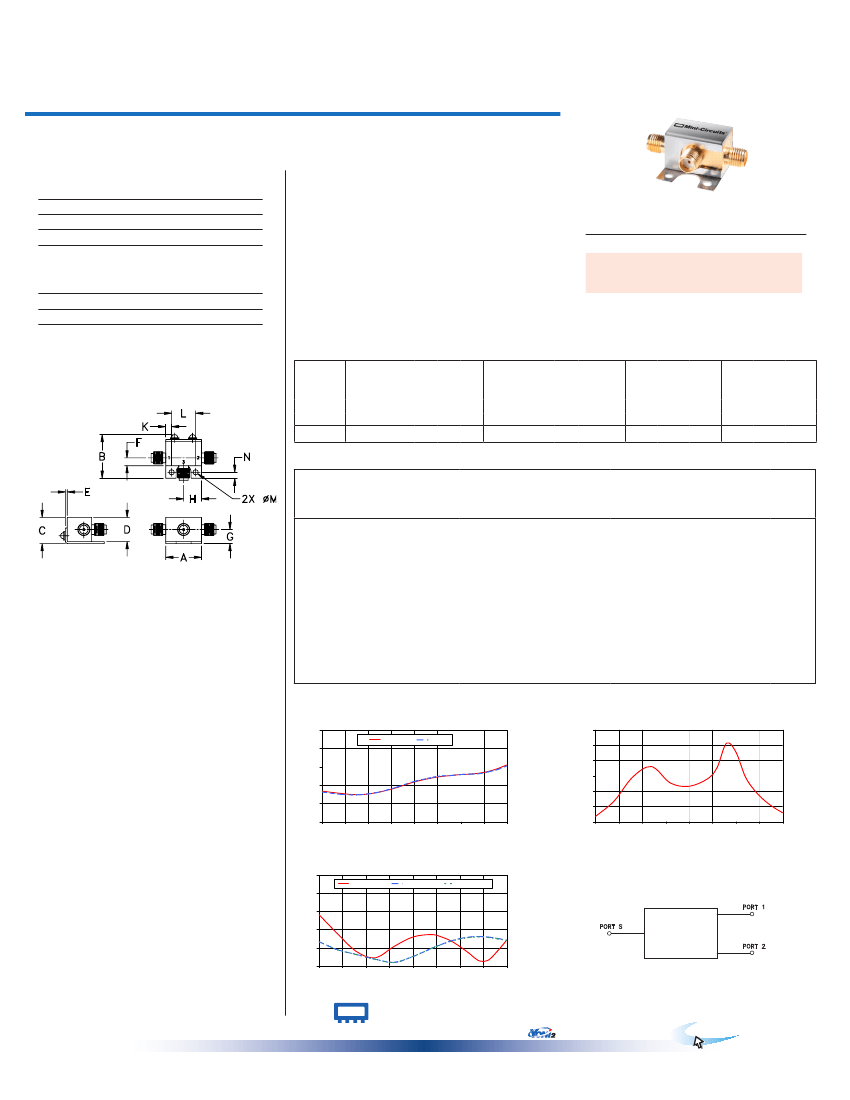

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation (as a combiner)

-40°C to 85°C

-55°C to 100°C

1.5W max.

0.75W max.

Coaxial

ZX10-2-252+

50Ω

500 to 2500 MHz

Features

• wide bandwidth, 500 to 2500 MHz

• excellent amplitude unbalance, 0.02 dB typ.

• very good phase unbalance, 1 deg. typ.

• small size

• low cost

• protected under U.S. Patent 6,790,049

CASE STYLE: FL905

Connectors Model

SMA

ZX10-2-252-S+

Price

$31.95

Qty.

(1-24)

Permanent damage may occur if any of these limits are exceeded.

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• PCN

• GPS

• radar

• Cellular

• DCS

FREQ.

RANGE

(MHz)

-f

500-2500

• DCS

• GSM

• communications

• WCDMA

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

PHASE

UNBALANCE

(Degrees)

Max.

4.0

Outline Drawing

AMPLITUDE

UNBALANCE

(dB)

Max.

0.2

Typ. Min.

Typ. Max.

0.9

1.7

Typical Performance Data

Frequency

(MHz)

Total Loss

(dB)

S-1

500.0

700.0

900.0

1100.0

1300.0

1500.0

1700.0

1800.0

1900.0

2000.0

2100.0

2200.0

2300.0

2400.0

2500.0

3.67

3.62

3.59

3.64

3.74

3.87

3.96

3.99

4.01

4.03

4.04

4.06

4.10

4.16

4.24

S-2

3.65

3.60

3.59

3.64

3.75

3.88

3.97

4.00

4.01

4.03

4.04

4.05

4.09

4.14

4.22

Amplitude

Unbalance

(dB)

0.01

0.02

0.01

0.00

0.01

0.00

0.01

0.02

Isolation

(dB)

Phase

Unbalance

(deg.)

0.29

0.36

0.43

0.53

0.61

0.69

0.77

0.82

0.86

0.91

0.96

1.00

1.05

1.07

1.12

VSWR

11.62

16.70

24.57

27.96

22.65

21.54

24.03

27.66

35.60

32.76

24.72

20.20

17.05

14.71

12.86

1.57

1.35

1.16

1.09

1.21

1.32

1.34

1.32

1.28

1.21

1.14

1.06

1.16

1.28

1.27

1.18

1.12

1.07

1.04

1.10

1.19

1.23

1.27

1.30

1.32

1.30

1.28

1.26

1.18

1.12

1.07

1.04

1.10

1.19

1.23

1.27

1.29

1.31

1.32

1.31

1.30

1.28

Outline Dimensions (

inch

)

.74

18.80

.37

9.40

.90

22.86

.54

13.72

.122

3.10

.50

12.70

.496

12.60

.04

1.02

.106

2.69

.16

4.06

.29

7.37

.122 grams

3.10

20.0

1. Total Loss = Insertion Loss + 3dB splitter loss.

ZX10-2-252+

TOTAL LOSS

5.0

ZX10-2-252+

ISOLATION

S-2

S-1

TOTAL LOSS (dB)

ISOLATION (dB)

4.6

4.2

3.8

3.4

3.0

500

750

1000

1250

1500

1750

2000

2250

2500

750

1000

1250

1500

1750

2000

2250

2500

FREQUENCY (MHz)

2.0

ZX10-2-252+

VSWR

#S-VSWR

#1-VSWR

#2-VSWR

1.8

electrical schematic

VSWR

1.6

1.4

1.2

1.0

500

750

1000

1250

1500

1750

2000

2250

2500

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. A

M127604

ZX10-2-252+

ED-13246A/1

DY/CP

120130

ZX10-2-252+ Related Products

	ZX10-2-252+	ZX10-2-252-S+
Description	Combiner, 500MHz Min, 2500MHz Max, 1.7dB Insertion Loss-Max, ROHS COMPLIANT, CASE FL905	Combiner, 500MHz Min, 2500MHz Max, 1.7dB Insertion Loss-Max, ROHS COMPLIANT, CASE FL905
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
Other features	ISOLATION-MIN (DB):10	SMA, ISOLATION-MIN (DB):10
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	31.76 dBm	31.76 dBm
Maximum insertion loss	1.7 dB	1.7 dB
Maximum operating frequency	2500 MHz	2500 MHz
Minimum operating frequency	500 MHz	500 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	COMBINER	COMBINER
Maximum voltage standing wave ratio	1.57	1.57
Base Number Matches	1	1
