D24005

Description
General Purpose Inductor, 100uH, 20%, 1 Element,
CategoryPassive components    inductor
File Size52KB,1 Pages
ManufacturerFalco Electronics
Download Datasheet Parametric Compare View All

D24005 Overview

General Purpose Inductor, 100uH, 20%, 1 Element,

D24005 Parametric

Parameter NameAttribute value
MakerFalco Electronics
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.034 Ω
Nominal inductance(L)100 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberPID02420
Number of functions1
Number of terminals2
Maximum rated current9 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.01 MHz
Tolerance20%
Base Number Matches1

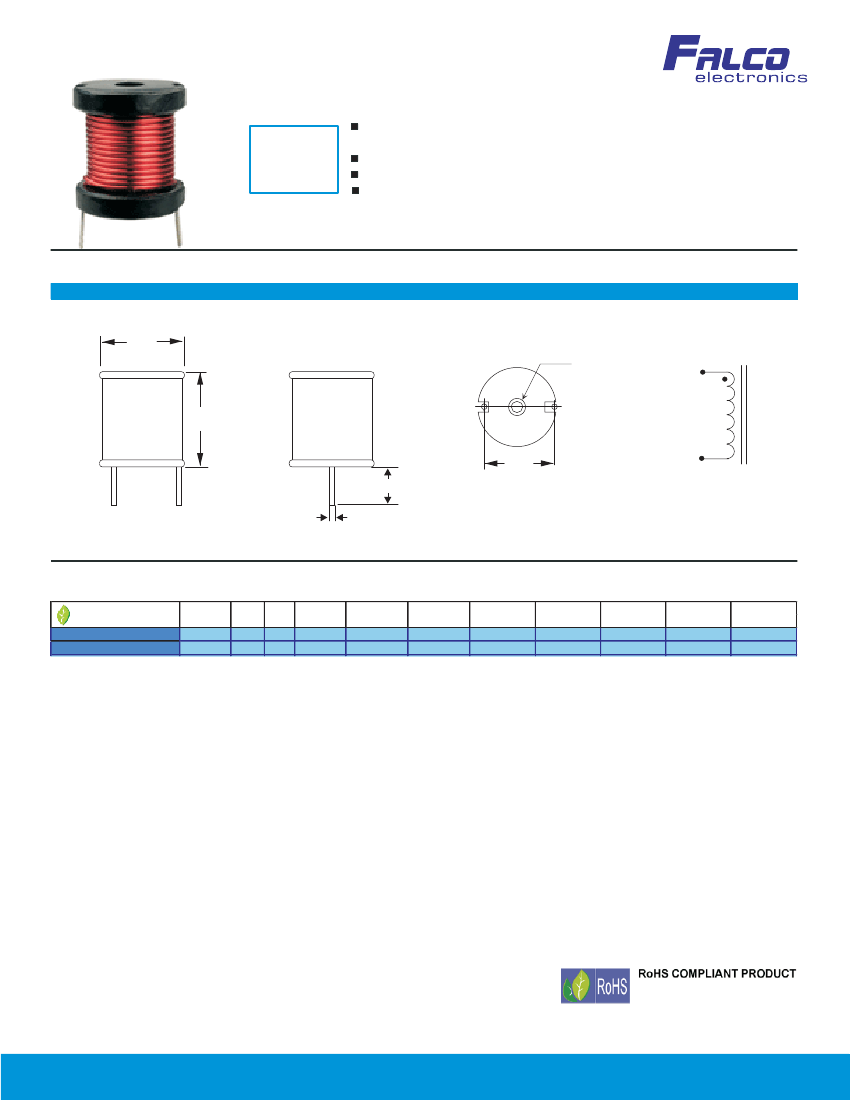

Power Inductor 24 mm OD Drum Core
POWER MAGNETICS
( PID02420 Series )
MAX. DIM :
L = 27.94 mm
W= 27.94 mm
H = 21.84 mm
Used as ouput choke in switch mode power supplies, switching
regulators and audio filters.
Handle up to 13 Amps.
Inductance available from 5.3 µH to 226 µH.
Complies with UL, CSA, IEC standards.
MECHANICAL SPECIFICATIONS
Front View
Side View
PCB Layout (Top)
Schematic
A
Hole for
4/40 screw.
1
1
2
B
Pin.
Space
2
1
2
Pin. Dia.
C
2
±0.040"
[1.01]
INCHES [mm]
ELECTRICAL SPECIFICATIONS
RoHS PART NUMBER
D24005
D24004
L(μH)
TOL Freq.
(KHz)
100.0 ±20% 10.0
180.0 ±20% 10.0
1
DCR (Ω)
max.
0.0340
0.0720
2
3
A max.
B max.
C nom.
Isat (ADC) Irms (amp)
typ.
max.
in / mm
in / mm
in / mm
13.20
9.00 1.100 / 27.94 0.860 / 21.84 0.540 / 13.71
9.70
5.50 1.100 / 27.94 0.860 / 21.84 0.540 / 13.71
Pin dia.
Pin space
in / mm
in / mm
0.051 / 1.30 0.781 / 19.83
0.039 / 1.00 0.781 / 19.83
1. Inductance tested at 0.25 V.
2. Inductance drop 10% typ. at Isat.
3. Termperature rise is 40°C Typ.
4. L and DCR tested at Ta=25°C.
1-1
PID02420.PDF REV: A1 12/07
phone (305) 662-7276
e-fax: (520) 752-3268
e-mail:sales@falcomex.com
www.falco.com

D24005 Related Products

D24005 D24004
Description General Purpose Inductor, 100uH, 20%, 1 Element, General Purpose Inductor, 180uH, 20%, 1 Element,
Maker Falco Electronics Falco Electronics
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
DC Resistance 0.034 Ω 0.072 Ω
Nominal inductance(L) 100 µH 180 µH
Inductor Applications POWER INDUCTOR POWER INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
Manufacturer's serial number PID02420 PID02420
Number of functions 1 1
Number of terminals 2 2
Maximum rated current 9 A 5.5 A
Shape/Size Description CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
shield NO NO
surface mount NO NO
Terminal location RADIAL RADIAL
Terminal shape WIRE WIRE
Test frequency 0.01 MHz 0.01 MHz
Tolerance 20% 20%
Base Number Matches 1 1
